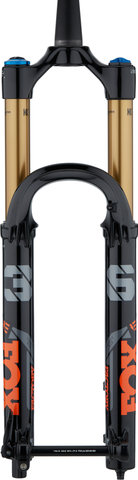

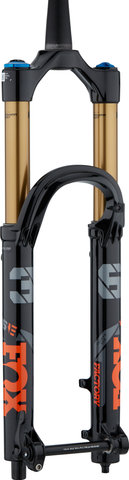

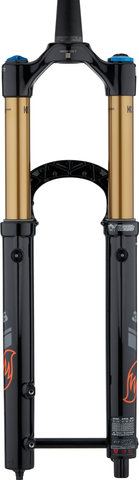

Fox Racing Shox 36 Float 27.5" GRIP2 Factory Boost E-Optimized Suspension Fork 2023

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain

Wheel Size:

27.5" (650B)

Suspension Type:

air

Travel:

140 mm, 160 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

thru-axle with quick release lever

Wheel Standard:

15 x 110 mm (Boost)

Brake Mount:

disc PM7 (direct mount 180 mm)

Technical Information:

Offset:

44 mm

Steerer Tube Length:

263 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

36 mm

Steerer Tube Material:

aluminium

Crown Material:

aluminium

Stanchion Tube Material:

aluminium

Lower Tube Material:

magnesium

Adjustment Options:

Compression:

High-Speed, Low-Speed

Rebound:

High-Speed, Low-Speed

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Approved For:

Note:

The tyre clearance must be checked with the fork fully compressed every time you change the tyre or the rim. It should be at least 8.5 mm all around.

Rotor Size (max.):

230 mm

Air Pressure (max.):

120 psi (8.3 bar)

Features:

• E-bike suspension fork with Boost installation width for all-mountain trails
• E-MTB optimised chassis
• GRIP2 damping cartridge with maximum adjustment possibilities
• setting high-speed compression and rebound

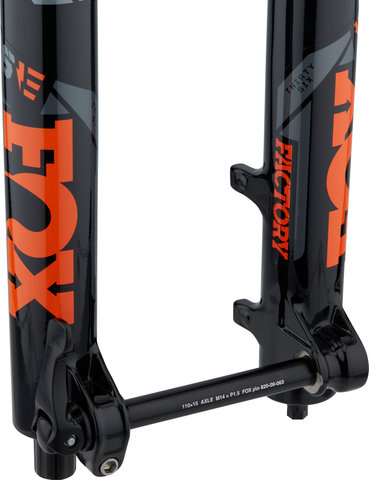

• floating axle for optimal alignment of hub and suspension fork
• with bleed valves for quick, uncomplicated adjustment of the ambient air pressure

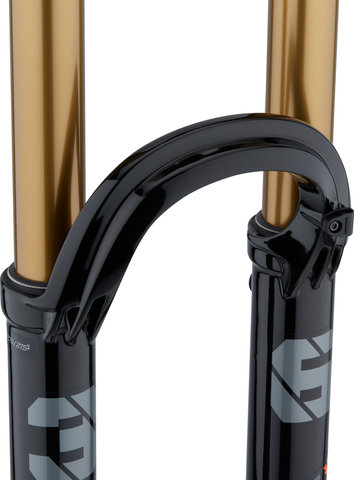

• fork crown design optimised for high stiffness, plenty of space in the head tube area and short leading edge
• air and oil channels in the dip tubes for continuous lubrication of the foam rings and prevention of excessive pressure increase
• Factory series with Kashima coating for minimised friction and optimised responsiveness
• Float EVOL air suspension for sensitive response, linear spring characteristics and optimum support through the entire travel

Technology:

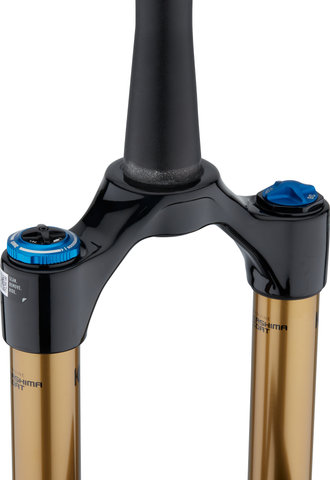

Kashima Coat
The distinctive golden Genuine Kashima Coat offers superior overall performance and ensures minimum friction and optimum response with maximum durability.

Models:

140 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

140 mm

Offset:

44 mm

Axle to Crown:

533.6 mm

Manufacturer Number:

910-21-105

160 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

160 mm

Offset:

44 mm

Axle to Crown:

553.6 mm

Manufacturer Number:

910-21-103

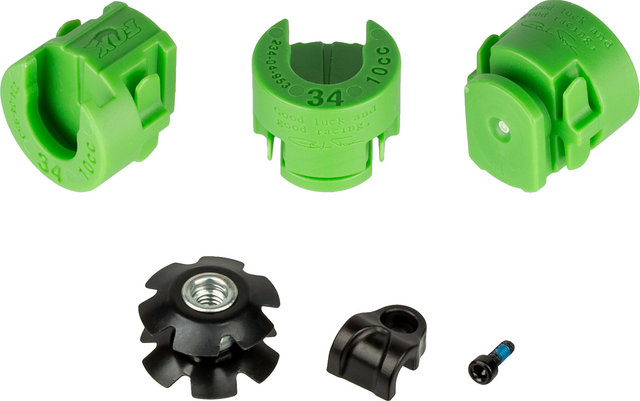

Contents:

• 1 x Fox Racing Shox 36 27.5" Float GRIP2 Factory Boost E-Optimized suspension fork
• 1 x Fox Racing Shox thru-axle with quick release
• 3 x Fox Racing Shox volume spacers
• 1 x hose guides
• 1 x star nut
