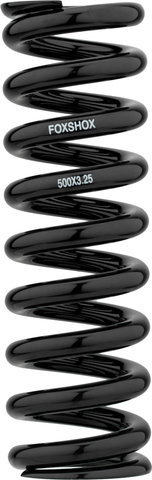

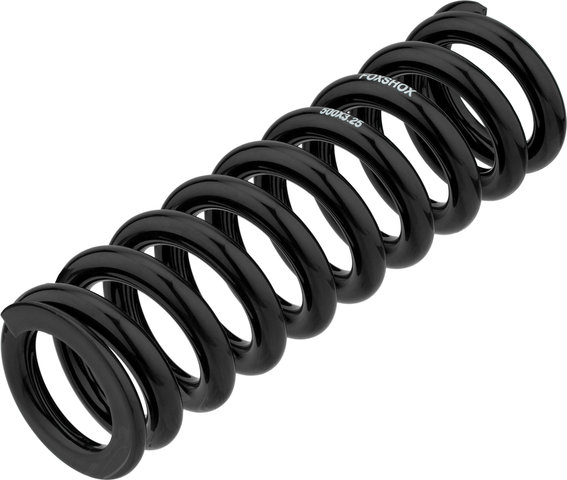

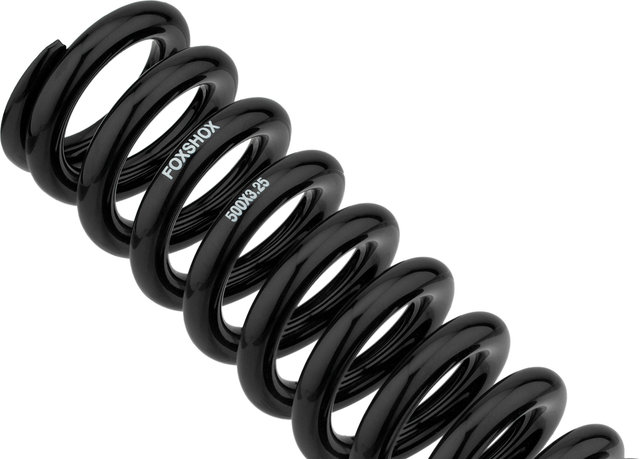

Fox Racing Shox Steel spring for 69 - 76 mm stroke

The Fox Racing Shox steel coil for shocks with a stroke between 69 and 76 mm

This Fox Racing Shox steel coil is suitable for compatible shocks with 69 to 76 mm stroke. The stroke of the coil varies between 81 and 83 mm.

Specifications:

Application:

Downhill, Enduro, All Mountain

Rear Shock (Size x Travel):

222 x 69 mm (8.75" x 2.75" ), 241 x 76 mm (9.50" x 3.00" ), 225 x 70 mm, 225 x 72.5 mm, 225 x 75 mm, 250 x 70 mm, 250 x 72.5 mm, 250 x 75 mm

Stroke:

81 mm, 82 mm, 83 mm

Inner Diameter:

35 mm (1.385" )

Compatibility:

• Fox DHX2 rear shock
• Fox DHX rear shock
• Fox VAN shock
• Marzocchi Bomber CR shock

Note from the manufacturer:

Depending on the shock model, it may happen that a coil is too long or too short. Therefore, also consider the coil length when making your choice.

Models:

250 lbs:

Coil Length:

164 mm

Stroke:

83 mm (3.25" )

Spring Rate:

250 lbs/inch

Manufacturer Number:

039-09-010

300 lbs:

Coil Length:

156 mm

Stroke:

82 mm (3.240" )

Spring Rate:

300 lbs/inch

Manufacturer Number:

039-03-000

350 lbs:

Coil Length:

170 mm

Stroke:

83 mm (3.25" )

Spring Rate:

350 lbs/inch

Manufacturer Number:

039-09-001

400 lbs:

Coil Length:

169 mm

Stroke:

83 mm (3.25" )

Spring Rate:

400 lbs/inch

Manufacturer Number:

039-09-002

450 lbs:

Coil Length:

172 mm

Stroke:

83 mm (3.25" )

Spring Rate:

450 lbs/inch

Manufacturer Number:

039-09-003

500 lbs:

Coil Length:

175 mm

Stroke:

83 mm (3.25" )

Spring Rate:

500 lbs/inch

Manufacturer Number:

039-09-004

550 lbs:

Coil Length:

176 mm

Stroke:

83 mm (3.25" )

Spring Rate:

550 lbs/inch

Manufacturer Number:

039-09-005

600 lbs:

Coil Length:

175 mm

Stroke:

83 mm (3.25" )

Spring Rate:

600 lbs/inch

Manufacturer Number:

039-09-006

650 lbs:

Coil Length:

173 mm

Stroke:

81 mm (3.19" )

Spring Rate:

650 lbs/inch

Manufacturer Number:

039-09-007

700 lbs:

Coil Length:

181 mm

Stroke:

81 mm (3.19" )

Spring Rate:

700 lbs/inch

Manufacturer Number:

039-09-008

Contents:

• 1 x Fox Racing Shox steel coil
