Fox Racing Shox Transfer Internal Factory 175 mm Dropper Post - 2021 Model

Item number: 77461
from 360.50€

excl. shipping cost
to the delivery destination: USA

Availability:
Choose model
Quantity:

Delivery to USA is not possible.

Fox Racing Shox Transfer Internal Factory 175 mm Dropper Post - 2021 Model - kashima/30.9 mm / 475.1 mm / SB 0 mm / 1x remote
Fox Racing Shox Transfer Internal Factory 175 mm Dropper Post - 2021 Model - kashima/30.9 mm / 475.1 mm / SB 0 mm / 1x remote
Fox Racing Shox Transfer Internal Factory 175 mm Dropper Post - 2021 Model - kashima/30.9 mm / 475.1 mm / SB 0 mm / 1x remote
  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.84 / 5.00

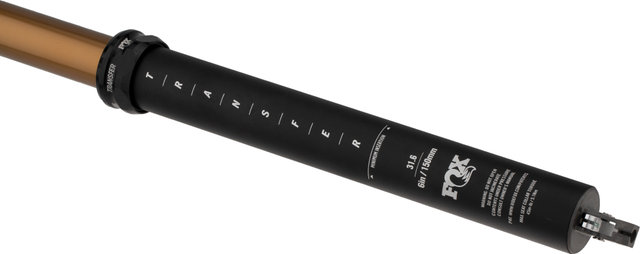

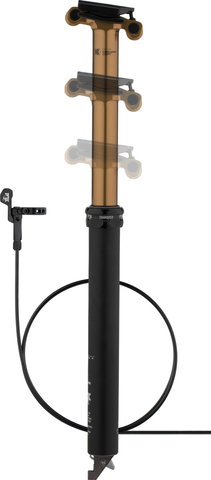

The Transfer Internal Factory 175 mm dropper post by Fox Racing Shox - light and compact


The Factory dropper post by Fox Racing Shox with a Genuine Kashima Coat and 175 mm of travel shines in the 2021 model year with reduced overall length and insertion depth. This makes it more compact and lighter. Two different lever designs as well as four travel variants ensure that the dropper post fits every bike. The Bowden cable for control is only routed internally for this model series. In addition, the ease of maintenance has been improved, because even a Transfer needs some care every now and then.

Specifications:


Application: Cross Country, All Mountain
Travel: 175 mm
Diameter: 30.9 mm, 31.6 mm
Length: 475.1 mm
Setback: 0 mm
Product Line: Factory

Technical Information:


Actuation: mechanical handlebar remote
Remote Mount: Matchmaker, Shimano I-Spec EV (1x remote), clamp (2x / 3x remote)
Cable Routing: internal
Clamp: 2-bolt
Compatible Saddle Rails: 7 x 7 mm (standard), 7 x 9 mm (oval)
Material: aluminium

Approved For:


Insertion Depth (max.): 289.9 mm

Features:

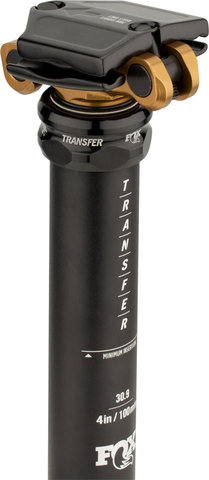

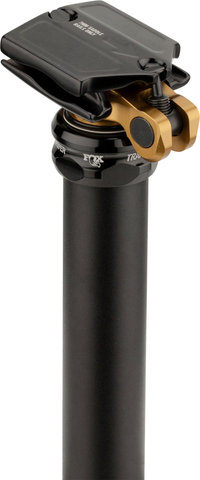

- the patented saddle clamp design reduces the overall height
- more maintenance friendly
- 30.9 or 31.6 mm diameter
- Factory Series model with Genuine Kashima Coat

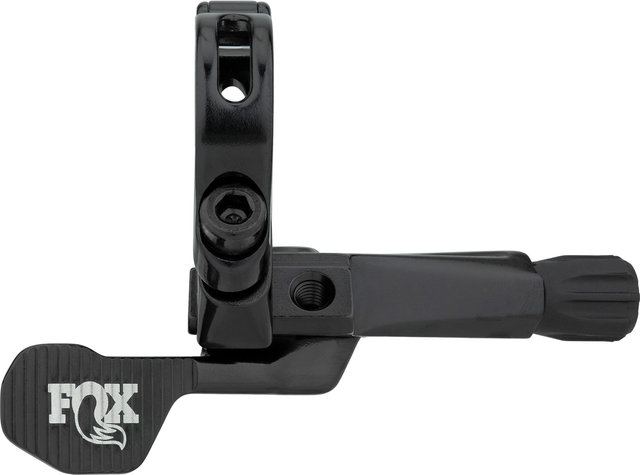

- remote lever 1x: to mount on the left underneath the handlebars instead of a shift lever
- remote lever 2 / 3x: to mount left or right above the handlebars

Models:


30.9 mm / 475.1 mm / SB 0 mm / not incl. remote:
Diameter: 30.9 mm
Length: 475.1 mm
Setback: 0 mm
Manufacturer Part Number: 925-01-148

30.9 mm / 475.1 mm / SB 0 mm / 1x remote:
Diameter: 30.9 mm
Length: 475.1 mm
Setback: 0 mm
Manufacturer Part Numbers: 925-01-148 + 925-06-004

30.9 mm / 475.1 mm / SB 0 mm / 2x/3x remote:
Diameter: 30.9 mm
Length: 475.1 mm
Setback: 0 mm
Manufacturer Part Numbers: 925-01-148 + 925-06-002

31.6 mm / 475.1 mm / SB 0 mm / not incl. remote:
Diameter: 31.6 mm
Length: 475.1 mm
Setback: 0 mm
Manufacturer Part Number: 925-01-149

31.6 mm / 475.1 mm / SB 0 mm / 1x remote:
Diameter: 31.6 mm
Length: 475.1 mm
Setback: 0 mm
Manufacturer Part Numbers: 925-01-149 + 925-06-004

31.6 mm / 475.1 mm / SB 0 mm / 2x/3x remote:
Diameter: 31.6 mm
Length: 475.1 mm
Setback: 0 mm
Manufacturer Part Numbers: 925-01-149 + 925-06-002

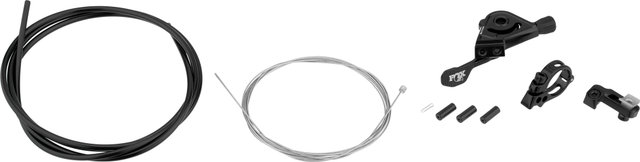

Contents:


Versions With Remote:
- 1 x Fox Racing Shox Transfer Internal Factory dropper post
- 1 x Fox Racing Shox remote lever
- 1 x cable
- 1 x cable housing
- 2 x end caps

Versions Without Remote:
- 1 x Fox Racing Shox Transfer Internal Factory dropper post


Models:

in stock 2 to 7 days up to 10 days Out of stock inform me
  • kashima/30.9 mm / 475.1 mm / SB 0 mm / 1x remote
    424.37€
  • kashima/30.9 mm / 475.1 mm / SB 0 mm / 2x/3x remote
    415.97€
  • kashima/30.9 mm / 475.1 mm / SB 0 mm / w/o remote
    360.50€
  • kashima/31.6 mm / 475,1 mm / SB 0 mm / 1x remote
    424.37€
  • kashima/31.6 mm / 475.1 mm / SB 0 mm / 2x/3x remote
    415.97€
  • kashima/31.6 mm / 475.1 mm / SB 0 mm / w/o remote
    360.50€
