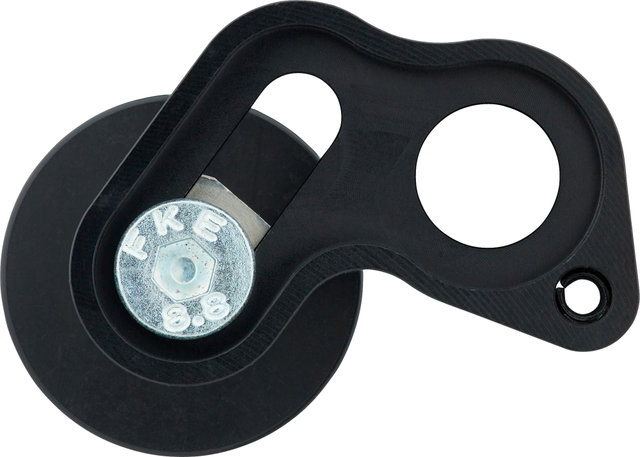

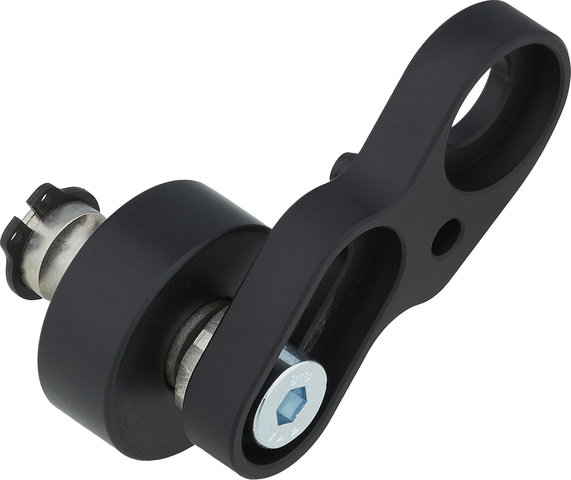

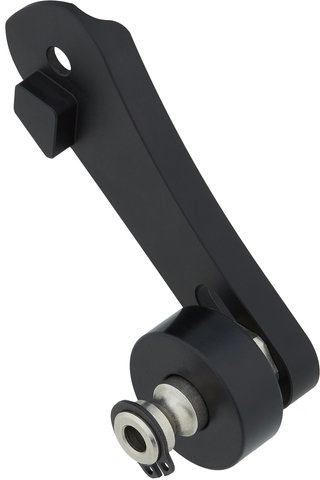

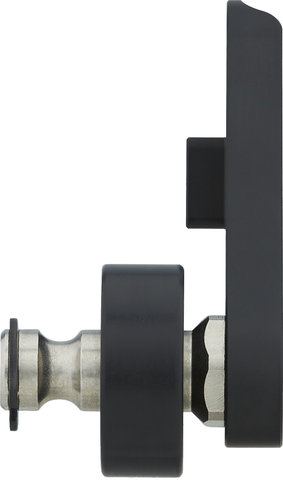

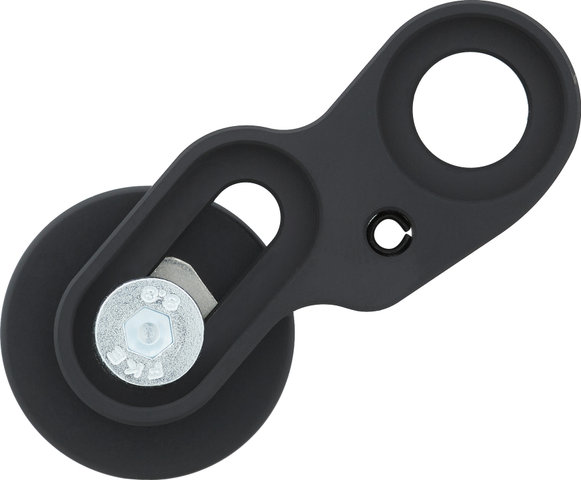

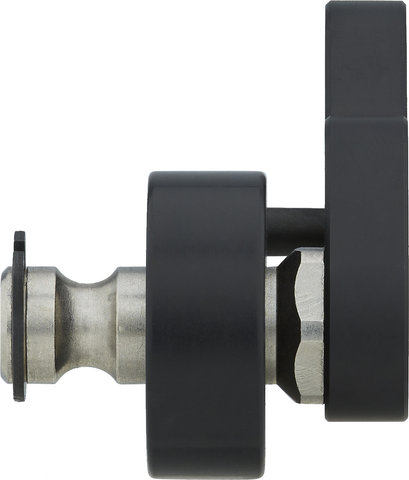

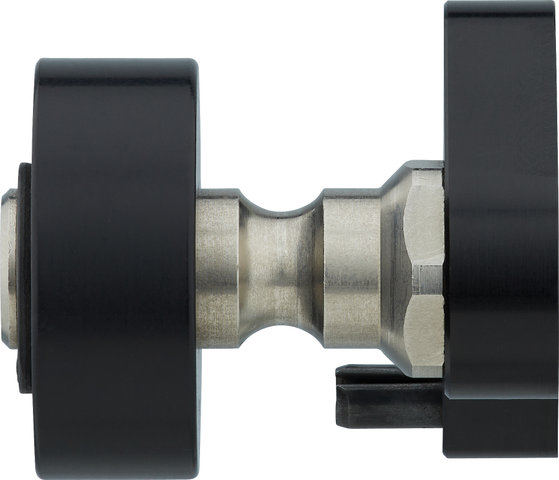

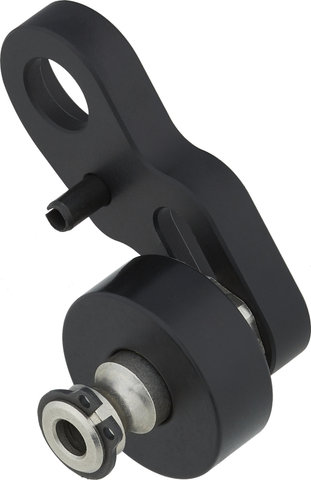

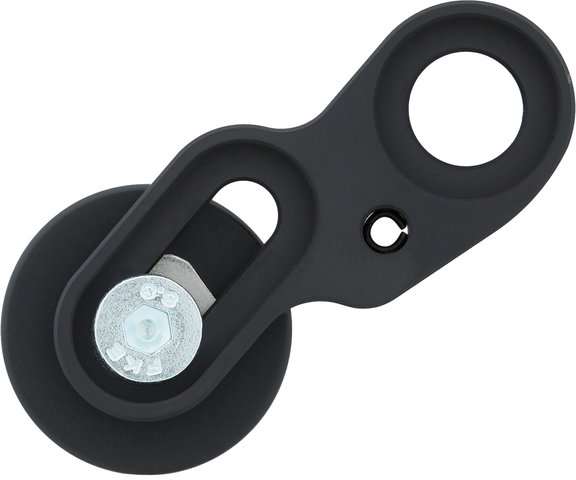

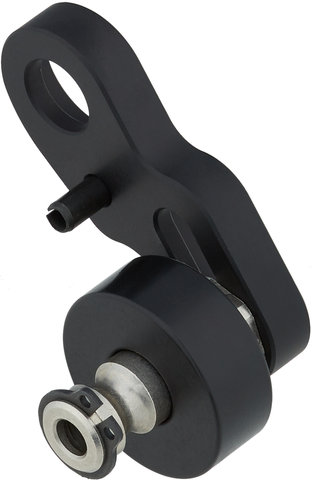

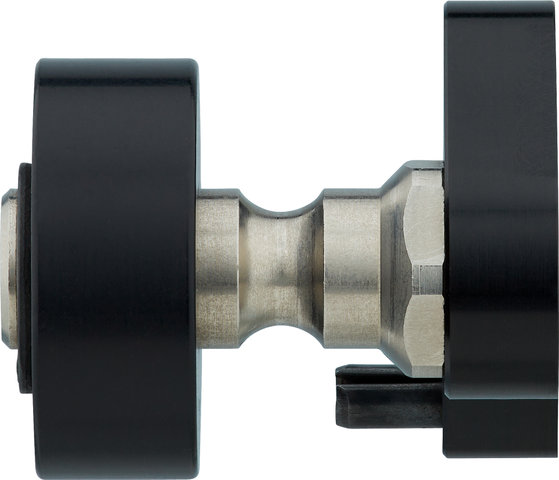

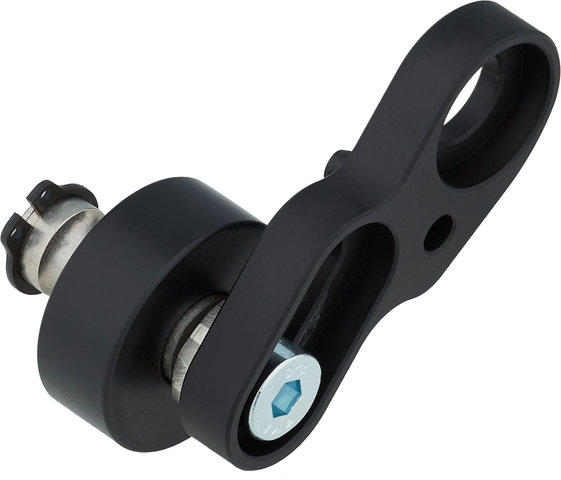

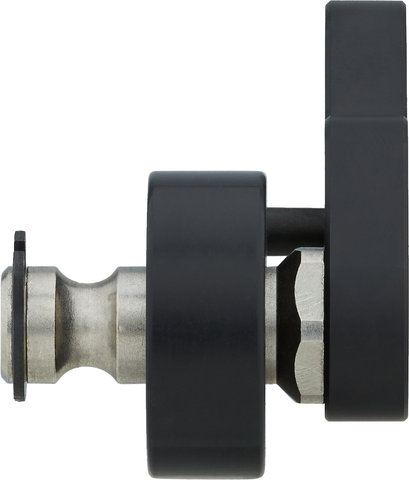

Gates Snubber

The Snubber is mandatory by the Rohloff company for the use of the Gates Carbon Drive belt drive in combination with a Speedhub hub gear. It prevents the belt on the rear sprocket from skipping.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked E-bikes/pedelecs with pedal assistance.

Compatibility:

• Rohloff Speedhub 500/14
• Rohloff Speedhub XL 500/14
• Rohloff Speedhub XXL 500/14

Models:

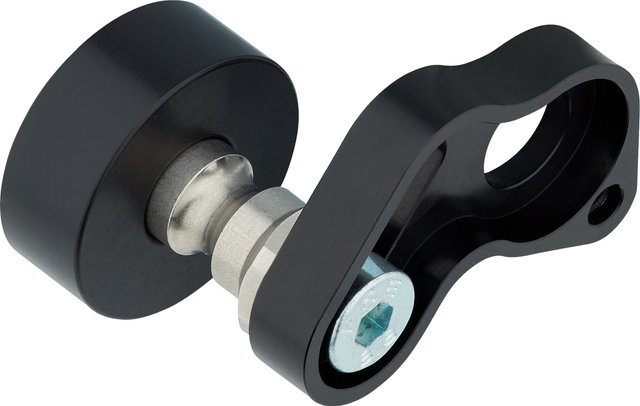

Quick Release:

Type:

QR

Use:

Mounts via quick-release

Note:

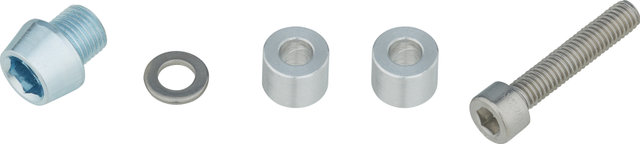

For frame installation widths over 142 mm or 177 mm (148 mm, 190 mm, 197 mm), the Snubber spacer kit is also required.

Manufacturer Number:

S8000005

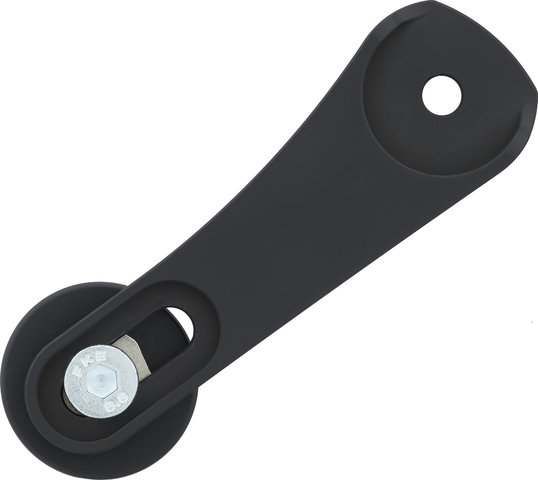

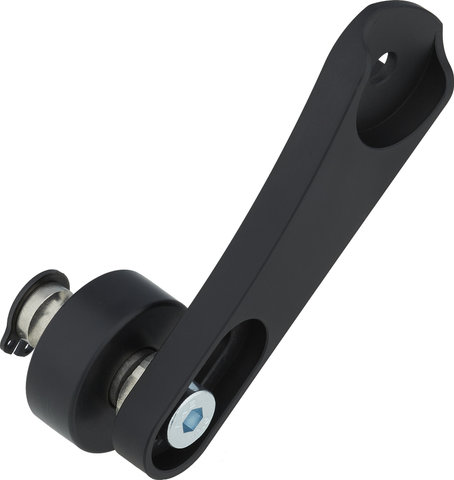

Derailleur Hanger:

Type:

RDM

Use:

Mounting on conventional derailleur hangers (Rear Derailleur Mount)

Note:

For frame installation widths over 142 mm or 177 mm (148 mm, 190 mm, 197 mm), the Snubber spacer kit is also required.

Manufacturer Number:

S8000006

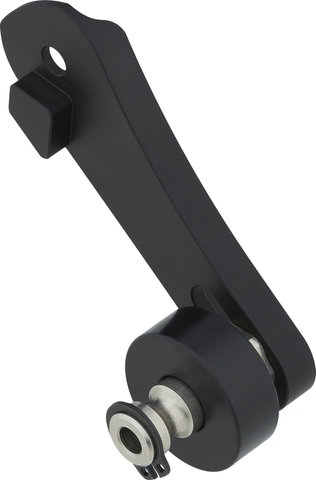

Shimano Direct Mount:

Type:

RDM Shimano

Use:

Mounts on Direct Mount derailleur hangers according to Shimano standard

Note:

The Snubber spacer kit is also required.

Manufacturer Number:

CDERDMS

Contents:

• 1 x Gates Snubber
