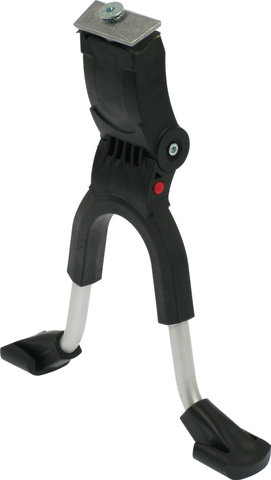

Hebie Central Bipod Kickstand 690c lite REX c

Load-bearing lightweight: the lite REX c bicycle kick stand by Hebie

The lite REX c is the lightweight solution of a bipod bicycle kickstand for any tour with gear. With a weight of approx. 450 grams, this central kickstand is hardly noticeable and can also impress with a payload of 50 kg.

Technical Information:

Application:

City, City & Touring

Mount:

kickstand plate (or Hebie retrofit kickstand plate)

Material:

composite material (GFRP), aluminium

Capacity:

50 kg

Compatibility:

24" -29" (please note the height)

Features:

• modern two-leg bicycle kickstand in 2-component construction (2C)
• combines very high load capacity with low weight
• extra stable base and easy handling due to wide roll-off feet
• maintenance-free, internal folding mechanism
• recess for shifter cable
• legs made of aluminium tube, two lengths (short length and normal length)

Note from the manufacturer:

Always mount the bipod stand with the supplied counter plate.

Technology:

2C Technology
The lite REX c uses innovative 2-component technology on the plastic head. The main advantages are an optimised force absorption, a nicer design, an improved protection of the mechanics and a reduced weight.

Models:

short:

Type:

lite REX cs

Type:

Short length up to 27.5 cm ground clearance

Compatibility:

27.5 cm maximal bottom bracket height (24" -28" )

Manufacturer Number:

0690C KL E

normal:

Type:

lite REX cm

Type:

Normal length up to 29 cm ground clearance

Compatibility:

29 cm maximal bottom bracket height (26" -29" )

Manufacturer Number:

0690C NL E

Contents:

• 1 x Hebie 690c lite REX c central kickstand
• 1 x counter plate with frame protection
• 1 x M10 x 65 bolt

• black-silver/normal: 586 g
