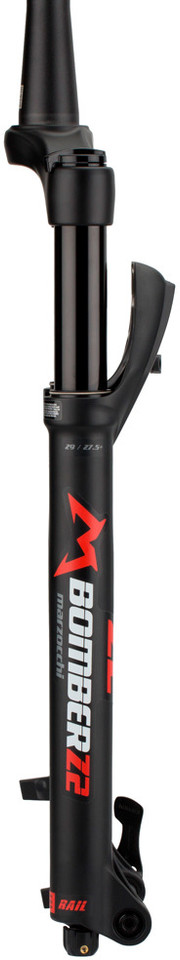

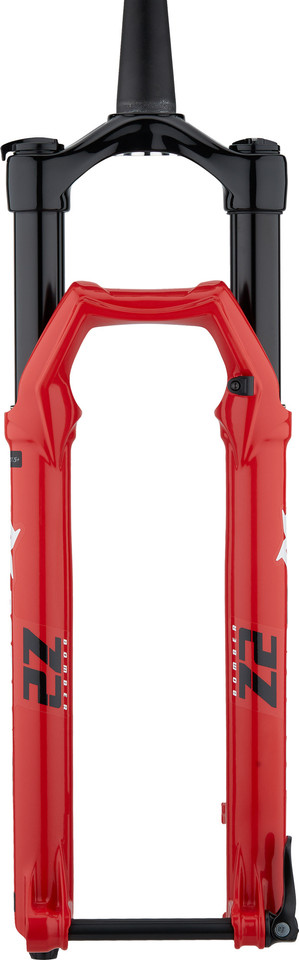

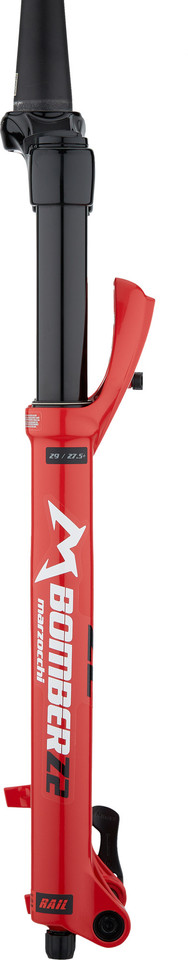

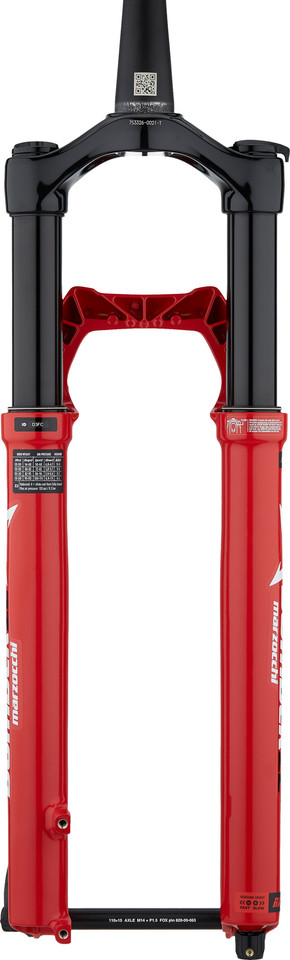

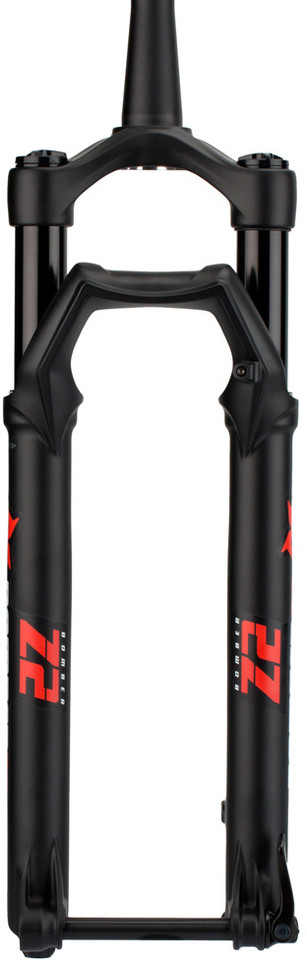

Marzocchi Bomber Z2 29" Boost Suspension Fork

The Bomber Z2 29" Boost Suspension Fork by Marzocchi - Fun on the trails!

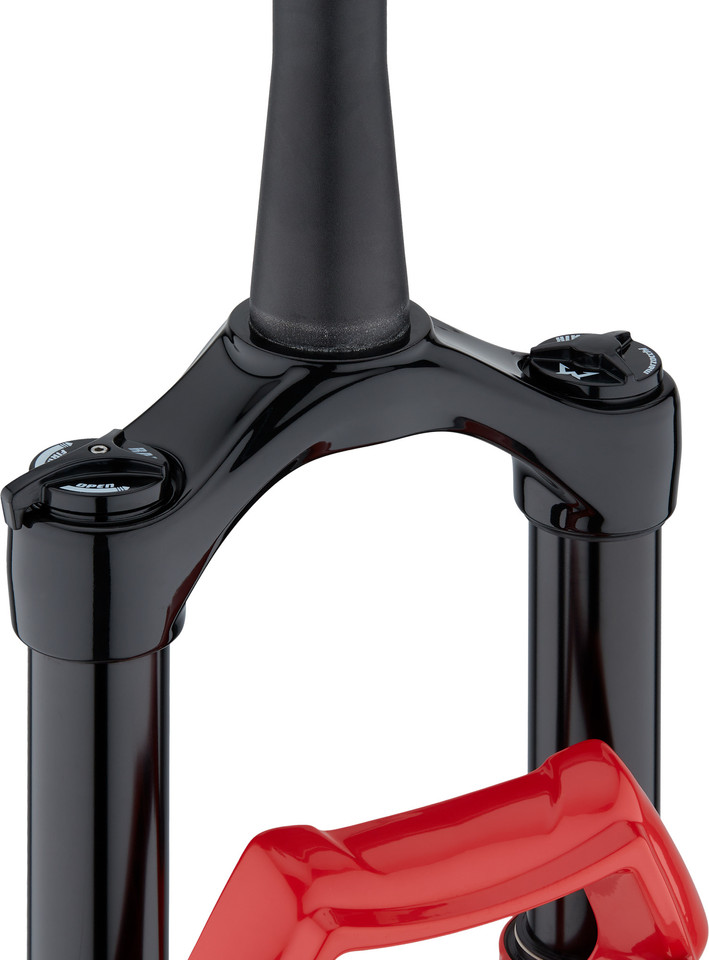

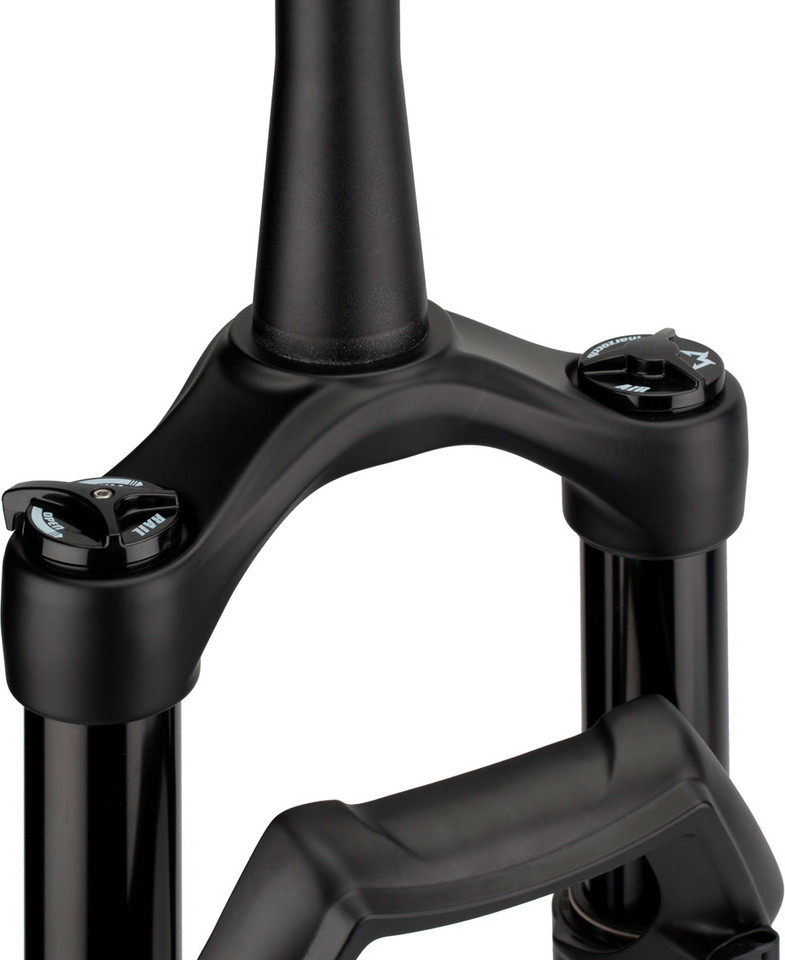

The Bomber Z2 29" Boost suspension fork from Marzocchi with classic M fork crown is designed for all-mountain use with 34 mm thick stanchion tubes nd suspension travel between 100 and 150 mm. The rail suspension used is low-maintenance and easy to adjust.

Specifications:

Application:

All Mountain

Wheel Size:

29"

Suspension Type:

air

Travel:

100 mm, 120 mm, 130 mm, 140 mm, 150 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

thru-axle with quick release lever

Wheel Standard:

15 x 110 mm (Boost)

Brake Mount:

disc PM6 (direct mount 160 mm)

Technical Information:

Offset:

44 mm, 51 mm

Steerer Tube Length:

263 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

34 mm

Steerer Tube Material:

Aluminium

Crown Material:

Aluminium

Stanchion Tube Material:

Aluminium

Lower Tube Material:

magnesium

Adjustment Options:

Compression:

2-Position Sweep Adjust (Open / Firm)

Rebound:

yes

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

29 x 2.6" , 27.5 x 2.8"

Note:

The tyre clearance must be checked with the fork fully compressed every time you change the tyre or the rim. It should be at least 8.5 mm all around.

Rotor Size (max.):

203 mm

Features:

• chassis with 34 mm stanchion tubes

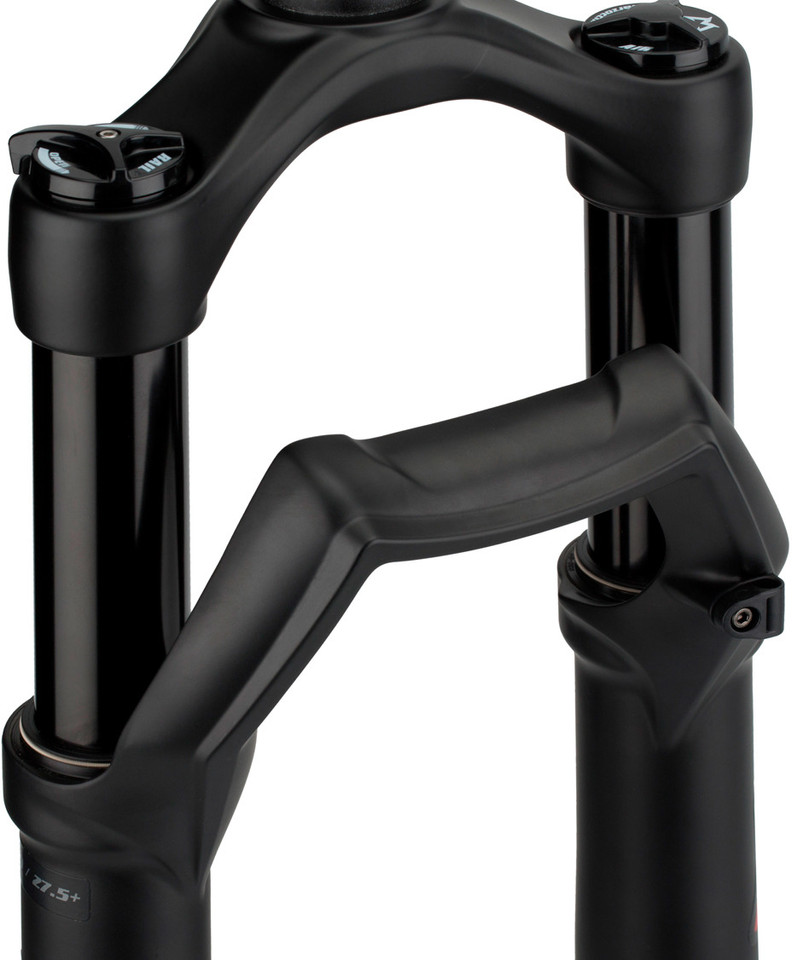

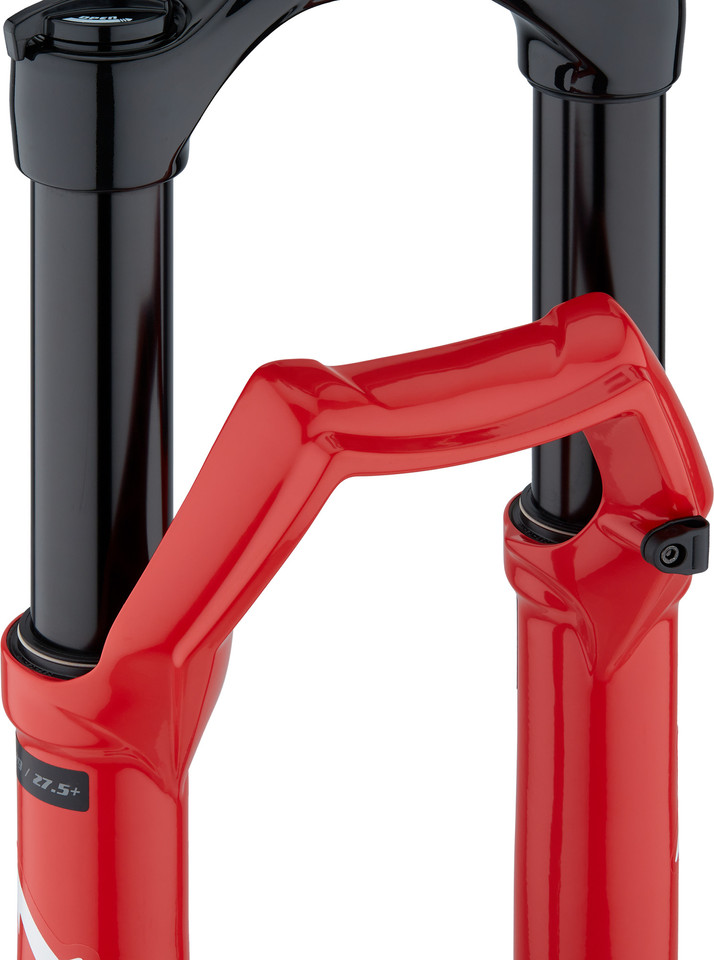

• stiff dip tube unit with M-shaped bridge for high tyre clearance

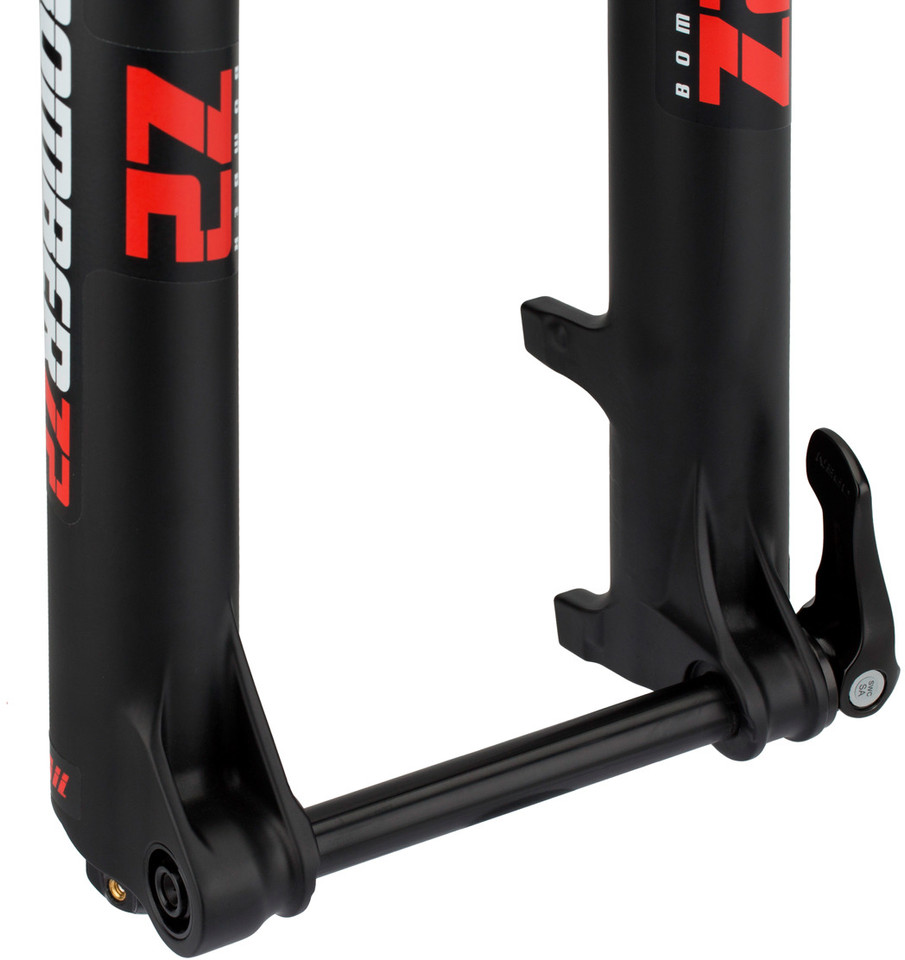

• Boost thru-axle system with quick release lever
• reliable rail suspension technology
• 2-Position Sweep Adjust with the possibility of adjusting the compression damping in several stages from Open to Firm
• Float EVOL air spring with large air chamber volume for smooth responsiveness
• black anodised stanchion tubes
• aluminium dropouts

Technology:

Float Air Spring
Patented air transfer port system: The float air suspension system reduces the breakaway torque and thus offers a highly sensitive fork and full comfort even with small impacts. And that for every type of rider and at the most varied air pressure. Similar to the Float suspension rear shocks, the Float suspension system is characterised by a positive and a negative air chamber, which automatically balance each other out when riding.

Air Volume Spacers
The Float air suspension of the forks can be finely adjusted by using volume spacers to adjust the suspension elements more progressively or less progressively. This allows the rider to fine-tune the suspension exactly to their needs.

Models:

100 mm / 1.5" tapered / 15 x 110 mm / 51 mm:

Travel:

100 mm

Offset:

51 mm

Axle to Crown:

510 mm

Manufacturer Number:

912-01-065

120 mm / 1.5" tapered / 15 x 110 mm / 44 mm:

Travel:

120 mm

Offset:

44 mm

Axle to Crown:

530 mm

Manufacturer Numbers:

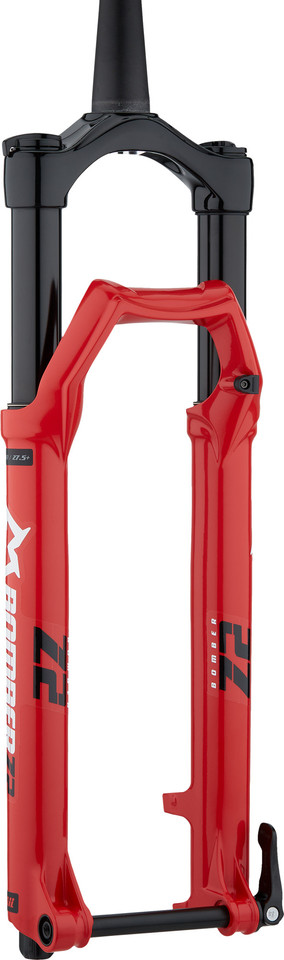

912-01-064 (matt black), 912-01-105 (gloss red)

120 mm / 1.5" tapered / 15 x 110 mm / 51 mm:

Travel:

120 mm

Offset:

51 mm

Axle to Crown:

530 mm

Manufacturer Number:

912-01-063

130 mm / 1.5" tapered / 15 x 110 mm / 44 mm:

Travel:

130 mm

Offset:

44 mm

Axle to Crown:

540 mm

Manufacturer Number:

912-01-062

140 mm / 1.5" tapered / 15 x 110 mm / 44 mm:

Travel:

140 mm

Offset:

44 mm

Axle to Crown:

550 mm

Manufacturer Number:

912-01-060 (matt black), 912-01-103 (gloss red)

140 mm / 1.5" tapered / 15 x 110 mm / 51 mm:

Travel:

140 mm

Offset:

51 mm

Axle to Crown:

550 mm

Manufacturer Number:

912-01-059

150 mm / 1.5" tapered / 15 x 110 mm / 44 mm:

Travel:

150 mm

Offset:

44 mm

Axle to Crown:

560 mm

Manufacturer Number:

912-01-082

Contents:

• 1 x Marzocchi Bomber Z2 29" suspension fork
• 1 x Marzocchi thru-axle
• 1 x star nut
• 3 x volume spacer
