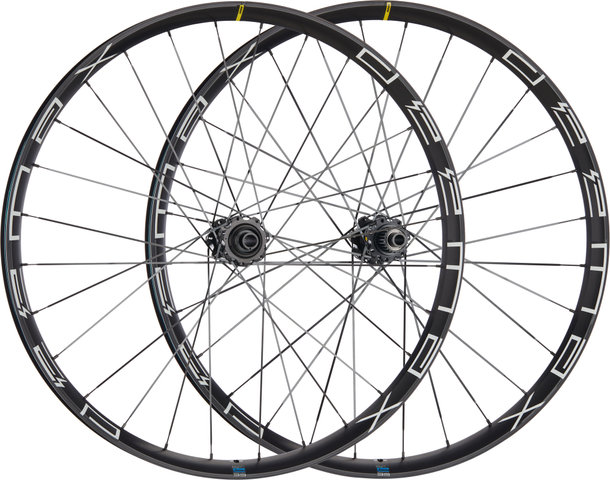

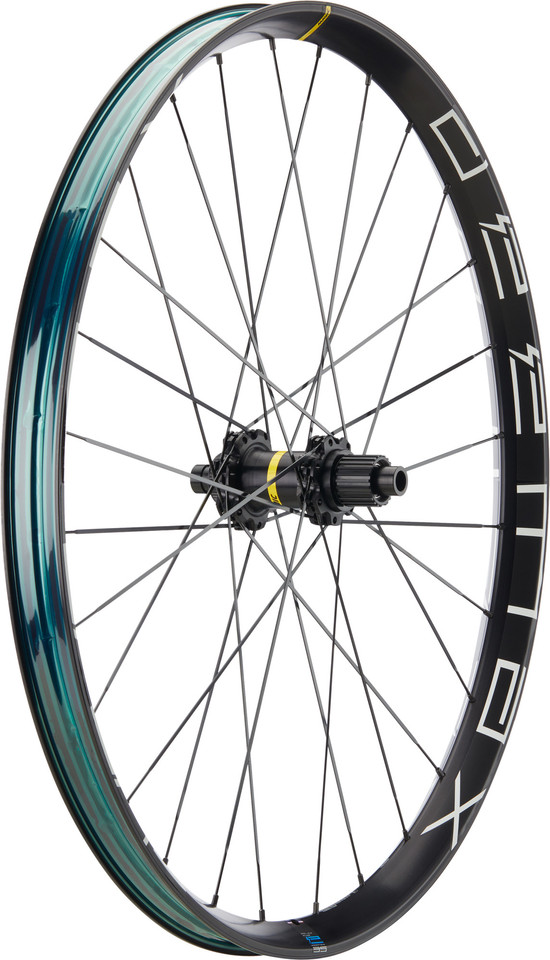

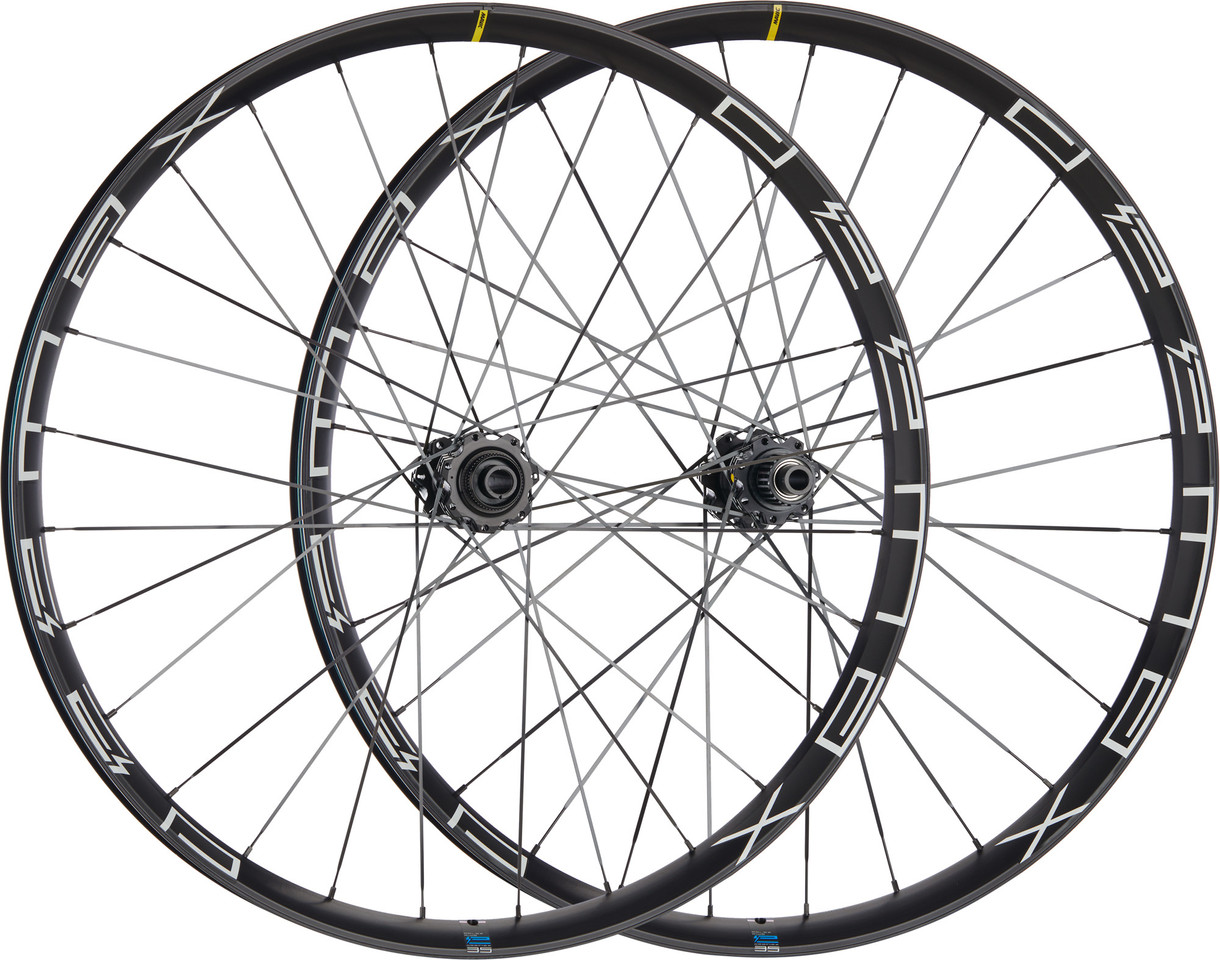

Mavic E-Deemax 35 Center Lock Disc 27.5" Boost Wheelset

The Mavic E-Deemax 35 wheelset for motorised 27.5" enduro bikes with centre-lock disc brake has 35 mm wide aluminium rims. These are tubeless, highly durable and contribute to a puncture-free ride thanks to their special rim flange design. The wheels rotate around boost hubs with self-adjusting bearings and were each spoked with 28 straight pull spokes.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

Enduro

Wheel Size:

27.5" (650B)

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

Center Lock Disc (Boost)

Wheel Standard:

Boost

Tubeless System:

UST Tubeless Ready

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

35-584

Inner Width:

35 mm

Outer Width:

41 mm

Depth:

23 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium (Maxtal)

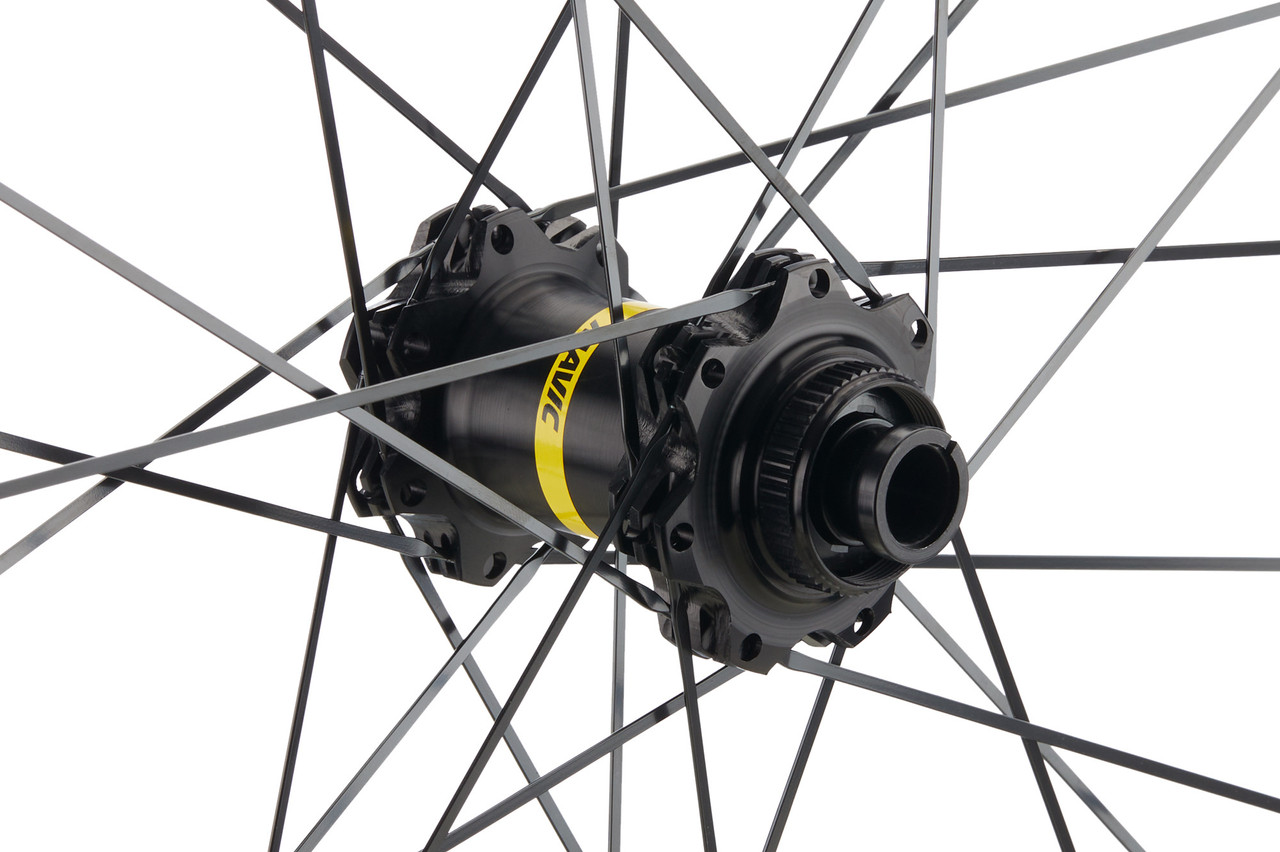

Technical Information - Front Hub:

Over Locknut Dimension:

15 x 110 mm thru-axle

Bearings:

self-aligning sealed cartridge bearings

Body Material:

Aluminium

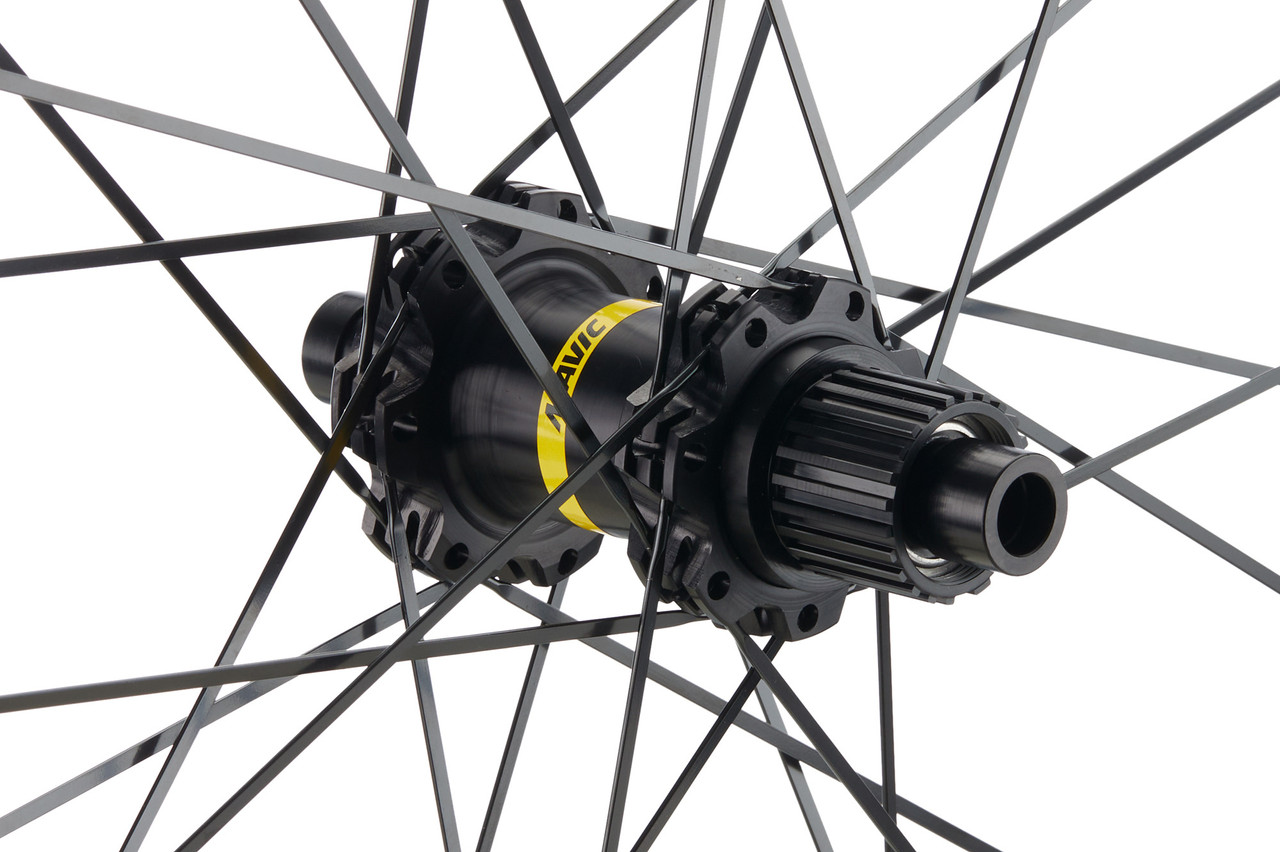

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

self-aligning sealed cartridge bearings

Body Material:

Aluminium

Freehub Body Material:

Aluminium

Freehub Body:

Instant Drive 360

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

straight pull / aero

Spoke Size:

284 mm (front), 286 mm/284 mm (rear l/r)

Spoke Material:

steel

Approved For:

Weight Limit:

180 kg total weight* (rider, gear & bike)

Recommended Tyre Width:

2.5 - 3.2"

* Compliance recommended by the manufacturer to extend the life of the wheels

Features:

• specifically developed for off-road E-Bikes
• high stability and durability
• reduced risk of punctures thanks to special rim flanges
• user-friendly tubeless system
• asymmetric tread
• conventional rim bores, welded rim joint (SUP)
• front convertible to 20 x 110 mm thru-axle (Boost) by replacing the complete axle
• Torque Caps optionally available
• ASTM category 5: for extreme terrain

Technology:

Maxtal
Made exclusively for Mavic, this lightweight and strong aluminium alloy offers a higher strength-to-weight ratio than standard 6106 aluminium. Maxtal rims are 30% stiffer and weigh less than other aluminium rims.

SUP
SUP means Soudé Usiné Process and creates a much more stable and smoother rim joint. The rim joint is welded and then milled over to achieve an even braking surface. SUP prevents any brake judder and facilitates spoking and centring of the wheel.

Pinch Flat Protection
Rims with PFP technology have a larger contact area at the top of the sidewall, which reduces the risk of tyre punctures and blowouts by about 20%. It is an innovation used exclusively on e-bike wheels.

QRM Auto
QRM Auto stands for Qualité de Roulements Mavic Auto, and is the latest bearing innovation from Mavic. These cartridge bearings with C3 internal clearance are double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.

Instant Drive 360
The Instant Drive 360 freehub system is super light and ensures fast power transfer with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction.

Models:

27.5" set (front 15x110 Boost + rear 12x148 Boost) Shimano Micro Spline:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

P1589115

Conversion Options:

To convert to Shimano MTB, a Shimano freehub body is required. To convert to SRAM XD, a XD freehub body is required.

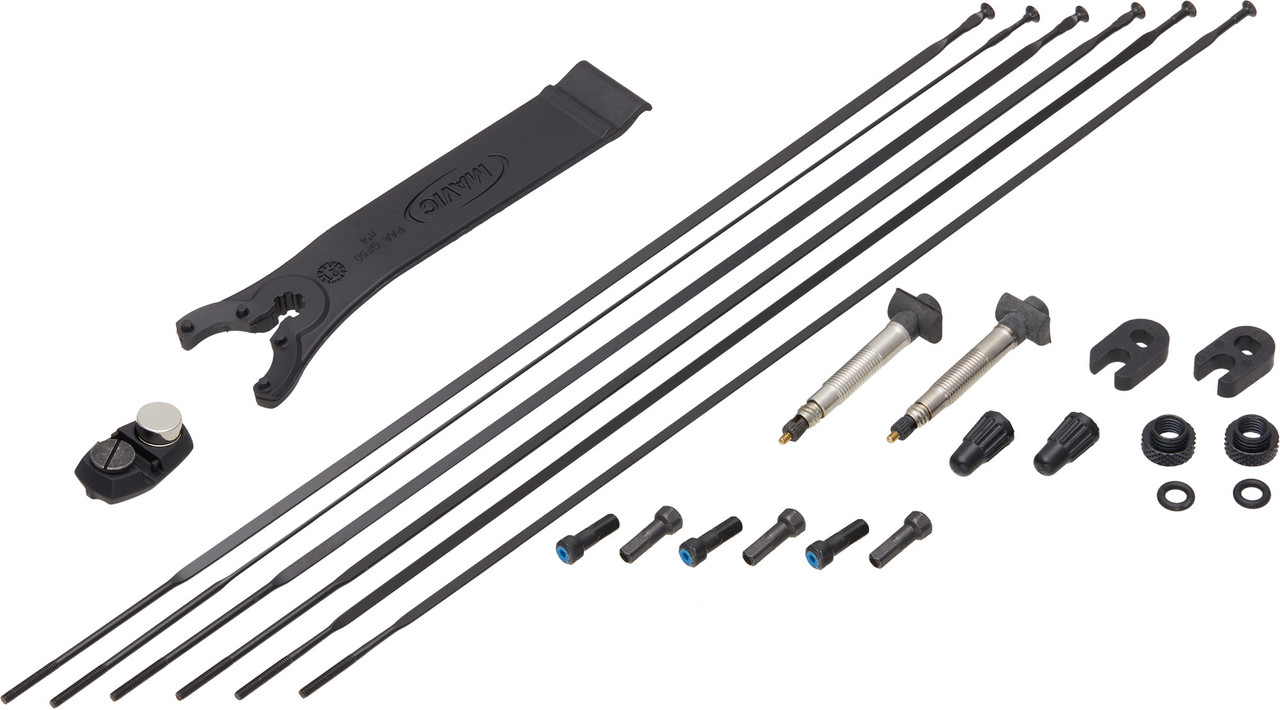

Contents:

• 1 x Mavic E-Deemax 35 Center Lock Disc 27.5" Boost wheelset (front and rear wheel)
• 2 x UST valve with accessories
• 6 x spare spokes
• 6 x spare nipples
• 1 x tool
• 1 x E-Bike spoke magnet
• 2 x tubeless rim tape (mounted)
