Nicolai Dropout for Argon GLF

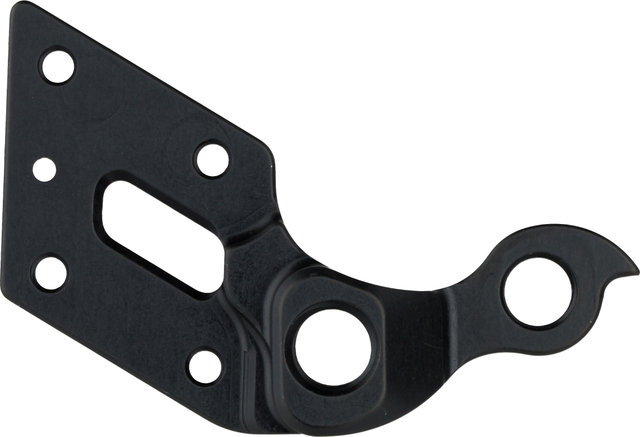

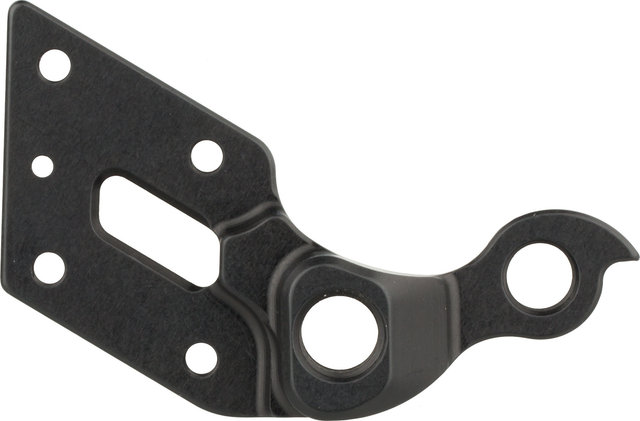

The Nicolai Argon RADO II (Right Aligning DropOut) is a form-fit, replaceable drop-out that is used on some Nicolai frames. The RADO enables the rear wheel to be precisely aligned to the camber and toe, and optimally compensates for welding distortion. The toe is aligned with the rear wheel along the longitudinal axis, the camber is aligned along the vertical axis of the frame. The given RADO values indicate the camber height correction in millimetres.

Note:
You can find the required correction value for your bike on the inside of the currently built RADO II drop out.

Specifications:

Over Locknut Dimension:

Rear: 12 x 148 mm thru-axle

Type:

slide

Position:

drive side / non-drive side

Mount:

with rear derailleur mount / with disc PM 7" / without mount

Compatibility:

Argon GLF

Material:

aluminium (CNC machined)

Models:

Type 1:

• Type: slide
• Camber: -
• Position: non-drivetrain side
• Mount: with disc PM 7" (direct mount 180 mm) brake mount
• Manufacturer Number: 52100770

Type 2:

• Type: slide
• Camber: 0
• Position: drive side
• Mount: with rear derailleur mount
• Manufacturer Number: 52100750

Type 3:

• Type: slide
• Camber: +1
• Position: drive side
• Mount: with rear derailleur mount
• Manufacturer Number: 52100760

Type 4:

• Type: slide
• Camber: -1
• Position: drive side
• Mount: with rear derailleur mount
• Manufacturer Number: 52100740

Type 5:

• Type: slide
• Camber: -2
• Position: drive side
• Mount: without rear derailleur mount
• Manufacturer Number: 52100780

Type 6:

• Type: slide
• Camber: 0
• Position: drive side
• Mount: without rear derailleur mount
• Manufacturer Number: 52100811

Type 7:

• Type: slide
• Camber: +1
• Position: drive side
• Mount: without rear derailleur mount
• Manufacturer Number: 52100821

Type 8:

• Type: slide
• Camber: -1
• Position: drive side
• Mount: without rear derailleur mount
• Manufacturer Number: 52100801

Type 9:

• Type: slide
• Camber: -2
• Position: drive side
• Mount: without rear derailleur mount
• Manufacturer Number: 52100791

Contents:

• 1 x Nicolai dropout
• not incl. bolts

NICOLAI GmbH
Altenbekener Str. 2a
31008 Elze / Mehle
Germany
