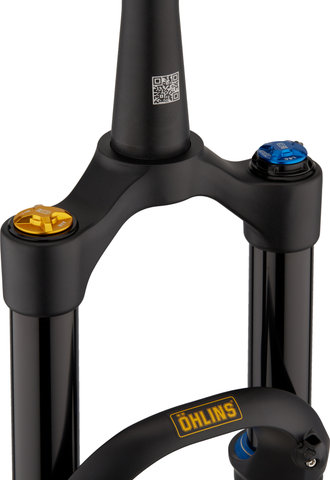

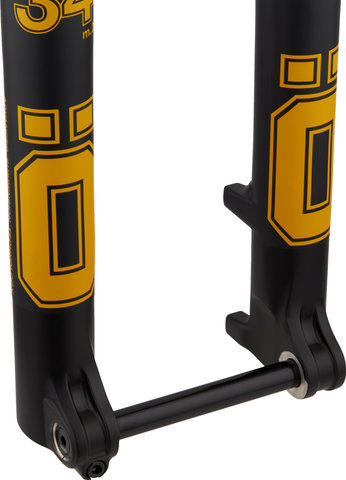

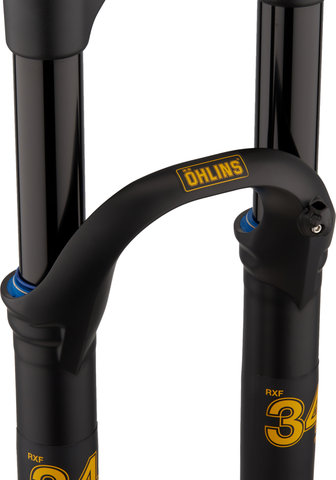

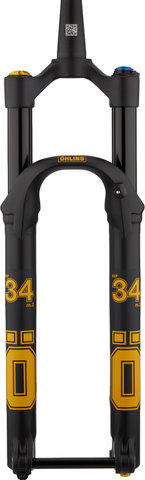

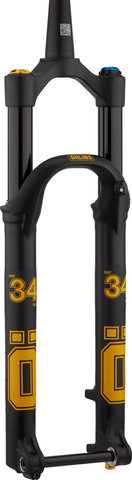

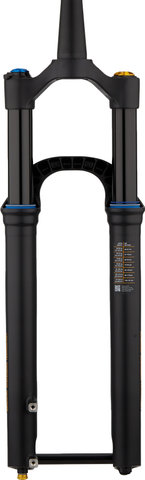

ÖHLINS RXF34 m.2 Air 29'' Boost Suspension Fork

The RXF34 m.2 Air Boost Suspension Fork for 29" Trail Bikes

The ÖHLINS RXF34 m.2 Air Boost suspension fork goes well with lightweight trail bikes with 29" tyres. The OTX-18 damping cartridge used is based on the tried and tested TTX 18, but is 27% lighter and particularly specialised for fast flow trails. Compression and rebound damping can be easily adjusted.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain, Cross Country

Wheel Size:

29"

Suspension Type:

air

Travel:

120 mm, 130 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

thru-axle

Wheel Standard:

15 x 110 mm (Boost)

Brake Mount:

disc PM6 (direct mount 160 mm)

Technical Information:

Offset:

44 mm

Steerer Tube Length:

230 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

34 mm

Steerer Tube Material:

Aluminium

Crown Material:

Aluminium

Stanchion Tube Material:

Aluminium

Lower Tube Material:

Aluminium

Adjustment Options:

Compression:

Low-speed (15 positions), high-speed (3 positions)

Rebound:

low speed (15 positions)

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

29 x 2.6"

Rotor Size (max.):

203 mm

Features:

• detachable for maintenance and repair
• floating thru-axle for minimum friction
• OTX 18 cartridge is 27% lighter than TTX 18, designed for fast flow trails
• optimal balance of traction, control, weight and stiffness
• precise steering
• suitable for e-bikes

Models:

120 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

120 mm

Offset:

44 mm

Axle to Crown:

531 mm

Manufacturer Number:

FGMTB 3412 2230

130 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

130 mm

Offset:

44 mm

Axle to Crown:

541 mm

Manufacturer Number:

FGMTB 3413 2230

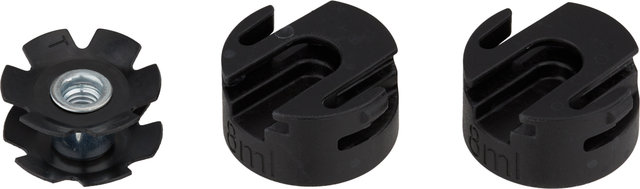

Contents:

• 1 x ÖHLINS RXF34 m.2 Air 29" Suspension Fork
• 1 x thru-axle
• 1 x threaded wheel clamp

• black/15 mm Thru Axle/120 mm/44 mm/1 1/8" - 1,5" tapered/29"/110 mm: 1698 g

Öhlins Europe
Gottlieb-Daimler-Straße 25
53520 Meuspath
Germany
de_info@ohlins.com
