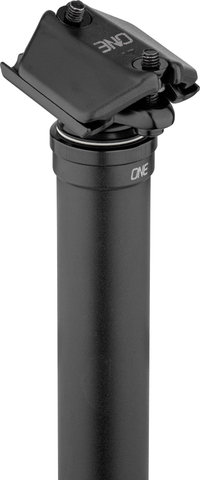

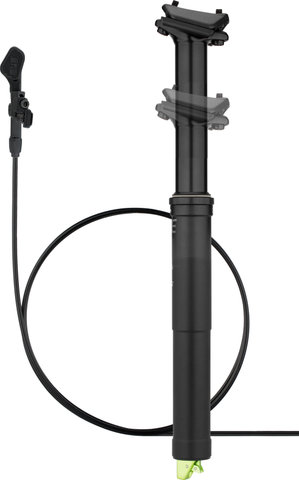

OneUp Components Dropper Post V2 120 mm Seatpost w/ V3 Remote Lever Matchmaker X

OneUp Components Dropper Post V2 120 mm Seatpost - Includes V3 remote lever for Matchmaker X

The Dropper Post V2 seatpost by OneUp Components comes here in a bundle with the V3 handlebar remote including remote clamp for mounting on a SRAM Matchmaker-X. The travel - maximum 120 mm for this version - can be shortened by 10 mm or by 20 mm. The seatpost scores with its very low height and overall length, which affords you a very low saddle position. It has a reliable, sealed cartridge and comes with metal pins for personalised travel adjustment. Unlike previous versions, you can even install them in Santa Cruz bikes with Lower Link VPP linkages. The included V3 Remote impresses with its easy operability, a replaceable thumb pad and a convenient cable port. The force you have to exert to operate the lever has been reduced by almost 30% compared to the predecessor, the V2. This makes using your Dropper Post feel even better. In addition, there is the non-slip rubber pad on the lever, which you can get as a spare part in different colours. The handlebar remote has an integrated cable clamp with markings for shortening the cable. This facilitates installation and ensures a clean look.

Specifications:

Application:

All Mountain, Enduro

Stroke:

120 mm

Diameter:

30.9 mm, 31.6 mm, 34.9 mm

Length:

345 mm

Setback:

0 mm

Technical Information:

Actuation:

mechanical handlebar remote

Remote Mount:

Matchmaker X

Cable Routing:

internal

Clamp:

2-bolt clamp

Compatible Saddle Rails:

7 x 7 mm (standard), 7 x 9 mm (oval)

Material:

aluminium

Approved For:

Weight Limit:

125 kg

Insertion Depth (max.):

192 mm (207 mm with actuator)

Insertion Depth (min.):

90 mm

Features:

Dropper Post:

• tons of travel (max. 120 mm) with a 153 mm stack height and a 345 mm effective length (without actuator = 15 mm)
• 255 mm maximum extension length
• travel adjustable by 10 or 20 mm via metal pins inserted in guide track (3 for 10 mm, 2 x 3 for 20 mm)
• cable actuated for easy installation
• reliable, sealed cartridge
• cartridge can be changed easily, DIY maintenance possible
• compared to previous model, has a lower total length and stack, also less weight
• revised upper DU bushing with enlarged overlay for even more durability
• Actuator V2.1 compatible with Santa Cruz Lower Link VPP

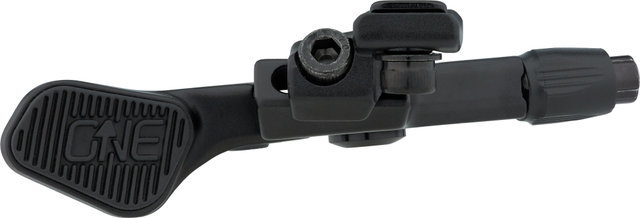

V3 Remote:

• Light Action: 27% less thumb control force required compared to V2
• non-slip thumb pad, replaceable
• easy assembly thanks to integrated cable clamp with markings for shortening
• clean look thanks to neatly clamped cable ends
• can also be used with other mechanically-actuated seatposts
• Matchmaker X version: compatible with MMX clamps

Models:

30.9 mm / 345 mm / SB 0 mm:

Diameter:

30.9 mm

Length:

345 mm

Internal Actuation Length:

15 mm

Setback:

0 mm

Manufacturer Number:

1C0620 + 1C0838 + SP1C0056

31.6 mm / 345 mm / SB 0 mm:

Diameter:

31.6 mm

Length:

345 mm

Internal Actuation Length:

15 mm

Setback:

0 mm

Manufacturer Number:

1C0621 + 1C0838 + SP1C0056

34.9 mm / 345 mm / SB 0 mm:

Diameter:

34.9 mm

Length:

345 mm

Internal Actuation Length:

15 mm

Setback:

0 mm

Manufacturer Number:

1C0659 + 1C0838 + SP1C0056

Contents:

• 1 x OneUp Components Dropper Post V2, 120 mm
• 6 x 10 mm metal pins
• 1 x OneUp Components Dropper Post V3 handlebar remote
• 1 x remote clamp for Matchmaker X
• 1 x cable with cable housings
• 1 x grease for tubes and seals
• 1 x cable clamp sleeve

Order Together:

Optional accessories:

• Dropper Post V3 Handlebar Remote Rubber Pad

• black | 0 mm | 345 mm | 30,9 mm | Matchmaker | V3: 478 g
• black | 0 mm | 345 mm | 31,6 mm | Matchmaker | V3: 493 g
• black | 0 mm | 345 mm | 34,9 mm | Matchmaker | V3: 588 g
