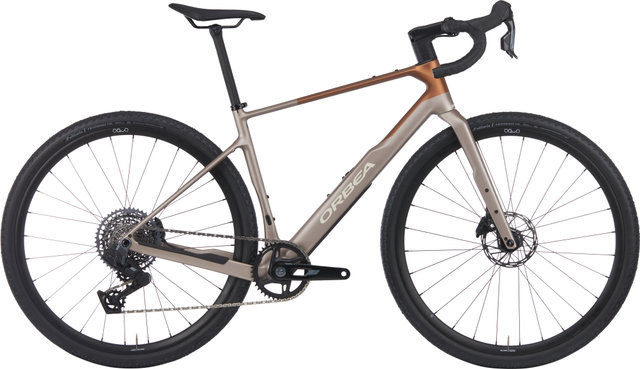

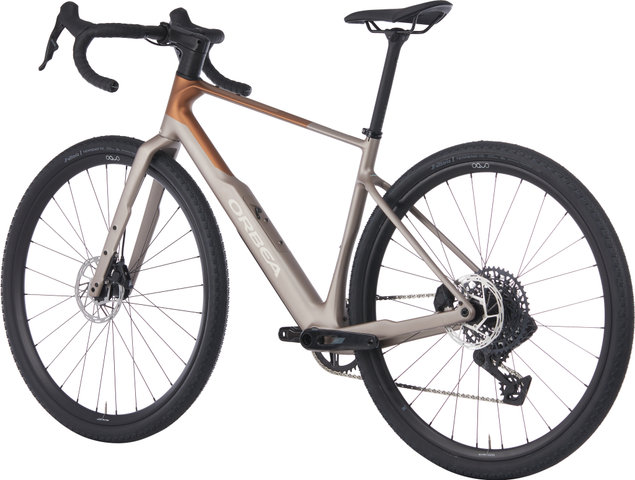

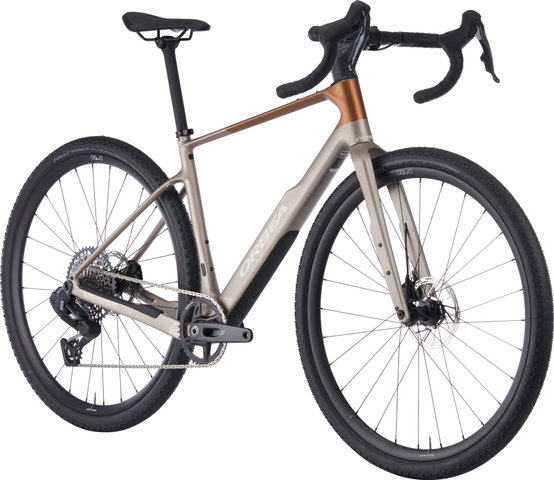

Orbea TERRA M31eTeam 1x Carbon 28" Gravel Bike

Discover the Orbea TERRA M31eTeam 1x Carbon 28", a gravel bike designed to conquer both the road less traveled and your local routes with ease and style. At the heart of this bike is a lightweight carbon frame and fork, ensuring both agility and durability on any terrain. The SRAM Rival AXS 13-speed drivetrain, including a wide-range 10-46T cassette and a 40T crankset, offers seamless shifting and ample gearing for steep climbs and fast descents. Hydraulic disc brakes provide reliable stopping power in all conditions, giving you confidence on long descents and wet roads. The bike rolls on Vittoria Terreno T30 Gravel G2.0 tires, 700 x 45C, offering a perfect balance of traction and speed on gravel and rough surfaces. The Fizik Argo X7 saddle with aluminum rails and an OC Performance XP10 carbon seatpost ensure comfort on long rides, while the bike's design accommodates both men and women cyclists. With no pedals included, you have the freedom to choose your preferred type for a personalized riding experience. Whether you're exploring new gravel paths or enjoying a familiar route, the Orbea Terra Team is your ideal companion for adventure.

• High-performance gravel bike featuring Orbea Terra Team carbon frame and fork for a lightweight and responsive ride.

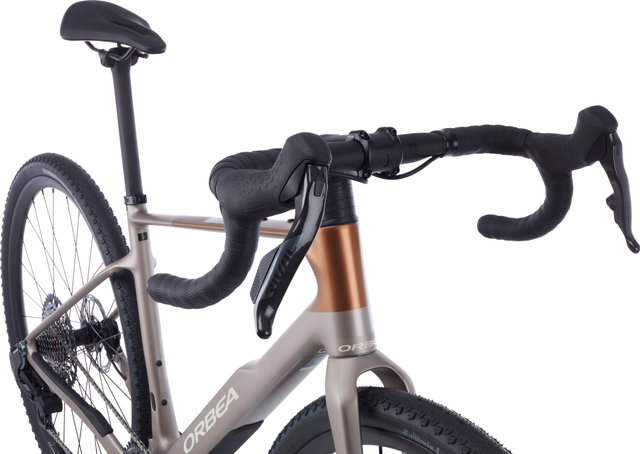

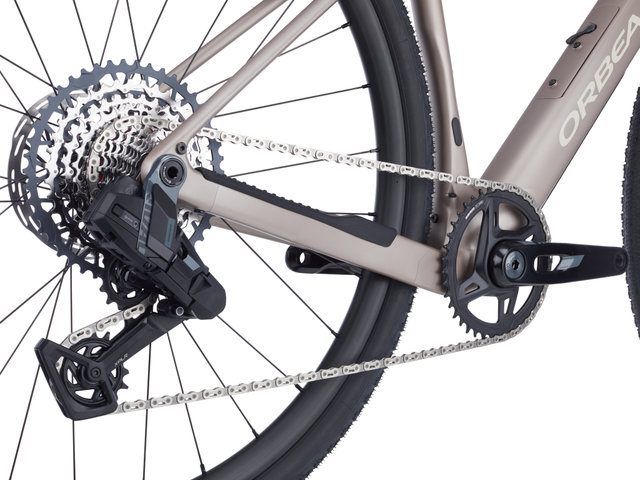

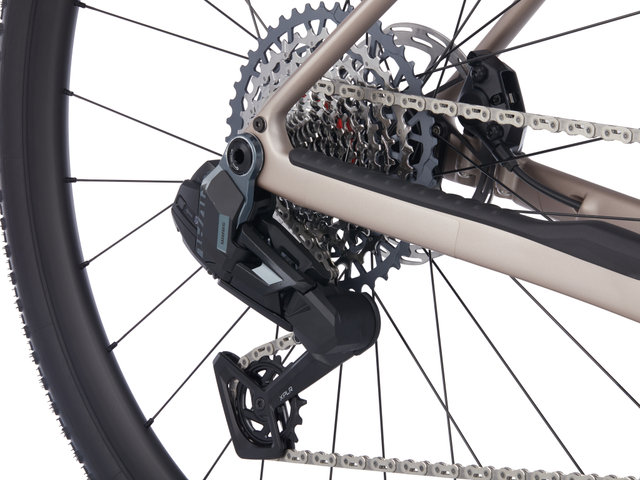

• Equipped with SRAM Rival AXS 13-speed wireless electronic shifting system for precise and effortless gear changes.
• Dual Vittoria Terreno T30 Gravel G2.0, 700 x 45C tires provide excellent traction and comfort on varied gravel surfaces.
• Fizik Argo X7 saddle with aluminum rails and a width of 150 mm, designed for optimal comfort and performance on long rides.

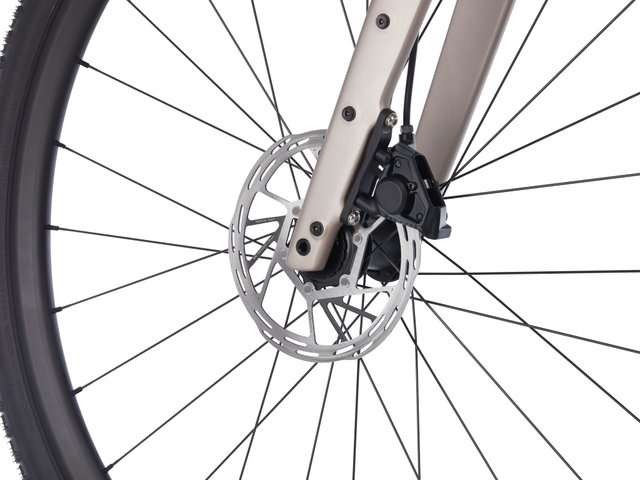

• Hydraulic disc brakes by SRAM Rival ensure powerful and reliable stopping power in all weather conditions.
• OC Performance XP10 carbon seatpost with a 27.2 mm diameter and 0 mm setback for lightweight support and efficient power transfer.

Head Tube Angle:

69

Stack:

535 mm

Standover Height:

690 mm

Wheelbase:

1031 mm

Reach:

386 mm

Chainstay Length:

430 mm

Seat Tube Angle:

74

BB Drop:

80 mm

Seat Tube Length:

410 mm

Head Tube Length:

110 mm

Bottom Bracket Height:

261 mm

Frame Size:

41 cm

Effective Top Tube Length:

535 mm

Seat Tube Length:

440 mm

Head Tube Angle:

69.5

Stack:

558 mm

Head Tube Length:

132 mm

Standover Height:

717 mm

Wheelbase:

1041 mm

Reach:

392 mm

Chainstay Length:

430 mm

Seat Tube Angle:

74

BB Drop:

80 mm

Bottom Bracket Height:

261 mm

Frame Size:

44 cm

Effective Top Tube Length:

547 mm

Head Tube Angle:

70

Stack:

580 mm

Standover Height:

743 mm

Wheelbase:

1052 mm

Reach:

400 mm

Chainstay Length:

430 mm

Seat Tube Angle:

74

BB Drop:

80 mm

Seat Tube Length:

470 mm

Head Tube Length:

153 mm

Bottom Bracket Height:

261 mm

Frame Size:

47 cm

Effective Top Tube Length:

561 mm

Head Tube Angle:

70.5

Stack:

602 mm

Standover Height:

772 mm

Wheelbase:

1061 mm

Reach:

406 mm

Chainstay Length:

430 mm

Seat Tube Angle:

74

BB Drop:

80 mm

Seat Tube Length:

505 mm

Head Tube Length:

175 mm

Bottom Bracket Height:

261 mm

Frame Size:

50 cm

Effective Top Tube Length:

573 mm

Head Tube Angle:

70.8

Stack:

625 mm

Standover Height:

801 mm

Wheelbase:

1072 mm

Reach:

412 mm

Chainstay Length:

430 mm

Seat Tube Angle:

74

BB Drop:

80 mm

Seat Tube Length:

540 mm

Head Tube Length:

198 mm

Bottom Bracket Height:

261 mm

Frame Size:

54 cm

Effective Top Tube Length:

585 mm

Head Tube Angle:

71

Stack:

645 mm

Standover Height:

828 mm

Wheelbase:

1081 mm

Reach:

417 mm

Chainstay Length:

430 mm

Seat Tube Angle:

74

BB Drop:

80 mm

Seat Tube Length:

575 mm

Head Tube Length:

218 mm

Bottom Bracket Height:

261 mm

Frame Size:

57 cm

Effective Top Tube Length:

596 mm

• nickel-met cinnamon matt/170,0 mm/XS/28": T14102GP
• nickel-met cinnamon matt/170,0 mm/S/28": T14103GP
• nickel-met cinnamon matt/172,5 mm/M/28": T14105GP
• nickel-met cinnamon matt/172,5 mm/L/28": T14107GP
• nickel-met cinnamon matt/172,5 mm/XL/28": T14109GP
• nickel-met cinnamon matt/175,0 mm/XXL/28": T14110GP

- 1 x Orbea TERRA M31eTeam 1x Carbon 28" gravel bike
