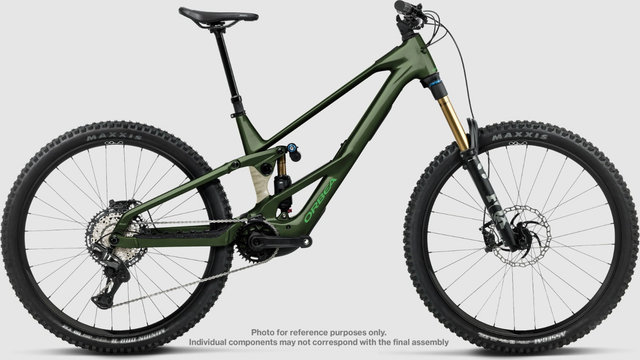

Orbea Wild LT H10 Mullet Carbon 29" / 27.5" E-Mountain Bike

Wild LT H10 Mullet Carbon 29" / 27.5" E-Mountain Bike by Orbea

The Wild LT H10 Mullet Carbon 29" / 27.5" E-Mountain Bike from Orbea is built for Enduro riding when you want a capable setup for demanding trails. Its carbon frame, paired with an aluminium rear triangle, combines a direct ride feel with a robust construction for hard bike park laps and rough descents. The Avinox M2S mid-drive motor delivers 1500 W, while the integrated Avinox 800 Wh battery gives you strong support for long days on the bike. With the mullet wheel concept and DT Swiss H 1900 Spline rims with 30 mm inner width, the bike is set up for control, grip, and confident handling on technical terrain. Shimano handles the drivetrain with a Deore M6200 I-Spec EV shift lever, XT Shadow Plus 12-speed derailleur, M6100 chain, and CS-M6200 10-51 cassette for a wide gear range. The e*thirteen Helix Race e*spec crankset with 34 teeth fits the powerful drive concept and keeps the setup trail-focused. Shimano MT520 hydraulic disc brakes give you reliable braking performance when lines get steep and speed builds quickly. Details like the Acros ZS56-ZS56 headset, DT Swiss 370 rear hub, OC Lock On grips, and Fizik Aidon saddle round out a smart and ready-to-ride package. If you want an e-MTB that is clearly aimed at aggressive trail use, this model gives you a convincing mix of modern motor support, solid components, and precise handling.

racing green-white cream | S | 170 mm | 44 mm | 155,0 mm | 29" (front), 27.5" (rear):

Travel:

170 mm

Rear travel:

170 mm

Crank Arm Length:

155,0 mm

Wheel size:

29" (front), 27.5" (rear)

racing green-white cream | M | 170 mm | 44 mm | 155,0 mm | 29" (front), 27.5" (rear):

Travel:

170 mm

Rear travel:

170 mm

Crank Arm Length:

155,0 mm

Wheel size:

29" (front), 27.5" (rear)

racing green-white cream | L | 170 mm | 44 mm | 155,0 mm | 29" (front), 27.5" (rear):

Travel:

170 mm

Rear travel:

170 mm

Crank Arm Length:

155,0 mm

Wheel size:

29" (front), 27.5" (rear)

racing green-white cream | XL | 170 mm | 44 mm | 155,0 mm | 29" (front), 27.5" (rear):

Travel:

170 mm

Rear travel:

170 mm

Crank Arm Length:

155,0 mm

Wheel size:

29" (front), 27.5" (rear)

racing green-white cream | S | 170 mm | 44 mm | 155,0 mm | 29" (front), 27.5" (rear):

Fork Offset:

44 mm

racing green-white cream | M | 170 mm | 44 mm | 155,0 mm | 29" (front), 27.5" (rear):

Fork Offset:

44 mm

racing green-white cream | L | 170 mm | 44 mm | 155,0 mm | 29" (front), 27.5" (rear):

Fork Offset:

44 mm

racing green-white cream | XL | 170 mm | 44 mm | 155,0 mm | 29" (front), 27.5" (rear):

Fork Offset:

44 mm

racing green-white cream | S | 170 mm | 44 mm | 155,0 mm | 29" (front), 27.5" (rear):

Brake Discs:

Galver Wave Disc

Brake Disc Size:

200 mm (Front / Rear)

Rear Shock:

Fox Racing Shox Float X Performance

Fork:

Fox Racing Shox 38 Float GRIP Performance

Wheelset:

DT Swiss H1900

Handlebar:

OC Mountain Control MC20 Aluminium SL

Stem:

OC Mountain Control MC20, 0°

racing green-white cream | M | 170 mm | 44 mm | 155,0 mm | 29" (front), 27.5" (rear):

Brake Discs:

Galver Wave Disc

Brake Disc Size:

200 mm (Front / Rear)

Rear Shock:

Fox Racing Shox Float X Performance

Fork:

Fox Racing Shox 38 Float GRIP Performance

Wheelset:

DT Swiss H1900

Handlebar:

OC Mountain Control MC20 Aluminium SL

Stem:

OC Mountain Control MC20, 0°

racing green-white cream | L | 170 mm | 44 mm | 155,0 mm | 29" (front), 27.5" (rear):

Brake Discs:

Galver Wave Disc

Brake Disc Size:

200 mm (Front / Rear)

Rear Shock:

Fox Racing Shox Float X Performance

Fork:

Fox Racing Shox 38 Float GRIP Performance

Wheelset:

DT Swiss H1900

Handlebar:

OC Mountain Control MC20 Aluminium SL

Stem:

OC Mountain Control MC20, 0°

racing green-white cream | XL | 170 mm | 44 mm | 155,0 mm | 29" (front), 27.5" (rear):

Brake Discs:

Galver Wave Disc

Brake Disc Size:

200 mm (Front / Rear)

Rear Shock:

Fox Racing Shox Float X Performance

Fork:

Fox Racing Shox 38 Float GRIP Performance

Handlebar:

OC Mountain Control MC20 Aluminium SL

Stem:

OC Mountain Control MC20, 0°

• Carbon enduro e-MTB mullet setup for aggressive trail riding, powered by the Avinox M2S mid-drive motor
• 800 Wh integrated Avinox battery delivers long-range support for demanding MTB and enduro sessions
• Mixed-wheel setup with DT Swiss H 1900 Spline rims combines 29" front rollover speed with 27.5" rear agility
• Shimano XT Shadow Plus 12-speed drivetrain with 10-51T cassette offers a wide gear range for steep climbs and fast descents
• Shimano MT520 hydraulic disc brakes and e*thirteen Helix Race e*spec 34T crankset ensure strong control and efficient power transfer on rough terrain

racing green-white cream | S | 170 mm | 44 mm | 155,0 mm | 29" (front), 27.5" (rear):

Head Tube Angle:

63.9 ,63.3

Stack:

625 mm,629 mm

Wheelbase:

1229 mm,1230 mm

Reach:

436 mm,430 mm

Chainstay Length:

448 mm

Seat Tube Angle:

78 ,77.5

BB Drop:

20 mm,28 mm

Flat Bar Width:

800 mm

Stem Length:

35 mm

Seat Tube Length:

400 mm

Head Tube Length:

110 mm

racing green-white cream | M | 170 mm | 44 mm | 155,0 mm | 29" (front), 27.5" (rear):

Head Tube Angle:

63.9 ,63.3

Stack:

633 mm,638 mm

Wheelbase:

1256 mm,1257 mm

Reach:

461 mm,455 mm

Chainstay Length:

448 mm

Seat Tube Angle:

78 ,77.5

BB Drop:

20 mm,28 mm

Flat Bar Width:

800 mm

Stem Length:

40 mm

Seat Tube Length:

405 mm

Head Tube Length:

120 mm

racing green-white cream | L | 170 mm | 44 mm | 155,0 mm | 29" (front), 27.5" (rear):

Head Tube Angle:

63.9 ,63.3

Stack:

642 mm,647 mm

Wheelbase:

1288 mm,1289 mm

Reach:

486 mm,480 mm

Chainstay Length:

448 mm

Seat Tube Angle:

78 ,77.5

BB Drop:

20 mm,28 mm

Flat Bar Width:

800 mm

Stem Length:

40 mm

Seat Tube Length:

410 mm

Head Tube Length:

130 mm

racing green-white cream | XL | 170 mm | 44 mm | 155,0 mm | 29" (front), 27.5" (rear):

Head Tube Angle:

63.9 ,63.3

Stack:

651 mm,656 mm

Wheelbase:

1317 mm,1318 mm

Reach:

511 mm,505 mm

Chainstay Length:

448 mm

Seat Tube Angle:

78 ,77.5

BB Drop:

20 mm,28 mm

Flat Bar Width:

800 mm

Stem Length:

50 mm

Seat Tube Length:

420 mm

Head Tube Length:

140 mm

• racing green-white cream | S | 170 mm | 44 mm | 155,0 mm | 29" (front), 27.5" (rear): U31003X9
• racing green-white cream | M | 170 mm | 44 mm | 155,0 mm | 29" (front), 27.5" (rear): U31005X9
• racing green-white cream | L | 170 mm | 44 mm | 155,0 mm | 29" (front), 27.5" (rear): U31007X9
• racing green-white cream | XL | 170 mm | 44 mm | 155,0 mm | 29" (front), 27.5" (rear): U31009X9

- 1 x Orbea Wild LT H10 Mullet Carbon 29" / 27.5" E-Mountain Bike
