Proxxon SlimLine 12-Piece Open-Ring Wrench Set

Technical Information:

Material:

CrV steel

Sizes:

6 / 7 / 8 / 9 / 10 / 11 / 12 / 13 / 14 / 15 / 17 and 19 mm

Angle:

15 ° (angled on ring side)

Certification Number:

DIN 3113, ISO 3318

Functions:

12

Functions:

Ring Wrench:

6 / 7 / 8 / 9 / 10 / 11 / 12 / 13 / 14 / 15 / 17 / 19 mm

Features:

• elaborate surface treatment (2 x nickel-plated, 1 x chrome-plated) with skin-friendly finish
• with permanent laser inscription
• large, clearly legible spanner sizes in mm
• polished heads
• slim and thin-walled
• torques are far higher than required by DIN/ISO
• measurement tolerances are tighter than specified by DIN/ISO
• each piece is calibrated and final checked
• angled 15° on all sides
• 12-piece

Size Guide:

6 mm:

• Width Across Flats: 6 mm
• Ring Head Width: 10 mm
• Open Head Width: 16 mm
• Length: 100 mm
• Height: 3.4 mm

7 mm:

• Width Across Flats: 7 mm
• Ring Head Width: 12 mm
• Open Head Width: 18 mm
• Length: 110 mm
• Height: 3.4 mm

8 mm:

• Width Across Flats: 8 mm
• Ring Head Width: 13 mm
• Open Head Width: 20 mm
• Length: 120 mm
• Height: 3.5 mm

9 mm:

• Width Across Flats: 9 mm
• Ring Head Width: 15 mm
• Open Head Width: 22 mm
• Length: 130 mm
• Height: 3.5 mm

10 mm:

• Width Across Flats: 10 mm
• Ring Head Width: 16 mm
• Open Head Width: 24 mm
• Length: 140 mm
• Height: 4.5 mm

11 mm:

• Width Across Flats: 11 mm
• Ring Head Width: 17 mm
• Open Head Width: 26 mm
• Length: 150 mm
• Height: 4.5 mm

12 mm:

• Width Across Flats: 12 mm
• Ring Head Width: 19 mm
• Open Head Width: 28 mm
• Length: 160 mm
• Height: 4.7 mm

13 mm:

• Width Across Flats: 13 mm
• Ring Head Width: 20 mm
• Open Head Width: 29 mm
• Length: 170 mm
• Height: 4.7 mm

14 mm:

• Width Across Flats: 14 mm
• Ring Head Width: 22 mm
• Open Head Width: 32 mm
• Length: 180 mm
• Height: 5.5 mm

15 mm:

• Width Across Flats: 15 mm
• Ring Head Width: 24 mm
• Open Head Width: 34 mm
• Length: 190 mm
• Height: 5.5 mm

17 mm:

• Width Across Flats: 17 mm
• Ring Head Width: 25 mm
• Open Head Width: 38 mm
• Length: 210 mm
• Height: 6.0 mm

19 mm:

• Width Across Flats: 19 mm
• Ring Head Width: 28 mm
• Open Head Width: 42 mm
• Length: 230 mm
• Height: 6.5 mm

Manufacturer Number:

23820

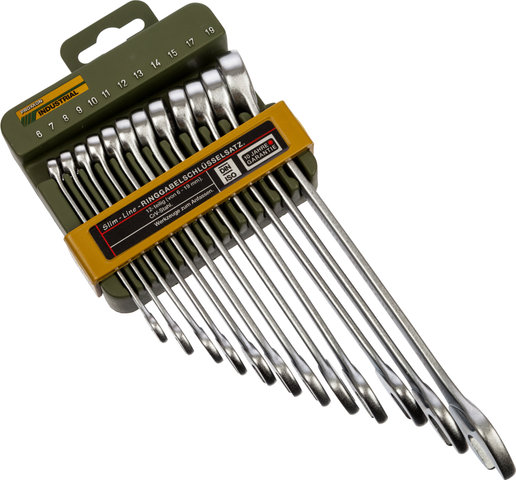

Manufacturer's note: Each key has its fixed place: latched into a plastic base that can also be attached to the wall. With clear size markings - order forever!

Contents:

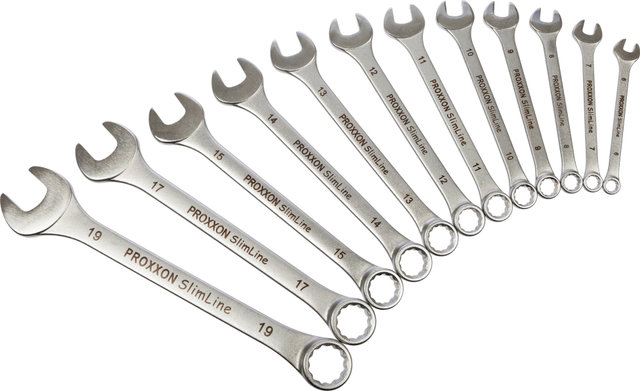

• 12 x Proxxon SlimLine ring wrenches
• 1 x Proxxon plastic mount
