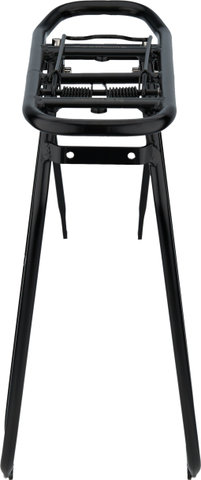

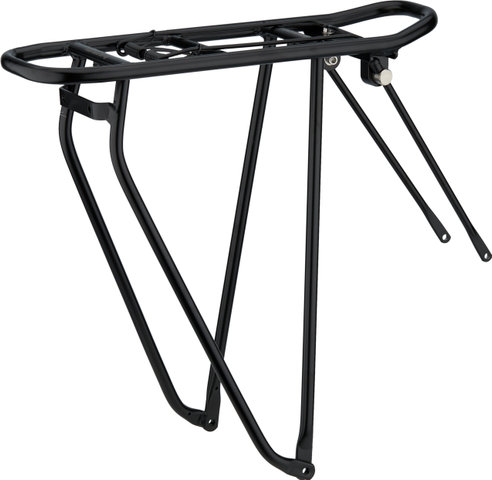

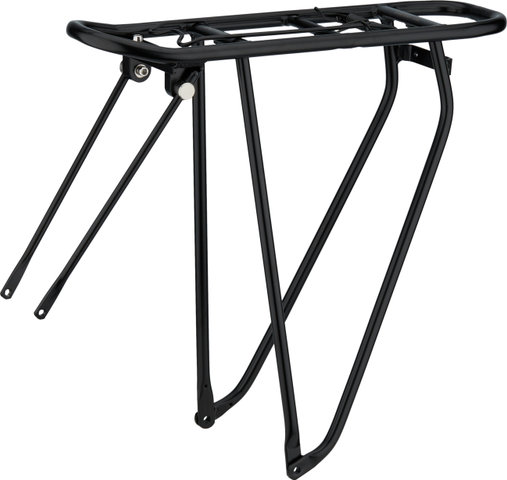

Racktime Basic 2.0 Pannier Rack

Specifications:

Application:

City & Touring

Upper Mount:

rear triangle braze-ons

Lower Mount:

stays mount at dropouts

Rail Diameter:

14 mm

Payload (max.):

25 kg

Compatibility:

Snapit 2.0

Technical Information:

Material:

Aluminium

Rear Light Hole Distance:

50 mm

Features:

• aluminium pannier rack for shopping and commuting
• includes spring flap for quickly attaching shopping bags, jackets, etc.
• can be mounted quickly with length-adjustable fixation stays
• option for mounting a rear light
• compatible with Snapit 2.0 adapters

Models:

Wheel Size:

20"

Dimensions (H x W x D):

297 mm x 128 mm x 204 mm

Manufacturer Number:

090301-001

Wheel Size:

24"

Dimensions (H x W x D):

315 mm x 128 mm x 195 mm

Manufacturer Number:

090302-001

Wheel Size:

26"

Dimensions (H x W x D):

355 mm x 128 mm x 185 mm

Manufacturer Number:

090311-001

Wheel Size:

28"

Dimensions (H x W x D):

380 mm x 128 mm x 172 mm

Manufacturer Number:

090310-001

Wheel Size:

29"

Dimensions (H x W x D):

407 mm x 128 mm x 172 mm

Manufacturer Number:

090314-001

Contents:

• 1 x Racktime Basic 2.0 pannier rack
• 1 x spring clamp
• 2 x 240 mm stays
• 2 x clamp blocks

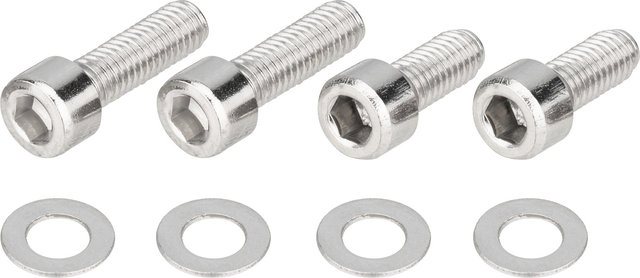

• 2 x bolts, M6 x 12 mm
• 4 x bolts, M5 x 12 mm
• 2 x bolts, M5 x 16 mm
• 4 x washers, M6
• 4 x washers, M5
• 2 x end plugs
