Reset Racing HollowLite MTB Hollowtech II Bottom Bracket

Unsurpassed in quality and design: the HollowLite bottom bracket by Reset Racing

The Reset Racing HollowLite bottom bracket is extremely compact despite its complex seals, thanks to the tool holder which is not visible from the outside. It can be disassembled for maintenance, and HollowLite bottom brackets are compatible with crank systems of the Shimano Hollowtech II Standard and also fit crank sets of other manufacturers using this standard.

Specifications:

Application:

All Mountain, Enduro, Cross Country, Gravel

Type:

BSA

Shell Width:

68 mm, 73 mm

Axle Diameter:

24 mm (Hollowtech II)

Technical Information:

Bearings:

deep groove ball bearing, steel

Bottom Bracket Cup Material:

aluminium (7075)

Bottom Bracket Centre Tube Material:

composite (POM, NBR)

Seals:

radial shaft seal, O-rings

Compatibility:

• Hollowtech II cranks (e.g. from Shimano, Race Face, FSA, Rotor)
• not compatible with SRAM / Truvativ GXP cranks

Features:

• anodised and laser engraved

Manufacturer Number:

5117

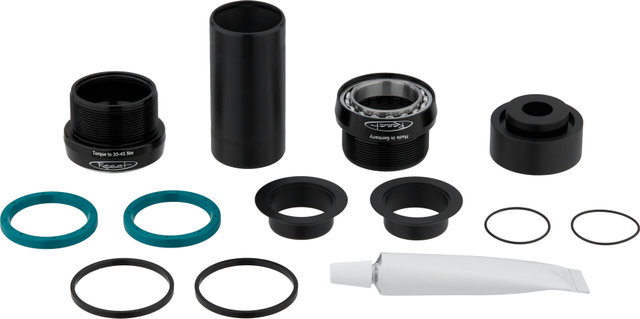

Contents:

• 1 x Reset Racing HollowLite MTB bottom bracket cup, left, incl. bearings
• 1 x Reset Racing HollowLite MTB bottom bracket cup, right, incl. bearings
• 1 x Reset Racing sleeve
• 2 x O-ring
• 2 x end caps
• 1 x Reset Racing bearing cup guide
• 1 x 2.5 mm spacers
• incl. O-rings
• incl. grease

• black/BSA: 75 g
