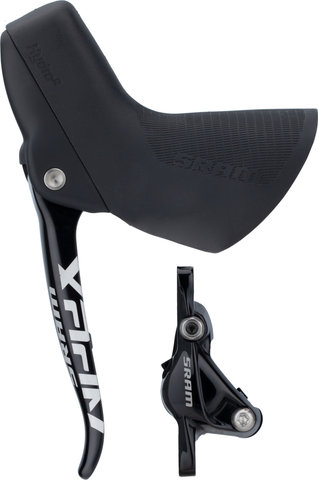

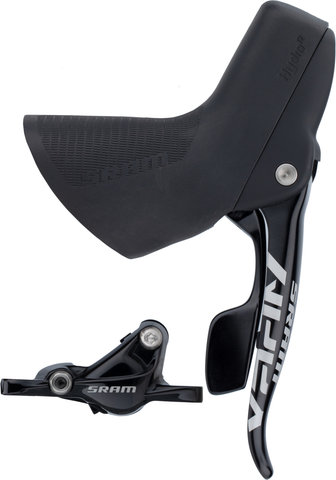

SRAM Apex 1 HRD DoubleTap® Hydraulic Disc Brake

You wish for a simple, effective control for your ride. The Apex 1 shift/brake levers feature reach adjustment, completely new hydraulic internal parts and optimised ergonomics for better finger reach. The perfect setup for ultimate control in any situation.

Specifications:

Series: Apex 1
Application: Road
Pistons: 2
Type: disc brake, hydraulic
Mount: post mount (IS with adapter)
Actuation: DOT 5.1
Brake Rotor: not incl. (Centerline / 140/160 mm)
Brake Lever: included

Technical Information:

Brake Lever Material: aluminium
Shift Lever Material: aluminium

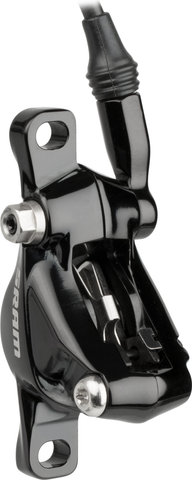

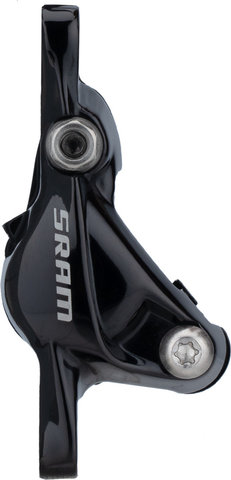

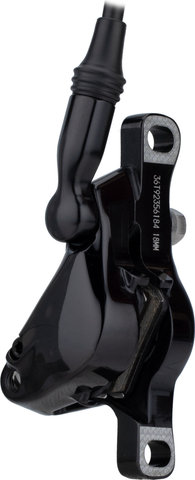

Calliper Material: aluminium
Pads: organic

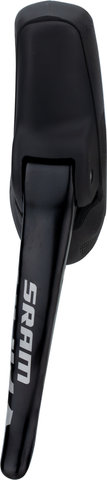

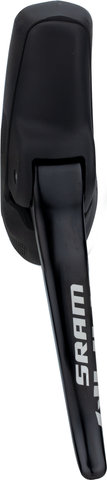

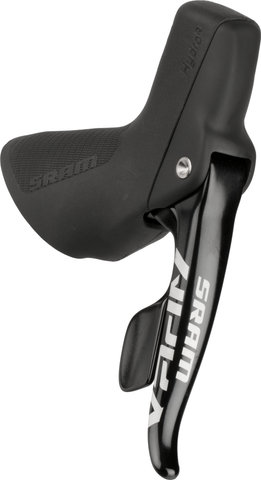

Brake Lever: DoubleTap® shift/brake lever (front right / rear right), brake lever (front left / rear left)
Hose Lengths: 950 mm (front), 1800 mm (rear)
Shifter Cable Length: 2200 mm (rear right / front right)
Technology: DoubleTap®

Compatibility:

- SRAM Road Exact Actuation™ 11-speed

Features:

- award winning HydroR™ technology
- allows for more control and improved performance in all conditions
- brake caliper with 2 brake pistons

Technology:

DoubleTap™
DoubleTap™ is a technology that simplifies and speeds up the gear change. DoubleTap handles up- and downshifts in one short, sweeping motion, with minimal effort and maximum comfort no matter where you are on the bars.

Models:

front / left:

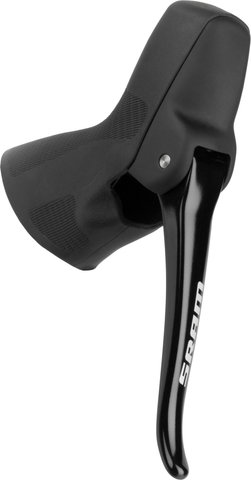

Brake Lever: left
Brake Hose Length: 950 mm
Gearing: without shifting function
Resistance Unit: front
Manufacturer Number: 00.5018.096.000

rear / right:
Shift/Brake Lever: right
Brake Hose Length: 1800 mm
Shifter Cable Length: 2200 mm
Gearing: 11
Resistance Unit: rear wheel
Manufacturer Number: 00.7018.295.001

front / right:
Shift/Brake Lever: right
Brake Hose Length: 950 mm
Shifter Cable Length: 2200 mm
Gearing: 11
Resistance Unit: front
Manufacturer Number: 00.7018.295.000

rear / left:
Brake Lever: left
Brake Hose Length: 1800 mm
Gearing: without shifting function
Resistance Unit: rear wheel
Manufacturer Number: 00.5018.096.001

Contents:

- 1 x SRAM Apex 1 disc brakes for front or rear, ready to install, filled & bled

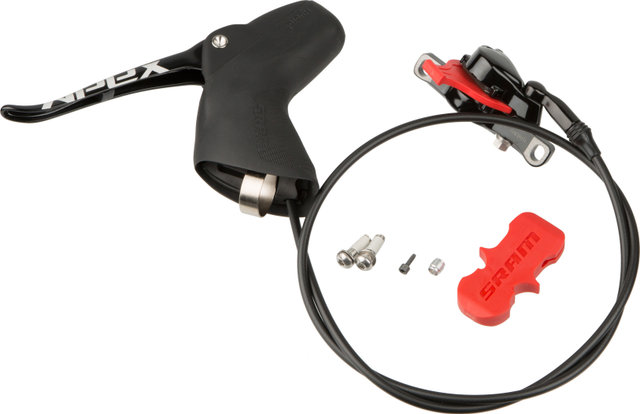

- 1 x SRAM Apex 1 brake lever (only front left / rear left)

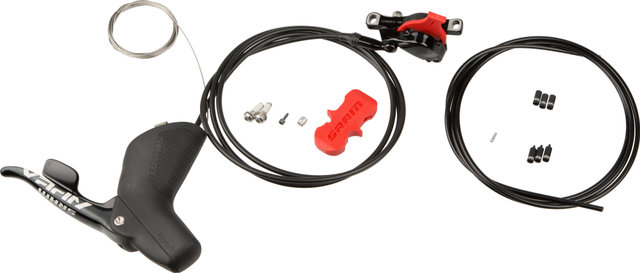

- 1 x SRAM Apex 1 DoubleTap® brake/shift lever (only rear right / front right), incl. shifter cable
- 1 x SRAM shifter cable housing (only rear right / front right)
- 1 x SRAM ferrule (only rear right / front right)
- 6 x SRAM end caps (only rear right / front right)
- 1 x SRAM olives
- 1 x SRAM insert pin
- 2 x SRAM bolts
- 1 x SRAM pad spacer
- 1 x SRAM bleed block
- not incl. brake rotor
