Shimano GRX BR-RX810 + ST-RX810 Disc Brake - black-grey/rear

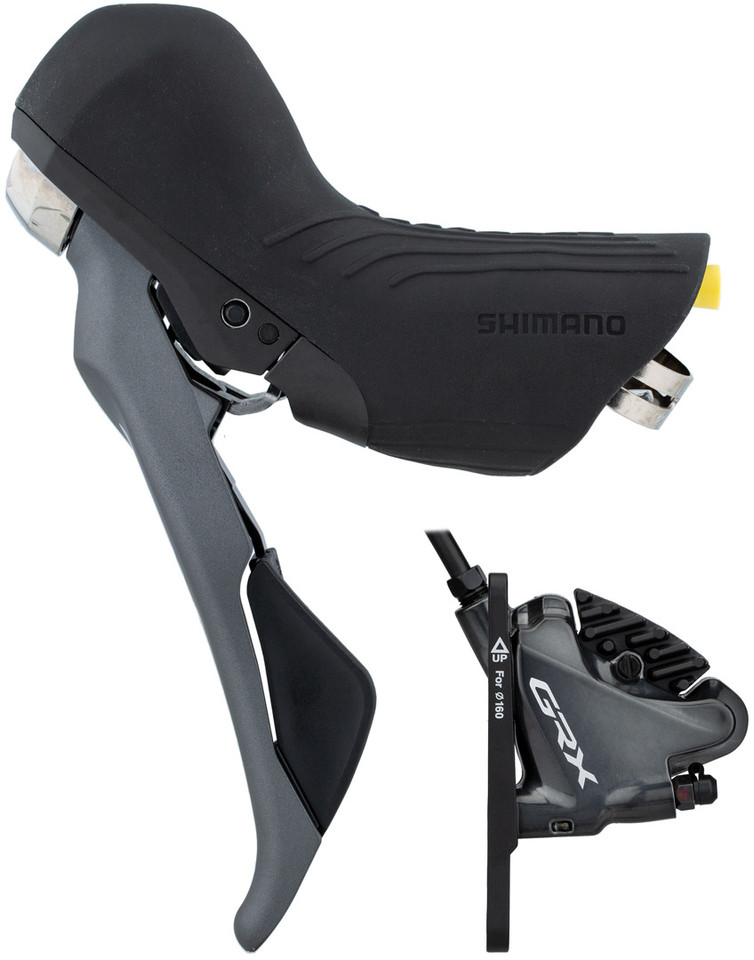

Shimano GRX BR-RX810 + ST-RX810 Disc Brake

Item number: 71449

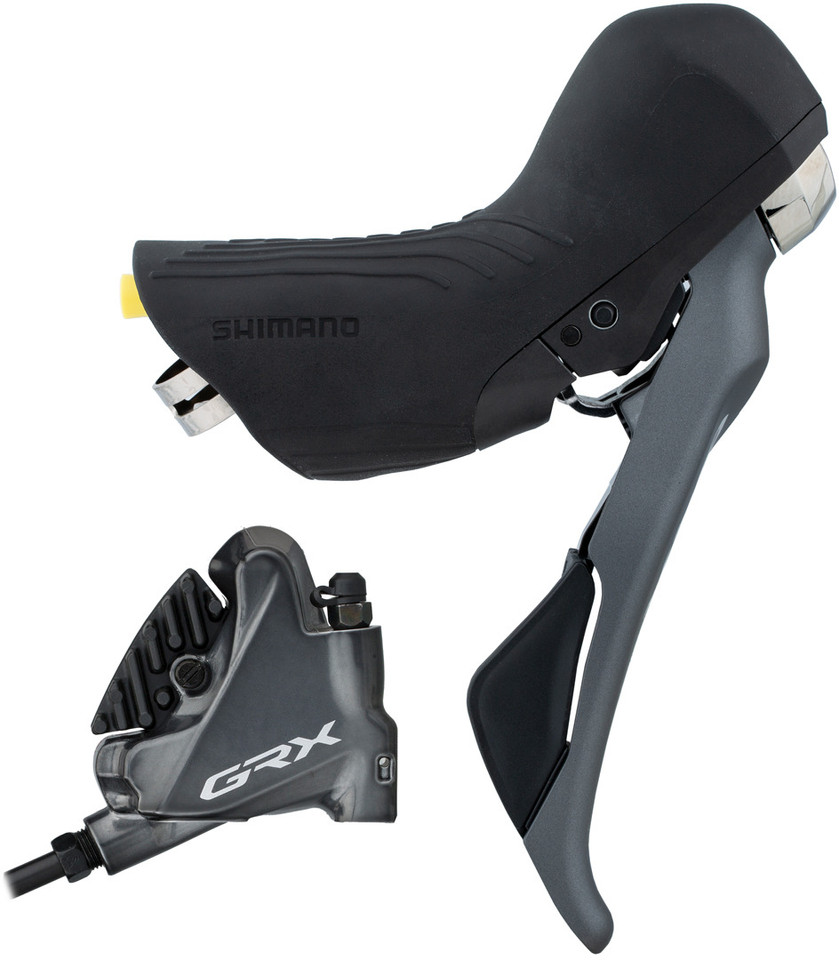

Shimano GRX BR-RX810 + ST-RX810 disc brake - inspired by Gravel specialists

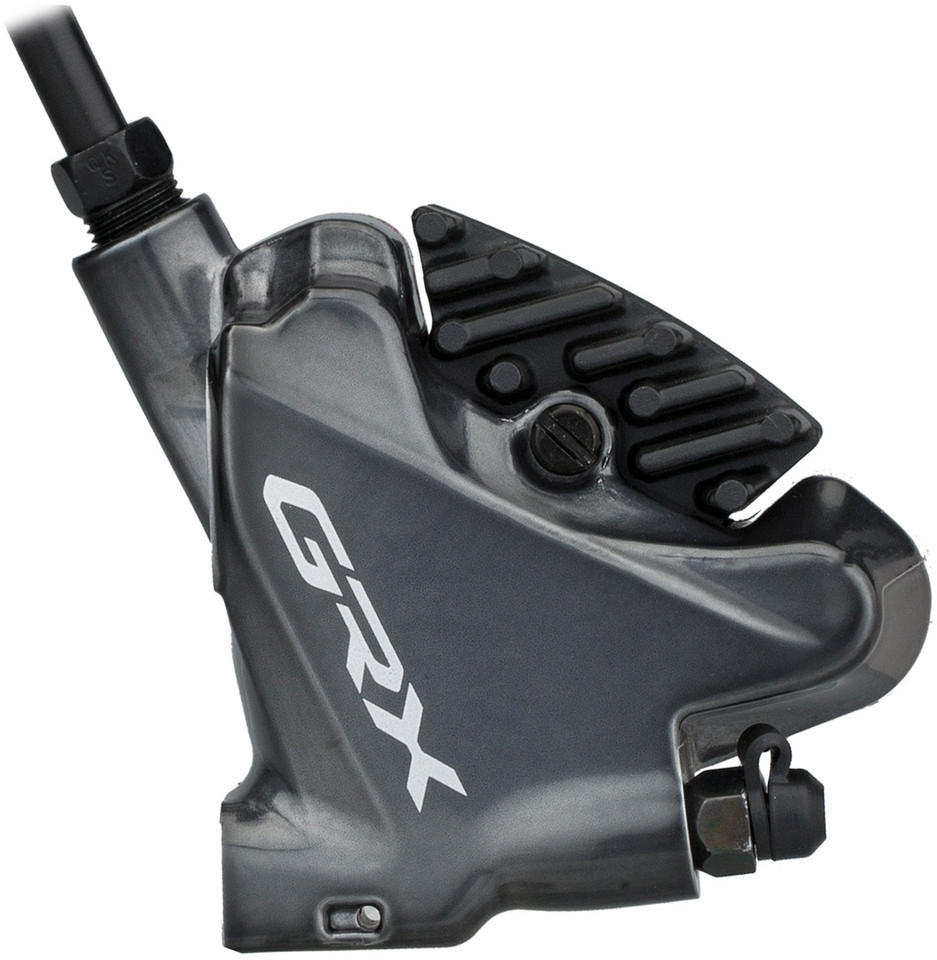

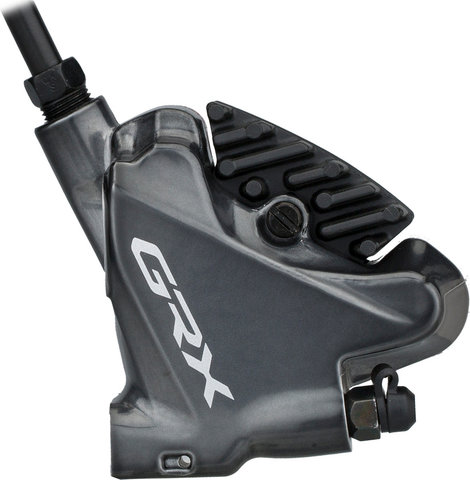

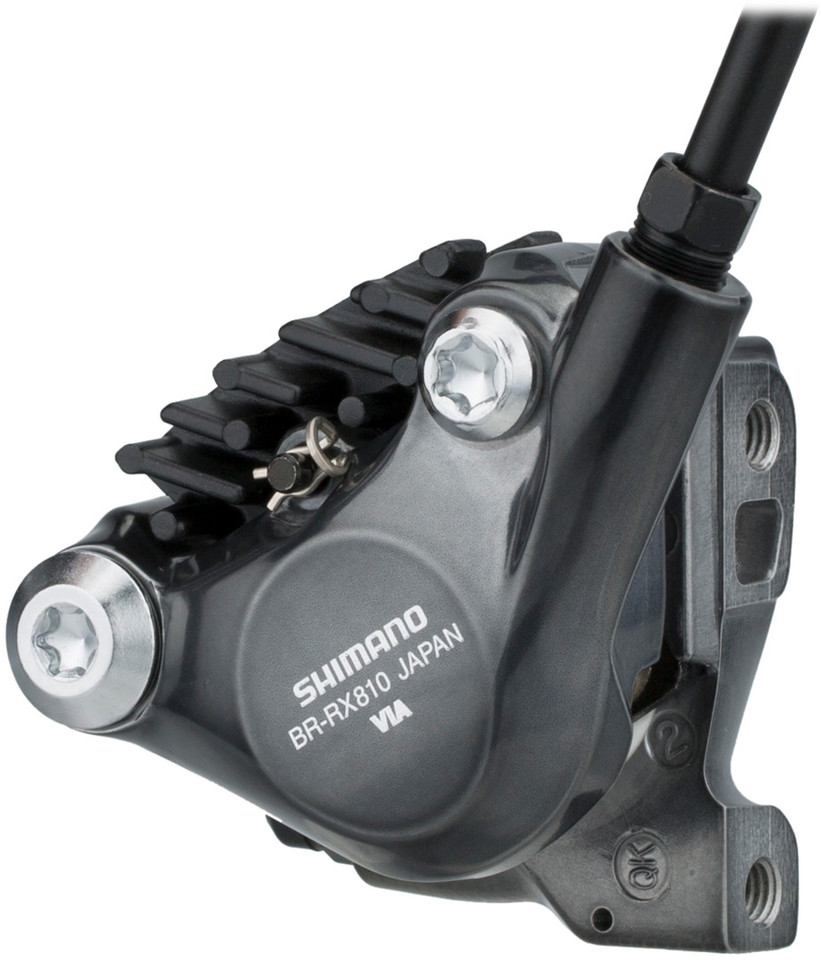

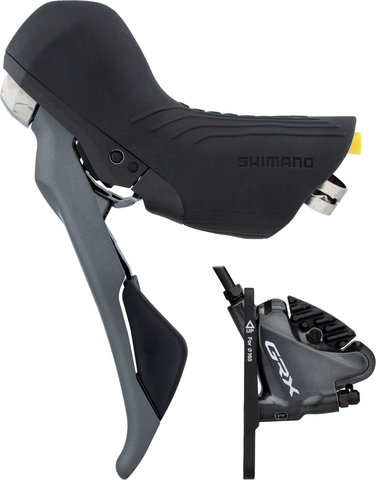

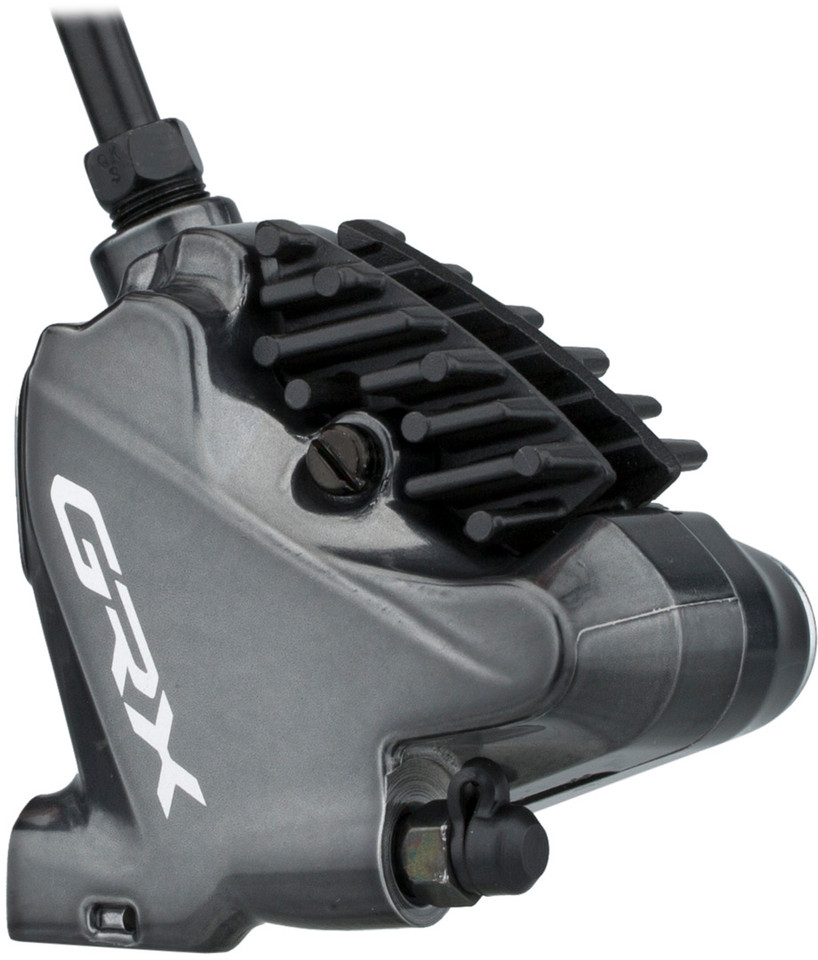

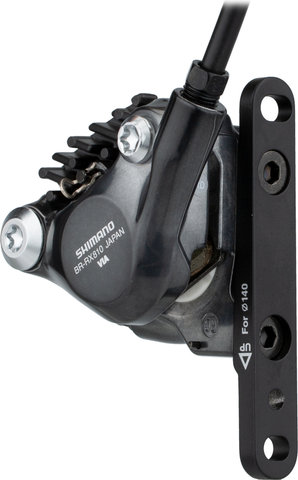

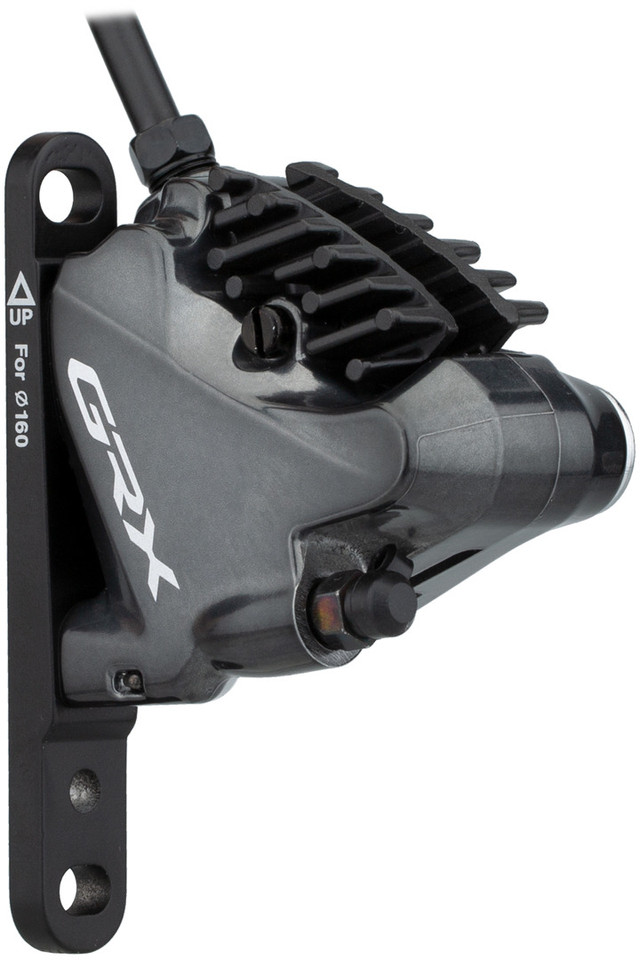

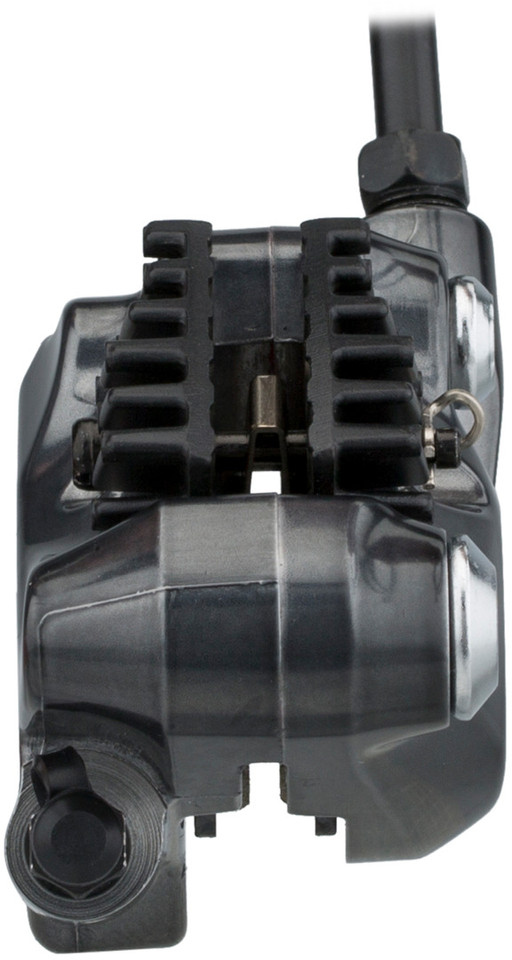

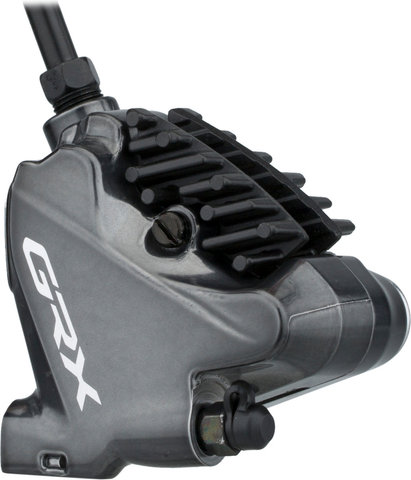

The Shimano GRX BR-RX810 + ST-RX810 disc brake gives you more brake control on mixed terrain. The GRX BR-RX810 brake caliper with Ice Technology ensures perfect heat distribution. In addition, there is the simple one-way bleeding and the uncomplicated hose connection system. The design of the brake caliper is based on the flat-mount construction, which has established itself in the Road bike sector over the past few years

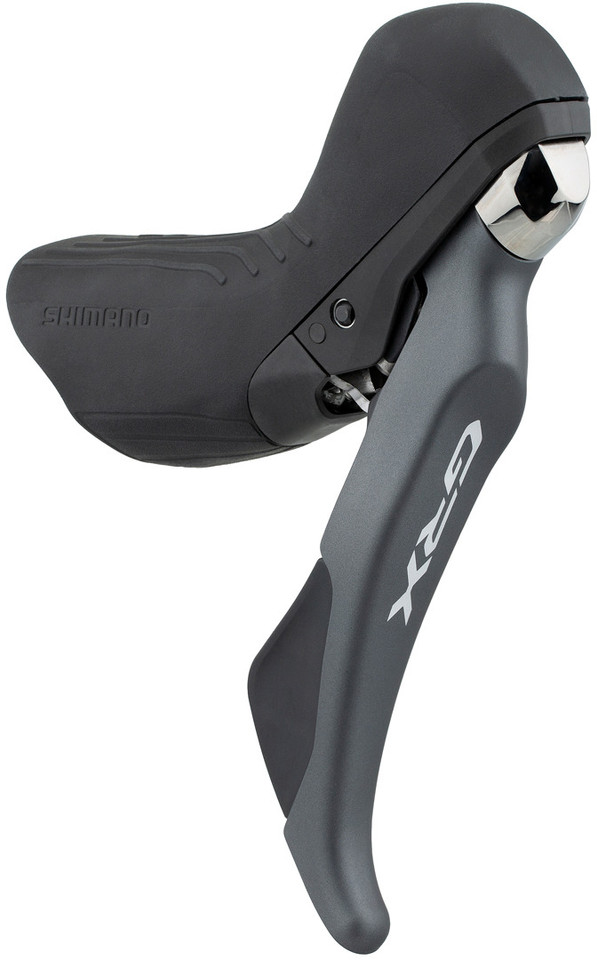

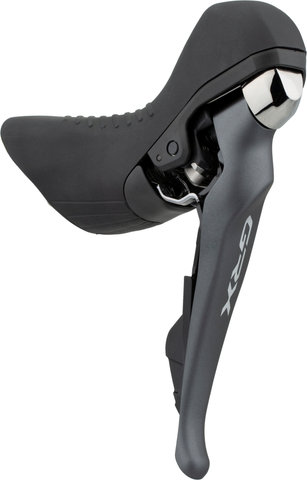

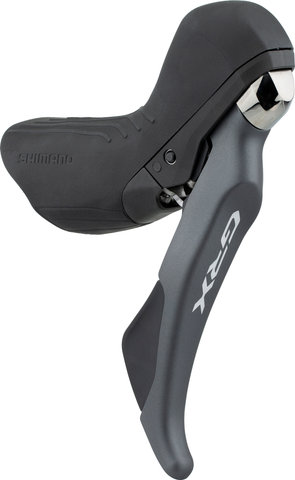

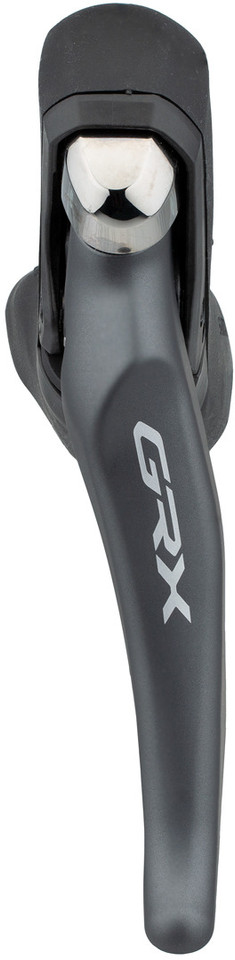

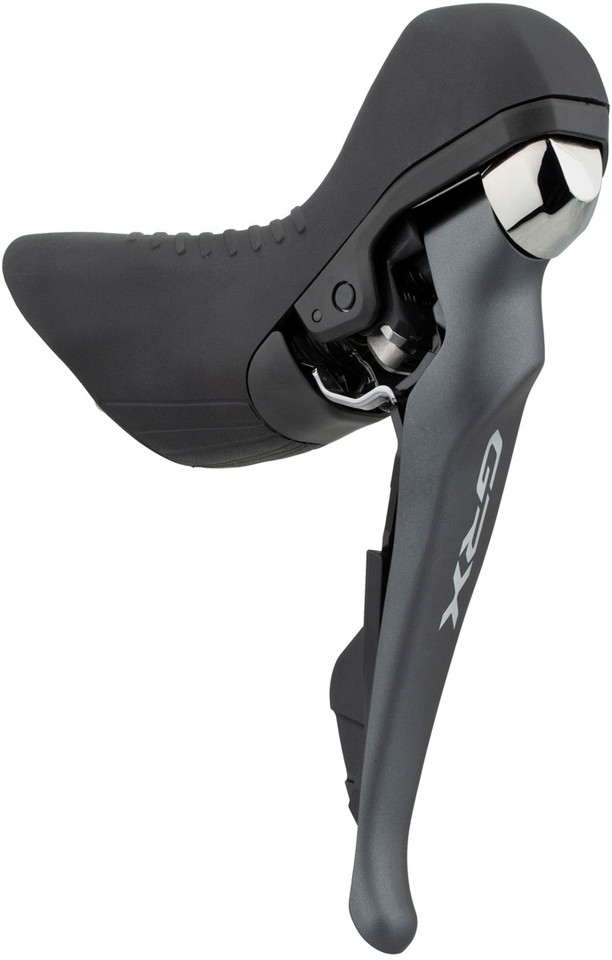

The Shimano GRX ST-RX810 shift/brake lever also stands for more control on various terrain. Its lever and grip ergonomics were inspired by Gravel specialists from all over the world; the smooth shifts corresponds to that of previous Shimano top-level groupsets. The texture of the brake lever helps for more grip. In addition the Shimano Servo Wave technology, mostly known from MTB, is used.

Are you interested in the GRX series? Then have a look at our Shimano gravel site. You will find many more products there.

Specifications:

Series:
GRX RX810
Application:
Gravel, Cyclocross, City & Touring
Gearing:
2-speed, 11-speed
Shifting System:
mechanical
Type:
hydraulic, 2 pistons
Actuation:
mineral oil
Hose:
SM-BH90-JK-SSR
Hose Length (Front/Rear):
1000 mm/1700 mm

Technical Information - Shift/Brake Lever:

Brake Lever Material:
Aluminium
Lever Body Material:
Composite
Clamp Material:
steel
Mount:
clamp (closed)
Reach Adjust:
bolt
Adjustment Options:
reach adjust, contact point

Technical Information - Caliper:

Mount:
flat mount
Pads:
resin with cooling fins
Design:
2-piece
Calliper Material:
Aluminium
Piston Material:
Ceramic
Hose Connection:
straight

Compatibility:

Shift/Brake Lever:
Mounting Position:
left for front brake caliper, right for rear brake caliper
Clamp Diameter:
23.8 - 24.2 mm
Front Derailleur:
FD-R9100, FD-R8000, FD-5801, FD-R7000, FD-9000, FD-6800, FD-5800, FD-U5000, FD-RX810
Crank:
FC-R9100, FC-R9100-P, FC-R8000, FC-R7000, FC-RS510, FC-9000, FC-6800, FC-5800, FC-RS500, FC-U5000-2, FC-RX810-2, FC-RX600-11
Rear Derailleur:
RD-R9100, RD-R8000, RD-RX800, RD-9000, RD-6800, RD-5800, RD-R7000, RD-U5000, RD-RX810, RD-RX812*
Cassette:
CS-R9100, CS-9000, CS-6800, CS-5800, CS-R8000, CS-HG800-11, CS-R7000, CS-HG700-11, CS-M8000-11*, CS-M7000-11*, CS-M5100-11*
Chain:
CN-9000, CN-6800, CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500
Additional Brake Lever:
BL-RX812

* only 11-speed (right) with 1x11-speed

Brake Caliper:
Brake Rotor:
140 mm, 160 mm, 180 mm (recommended: RT-MT800, SM-RT800)
Pads:
organic and sintered; with narrow pad shape; standard and Ice Tech brake pads

Features:

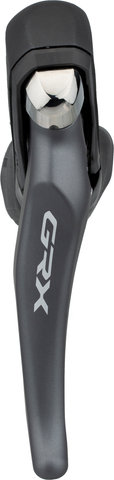

Shift/Brake Lever:
  • lever and grip ergonomics designed for Gravel
  • multi-function lever reduces stress and distraction
  • anti-slip brake lever
  • proven light shifts of the Shimano top groupsets
  • faster brake contact thanks to Servo Wave
  • polymer-coated shift cable, OT-SP41 cable housing (OT-RS900 to rear derailleur)
  • funnel venting with M7 funnel
  • lacquered brake lever

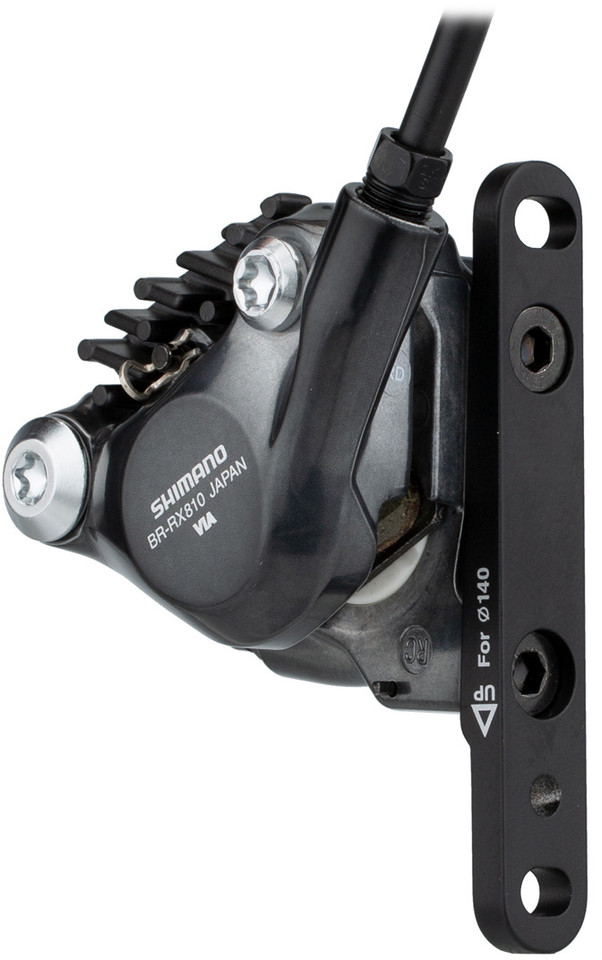

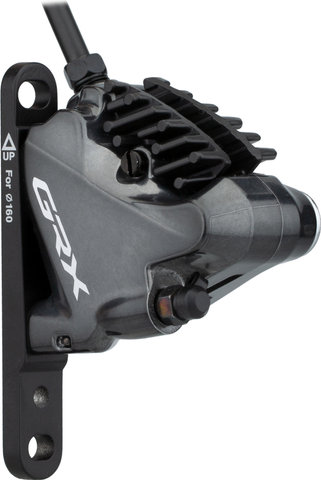

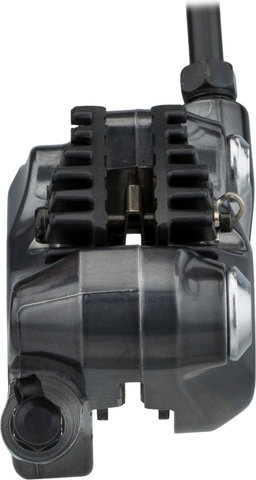

Brake Caliper:
  • excellent heat dissipation
  • practical tool access, easy wheel change
  • simple, clean bleed system
  • ceramic piston
  • painted
  • steel bolts (4 mm)

Technology:

STI Dual Control
Shimano Total Integration (STI) means the combination of braking and shifting functions in one lever, which increases safety when riding. By refining the technology, it became possible to make shifting so smooth at the front and rear that they can be triggered with just one finger. Shimano calls such levers Dual Control Levers (DCL).

Servo Wave
Shimano Servo Wave technology optimises the travel of your brake levers. During the braking process, the brake pads are guided quickly to the brake rotor with very short lever travel. The greater part of the lever travel is reserved for the actual braking force. In this way, you can apply your braking power in a more targeted manner and use it more effectively.

One Way Bleeding
One Way Bleeding is a technique used on Shimano calipers that facilitates brake bleeding. The hose routing has been optimised so that no air bubbles remain in the brake calliper. In combination with the funnel, the brake can be bled cleanly and easily.

Manufacturer Numbers:

Front:
I-RX8102DLF6SC100A
Rear:
I-RX8102DRRDSC170A

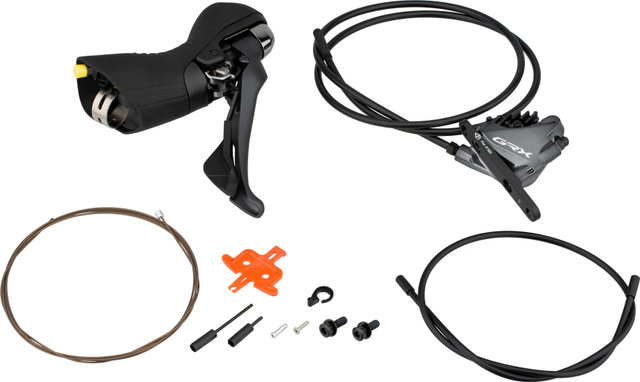

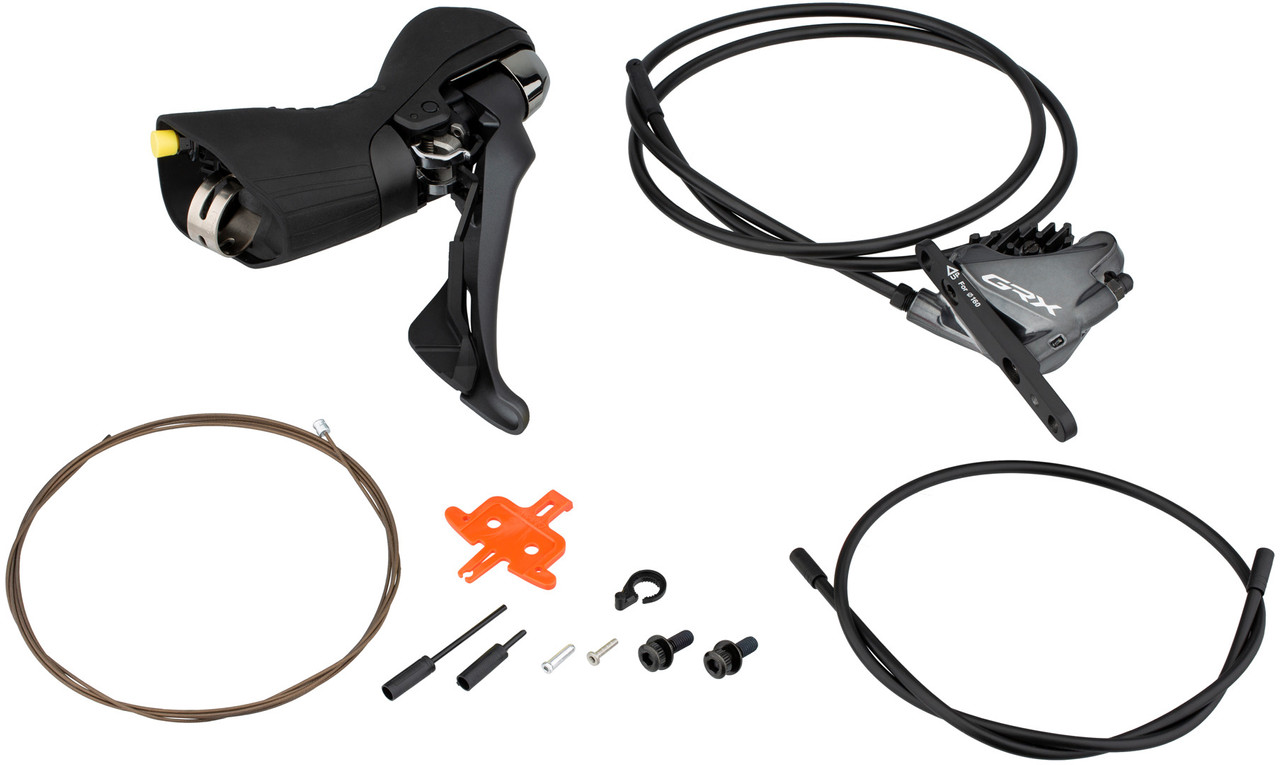

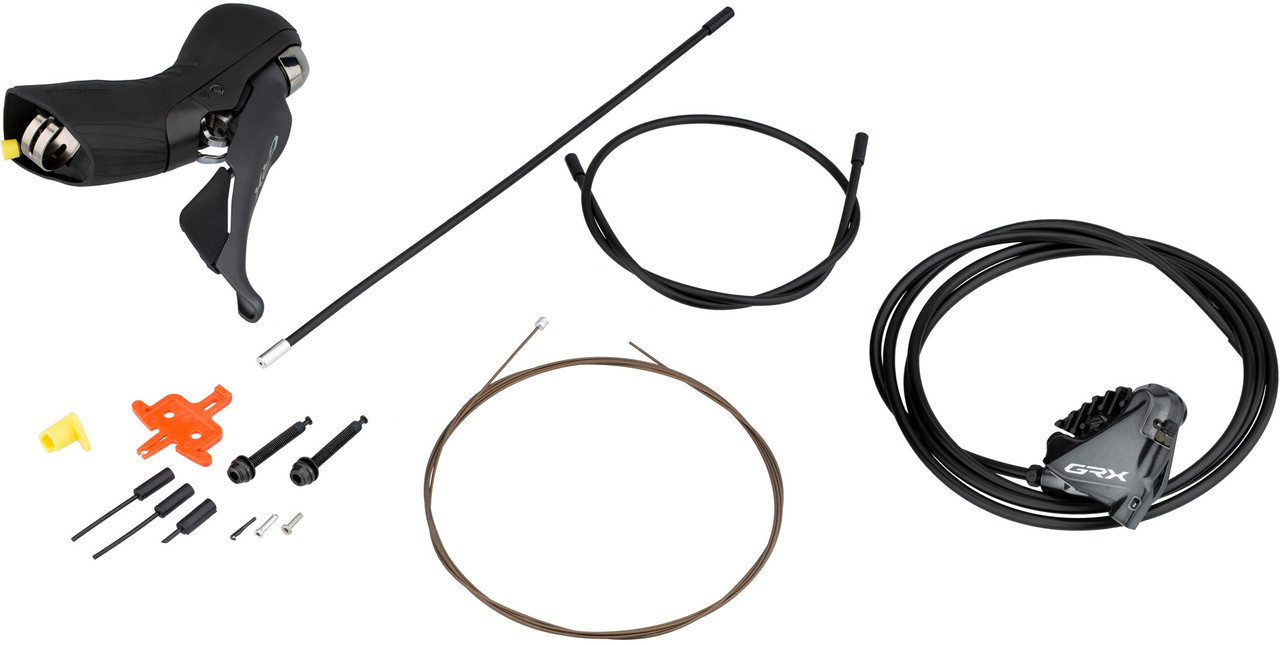

Contents:

  • 1 x Shimano GRX BR-RX810 + GRX ST-RX810 disc brake, front or rear
  • 1 x Shimano SM-BH90-JK-SSR brake hose, 1000 mm (front) or SM-BH90-JK-SSR 1700 mm (rear)
  • 1 x pair Shimano brake pads

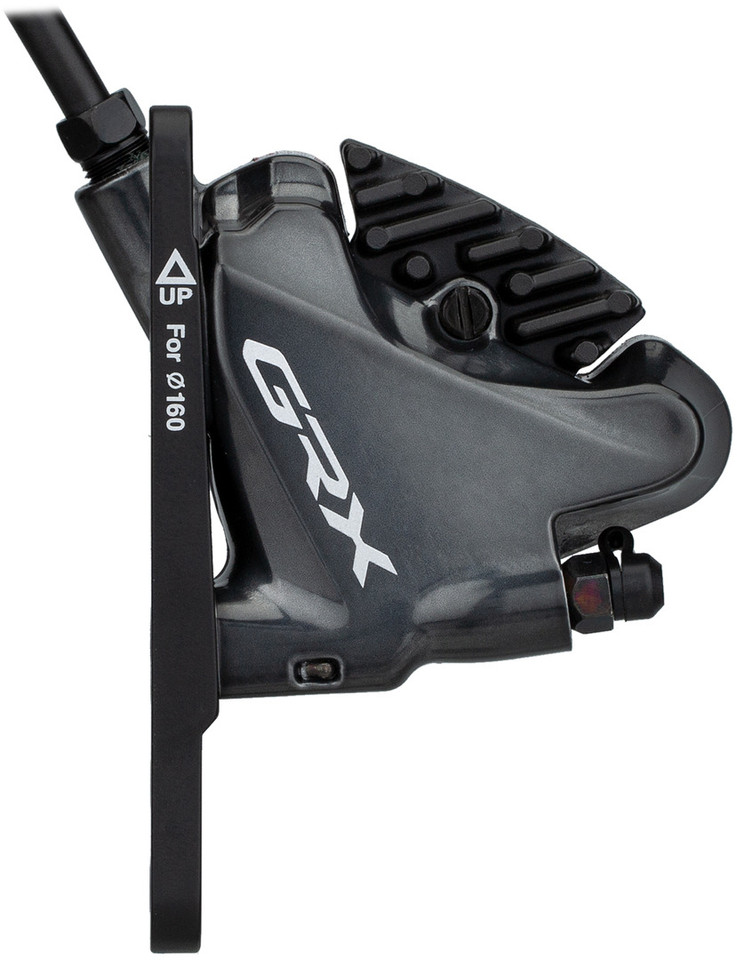

  • 1 x disc brake adapter (front only)
  • 1 x hose connection set w/ olives and pins
  • 2 x type A caliper bolts (front)
  • 2 x caliper bolts for 25 mm frame diameters (rear)
  • 1 x shifter cable, 1800 mm (front) or 2200 mm (rear)
  • 1 x cable housing, 600 mm (front) or 600 + 300 mm (rear)
  • ready for installation, filled, bleeding is recommended after installation

Order Together:

  • FM to FM SM-MA-R160 D/D brake adapter for 160 mm brake rotors on 140 mm FM frames for rear wheel
  • FM to FM SM-MA-R160 D/D brake adapter for 180 mm brake rotors on 160 mm FM frames for rear wheel
  • TL-BH61 tool for insert installation
