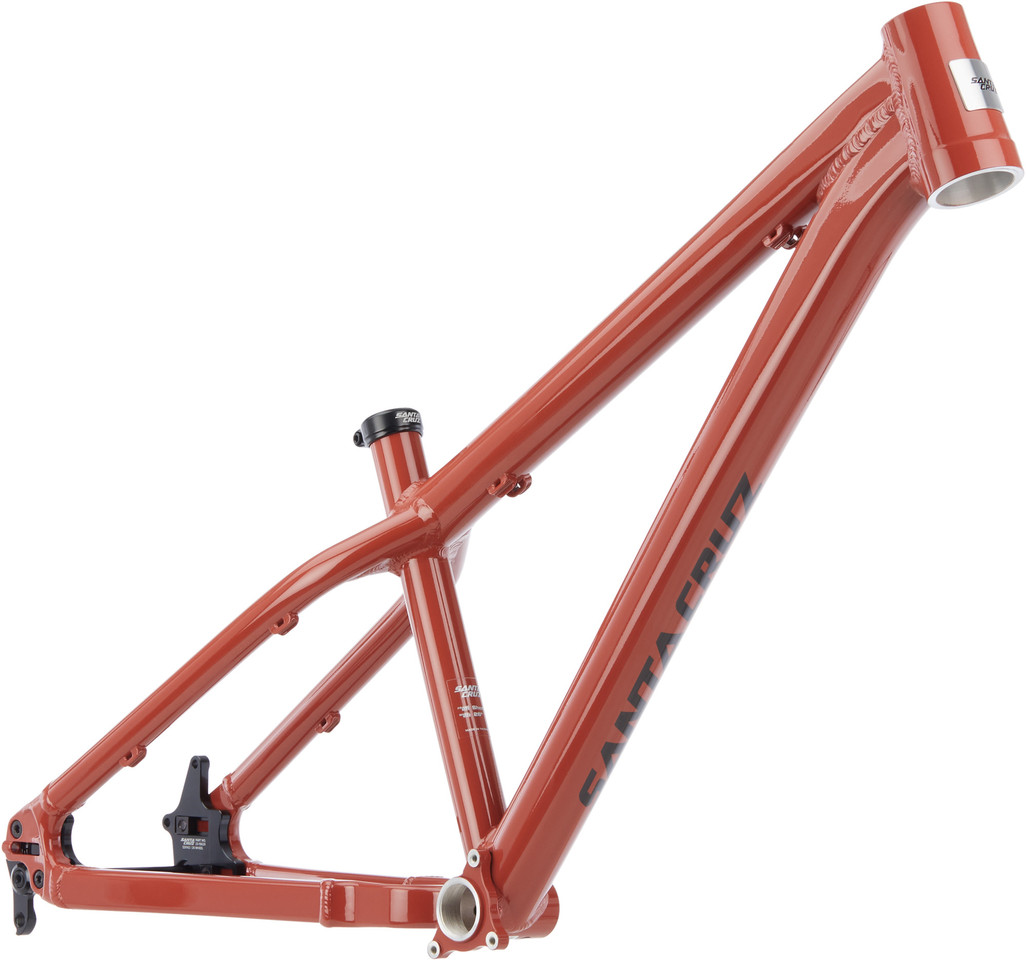

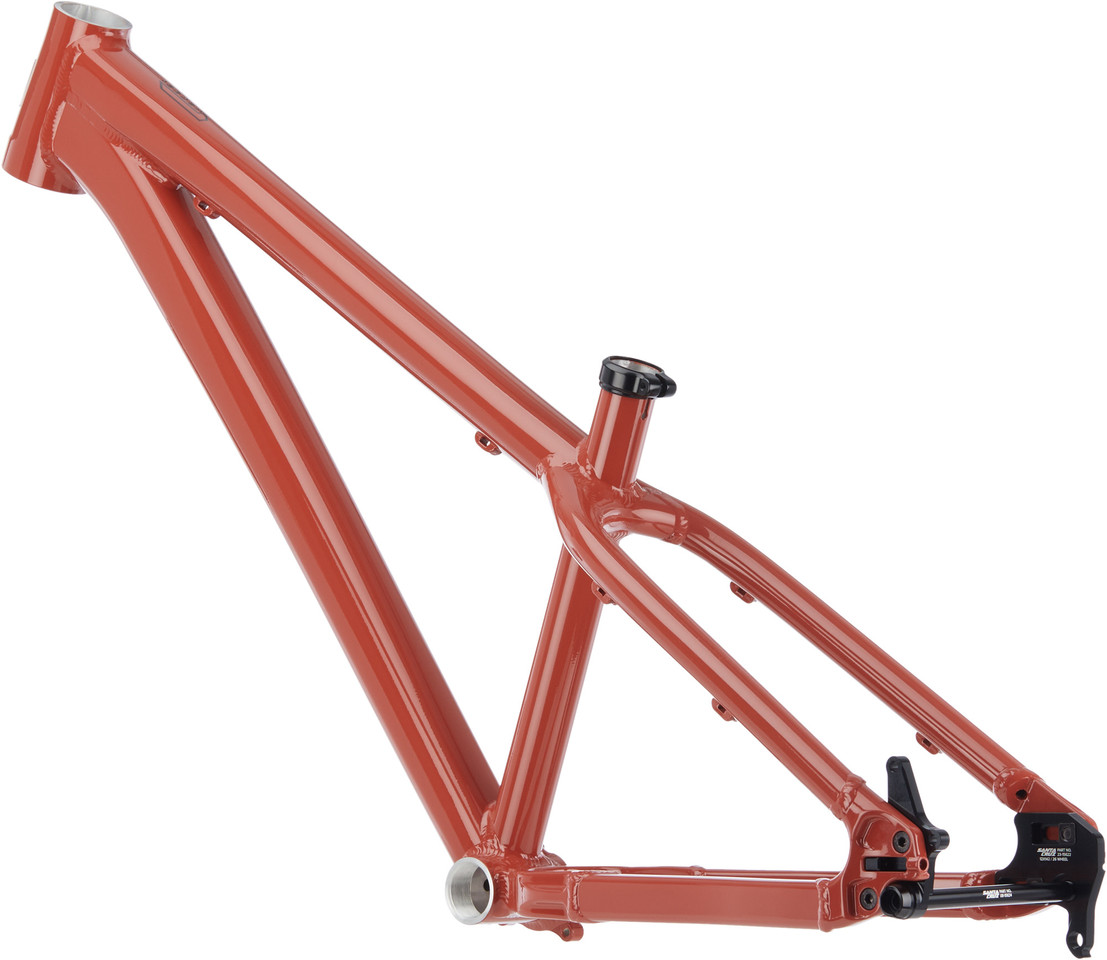

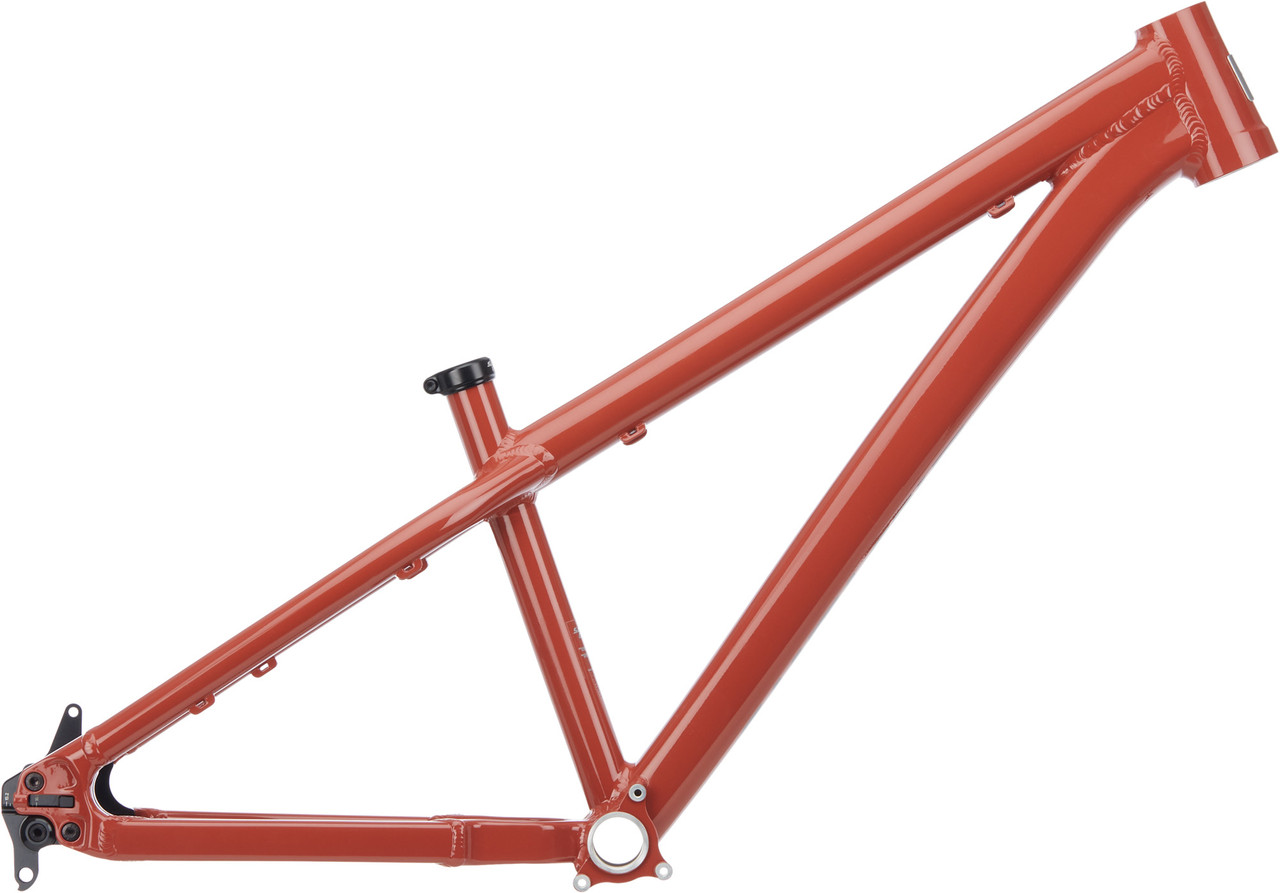

The Jackal 4.1 frame by Santa Cruz feels at home in the dirt park

The Jackal 4.1 frame by Santa Cruz for 26" wheels is an excellent base for a fun bike with which you can use to tear it up in dirt parks and on pumptracks. Sliding dropouts allow for gear shifters as well as a singlespeed setup. Thanks to a slightly asymmetrical rear triangle, particularly short chainstays ensure high agility.

Specifications:

Application:

Dirtjump, Slopestyle

Wheel Size:

26"

Size:

M, L

Material:

Aluminium

Technical Information:

Wheel Standard:

12 x 142 mm (standard)

Axle Type:

12 mm thru-axle

Seatpost (Ø):

30.9 mm

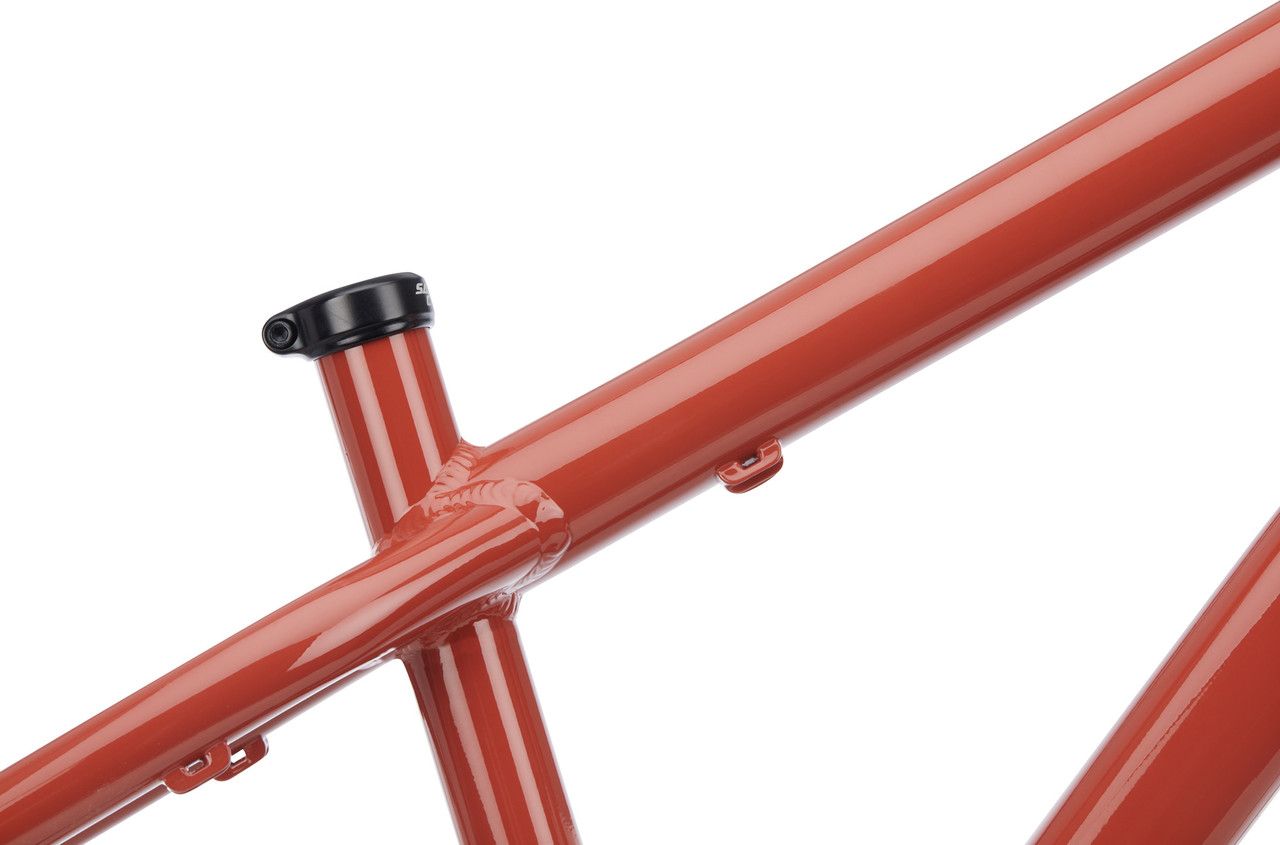

Seatpost Clamp(Ø):

34.9 mm

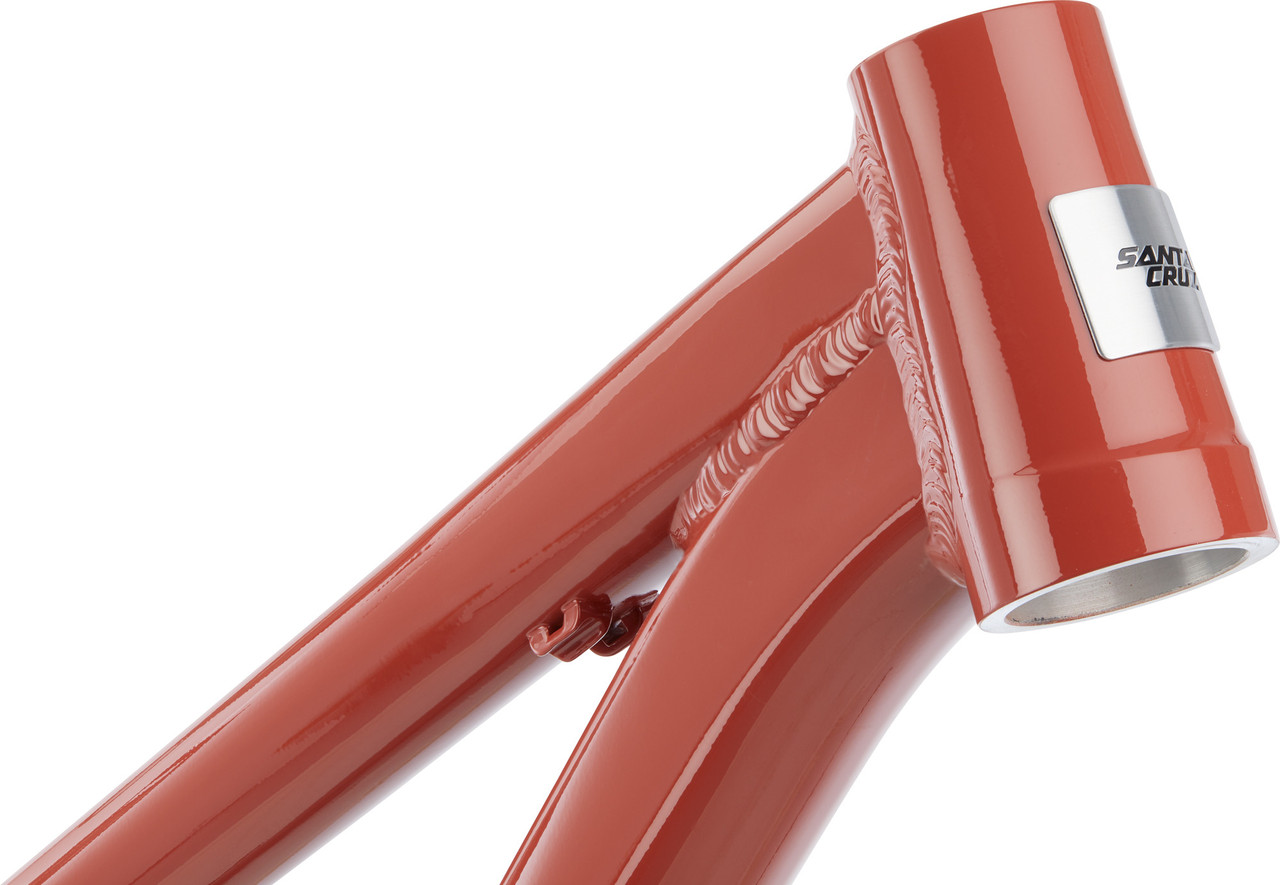

Headset:

ZS44 - EC49 (top to bottom)

Steerer tube rec.:

1 1/8" - 1.5" tapered

Recommended Fork Axle to Crown:

482 mm

Recommended Fork Travel:

100 - 160 mm

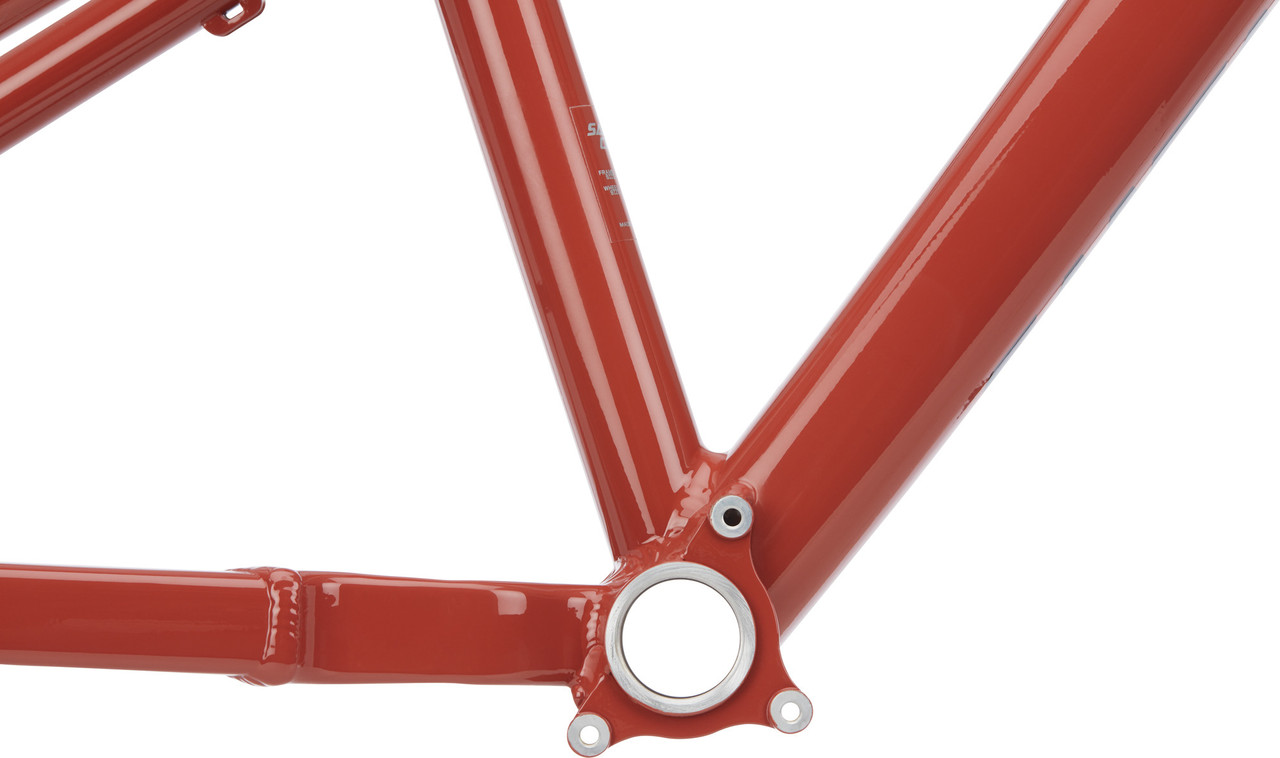

Bottom Bracket Standard:

BSA

Shell Width:

73 mm

Chainstay Guide:

ISCG 05

Brake Mount:

IS 2000

Front Derailleur Mount:

no front derailleur attachment possible

Bottle Cage Mounts:

none

Approved For:

Rotor Size (max.):

180 mm

Tyre Size (max.):

26 x 2.5"

Chainrings:

1x

Features:

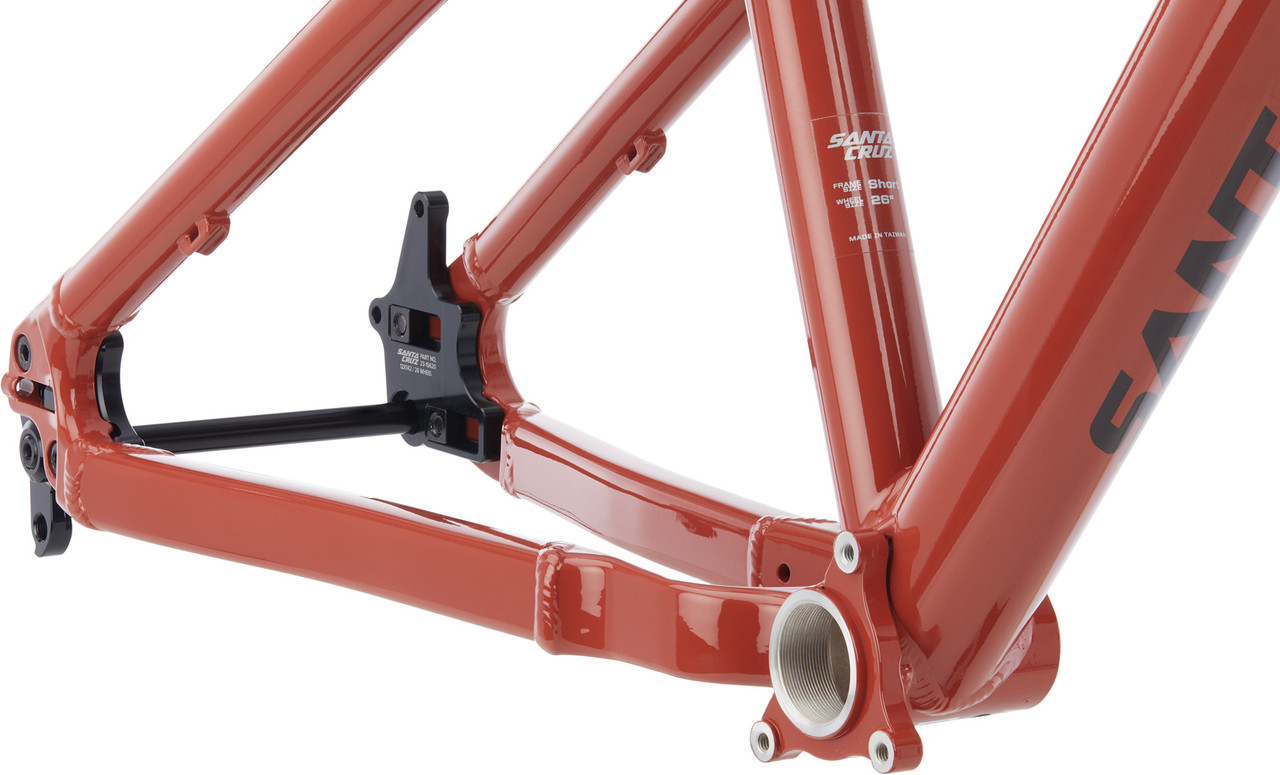

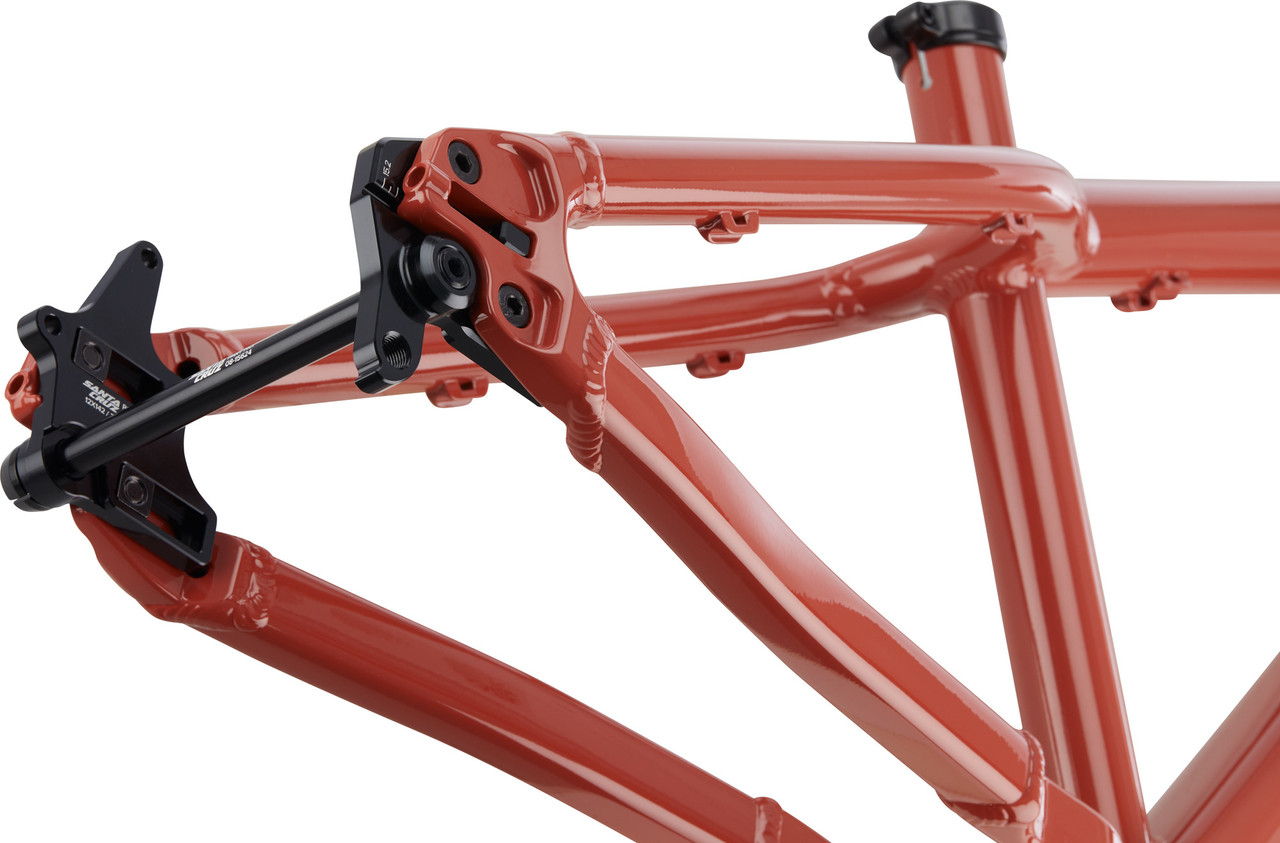

• sliding dropouts
• can be built as a singlespeed or with gears
• durable, very short chainstays

Geometry:

M:

Recommended Height:

152 - 175 cm

Stack:

563.2 mm

Reach:

391.6 mm

Seat Tube Length:

340 mm

Effective Top Tube Length:

571.5 mm

Head Tube Length:

115 mm

Chainstay Length:

387.4 mm

Wheelbase:

1031.5 mm

Bottom Bracket Height:

323.8 mm

Seat Tube Angle:

72.7°

Head Tube Angle:

68.7°

Standover Height:

630 mm

L:

Recommended Height:

175 - 198 cm

Stack:

563.2 mm

Reach:

417 mm

Seat Tube Length:

340 mm

Effective Top Tube Length:

596.9 mm

Head Tube Length:

115 mm

Chainstay Length:

387.4 mm

Wheelbase:

1056.9 mm

Bottom Bracket Height:

323.8 mm

Seat Tube Angle:

72.7°

Head Tube Angle:

68.7°

Standover Height:

627 mm

Manufacturer Numbers:

M:

68-22063-3-761-0099

L:

68-22063-4-761-0099

Contents:

• 1 x Santa Cruz Jackal 4.1 26" frame
