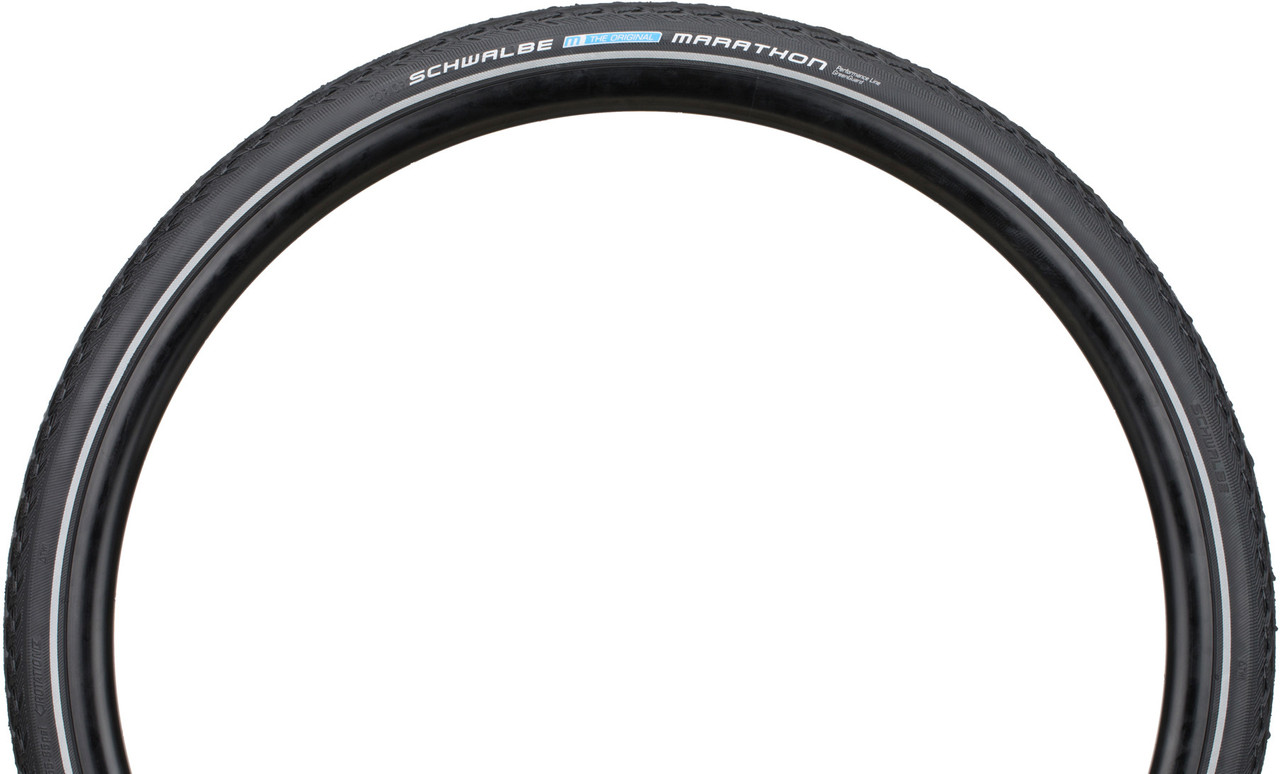

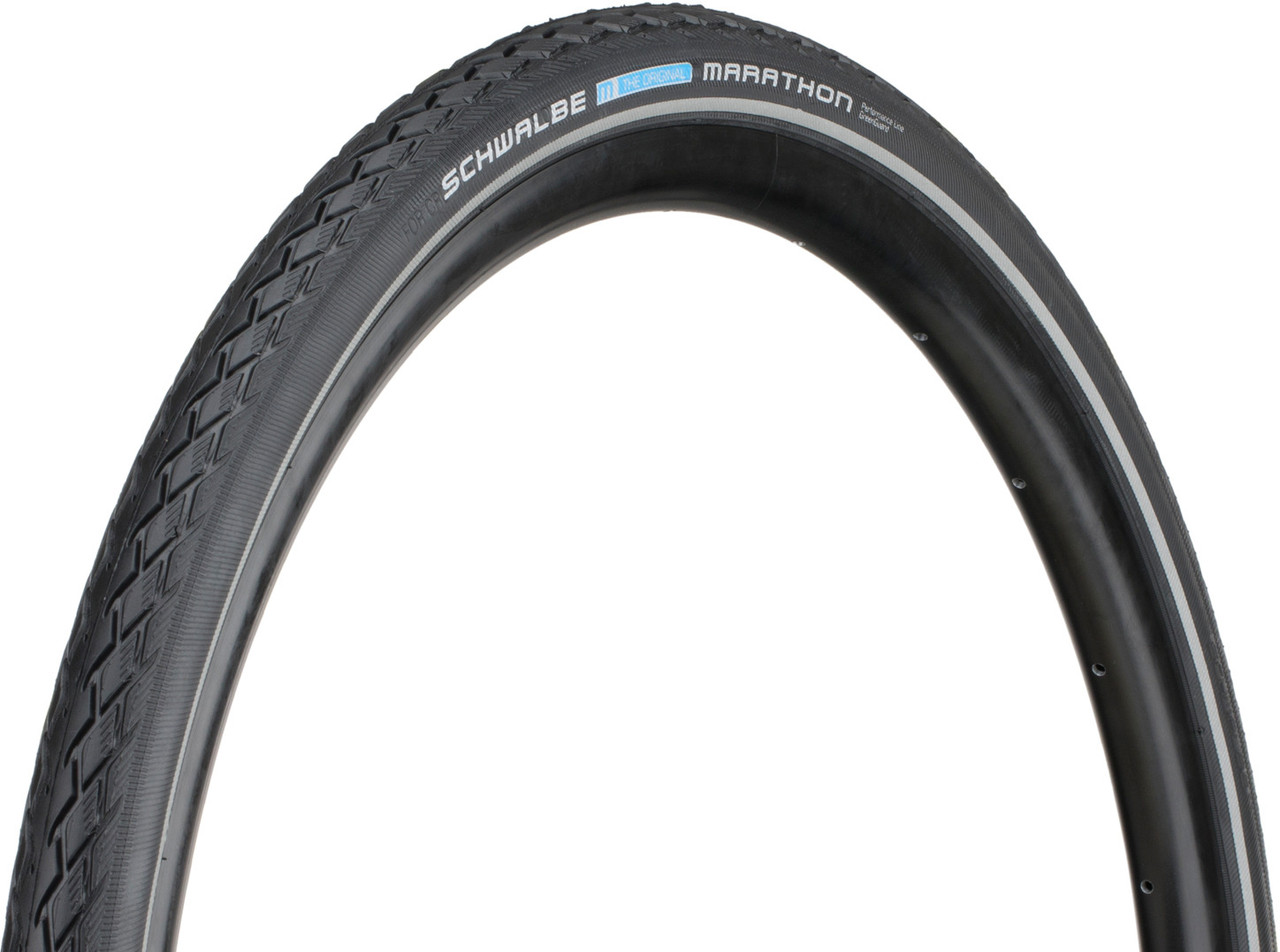

The forefather of all touring tyres: the Schwalbe Marathon Wired Tyre

The Schwalbe Marathon is the forefather of all high-quality Touring tyres and the undisputed original. The puncture protection belt of the Schwalbe Marathon wired tyre has been optimised and the GreenGuard has been developed for a safe ride. This 3 mm-thick layer of highly elastic natural rubber is made of one third recycled material, so that the soul of the Schwalbe Marathon is also green.
The sidewall of the Schwalbe Marathon wired tyre is specially designed to withstand the stresses of lower air pressure and effectively prevents ugly aging cracks (anti-aging). In addition, the Endurance Compound noticeably increases performance and durability.

Guidelines for replacing E-bike components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

City & Touring, E-Bike

Product Line:

Performance Line (intensive use)

Type:

wired tyre

Tubeless System:

none

Technical Information:

Rubber Compound:

Endurance

Tread:

HS 420

Carcass:

67 tpi

Sidewall:

TwinSkin

Puncture Protection:

GreenGuard®

Strengths / Weaknesses:

Rolling Resistance:

4 (out of 6)

Road Grip:

4 (out of 6)

Off-Road Grip:

2.5 (out of 6)

Puncture Protection:

5 (out of 6)

Durability:

5.5 (out of 6)

Models:

23-622

Dimensions:

28 x 0.9"

ETRTO:

23-622

Air Pressure:

6.0 - 9.0 bar

Load Capacity (max.):

70 kg

Tube Recommendation:

15, 20

Manufacturer Number:

11100495

25-622

Dimensions:

28 x 1.0"

ETRTO:

25-622

Air Pressure:

6.0 - 8.0 bar

Load Capacity (max.):

75 kg

Tube Recommendation:

15, 20

Manufacturer Number:

11100142

28-622

Dimensions:

28 x 1.1"

ETRTO:

28-622

Air Pressure:

5.5 - 7.5 bar

Load Capacity (max.):

85 kg

Tube Recommendation:

15, 17,18

Manufacturer Number:

11100139

32-622

Dimensions:

28 x 1.25"

ETRTO:

32-622

Air Pressure:

4.5 - 6.5 bar

Load Capacity (max.):

90 kg

Tube Recommendation:

17, 18

Manufacturer Number:

11100141

37-622

Dimensions:

28 x 1.4"

ETRTO:

37-622

Air Pressure:

4.0 - 6.0 bar

Load Capacity (max.):

95 kg

Tube Recommendation:

17, 18

E-Bike Approved:

ECE-R75 certification, approved for fast e-bikes up to 50 km/h

Manufacturer Number:

11100007

40-622

Dimensions:

28 x 1.5"

ETRTO:

40-622

Air Pressure:

3.5 - 6.0 bar

Load Capacity (max.):

100 kg

Tube Recommendation:

17, 19, 18, 19A

E-Bike Approved:

ECE-R75 certified for e-bikes with speeds up to 50 km/h

Manufacturer Number:

11100005

47-622

Dimensions:

28 x 1.75"

ETRTO:

47-622

Air Pressure:

3.0 - 5.0 bar

Load Capacity (max.):

115 kg

Tube Recommendation:

17, 19, 19A

E-Bike Approved:

ECE-R75 certified for e-bikes with speeds up to 50 km/h

Manufacturer Number:

11100140

50-622

Dimensions:

28 x 2.0"

ETRTO:

50-622

Air Pressure:

2.5 - 5.0 bar

Load Capacity (max.):

121 kg

Tube Recommendation:

19, 19A

E-Bike Approved:

ECE-R75 certified for e-bikes with speeds up to 50 km/h

Manufacturer Number:

11100613

Note:
The load capacity shown refers to only one tyre. To check whether the tyre is suitable for your total weight (rider + bike), this value can be doubled, as the weight is then distributed over two tyres.

Features:

• proven, high-quality Touring tyre
• with reflective stripes
• 3 mm insert made of highly elastic natural rubber (GreenGuard), one third of which is made of recycled latex products
• anti-aging sidewall: withstands typical overloading caused by insufficient air pressure much longer
• Endurance Compound for extra durability
• reddot design award winner 2011

Technology:

Performance
Excellent quality for intensive use.

Endurance
The Marathon Compound. For highest durability.

GreenGuard®
Same operating principle as used by the SmartGuard but only approx. 3 mm thick. One third of the highly elastic natural rubber is obtained from recycled latex products. Schwalbe has developed its own process technology for this purpose: In the Schwalbe factories, old products made of natural rubber (such as gloves, tubes, etc.) are shredded and returned to production as the basic material via several process steps.

TwinSkin
Twin describes an additional rubber coating on the sidewall that protects from cuts and allows a uniform colouring.

E-Bike Ready 50
For fast e-bikes a special approval of the tyres is necessary. Tyres with ECE-R75 approval valid throughout Europe are the simplest solution here. All Energizer tyres carry the test mark and are approved for vehicles up to 50 km/h.

E-Bike Ready 25
Recommended for pedelecs with pedal support up to 25 km/h. The law does not prescribe special tyres here, but with pedelecs the loads and average speeds are usually higher than with normal bikes.

Contents:

• 1 x Schwalbe Marathon 28" wired tyre
