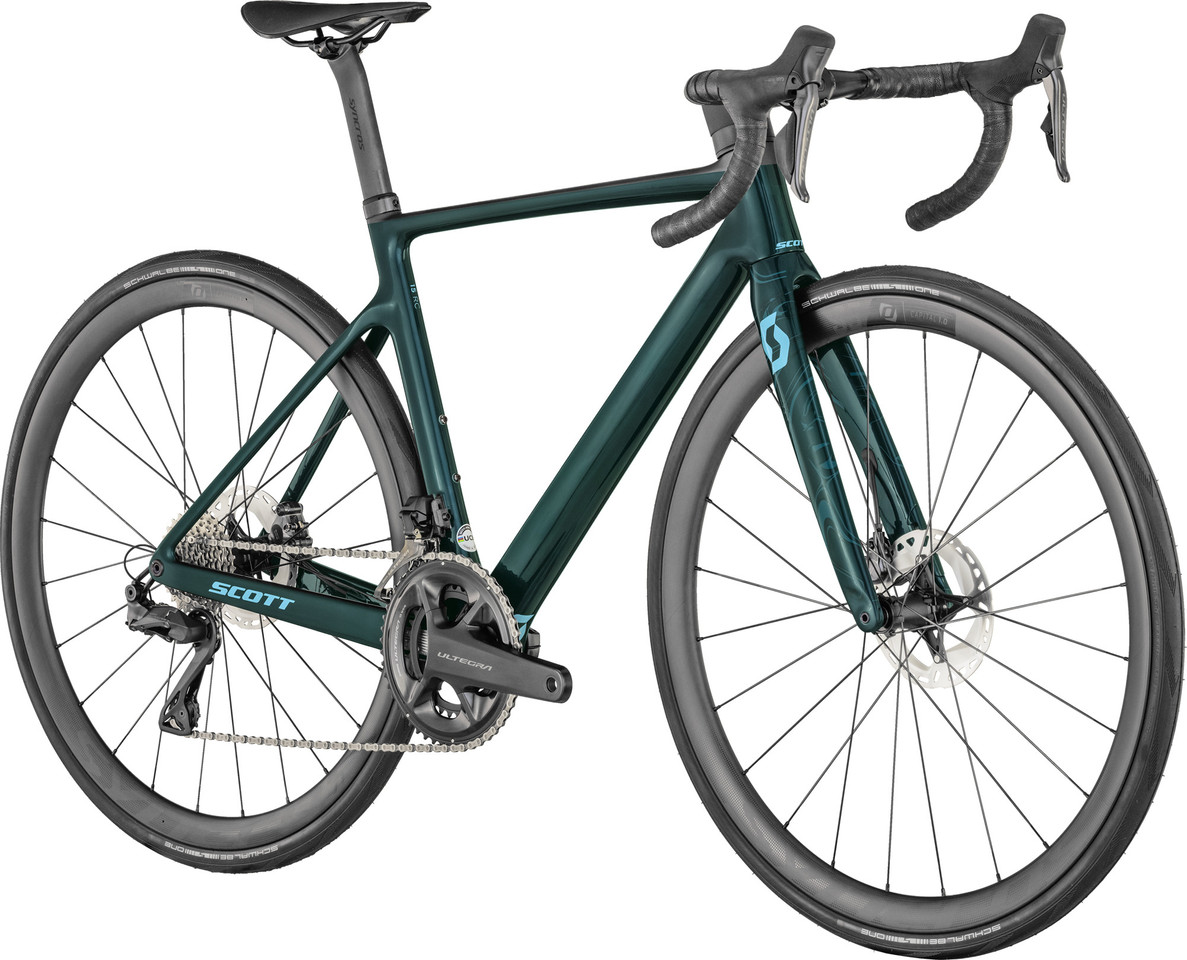

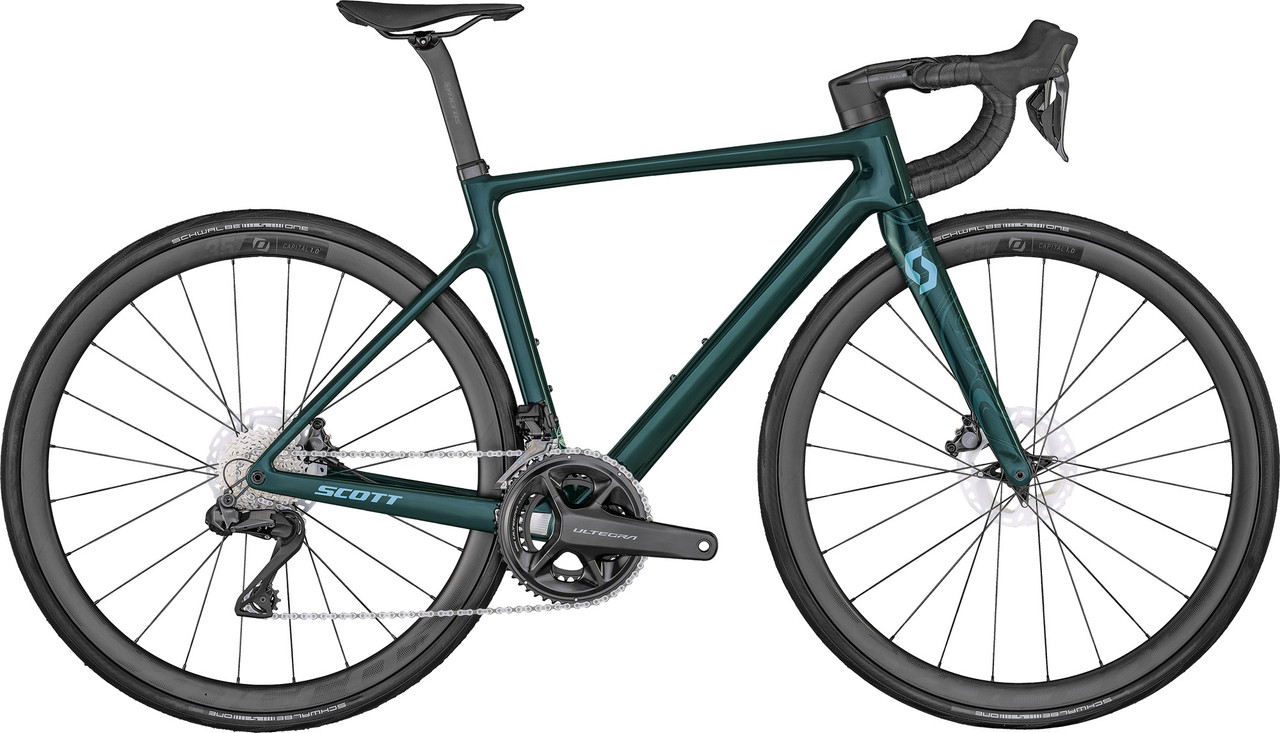

Scott Contessa Addict RC 15 Carbon Road Bike

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.

Specifications:

Application:

Road

Wheel Size:

28"

Sizes:

49 cm, 52 cm

Frame Material:

Carbon (HMX)

Fork Material:

Carbon (HMX)

Components:

Frame:

Scott Addict RC Disc, Carbon (HMX)

Fork:

Scott Addict RC Disc, Carbon (HMX), 1 1/4" - 1.5"

Stem:

Syncros RR 1.5

Handlebars:

Syncros Creston 1.0 Compact, Carbon

Headset:

Syncros Addict RC Integrated

Seatpost:

Syncros Duncan 1.0 Aero

Saddle:

Syncros Celista 1.5

Crank:

Shimano Ultegra FC-R8100 Hollowtech II, 36-52 teeth

Pedals:

none

Brakes:

Shimano BR-R8170, Flat Mount, hydraulic, 160 mm

Shift/Brake lever:

Shimano Ultegra ST-R8170, electronic, 2x12-speed

Rear Derailleur:

Shimano Ultegra Di2 RD-R8150-SS, electronic, 12-speed

Front Derailleur:

Shimano Ultegra Di2 FD-R8150, electronic, 2-speed

Cassette:

Shimano Ultegra CS-R8100-12, 11-30 teeth

Chain:

Shimano Ultegra CN-M8100-12

Wheels:

Syncros Capital 1.0 35 Disc / Syncros Axle

Tyres:

Schwalbe One Race Guard, 700x28C

Approved For:

Weight Limit:

120 kg (system weight)

Features:

• performance carbon road bike for women
• internal cable routing
• carbon optimised seat clamp
• optimised tube structures and layer alignment in the frame using computer-based Evo-Lap technology

Geometry:

49 cm:

Stack:

511 mm

Reach:

388 mm

Seat Tube Length:

490 mm

Effective Top Tube Length:

530 mm

Head Tube Length:

102 mm

Chainstay Length:

410 mm

Bottom Bracket Height:

274.5 mm

BB Drop:

70 mm

Standover Height:

740 mm

Seat Tube Angle:

74.5°

Head Tube Angle:

71°

Stem Length:

90 mm

52 cm:

Stack:

526.5 mm

Reach:

389 mm

Seat Tube Length:

520 mm

Effective Top Tube Length:

540 mm

Head Tube Length:

115 mm

Chainstay Length:

410 mm

Wheelbase:

991 mm

Bottom Bracket Height:

274.5 mm

BB Drop:

70 mm

Standover Height:

755 mm

Seat Tube Angle:

74°

Head Tube Angle:

72°

Stem Length:

100 mm

Manufacturer Number:

2864740

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Scott Contessa Addict RC 15 Carbon Road Bike
