Specifications:

Application:

Road, Triathlon & Time Trial

Wheel Size:

28"

Sizes:

52 cm, 56 cm

Frame Material:

Carbon (HMX)

Fork Material:

Carbon (HMX)

Components:

Frame:

Scott Foil Disc, Carbon (HMX)

Fork:

Scott Foil Disc, Carbon (HMX), 1"

Stem:

Syncros Creston iC SL, Carbon

Handlebars:

Syncros Creston iC SL, Carbon

Headset:

Syncros Integrated

Seatpost:

Syncros Duncan 1.0 Aero

Saddle:

Syncros Belcarra V-Concept 1.0

Crank:

Shimano Dura-Ace FC-R9200 Hollowtech II, 36-52 teeth

Pedals:

none

Brakes:

Shimano BR-R9270, Flat Mount, hydraulic, 160 mm

Shift/Brake lever:

Shimano Dura-Ace Di2 ST-R9270, electronic, 2x12-speed

Rear Derailleur:

Shimano Dura-Ace Di2 RD-9250, electronic, 12-speed

Front Derailleur:

Shimano Dura-Ace Di2 FD-R9250, electronic, 2-speed

Cassette:

Shimano Dura-Ace CS-R9200-12, 11-30 teeth

Chain:

Shimano Dura-Ace CN-M9100-12

Wheels:

Zipp 303SE Carbon Disc, Tubeless Ready / Syncros SL axle

Tyres:

Schwalbe Pro One Microskin, Tubeless Easy, 700x28C

Approved For:

Weight Limit:

120 kg (system weight)

Features:

• aerodynamic high-performance road bike
• electronic shifting
• internal cable routing
• carbon handlebar stem unit
• optimised tube structures and layer alignment in the frame using computer-based Evo-Lap technology

Geometry:

52 cm:

Stack:

526.7 mm

Reach:

384 mm

Seat Tube Length:

460 mm

Effective Top Tube Length:

535 mm

Head Tube Length:

130 mm

Chainstay Length:

410 mm

Wheelbase:

980 mm

Bottom Bracket Height:

273 mm

BB Drop:

66 mm

Standover Height:

753.6 mm

Seat Tube Angle:

74°

Head Tube Angle:

72°

Stem Length:

100 mm

56 cm:

Stack:

568.3 mm

Reach:

394.5 mm

Seat Tube Length:

500 mm

Effective Top Tube Length:

565 mm

Head Tube Length:

170 mm

Chainstay Length:

410 mm

Wheelbase:

987 mm

Bottom Bracket Height:

273 mm

BB Drop:

66 mm

Standover Height:

798.8 mm

Seat Tube Angle:

73.3°

Head Tube Angle:

73°

Stem Length:

110 mm

Manufacturer Number:

2864020

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

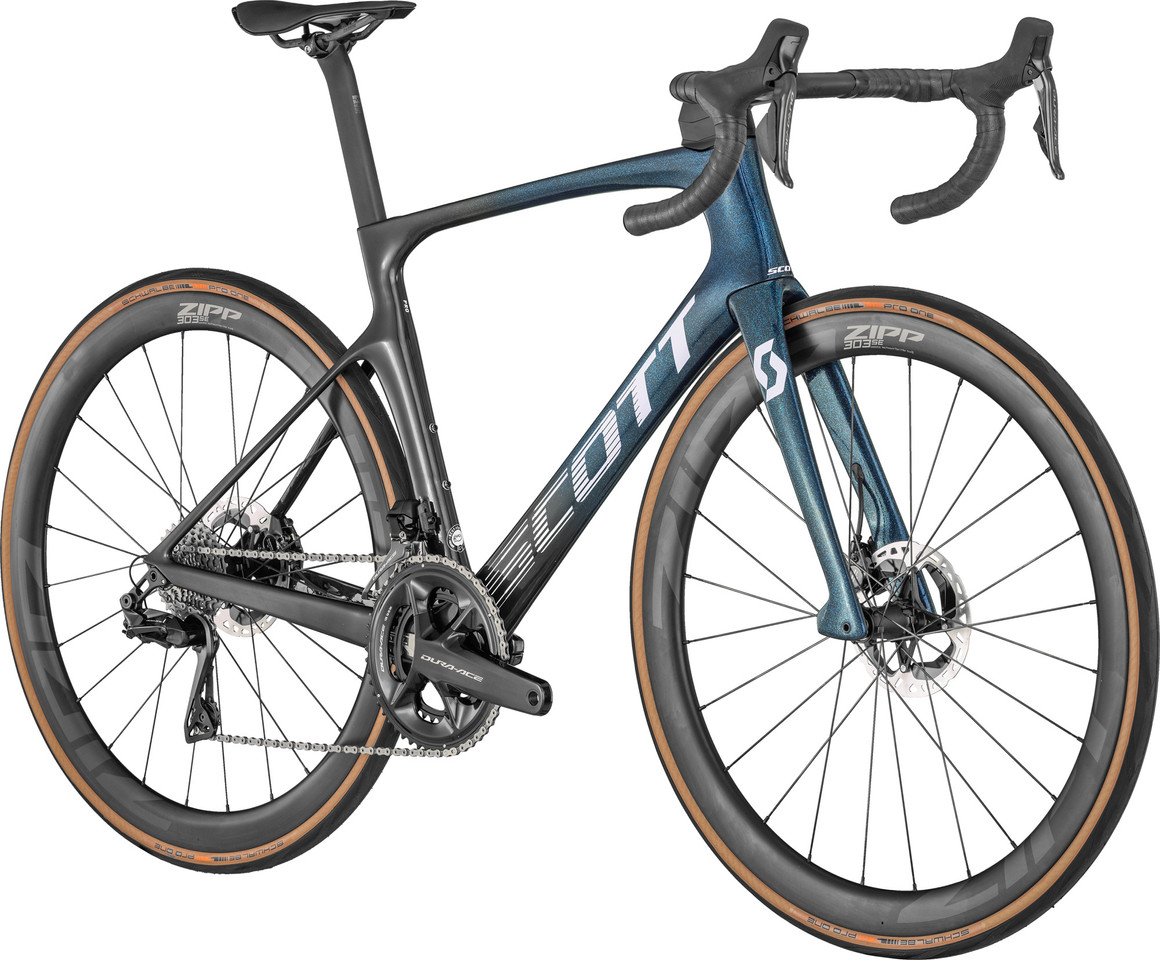

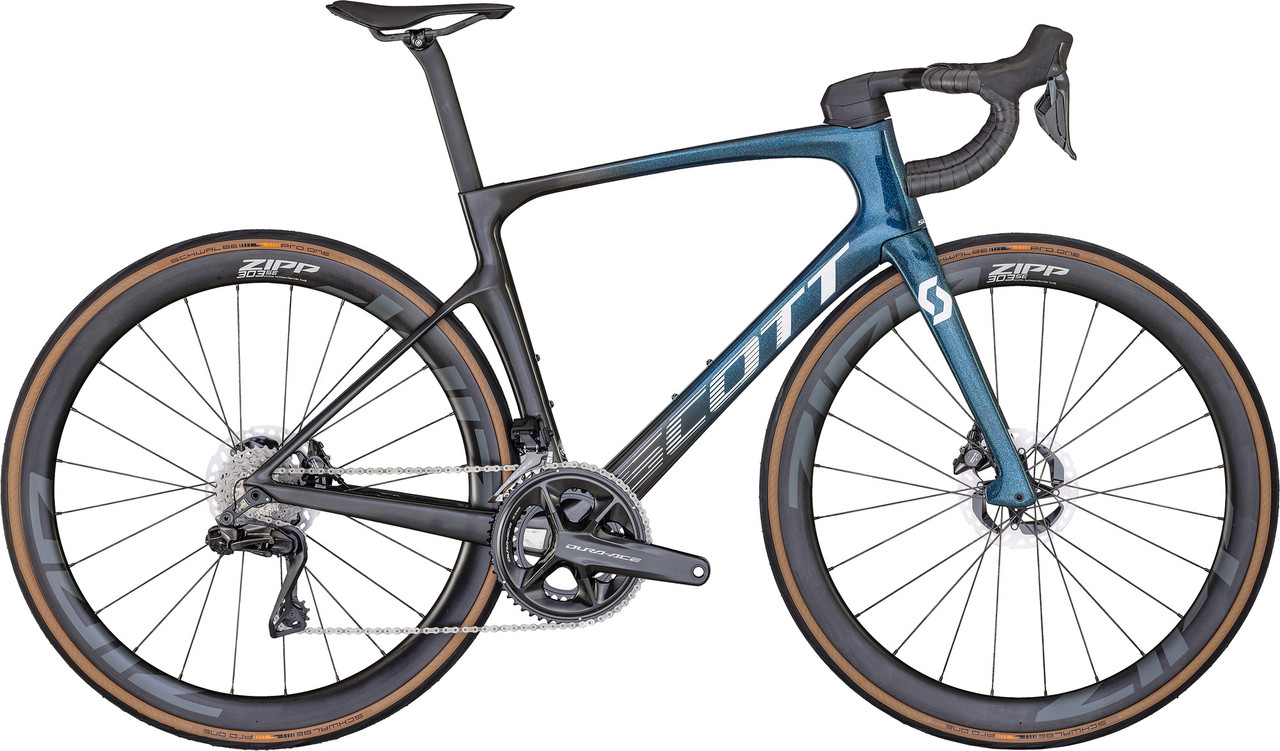

• 1 x Scott Foil RC Pro Carbon Road Bike
