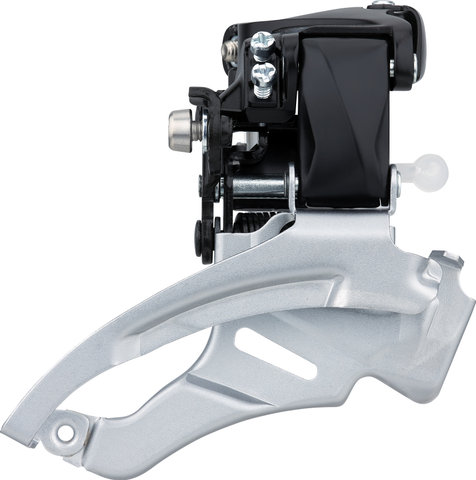

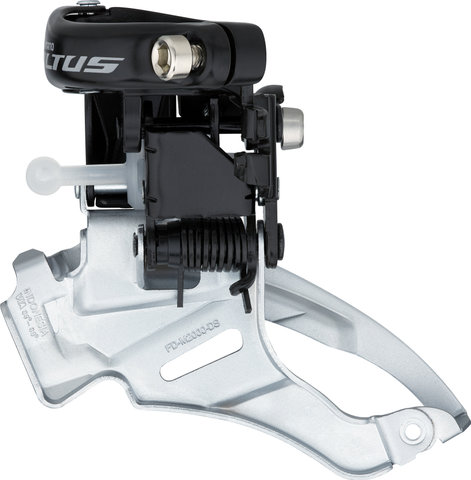

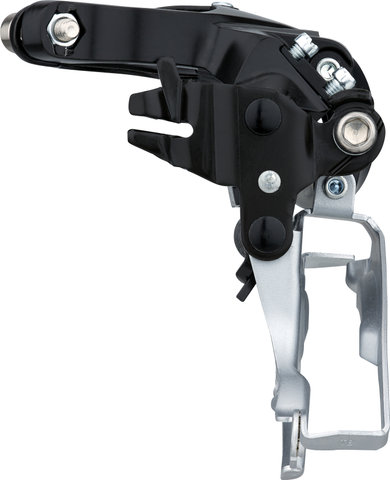

Shimano Altus FD-M2000 66-69° 3-/9-speed Front Derailleur

The Shimano Altus Series FD-M2000 Front Derailleur - For 66 to 69° Chainstay Angle

The Altus FD-M2000 from Shimano is a very affordable front derailleur for MTB, city and touring use, which is compatible with 3x9-speed gears and chainstay angles from 66 to 69 degrees. It is made entirely of sturdy steel and is attached to the frame via a clamp. Cable routing is possible both from below and from above. Thanks to an extended capacity of 18 teeth, large chainrings with 40 teeth can be shifted.

Specifications:

Series:

Altus M2000

Application:

All Mountain, City, Touring

Gearing:

3x (combined w/ 9-speed)

Chainstay Angle:

66 - 69°

Chainline:

50 mm

Chainring Size (max.):

40-tooth

Capacity:

18-tooth

Difference Between Large & Middle Chainring:

10-tooth

Cable Routing:

dual pull

Movement:

down-swing

Mount:

high clamp

Clamp Diameter:

34.9 mm w/ adapter 31.8 mm / 28.6 mm

Compatibility:

HG 9-speed chains

Technical Information:

Outer Body Material:

steel

Inner Body Material:

steel

Cage Material:

steel

Compatibility:

MTB 3x9-speed:

Shifter:

SL-M590-L, SL-M4000-L, SL-M3100-L, SL-M3000-L, SL-M2010-L, SL-M2000-L, SL-M370-L, ST-M4050-L, ST-M3050-L, ST-M4000-L, ST-T4000-L, ST-T3000-L, ST-M370-L, ST-EF65-L2, ST-EF65-L4, ST-EF510-L2A, ST-EF500-L2A, ST-EF500-L4A, ST-EF505-L

Crank:

FC-M4050, FC-MT300, FC-MT210-3, FC-MT101, FC-M4000, FC-M3000-8, FC-M3000, FC-M2000, FC-MT100 (22-30-40 t)

Chain:

CN-HG93, CN-HG53

Features:

• extra large capacity for 3-speed cranksets with 22-30-40 t
• outer parallelogram varnished
• inner parallelogram varnished and galvanized
• chrome-plated cage plates

Manufacturer Number:

E-FDM2000DSX6

Contents:

• 1 x Shimano Altus front derailleur, FD-M2000

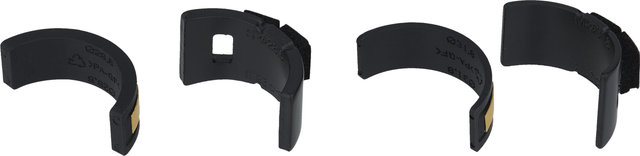

• 1 x 28.6 mm adapter
• 1 x 31.8 mm adapter
