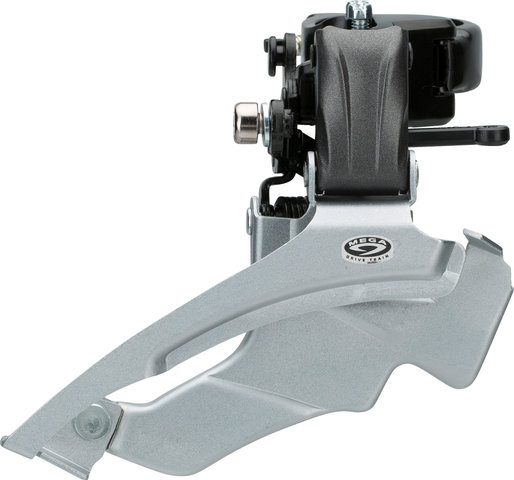

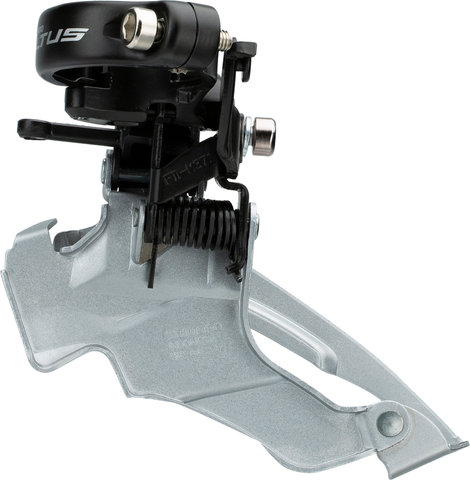

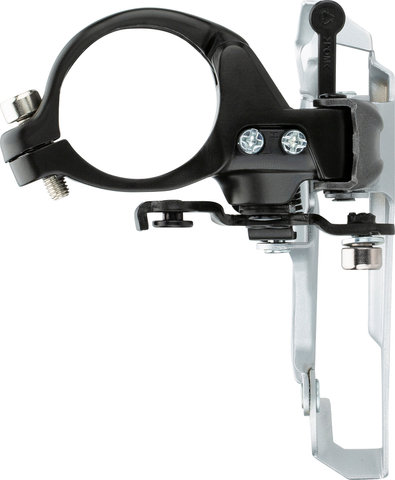

Shimano Altus FD-M371-6 66-69° 3-/9-speed Front Derailleur

The Altus front derailleur FD-M371 by Shimano - for long tours

The Shimano Altus FD-M371 front derailleur convinces with low actuation force on long tours. Its robust Wide-Link design increases service life and improves torsional stiffness for more efficient shifting. In addition, the Altus front derailleur offers more distance to the fender or tyre than previous models. The FD-M371 is only intended for 50 mm chainlines and is compatible with up to 44 and 48 teeth.

Specifications:

Series:

Altus M370

Application:

Touring & Trekking, All Mountain, Cross Country, City

Gearing:

3x (combined w/ 9-speed)

Chainstay Angle:

66-69°

Chainline:

50 mm

Chainring Size (max.):

44-48 teeth

Capacity:

22-tooth

Difference Between Large & Middle Chainring:

12-tooth

Cable Routing:

dual pull

Movement:

down-swing

Mount:

low clamp

Clamp Diameter:

34.9 mm w/ adapter 31.8 mm / 28.6 mm

Compatibility:

HG 9-speed chains

Technical Information:

Outer Body Material:

steel

Inner Body Material:

steel

Cage Material:

steel

Compatibility:

MTB 3x9-speed:

Shifter:

SL-M590-L, SL-M4000-L, SL-M3100-L, SL-M3000-L, SL-M2010-L, SL-M2000-L, SL-M370-L, ST-M4050-L, ST-M3050-L, ST-M4000-L, ST-T4000-L, ST-T3000-L

ST-M370-L, ST-EF65-L2, ST-EF65-L4, ST-EF510-L2A, ST-EF500-L2A, ST-EF500-L4A, ST-EF505-L

Crank:

FC-MT300, FC-MT210-3 (only 22-32-44 T), FC-M590, FC-M591, FC-T4060 (22-32-44, 26-36-48 T), FC-M4060 (only 26-36-48 T), FC-T4010, FC-T3010-8 (22-32-44, 26-36-48 T), FC-T3010, FC-M371 (22-32-44, 26-36-48 T), FC-MT101 (only 22-32-44 T), FC-M351 (only 22-32-44 T)

Chain:

CN-HG93, CN-HG53

Features:

• low actuating force for long tours
• Wide-Link design for faster shifting and longer service life
• more distance to fender / tyre
• dual pull with universal clamp
• Hyperdrive compatible
• painted parallelogram
• chrome-plated cage plates

Manufacturer Number:

high clamp / down-swing / dual-pull:

E-FDM371X6

Contents:

• 1 x Shimano Altus front derailleur, FD-M371-6
• 1 x 28.6 mm adapter
• 1 x 31.8 mm adapter
