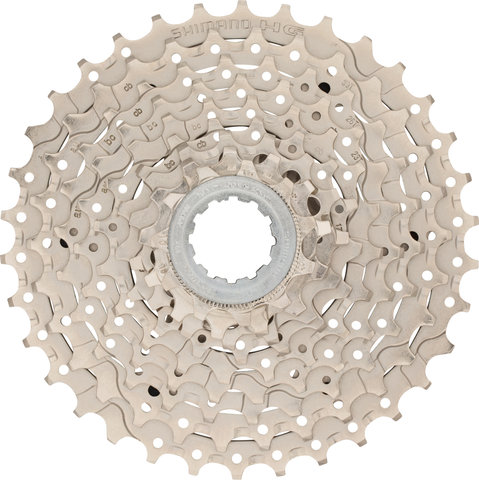

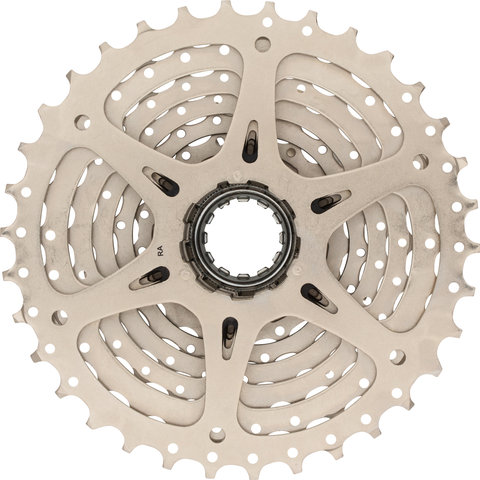

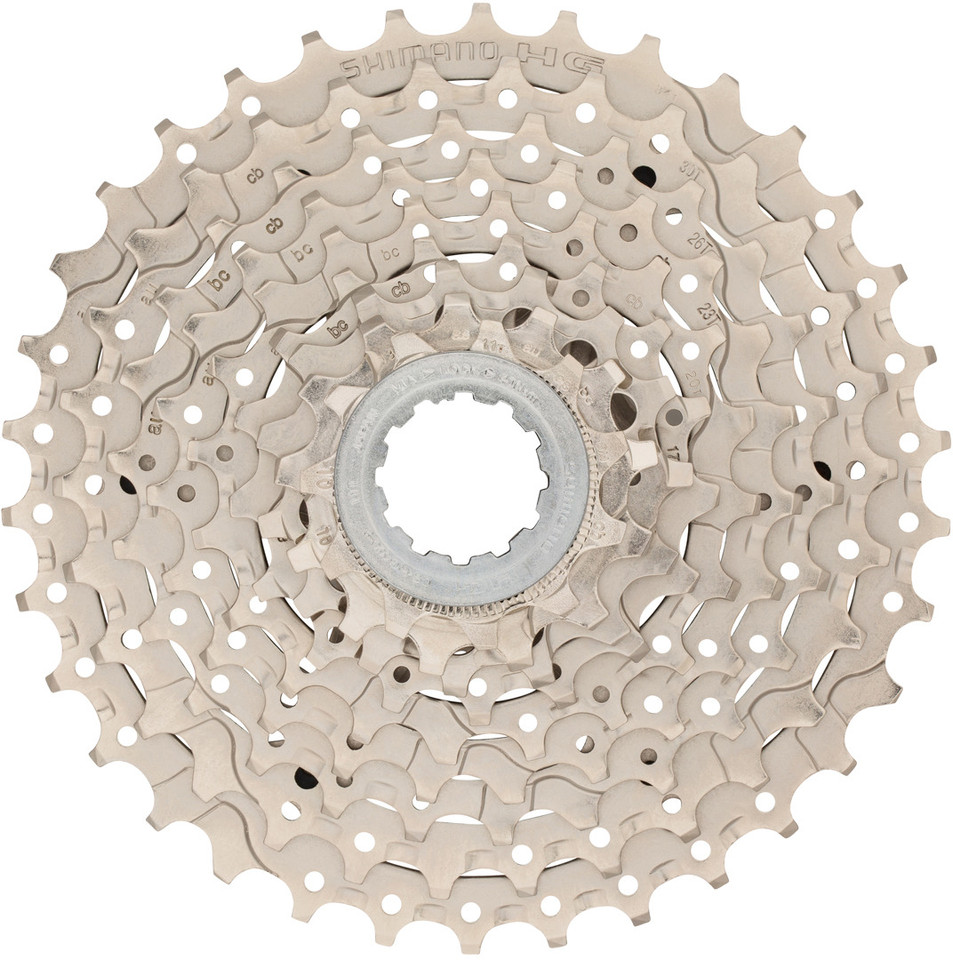

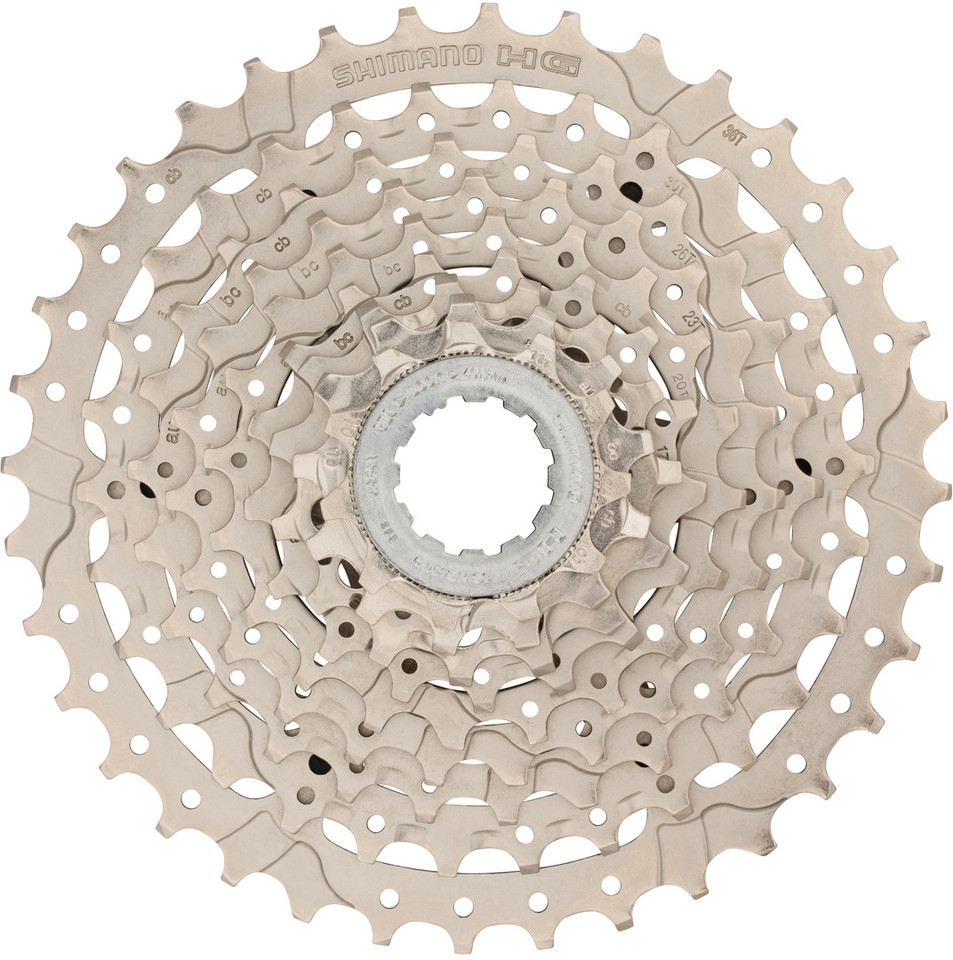

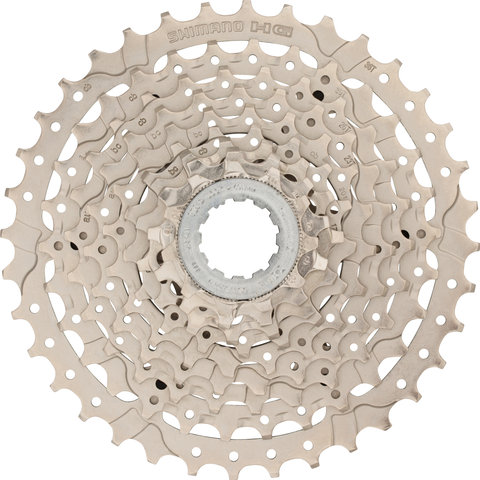

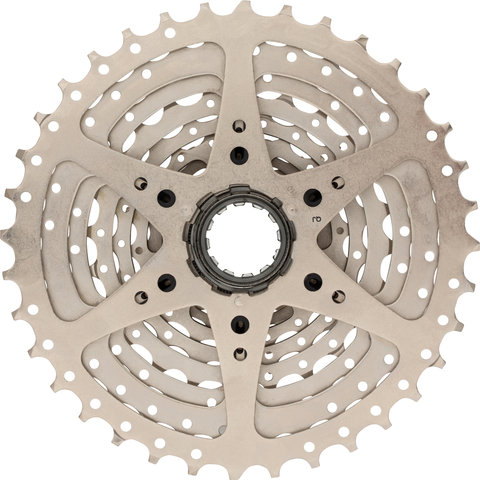

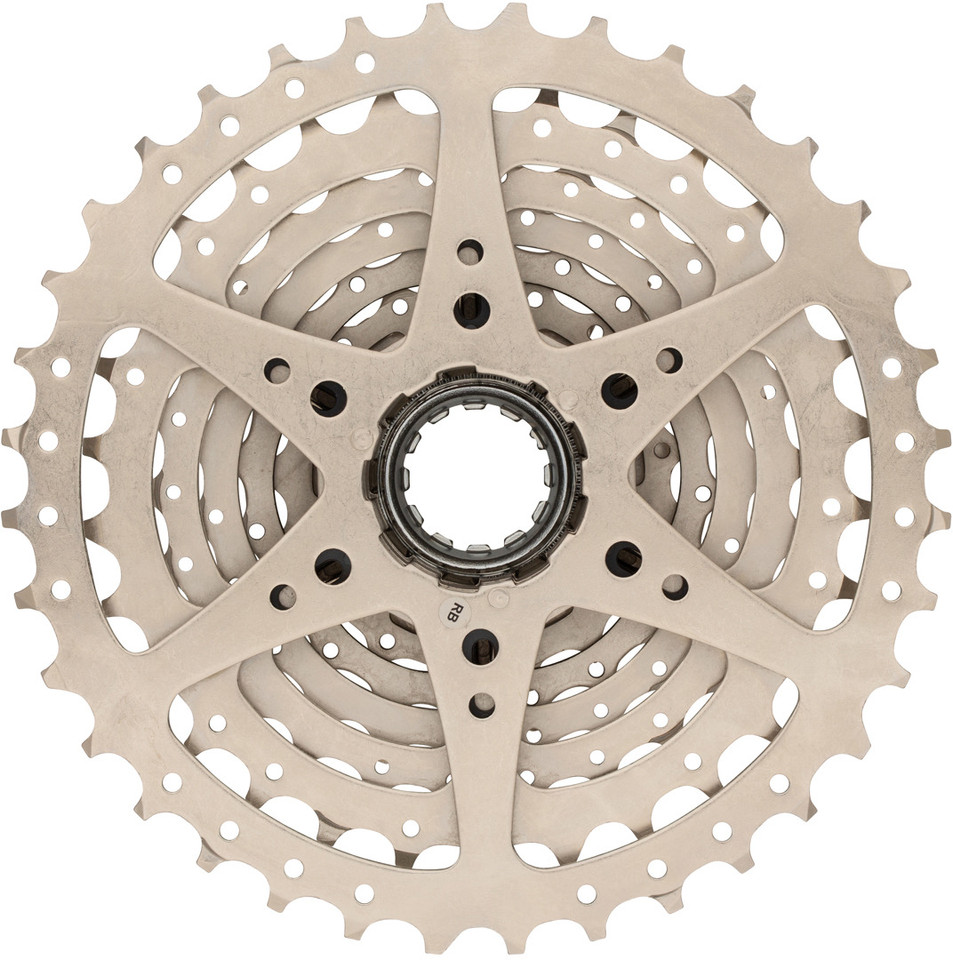

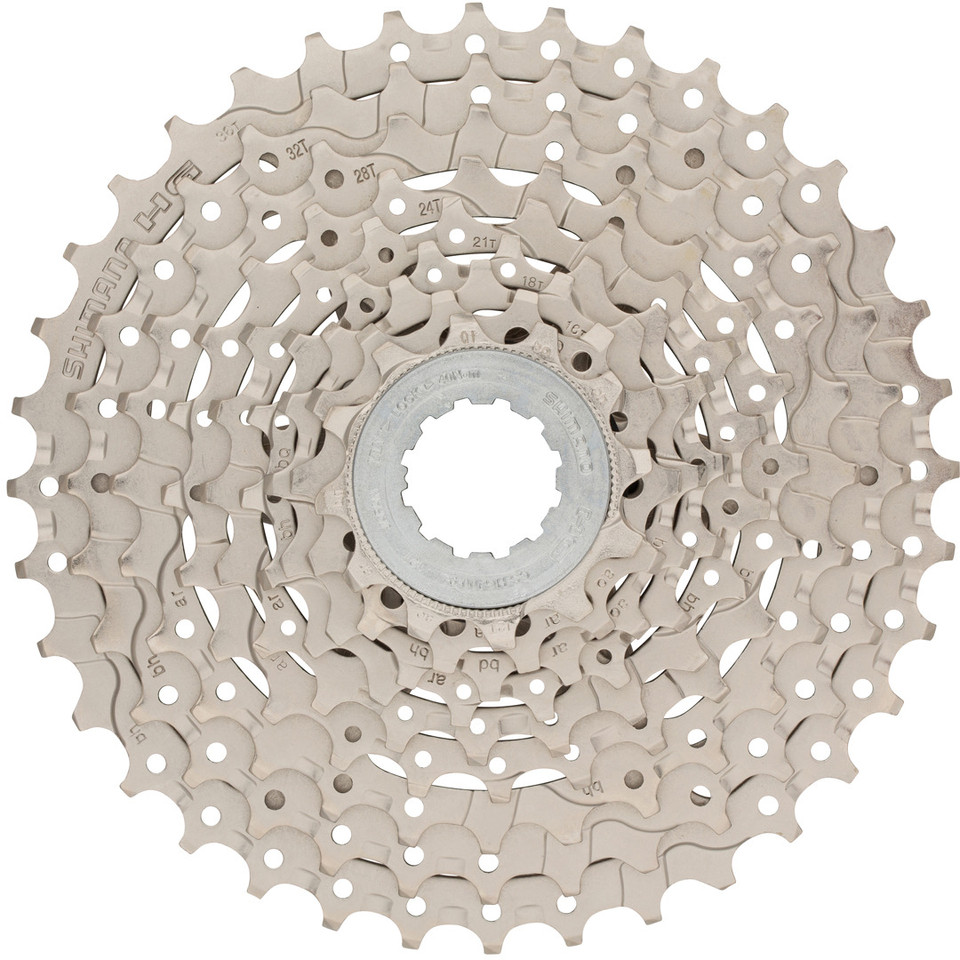

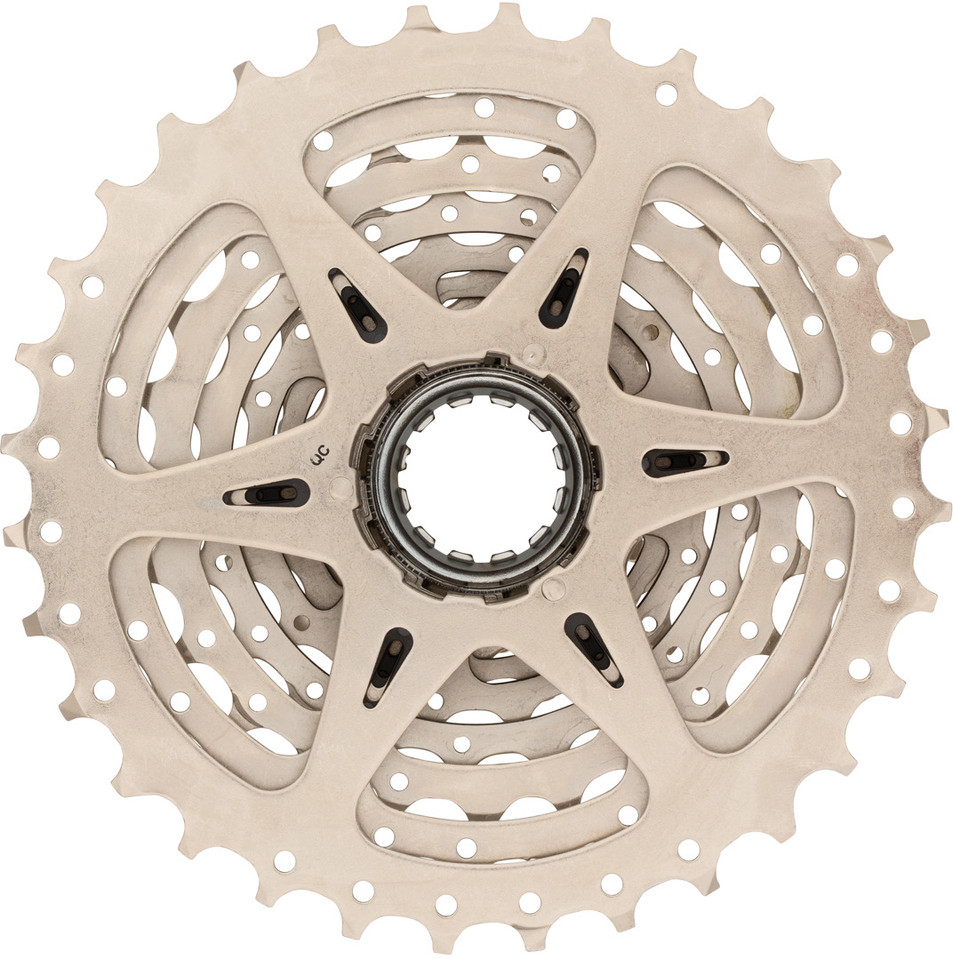

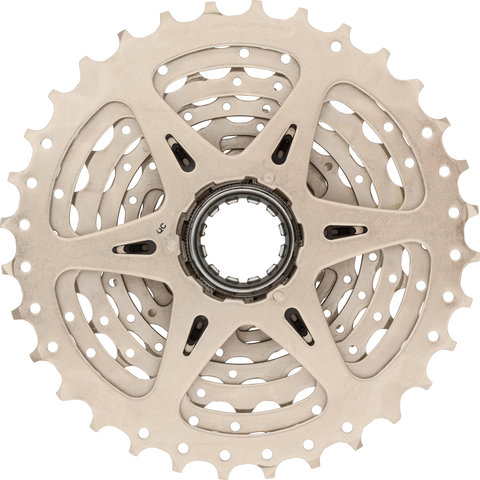

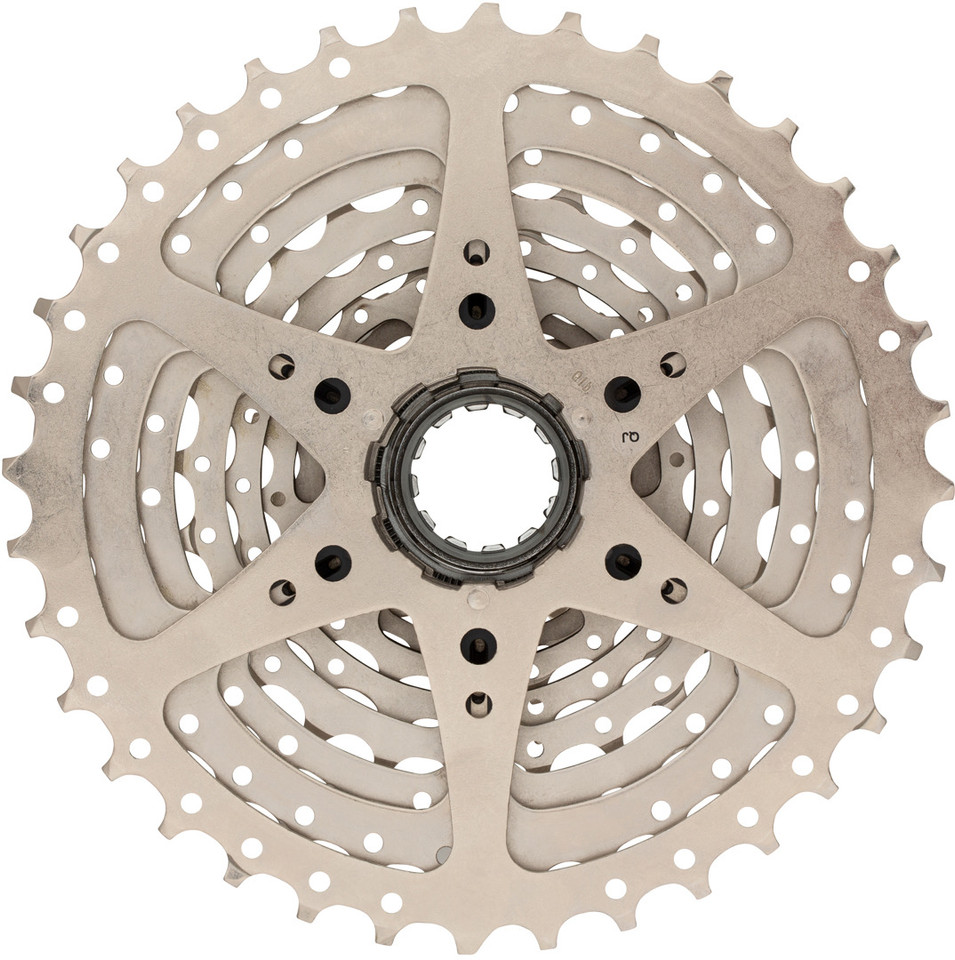

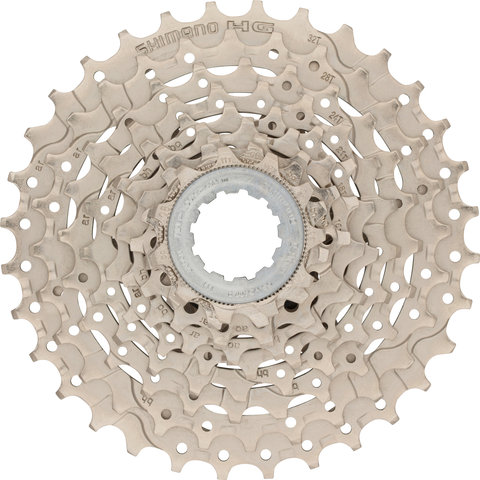

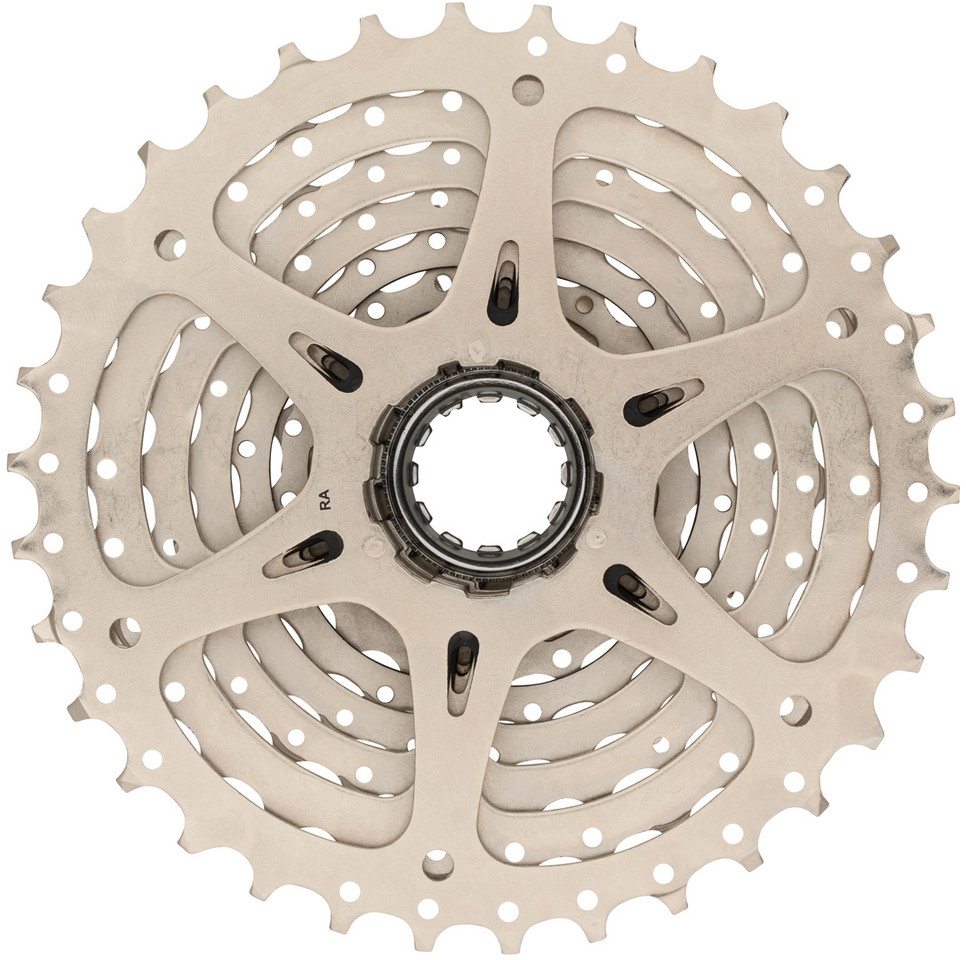

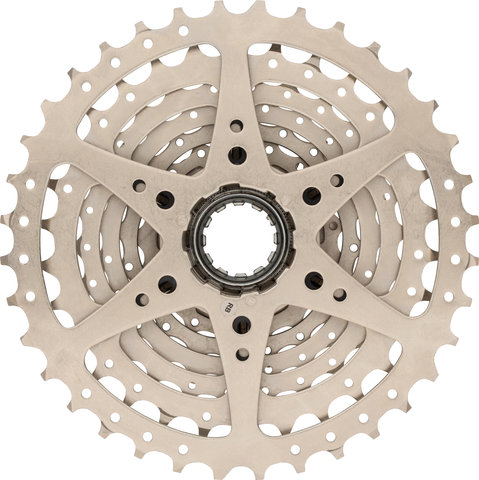

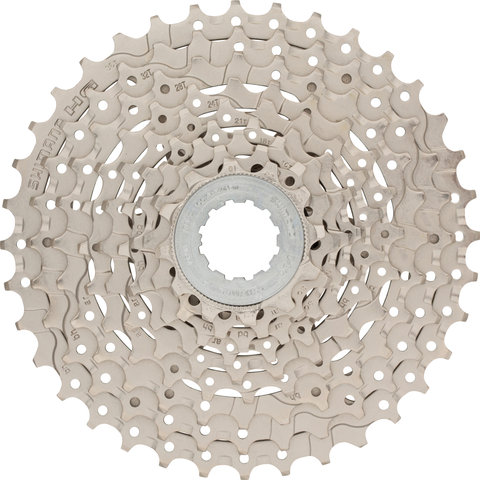

Shimano CS-HG400-9 9-speed Cassette

Shimano 9-speed cassette CS-HG400-9 - available in five gradations

The Shimano CS-HG400-9 is an Alivio-level 9-speed cassette available in five different gradations. It has been designed for MTB and city & touring bikes (11-28 and 11-32 also for road bikes) and, thanks to Hyperglide (HG) technology, is fully convincing in terms of shifting function. It also features Mega 9 Lite technology, which offers narrow gear gradation even with a large overall gear ratio range.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain, Cross Country, City & Touring, Road

Gearing:

9-speed

Gradation:

11-28, 11-32, 11-34, 11-36, 12-36

Sprocket Material:

steel

Freehub Compatibility:

Shimano MTB

Note:

compatible with Shimano Road 11-/12-speed using a 1.85 mm spacer

Technical Information:

Recommended Chain:

HG 9-speed (e.g. CN-HG53)

Compatibility:

Shifter:

SL-M590, SL-M4000, SL-M3100, SL-M3000, SL-M2010-9R, SL-M2000, SL-M370, ST-M4050, ST-M3050, ST-M4000, ST-T4000, ST-T3000, ST-M370, ST-EF65-9R2, ST-EF65-9R4, ST-EF510-9R2A, ST-EF505-9R

• Road: ST-R3000, ST-3500, SL-R3000, SL-3500, ST-R350, SL-R350

Rear Derailleur:

• 11-36 / 12-36: RD-M772-GS, RD-M772-SGS, RD-M592-SGS, RD-M4000-SGS, RD-M3100-SGS, RD-M3000-SGS, RD-M2000-SGS
• 11-32 / 11-34: RD-M772-GS, RD-M772-SGS, RD-M592-SGS, RD-M4000-SGS, RD-M3100-SGS, RD-M3000-SGS, RD-M2000-SGS, RD-M771-SGS, RD-M591-SGS, RD-T4000-SGS, RD-T3000-SGS, RD-M370-SGS
• 11-28 / 11-32: RD-R3000-SS, RD-3500-SS, RD-R3000-GS, RD-3500-GS, RD-R350-GS
• 11-28: RD-M771-SGS, RD-M591-SGS, RD-T4000-SGS, RD-T3000-SGS, RD-M370-SGS

Chain:

CN-HG93, CN-HG53, CN-7701, CN-HG73

E-Bike:

STEPS E6100, E6180, E6000, E5000, E5080

Features:

• HG cassette at Alivio level with nickel-plated steel sprockets
• weight-saving design
• quick assembly
• graduations suitable for 26" /27.5" /29"
• nickel-plated lockring

Technology:

HG cassette
Shimano Hyperglide cassettes (HG cassettes) have strategically-positioned ramps and special tooth profiles so that the chain can be completely guided directly onto the next sprocket. This prevents the chain from just touching the tips of the teeth before it actually touches down. This optimises the chain guide and enables fast, highly efficient shifting.

Models:

11-28:

Gradation:

11-12-13-14-16-18-21-24-28 t

Manufacturer Number:

I-CSHG4009128

11-32:

Gradation:

11-12-14-16-18-21-24-28-32 t

Manufacturer Number:

I-CSHG4009132

11-34:

Gradation:

11-13-15-17-20-23-26-30-34 t

Manufacturer Number:

I-CSHG4009134

11-36:

Gradation:

11-13-15-17-20-23-26-30-36 t

Manufacturer Number:

I-CSHG4009136

12-36:

Gradation:

12-14-16-18-21-24-28-32-36 t

Manufacturer Number:

I-CSHG4009236

Contents:

• 1 x Shimano CS-HG400-9 cassette
• 1 x Shimano steel lockring
