Shimano CUES FC-U4000-2 Square Crankset w/ Chain Guard

Shimano CUES FC-U4000-2 - Square crank with two chainrings and chain guard for city, touring and MTB use

The CUES square crankset FC-U4000-2, here in the version with chain guard, was designed by Shimano for Linkglide drivetrains on city, touring and mountain bikes. It is suitable for 2x9-speed, 2x10-speed and 2x11-speed gears and produces a chainline of 48.8 mm. Therefore, frame over locknut dimensions of 135 mm and 142 mm are compatible. The Q-factor is 178 mm. The gradation is chosen so that it can be pedalled harmoniously and smoothly on different types of terrain. Due to its stiffness, the crank made of aluminium and steel ensures reliable performance. The four-armed steel chainrings are permanently installed via riveted joints. Thanks to the chain guard, your pants won't get caught between the chainring and the chain while riding.

Specifications:

Application:

City, Touring, All Mountain

Compatibility:

2x9-speed, 2x10-speed, 2x11-speed

Chainring Mount:

4-arm (riveted)

Technical Information:

Series:

CUES U4000

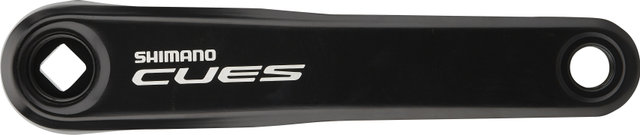

Crank Arm Material:

aluminium

Chainring Material:

steel

Axle Material:

steel

Gradation:

26-40

Crank Arm Length:

170.0 mm, 175.0 mm

Chainline:

48.8 mm

Q-Factor:

178 mm

Compatible BSA Shell Width:

68 mm / 73 mm

Recommended Bottom Bracket:

BB-UN101 (not included)

Recommended Chain:

Linkglide (CN-LG500), HG 11-speed (e.g. CN-HG601-11)

Compatibility:

Rear Over Locknut Dimension:

• quick release: 135 mm
• thru-axle: 142 mm

Bottom Bracket:

BB-UN55, BB-UN26, BB-UN101, BB-UN300 (square, 123 mm axle)

Shifter:

SL-U8000-L, SL-U8000-IL, SL-U6000-L, SL-U4000-L

Front Derailleur:

• 2x11-speed: FD-U6000, FC-U6010
• 2x10-speed: FD-U6000, FD-U4000
• 2x9-speed: FD-U4000

Chain:

CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500

Chain Case:

not compatible

Features:

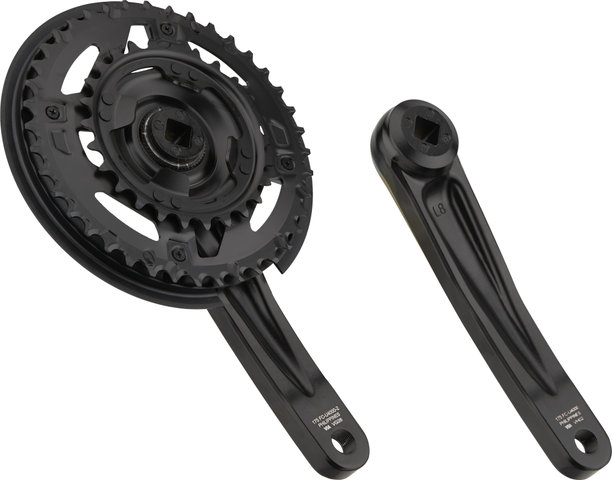

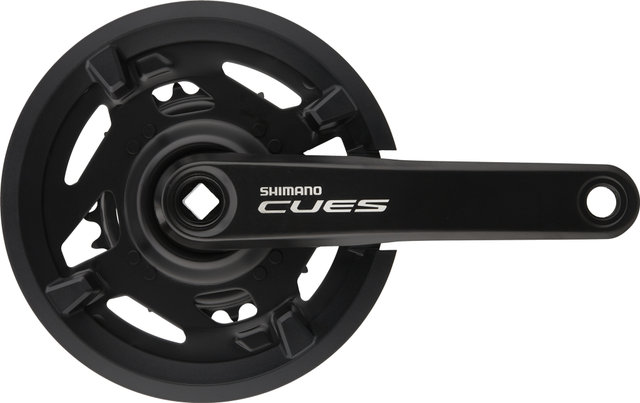

• square crank with two chainrings and chain guard
• for city, touring and mountain bikes with Shimano Linkglide drivetrains (9-speed, 10-speed, 11-speed)
• reliable, smooth performance on various terrain
• wide ratio range for harmonious, comfortable pedalling
• painted crank arms and chainrings

Manufacturer Numbers:

170.0 mm 26-40:

EFCU40002C06C

175.0 mm 26-40:

EFCU40002E06C

Contents:

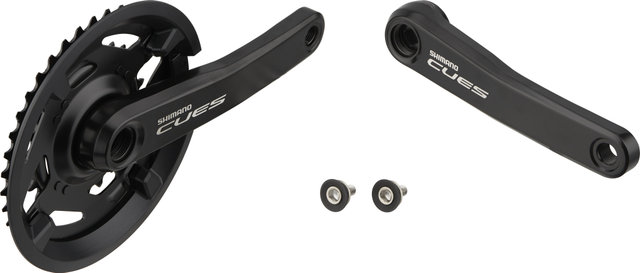

• 1 x Shimano CUES FC-U4000-2 crankset (26-40 tooth)
• 1 x Shimano chain guard

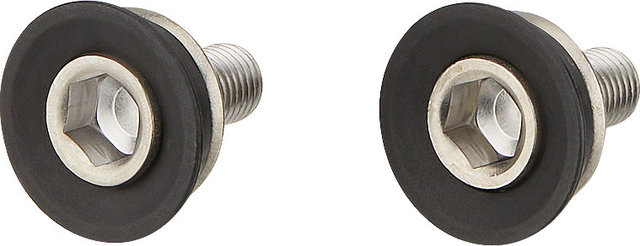

• 2 x Shimano crank bolts
