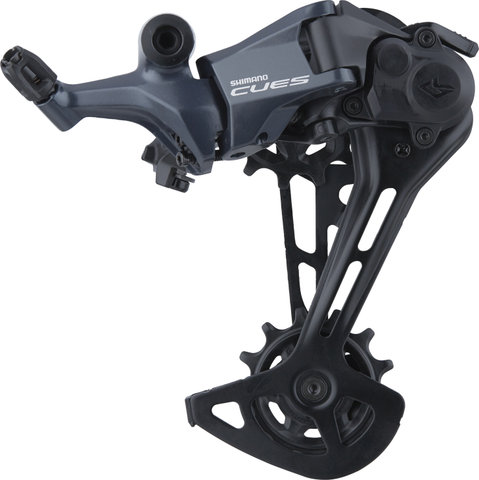

Shimano CUES Shadow Plus RD-U8000 11-speed Rear Derailleur

Shimano RD-U8000 CUES rear derailleur for 1x11-speed - With Shadow Plus technology for touring use

The Shimano CUES RD-U8000 rear derailleur is suitable for city and touring bikes with 1x11-speed Linkglide drivetrains. It has a so-called Shadow Plus chain stabiliser, which prevents the chain from slapping even on rough ground and thus counteracts chain drop. The flat design and smooth function also contribute to safe, comfortable cycling. The rear derailleur has a total capacity of 39 teeth and is only compatible with 1-speed gears and 50 teeth on the largest cassette sprocket. To save weight, both the cage and most other parts are made of aluminium. With its lacquered surface and CNC-machined construction, the RD-U8000 perfectly matches elegant wheels. This model is approved for e-bikes and impresses with long-lasting performance in this area as well. Sealed bearings on the upper and lower pulleys contribute to durability.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Series:

CUES U8000

Application:

City & Touring

Gearing:

11-speed

Mount:

standard

Capacity:

39-tooth

Compatibility:

Shimano MTB 11-speed (Linkglide)

Compatibility - Chains:

HG 11-speed, Linkglide CN-LG500

Technical Information:

Derailleur Pulleys:

13-tooth

Outer Cage Material:

aluminium

Inner Cage Material:

aluminium

Other Materials:

Aluminium, polyamide / glass fibre, steel, stainless steel

Compatibility:

Shifter:

SL-M8130-R11, SL-M8130-IR11, SL-U8000-11R, SL-U8000-11IR, SL-U6000-11R

Cassette (11-50 T):

CS-LG700-11, CS-LG600-11, CS-LG400-11

Chain:

CN-LG500, CN-HG601-11, CN-HG701-11, CN-HG901-11

Features:

• rear derailleur for city and touring bikes with Shimano Linkglide drivetrain (1x11-speed only)
• chain stabiliser (Shadow+) prevents the chain from banging and jumping off and promotes smooth running
• smooth and defined shifting for comfortable, safe pedalling
• flat design prevents getting stuck on obstacles
• aluminium with attractive painted finish and CNC-milled structure
• designed and tested for long-lasting performance also on e-bikes (E-Bike Rated)
• derailleur pulley bearings sealed
• four fluorine-coated joint bushings

Technology:

Shadow RD+
Shadow Plus rear derailleurs are just as low-profile as Shimano's Shadow rear derailleurs. In addition, a stabilizer with on/off switch is used to reduce chain slap and thus counteract chain drop. At the same time, this results in a quieter drive. Weight is also saved compared to other chain restraint devices.

Models:

short:

Cage Length:

GS

Max. Largest Sprocket Teeth:

50-tooth

Min. Largest Sprocket Teeth:

50-tooth

Max. Smallest Sprocket Teeth:

11-tooth

Min. Smallest Sprocket Teeth:

11-tooth

Max. Chainring Difference:

0-tooth

Total Capacity:

39-tooth

Manufacturer Number:

ERDU8000GS

Contents:

• 1 x Shimano CUES RD-U8000 Shadow+ rear derailleur
