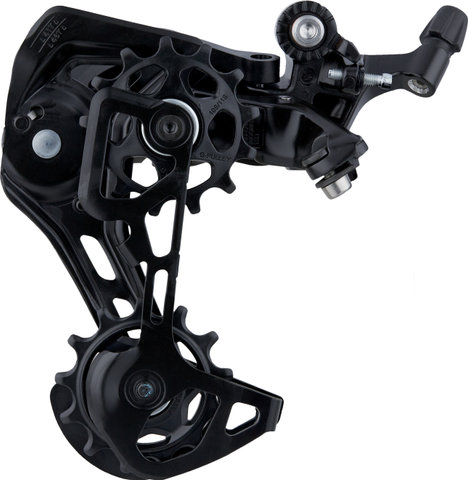

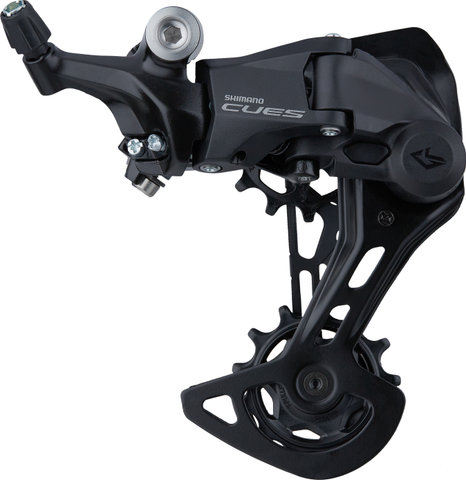

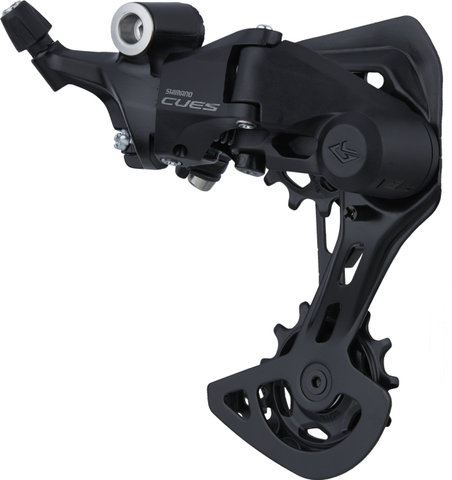

Shimano CUES Shadow RD-U4000 9-speed Rear Derailleur

Shimano RD-U4000 9-speed rear derailleur from the CUES series - With Shadow Design for MTB use

The Shimano CUES RD-U4000 rear derailleur is suitable for 1x9-speed Linkglide drivetrains on mountain bikes and touring bikes. It features a flat construction, the so-called Shadow Design, which reduces the risk of collision with obstacles. Its smooth operation promotes comfortable, efficient biking, whether you're on forest paths, gravel or asphalt. The rear derailleur has a total capacity of 35 teeth and is only compatible with 1-speed gears, with the largest cassette sprocket having a maximum of 46 and a minimum of 41 teeth. The cage is made of steel, otherwise mainly robust plastic and light aluminium are used. RD-U4000 is approved for e-bikes and impresses with long-lasting performance in this area as well.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Series:

CUES U4000

Application:

All Mountain, City & Touring

Gearing:

9-speed

Mount:

standard

Capacity:

35-tooth

Compatibility:

Shimano MTB 9-speed (Linkglide)

Compatibility - Chains:

HG 11-speed, Linkglide CN-LG500

Technical Information:

Derailleur Pulleys:

13-tooth

Outer Cage Material:

steel

Inner Cage Material:

steel

Other Materials:

Polyamide / glass fibre, aluminium, steel, stainless steel

Compatibility:

Shifter:

SL-U4000-9R, SL-U4010-9R

Cassette, (11-41 T, 11-46 T):

CS-LG400-9, CS-LG300-9

Chain:

CN-LG500, CN-HG601-11, CN-HG701-11, CN-HG901-11

Features:

• rear derailleur for mountain and touring bikes with Shimano Linkglide drivetrain (1x9-speed only)
• seamless and defined shifting for comfortable, safe pedalling
• flat design prevents getting stuck on obstacles
• reliability and stable performance for everyday and leisure use
• a fluorine-coated joint bushing
• painted cage

Technology:

Shadow RD
Shadow rear derailleurs from Shimano have a very flat profile, allowing for a more aggressive riding style by minimising the risk of getting stuck on obstacles. In addition, the single preload ensures that the rear derailleur does not hit the chain stay even on very uneven ground. All of this contributes to a quiet, clean-operating gearshift.

Models:

short:

Cage Length:

GS

Max. Largest Sprocket Teeth:

46-tooth

Min. Largest Sprocket Teeth:

41-tooth

Max. Smallest Sprocket Teeth:

11-tooth

Min. Smallest Sprocket Teeth:

11-tooth

Max. Chainring Difference:

0-tooth

Total Capacity:

35-tooth

Manufacturer Number:

ERDU4000GS

Contents:

• 1 x Shimano CUES RD-U4000 Shadow rear derailleur
