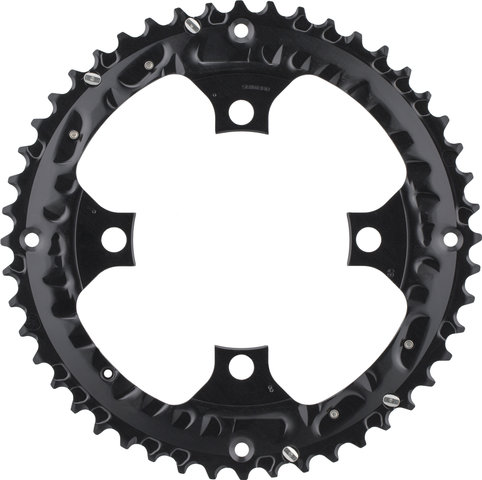

Shimano Deore FC-T6010 10-speed Chainring for Chain Guards

The Shimano Deore 10-speed Chainring for FC-T6010 Cranks with a Chain Guard

This Shimano chainring is compatible with the Deore FC-T6010 3x10-speed crank with chain guard ring. It has 48 teeth, a 104 bolt circle diameter and is made of aluminium. There are two colour options so you can match the chainring to the colour of the crank.

Specifications:

Application:

City & Touring

Attachment:

104 mm bolt circle diameter, 4-arm

Teeth:

48 T

Gearing:

3x10-speed

Technical Information:

Combinations:

26-36-48 T with chain guard

Material:

Aluminium

Compatibility:

• Deore FC-T6010
• also fits FC-T551, FC-T611

Features:

• anodised
• two colour options
• designed for chain guards

Models:

48 tooth:

Type:

AL

Manufacturer Numbers:

Y-1WE98010 (black), Y-1WE98020 (silver)

Note:

The 36 tooth chainring (Y-1NL98020) is identical to FC-T521 chainring. The 26 tooth chainring (Y-1LD26000) is identical to Deore FC-M590 chainring.

Note to Type Designation:

The type designation (one or two characters) helps identify the compatibility of various chainrings with other chainrings. Because the larger chainrings have specially-formed teeth and upward shifting assistance, only particular smaller chainrings will match to ensure proper shifting performance. An XY chainring should only be combined with another XY chainring. This applies to all other types as well.

Contents:

• 1 x Shimano Deore FC-T6010 chainring for chain guards
