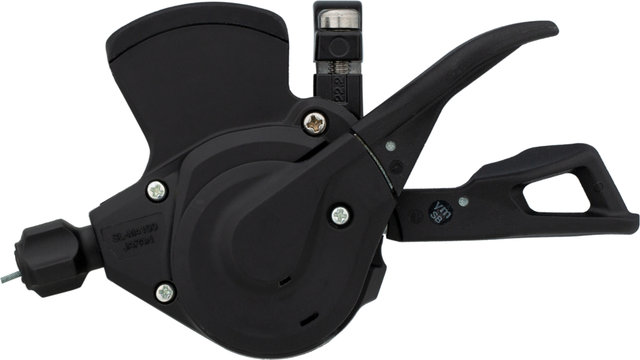

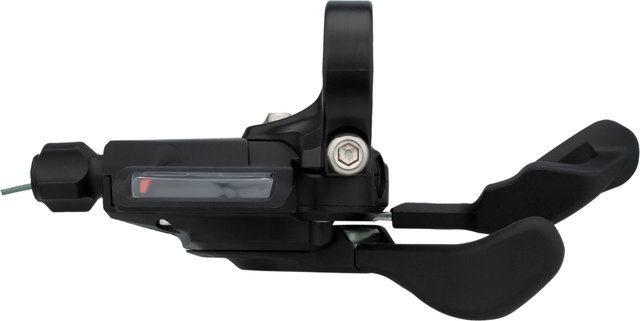

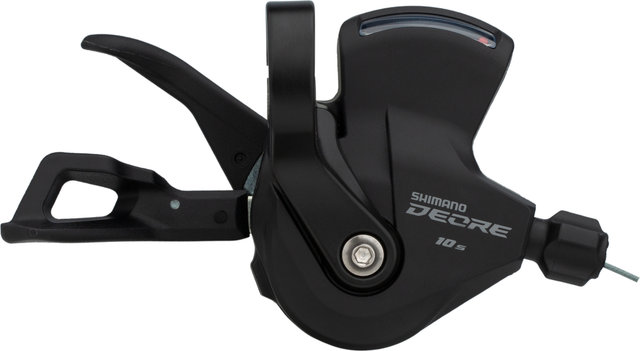

Shimano Deore SL-M4100 10-speed Shifter w/ Clamp

Deore shifter SL-M4100 by Shimano - clap model for 10-speed

The Shimano Deore SL-M4100 shifter (unlike SL-M4100-I) is attached to the right side of the handlebars with a clamp. It is aimed at Mountain bikers and Touring cyclists with 10-speed drivetrains and has an easy-to-read gear indicator. As a Rapidfire-Plus shifter, the SL-M4100 features a 2-Way Release function, i.e. the shifter cable can be released by pressing with the thumb or by pulling with the index finger. A cable and an OT-SP41 cable housing are included.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Series:

Deore M4100

Application:

All Mountain, City & Touring

Gearing:

10-speed

Mount:

clamp (closed)

Technical Information:

Type:

Rapidfire Plus

Body Material:

Aluminium

Lever Material:

Plastic / steel (main lever), synthetic resin / steel (release lever)

Cable:

steel (Optislick)

Cable Housing:

OT-SP41

Gear Indicator:

yes

Adjustment Options:

• cable adjust

Compatibility:

MTB 10-speed:

Rear Derailleur:

RD-M5120, RD-M4120, RD-M6000, RD-M7000-10, RD-T8000, RD-T6000, RD-M820, RD-M640, RD-T780, RD-T670-A, RD-T610

Cassette:

CS-M4100-10, CS-HG500-10, CS-M771-10, CS-HG81-10, CS-HG50-10, CS-6700, CS-5700, CS-4600

Chain:

CN-HG95, CN-HG54

E-Bike:

EP8 EP800 for MTB / Touring with mechanical rear derailleur

Handlebar Grip Outer Diameter:

max. 36 mm

Clamp Diameter:

22.2 mm

Features:

• faster access and smooth shifting
• optical gear indicator for more safety when shifting gears
• max. number of gears per shift: 3 (main lever, rear)
• Optislick inner cable with a minimal galvanic coating for more efficient cable routing and corrosion resistance
• painted housing
• stainless steel clamp bolts

Technology:

Rapidfire Plus
Rapidfire Plus is a type of Shimano shift lever construction that has been common in the mountain bike sector since 1985. Two levers, the main lever and the release lever, are used instead of a twist shifter. Rapidfire Plus shift levers, as the name suggests, ensure fast shifting. In addition, depending on the model, it is possible to downshift up to three gears with one shift stroke.

2-Way-Release
With 2-Way-Release, the shifter can be pressed and pulled to shift to the smaller sprocket or chainring. This allows you to adjust the shifting process to your personal preferences. Most Rapidfire Plus shifters are equipped with 2-Way Release.

Models:

10-speed:

Mount:

right

Manufacturer Number:

I-SLM4100RAP

Contents:

• 1 x Shimano Deore SL-M4100 shifter, incl. gear indicator

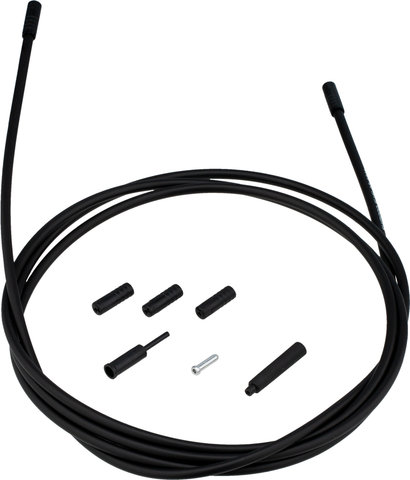

• 1 x Shimano cable (2050 mm)
• 1 x Shimano cable housing (1880 mm)
• 3 x 6 mm sealed end caps
• 1 x long nose end cap
