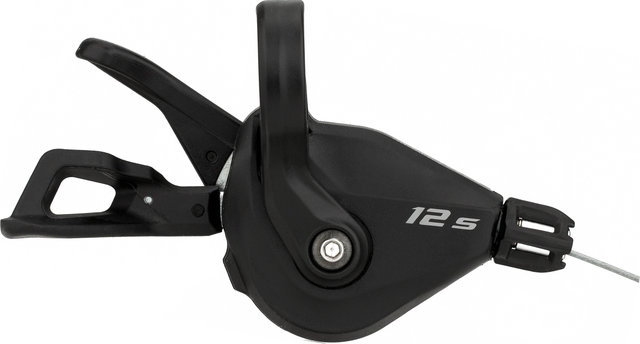

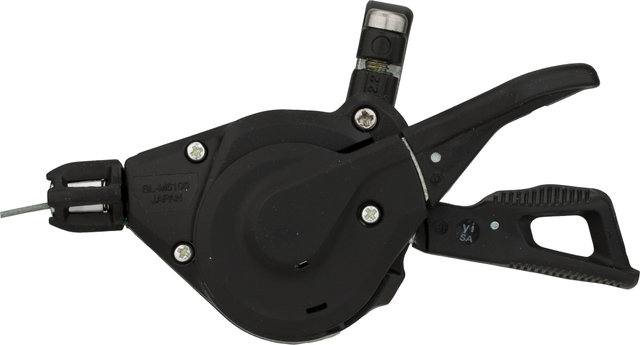

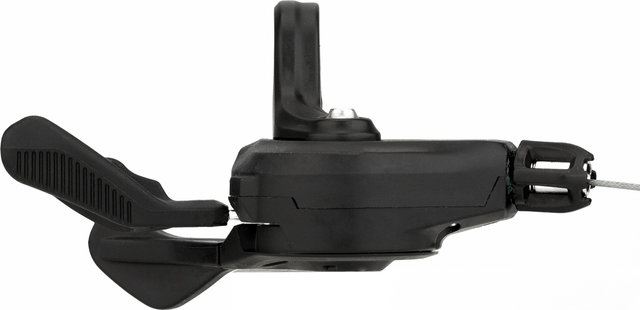

Shimano Deore SL-M6100 12-speed Shifter w/ Clamp

The Deore SL-M6100 shifter by Shimano - master of 12 gears

With the Shimano Deore SL-M6100 shifter, you can shift reliably through all twelve gears of the completely revised Deore groupset. It is mounted on the right side of the handlebars with a clamp. As a Rapidfire-Plus shifter, the SL-M6100 features a 2-Way Release function, i.e. the shifter cable can be released by pressing with the thumb or by pulling with the index finger. A cable and an OT-SP41 cable housing are included.

Specifications:

Series:

Deore M6100

Application:

All Mountain, Cross Country, Enduro

Gearing:

12-speed

Mount:

clamp (closed)

Technical Information:

Type:

Rapidfire Plus

Body Material:

Aluminium

Lever Material:

composite material (GFRP), steel

Cable:

stainless steel (Optislick)

Cable Housing:

OT-SP41

Adjustment Options:

• cable adjust

Compatibility:

MTB 12-speed:

Rear Derailleur:

RD-M9100, RD-M8100, RD-M7100, RD-M6100, RD-M9120, RD-M8120, RD-M7120

Cassette:

CS-M9101-12, CS-M9100-12, CS-M8100-12, CS-M7100-12, CS-M6100-12

Chain:

CN-M9100, CN-M8100, CN-M7100, CN-M6100

Handlebar Grip Outer Diameter:

max. 36 mm

Clamp Diameter:

22.2 mm

Features:

• faster access and smooth shifting
• max. number of gears per shift: 3 (main lever, rear)
• Optislick inner cable with a minimal galvanic coating for more efficient cable routing and corrosion resistance
• painted housing
• stainless steel clamp bolts

Technology:

Rapidfire Plus
Rapidfire Plus is a type of Shimano shift lever construction that has been common in the mountain bike sector since 1985. Two levers, the main lever and the release lever, are used instead of a twist shifter. Rapidfire Plus shift levers, as the name suggests, ensure fast shifting. In addition, depending on the model, it is possible to downshift up to three gears with one shift stroke.

2-Way-Release
With 2-Way-Release, the shifter can be pressed and pulled to shift to the smaller sprocket or chainring. This allows you to adjust the shifting process to your personal preferences. Most Rapidfire Plus shifters are equipped with 2-Way Release.

Models:

12-speed:

Mount:

right

Manufacturer Number:

I-SLM6100RA1P

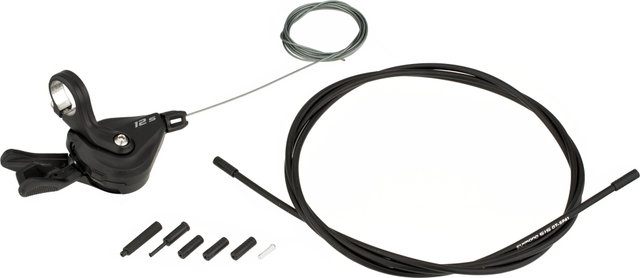

Contents:

• 1 x Shimano Deore SL-M6100 shifter
• 1 x Shimano cable (2050 mm)
• 1 x Shimano cable housing (1880 mm)
• 3 x 6 mm sealed end caps
• 1 x long nose end cap
