Shimano Disc Brake Adapter for 160 mm Rotors

Shimano disc brake adapter for 160 mm rotors - adapts mounting standards

With the Shimano disc brake adapter for 160 mm brake rotors you can compensate for different standards of caliper and fork or frame. This means that a post mount brake caliper can be operated on an IS or flat mount fork or an IS or flat mount frame. There is also a version for adapting a PM brake to a PM frame, on which only 140 mm rotors can be mounted directly, and a version required to mount 160 mm rotors on flat mount rear brakes. A special feature are the versions " front FM 140/160 on FM 160" and " front FM 160/180 on FM 160" , which are mandatory for the operation of flat-mount brake calipers on the front wheel. The scope of delivery varies from version to version.

Technical Information:

Adapter Material:

Aluminium

Bolt Material:

steel

Rotor Size:

160 mm

Models:

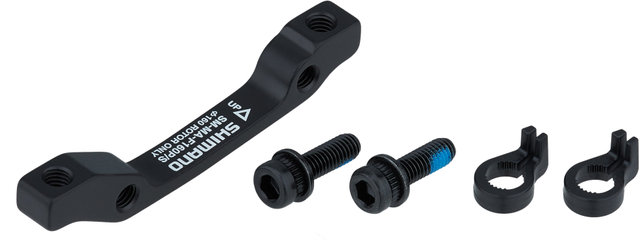

front IS to PM:

Fork Mount:

international standard

Caliper Mount:

post mount

Included in Delivery:

2 x bolts, 2 x stop rings

Manufacturer Number:

I-SMMAF160PSA

Front FM 140/160 to FM 160:

Fork Mount:

Flat Mount 140 mm / 160 mm

Caliper Mount:

flat mount

Note:

Please note the alignment type. To install a 180 mm rotor, the " UP" arrow on the side marked " For Ø160 or Ø180 for 160/160 mount" must point upwards. Not compatible with BR-UR300.

Manufacturer Number:

Y-8N230000

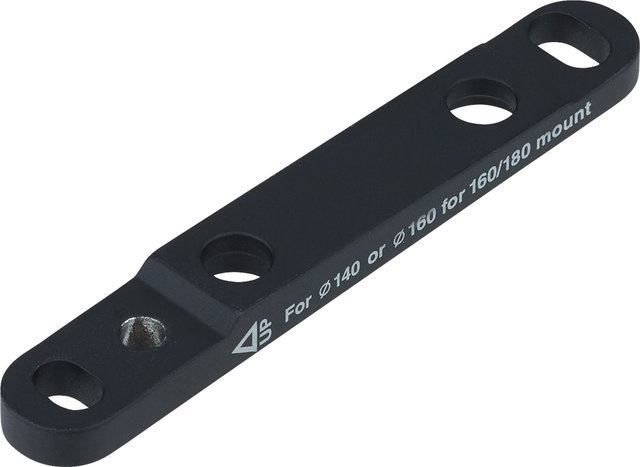

Front FM 160/180 to FM 160:

Fork Mount:

Flat Mount 160 mm / 180 mm

Caliper Mount:

flat mount

Note:

Please note the alignment type. To install a 180 mm rotor, the " UP" arrow on the side marked " For Ø140 or Ø160 for 160/160 mount" must point upwards. Not compatible with BR-UR300.

Manufacturer Number:

Y-8N230000

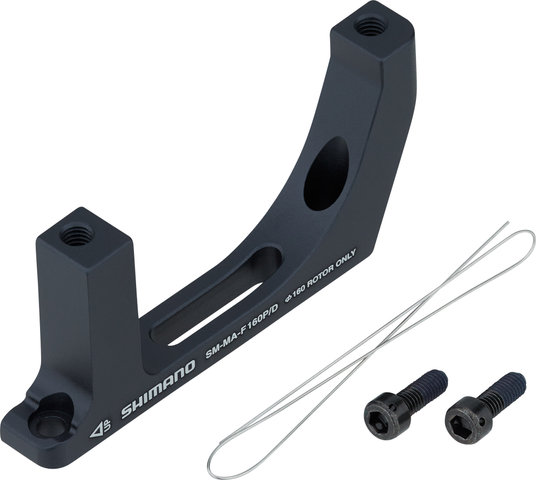

front FM to PM:

Fork Mount:

flat mount

Caliper Mount:

post mount

Included in Delivery:

2 x bolts, 1 x safety wire

Note:

Not compatible with BR-UR300.

Manufacturer Number:

I-SMMAF160PDA

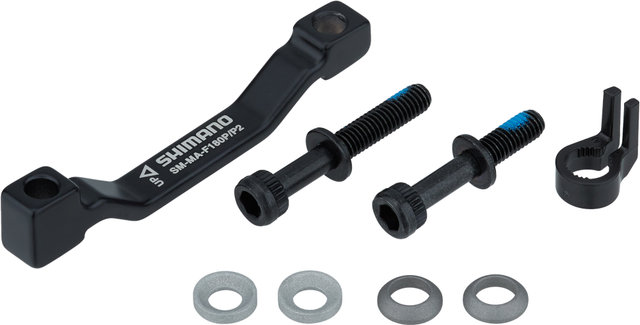

PM 5" to PM +20 mm:

Frame/Fork Mount:

post mount 5"

Caliper Mount:

post mount

Increased Height:

20 mm

Included in Delivery:

1 x long bolt, 1 x short bolt, 1 x stop-ring, 2 x A-type washers, 2 x B-type washers

Manufacturer Number:

E-SMMAF180PP2

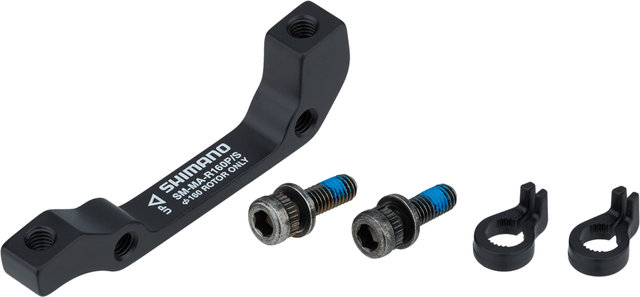

rear IS to PM:

Frame Mount:

international standard

Caliper Mount:

post mount

Included in Delivery:

2 x bolts, 2 x stop rings

Manufacturer Number:

I-SMMAR160PSA

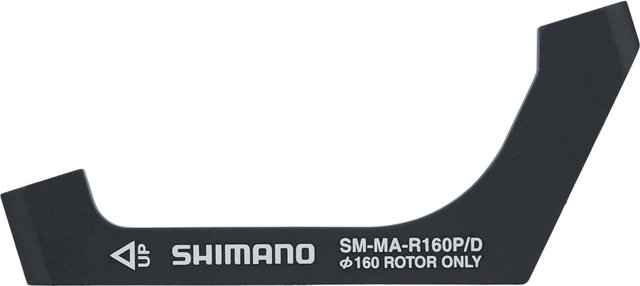

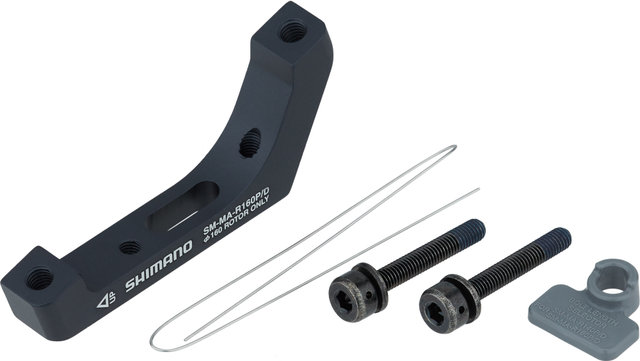

rear FM to PM:

Frame Mount:

flat mount

Caliper Mount:

post mount

Included in Delivery:

2 x bolts for 25 mm frame diameters, 1 x safety wire

Note:

Not compatible with BR-UR300.

Manufacturer Number:

I-SMMAR160PDH

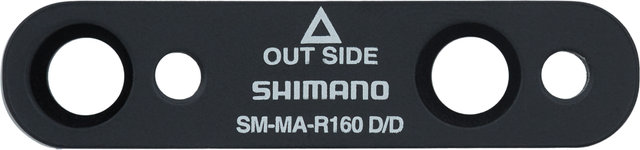

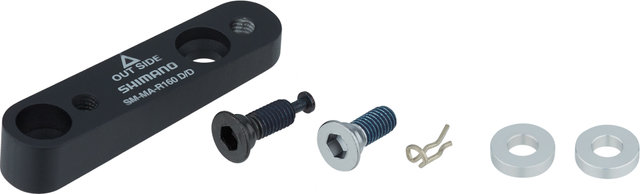

Rear FM 140/160 to FM 160:

Frame Mount:

Flat Mount 140 mm / 160 mm

Caliper Mount:

flat mount

Included in Delivery:

2 x flat mount type B bolts, 2 x washers, 1 x lockring

Note:

Not compatible with BR-UR300.

Manufacturer Number:

I-SMMAR160DDA

Contents:

• 1 x Shimano 160 mm adapter

Order Together:

Optional Accessories:

• For rear FM on PM versions: bolts for other frame diameters
