GRX BR-RX400 + BL-RX600 Disc Brake - black/front

Shimano GRX BR-RX400 + BL-RX600 Disc Brake

Item number: 72037

Shimano GRX BR-RX400 + BL-RX600 disc brake - if you don't need a shift lever on the left side

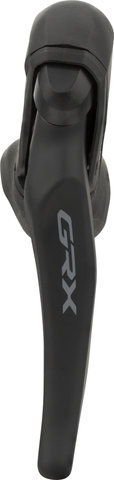

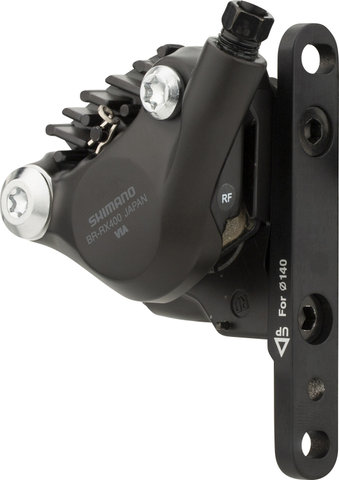

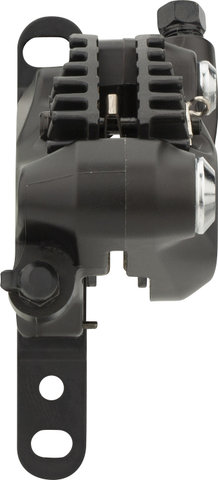

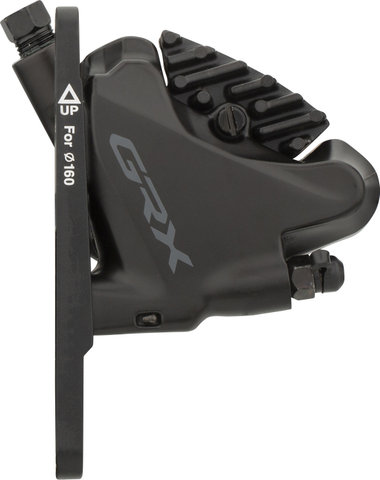

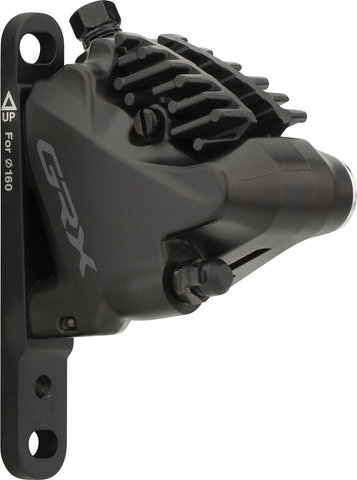

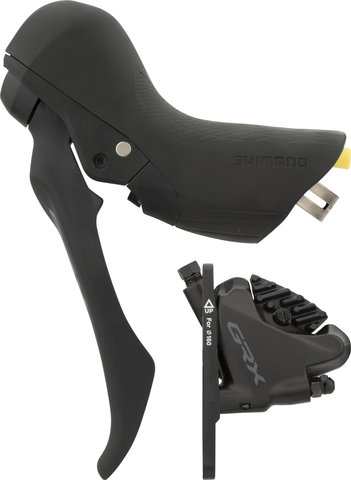

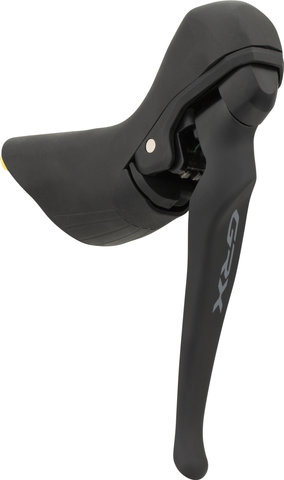

The Shimano GRX BR-RX400 + BL-RX600 disc brake is perfect for 1x setups. Not for nothing do these uncomplicated drivetrains enjoy particular popularity among Gravel riders. The BL-RX600 is mounted on the left. It has a Gravel-specific lever with anti-slip texture and a special ergonomic design. This gives you even better control over your bike off-road. The GRX BR-RX400 brake caliper comes in the Shimano flat-mount design, which has proven itself in recent years as the standard for Road disc brakes because of its user-friendliness. It convinces with its excellent thermal management and easy installation.

Are you interested in the GRX series? Then have a look at our Shimano gravel site. You will find many more products there.

Specifications:

Series:
GRX RX600
Application:
Gravel, Cyclocross, City & Touring
Type:
hydraulic, 2 pistons
Actuation:
mineral oil
Hose:
SM-BH90-JK-SSR
Front Hose Length:
1000 mm

Technical Information - Caliper:

Mount:
flat mount
Pads:
resin with cooling fins
Design:
2-piece
Calliper Material:
Aluminium
Piston Material:
resin
Hose Connection:
straight

Technical Information - Lever:

Adjustment Options:
reach adjust (bolt)
Mount:
clamp (closed)
Design:
left (side-specific)
Brake Lever Material:
Aluminium
Brake Lever Housing Material:
Composite
Hose Connection:
straight

Compatibility:

Brake Caliper:
Mounting Position:
front
Brake Rotor:
140 mm, 160 mm, 180 mm (recommended: SM-RT64)
Pads:
organic and sintered; with narrow pad shape; standard and Ice Tech brake pads

Brake Lever:
Mounting Position:
left (for rear brake caliper)
Clamp Diameter:
23.8 - 24.2 mm
Additional Brake Lever:
BL-RX812

Features:

Brake Caliper:
  • excellent heat dissipation
  • practical tool access
  • trouble-free maintenance
  • easy to change wheels
  • clean bleed system
  • perfect for rough terrain
  • resin pistons
  • painted
  • steel bolts (4 mm)

Brake Lever:
  • lever and hold ergonomics adapted to gravel
  • anti-slip brake lever, painted
  • more control on mixed terrain
  • funnel venting with M7 funnel

Technology:

One Way Bleeding
One Way Bleeding is a technique used on Shimano calipers that facilitates brake bleeding. The hose routing has been optimised so that no air bubbles remain in the brake calliper. In combination with the funnel, the brake can be bled cleanly and easily.

Manufacturer Number:

Front:
I-RX4002DLF6SC100

Contents:

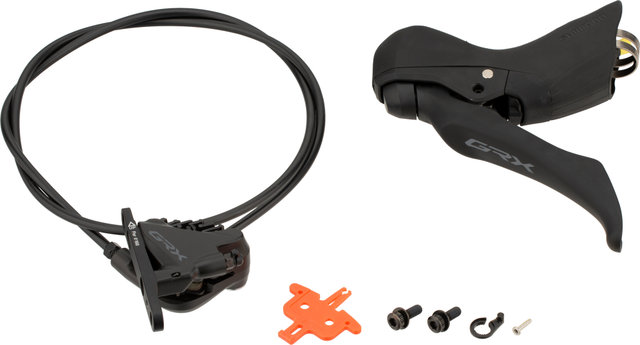

  • 1 x Shimano GRX BR-RX400 + GRX BL-RX600 disc brake, front
  • 1 x Shimano SM-BH90-JK-SSR brake hose, 1000 mm (front)
  • 1 x pairs Shimano resin brake pads with cooling fins
  • 1 x disc brake adapter for front 140/160 + 160/180 mm
  • 1 x hose connection set w/ olives and pins
  • 2 x type A caliper bolts (front)
  • ready for installation, filled, bleeding is recommended after installation
