Shimano GRX BR-RX810 + BL-RX810 Disc Brake

Shimano GRX BR-RX810 + BL-RX810 disc brake - more control on gravel

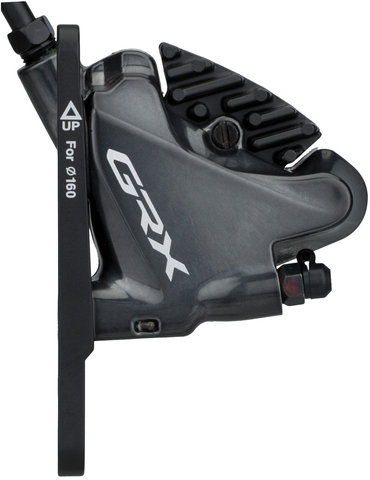

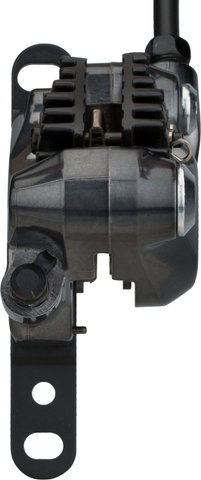

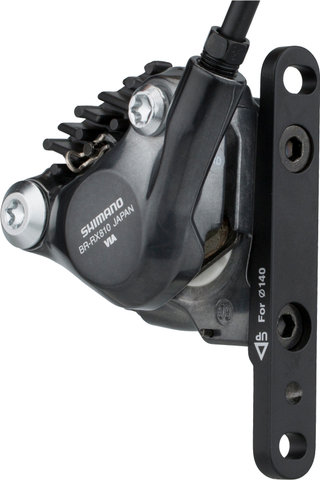

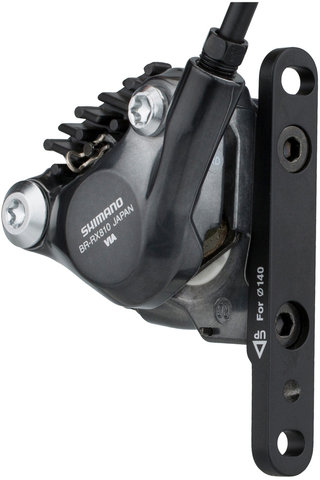

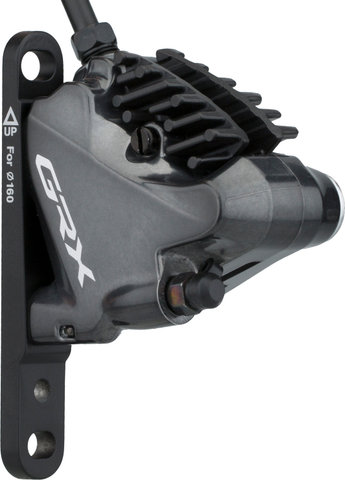

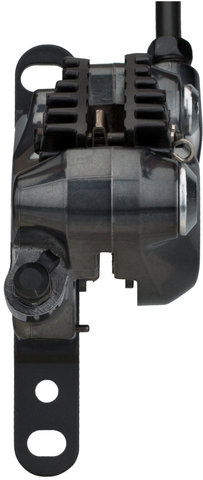

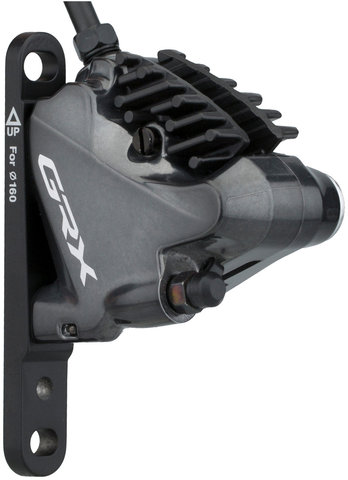

The Shimano GRX disc brake BR-RX810 + BL-RX810 stands for more brake control on mixed terrain. The BR-RX810 brake caliper with Ice Technology ensures perfect heat distribution. In addition, there is the simple one-way bleeding and the uncomplicated hose connection system. The flat mount design has proven itself in the Road sector the last several years.

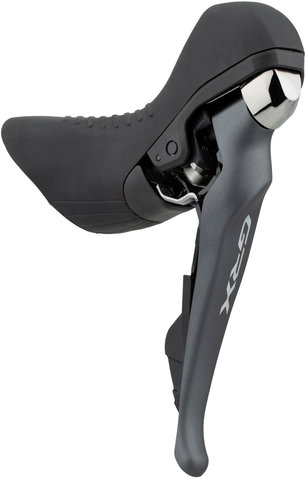

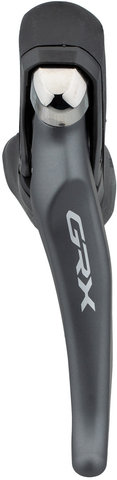

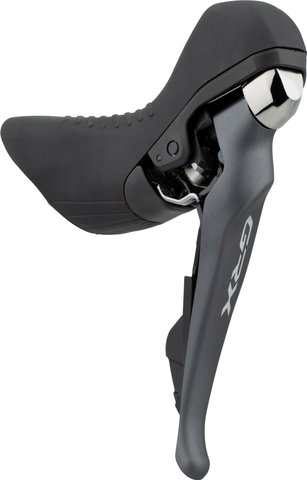

The Shimano GRX BL-RX810 brake lever also gives you more bike control on mixed surfaces and while graveling. Its' comfortable lever and grip ergonomics were inspired by Gravel experts too. The BL-RX810 brake lever is mounted on the left side with a 1x setup.

Are you interested in the GRX series? Then have a look at our Shimano gravel site. You will find many more products there.

Specifications:

Series:

GRX RX810

Application:

Gravel, Cyclocross, City & Touring

Type:

hydraulic, 2 pistons

Actuation:

mineral oil

Hose:

SM-BH90-JK-SSR

Front Hose Length:

1000 mm

Technical Information - Caliper:

Mount:

flat mount

Pads:

resin with cooling fins

Design:

2-piece

Calliper Material:

Aluminium

Piston Material:

Ceramic

Hose Connection:

straight

Technical Information - Lever:

Adjustment Options:

Grip width adjustment (screw), pressure point adjustment

Mount:

clamp (closed)

Design:

left (side-specific)

Brake Lever Material:

Aluminium

Brake Lever Housing Material:

Composite

Hose Connection:

straight

Compatibility:

Brake Lever:

Mounting Position:

left (for rear brake caliper)

Clamp Diameter:

23.8 - 24.2 mm

Additional Brake Lever:

BL-RX812

Brake Caliper:

Mounting Position:

front

Brake Rotor:

140 mm, 160 mm, 180 mm (recommended: RT-MT800, SM-RT800)

Pads:

organic and sintered; with narrow pad shape; standard and Ice Tech brake pads

Features:

Brake Lever:

• lever and hold ergonomics adapted to gravel
• anti-slip brake lever, painted
• more control on mixed terrain
• faster brake contact thanks to Servo Wave
• funnel venting with M7 funnel

Brake Caliper:

• excellent heat dissipation
• practical tool access, easy wheel change
• simple, clean bleed system
• ceramic piston
• painted
• steel bolts (4 mm)

Technology:

Servo Wave
Shimano Servo Wave technology optimises the travel of your brake levers. During the braking process, the brake pads are guided quickly to the brake rotor with very short lever travel. The greater part of the lever travel is reserved for the actual braking force. In this way, you can apply your braking power in a more targeted manner and use it more effectively.

One Way Bleeding
One Way Bleeding is a technique used on Shimano calipers that facilitates brake bleeding. The hose routing has been optimised so that no air bubbles remain in the brake calliper. In combination with the funnel, the brake can be bled cleanly and easily.

Manufacturer Number:

Front:

I-RX8104DLF6SC100

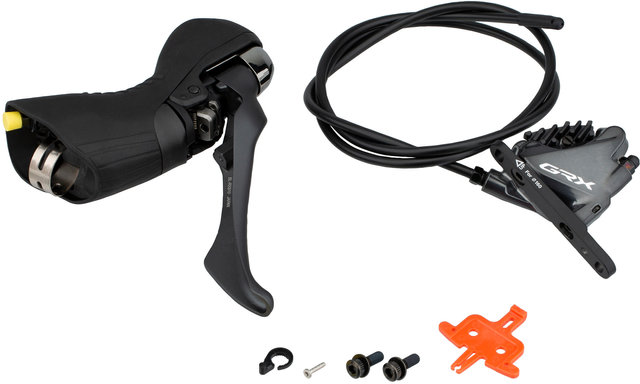

Contents:

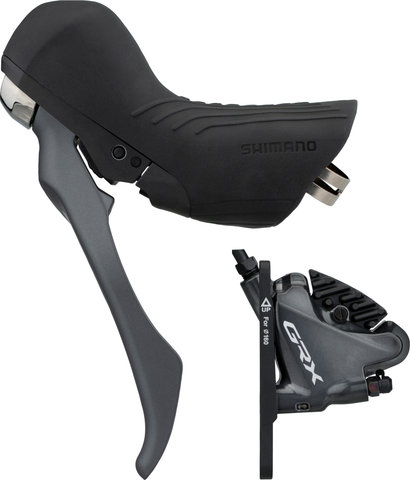

• 1 x Shimano GRX BR-RX810 + GRX BL-RX810 disc brake, front
• 1 x Shimano SM-BH90-JK-SSR brake hose, 1000 mm (front)
• 1 x pair Shimano brake pads
• 1 x disc brake adapter (front)
• 1 x hose connection set w/ olives and pins
• 2 x type A caliper bolts (front)
• ready for installation, filled, bleeding is recommended after installation

Order Together:

• TL-BH61 tool for insert installation
