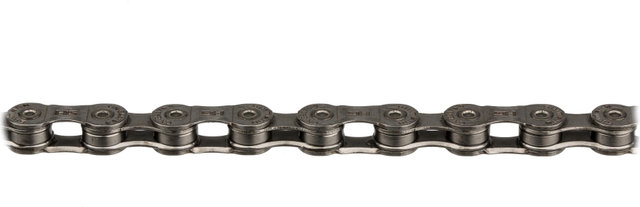

Shimano STEPS CN-E6070-9 9-speed Chain for E-Bikes

The Shimano STEPS chain CN-E6070-9 is E-Bike ready

The Shimano STEPS 9-speed chain CN-E6070-9 has been reinforced and equipped with newly dimensioned plates to be suitable for e-bike use. Thanks to Hyperglide technology (HG), gear changes run smoothly even under load. CN-E6070-9 chains are not directional and can only be used with a single chainring.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

City & Touring

Gearing:

9-speed

Technical Information:

Number of Links:

118, 138

Closure Type:

chain pin, silver

Pin Type:

chromium-plated, solid

Directional:

no

Recommended Groupset:

STEPS E8000, STEPS E6000

Material:

steel

Compatibility:

• EP8 EP801 for Urban / Touring with electronic or mechanical hub gears
• EP8 EP800 for Urban / Touring with electronic or mechanical hub gears
• EP6 for Urban / Touring with electronic or mechanical hub gears
• STEPS E6100 with electronic or mechanical hub gears
• STEPS E6100 with mechanical rear derailleur
• STEPS E5000 with electronic or mechanical hub gears
• STEPS E5000 with mechanical rear derailleur
• STEPS E6180 / E5080 (Japanese market only)
• only for single chainrings

Features:

• HG 9-speed chain, reinforced for e-bike use
• newly dimensioned plates
• outer plate/inner plate coating: grey
• performance indicator: advanced (level 2 out of 3)

Technology:

HG (Hyperglide)
The links on Shimano Hyperglide chains are shaped to make optimum contact with the teeth of the chainring. This ensures smooth gear changes, even under load. In addition, the HG technology improves the efficiency of your pedal stroke.

Manufacturer Numbers:

9 speed / 118 links:

I-CNE60709118I

9 speed / 138 links:

I-CNE60709138I

Contents:

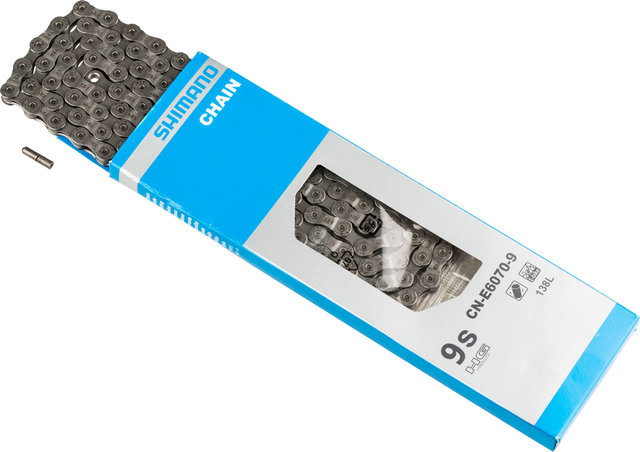

• 1 x Shimano STEPS CN-E6070-9 chain
• 1 x chain pin
