Shimano Ultegra BR-R8070 + ST-R8020 Disc Brake Set - black/set (front+rear)

Shimano Ultegra BR-R8070 + ST-R8020 Disc Brake Set

Item number: 68686

BR-R8070 + ST-R8020 by Shimano - Disc brake set with Ultegra label


The Shimano Ultegra BR-R8070 + ST-R8020 disc brake set (front + rear) ensures the highest possible level of control and strong Ice-Technologies braking performance in all conditions. The hydraulic brake calipers (2 ceramic pistons each) don't affect the look of your bike in the least due to their elegant flat mount design, but integrate seamlessly into the overall appearance. They can be easily bled via the One Way Bleeding System. On the other hand, the STI shift/brake levers feature fast, intuitive shifting and extended reach adjustment. There is also the bonus of excellent brake control, which is further enhanced by the Servo Wave construction. Thanks to their reduced circumference, the Shimano Ultegra Dual Control grips fit well in the hand and contribute to more ergonomics while riding.

Specifications:

Series:
Ultegra R8000
Application:
Road, Cyclocross
Gearing:
2-speed, 11-speed
Shifting System:
mechanical
Type:
hydraulic, 2 pistons
Actuation:
mineral oil
Hose:
SM-BH90-JK-SS
Hose Length (Front/Rear):
1000 mm/1700 mm

Technical Information - Shift/Brake Lever:

Brake Lever Material:
Composite
Lever Body Material:
Composite
Clamp Material:
steel
Mount:
clamp (closed)
Reach Adjust:
bolt
Adjustment Options:
reach adjust, contact point

Technical Information - Caliper:

Caliper Mount:
flat mount
Pads:
resin with cooling fins
Design:
2-piece
Calliper Material:
Aluminium
Piston Material:
Ceramic
Hose Connection:
straight

Compatibility:

Shift/Brake Lever:
Mounting Position:
left for front brake caliper, right for rear brake caliper
Clamp Diameter:
23.8 - 24.2 mm
Front Derailleur:
FD-R9100, FD-R8000, FD-5801, FD-R7000, FD-9000, FD-6800, FD-5800, FD-U5000, FD-RX810
Crank:
FC-R9100, FC-R9100-P, FC-R8000, FC-R7000, FC-RS510, FC-9000, FC-6800, FC-5800, FC-RS500, FC-U5000-2, FC-RX810-2, FC-RX600-11
Rear Derailleur:
RD-R9100, RD-R8000, RD-RX800, RD-9000, RD-6800, RD-5800, RD-R7000, RD-U5000, RD-RX810
Cassette:
CS-R9100, CS-9000, CS-6800, CS-5800, CS-R8000, CS-HG800-11, CS-R7000, CS-HG700-11
Chain:
CN-9000, CN-6800, CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500
Additional Brake Lever:
BL-RX812

Brake Caliper:
Brake Rotor:
140 mm, 160 mm, 180 mm (recommended: SM-RT800)
Pads:
organic and sintered; with narrow pad shape; standard and Ice Tech brake pads

Features:

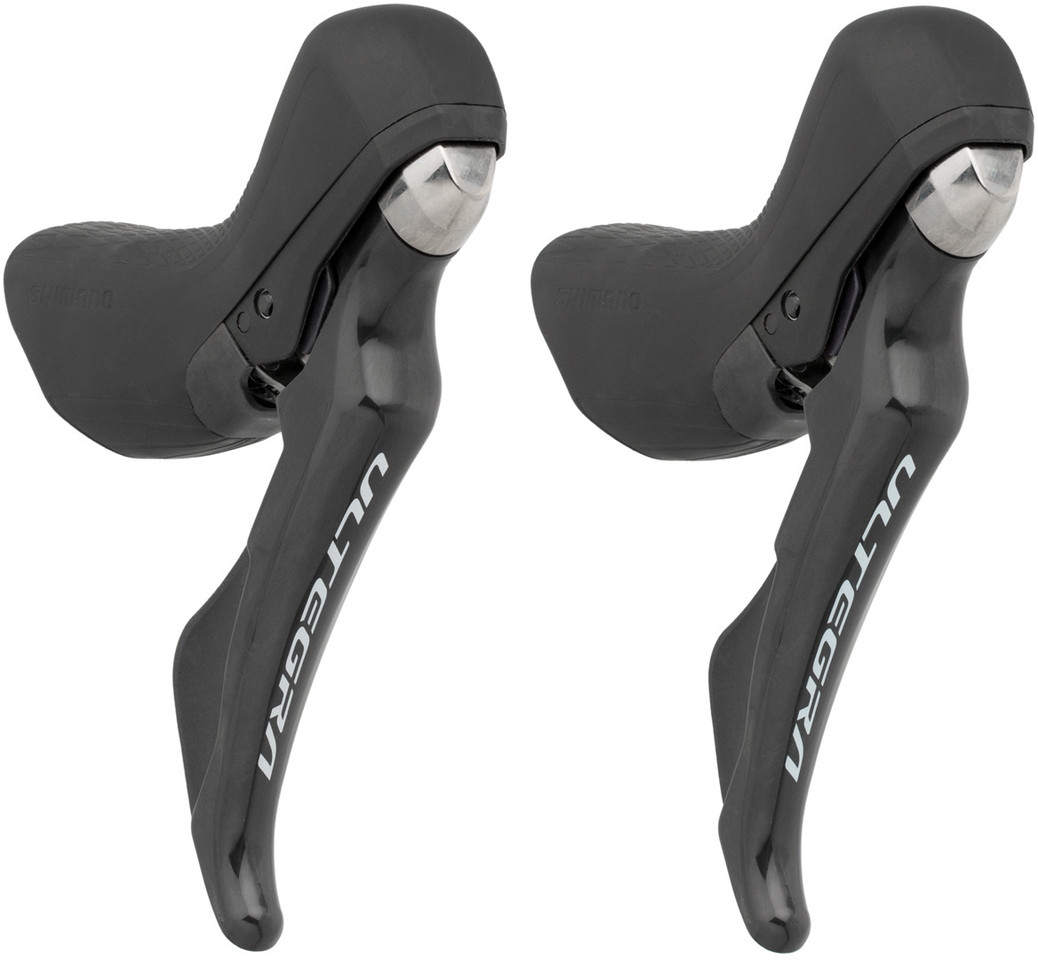

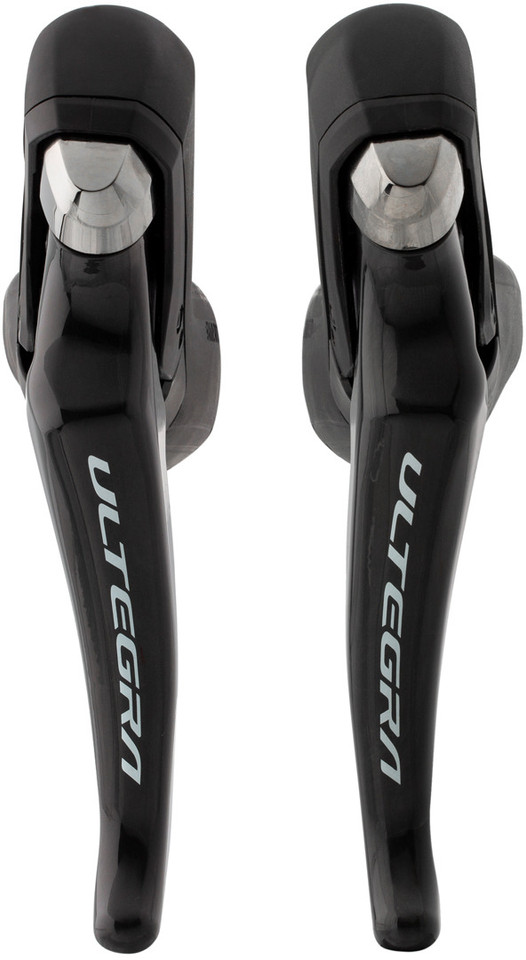

Shift/Brake Lever:
  • revised internal shift unit for fast, intuitive shifting
  • extended reach adjustment
  • in combination with FD-R8000 even easier front shifting
  • reduced hydraulic inner workings to adjust the ergonomics of disc and rim brake builds
  • max. number of gears per shift: 2 (main lever, rear)
  • polymer-coated shifter cable
  • straight hose connection
  • funnel venting with M7 funnel
  • shift lever made of resin/steel, main lever painted

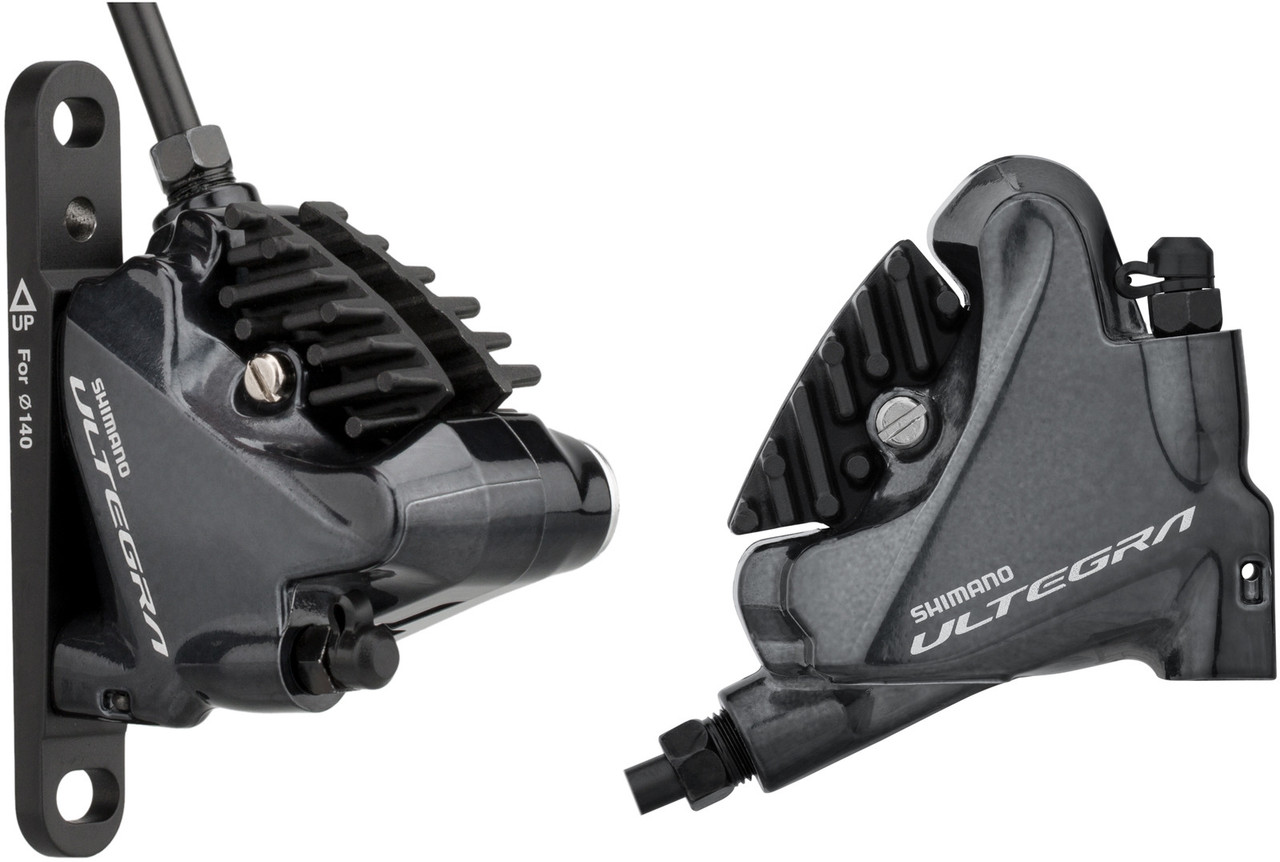

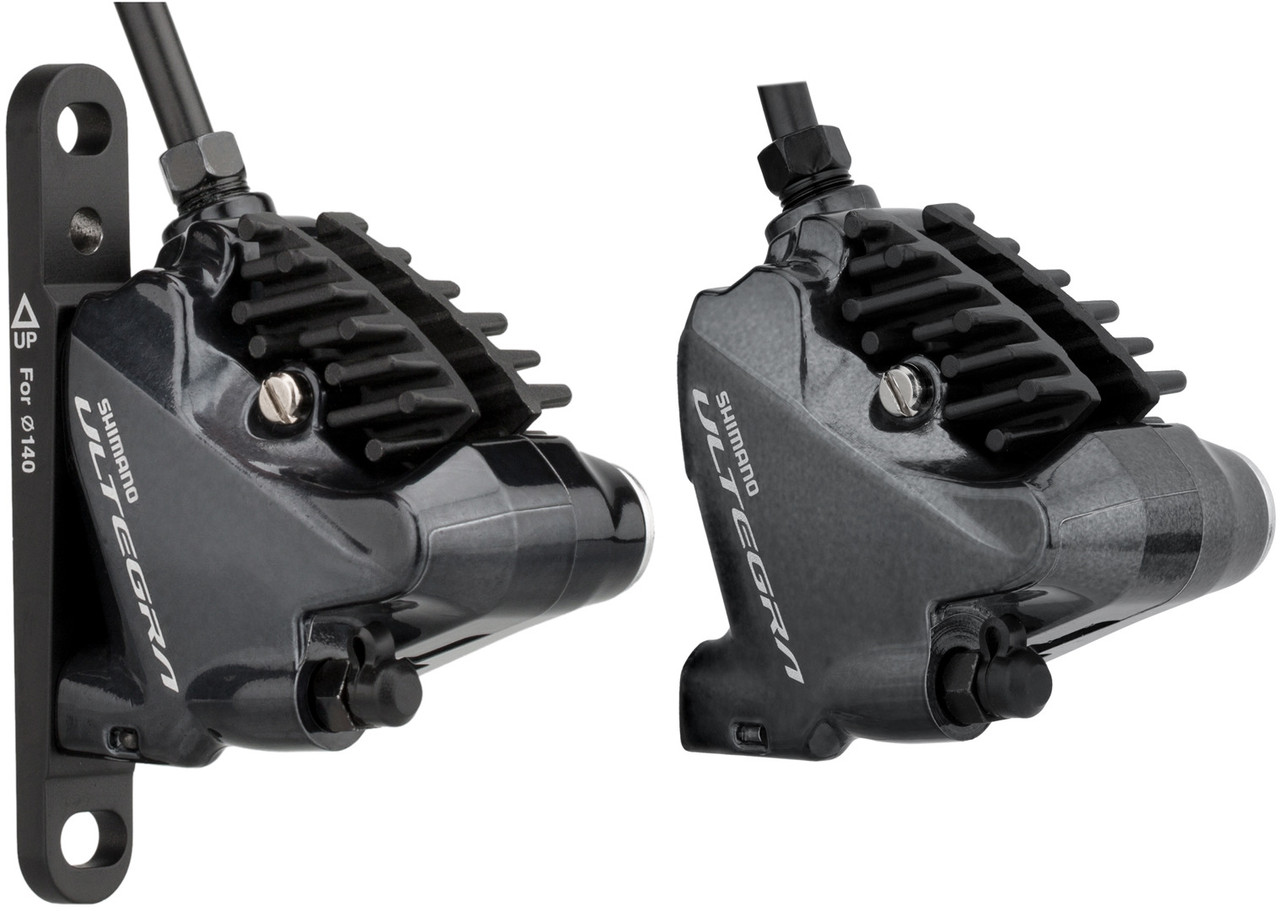

Brake Caliper:
  • more control under all conditions
  • flat mount design for seamless integration into the aero profile of the bike
  • two ceramic pistons
  • anodised
  • steel bolts (4 mm)

Technology:

STI Dual Control
Shimano Total Integration (STI) means the combination of braking and shifting functions in one lever, which increases safety when riding. By refining the technology, it became possible to make shifting so smooth at the front and rear that they can be triggered with just one finger. Shimano calls such levers Dual Control Levers (DCL).

Servo Wave
Shimano Servo Wave technology optimises the travel of your brake levers. During the braking process, the brake pads are guided quickly to the brake rotor with very short lever travel. The greater part of the lever travel is reserved for the actual braking force. In this way, you can apply your braking power in a more targeted manner and use it more effectively.

One Way Bleeding
One Way Bleeding is a technique used on Shimano calipers that facilitates brake bleeding. The hose routing has been optimised so that no air bubbles remain in the brake calliper. In combination with the funnel, the brake can be bled cleanly and easily.

Manufacturer Number:

I-R8020DLF4SC100A + I-R8020DRRDSC170A

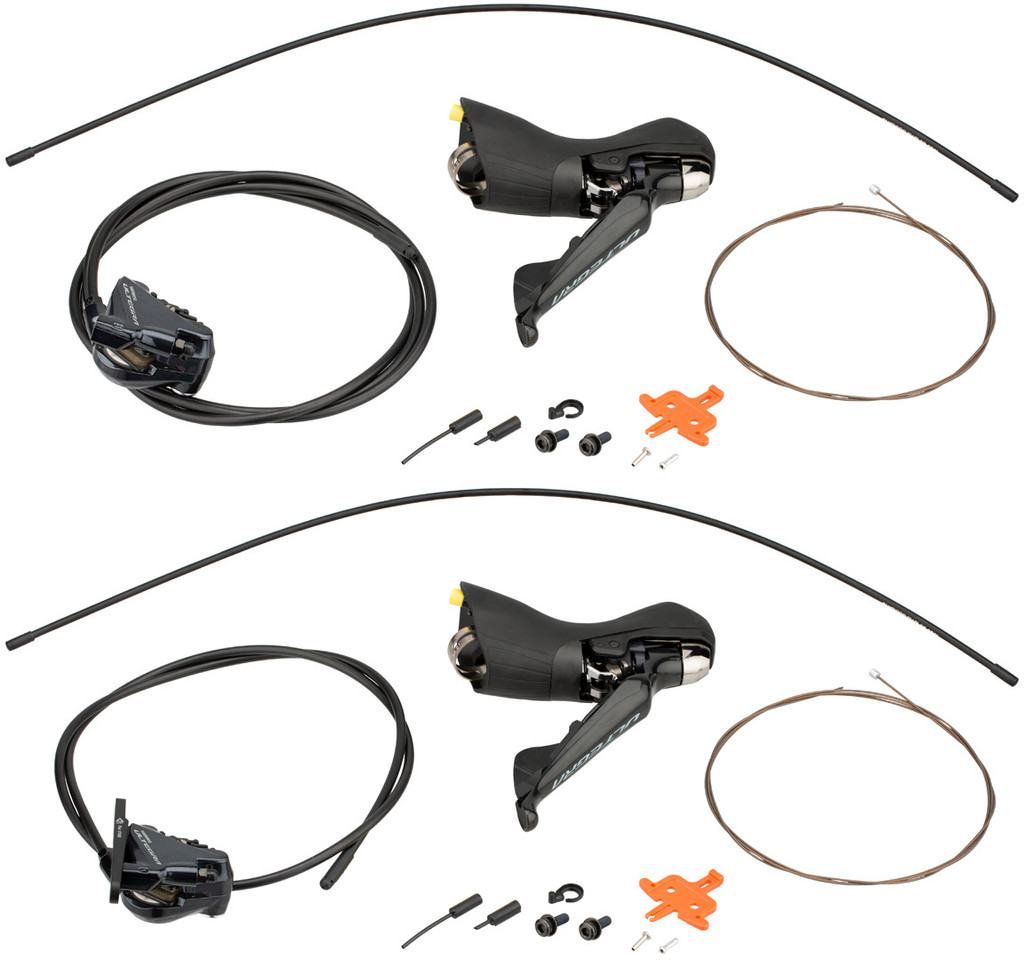

Contents:

  • 2 x Shimano Ultegra BR-R8070 brake calliper
  • 1 x pair Shimano Ultegra ST-R8020 shift/brake levers
  • 1 x Shimano SM-BH90-JK-SS brake hose, 1000 mm (front)
  • 1 x Shimano SM-BH90-JK-SS brake hose, 1700 mm (rear)
  • 2 x pairs Shimano brake pads
  • 1 x disc brake adapter for front 140/160 + 160/180 mm
  • 2 x hose connection set w/ olives and pins
  • 2 x type A caliper bolts (front)
  • 2 x caliper bolts for 25 mm frame diameters (rear)
  • 2 x shift cable sets with housing and end caps
  • ready for installation, filled, bleeding is recommended after installation

Order Together:

  • FM to FM brake adapter SM-MA-R160 D/D for 160 mm brake rotor on 140 mm FM frame (for rear)
  • FM-to-FM brake adapter SM-MA-R160 D/D for 180 mm brake rotor on 160 mm FM frame (for rear)
  • TL-BH61 tool for insert installation

Optional Accessories:


Weight:

  • black/set (front+rear): 840 g (Paar)
