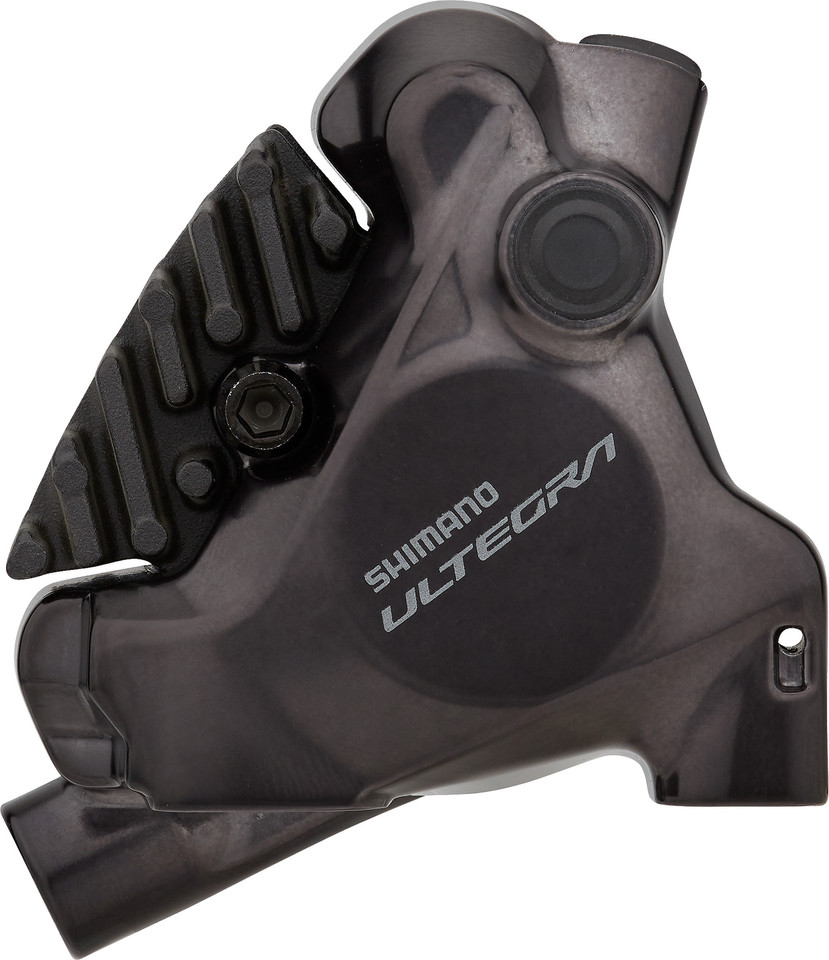

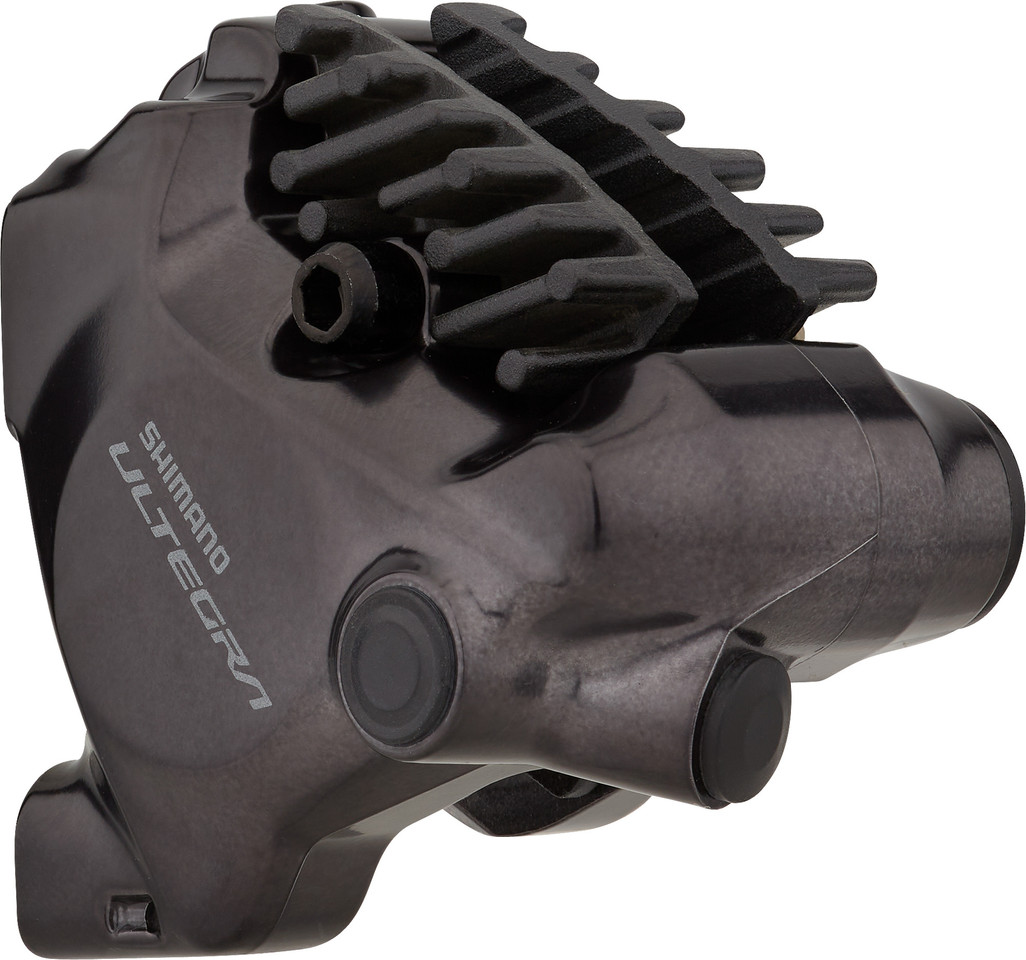

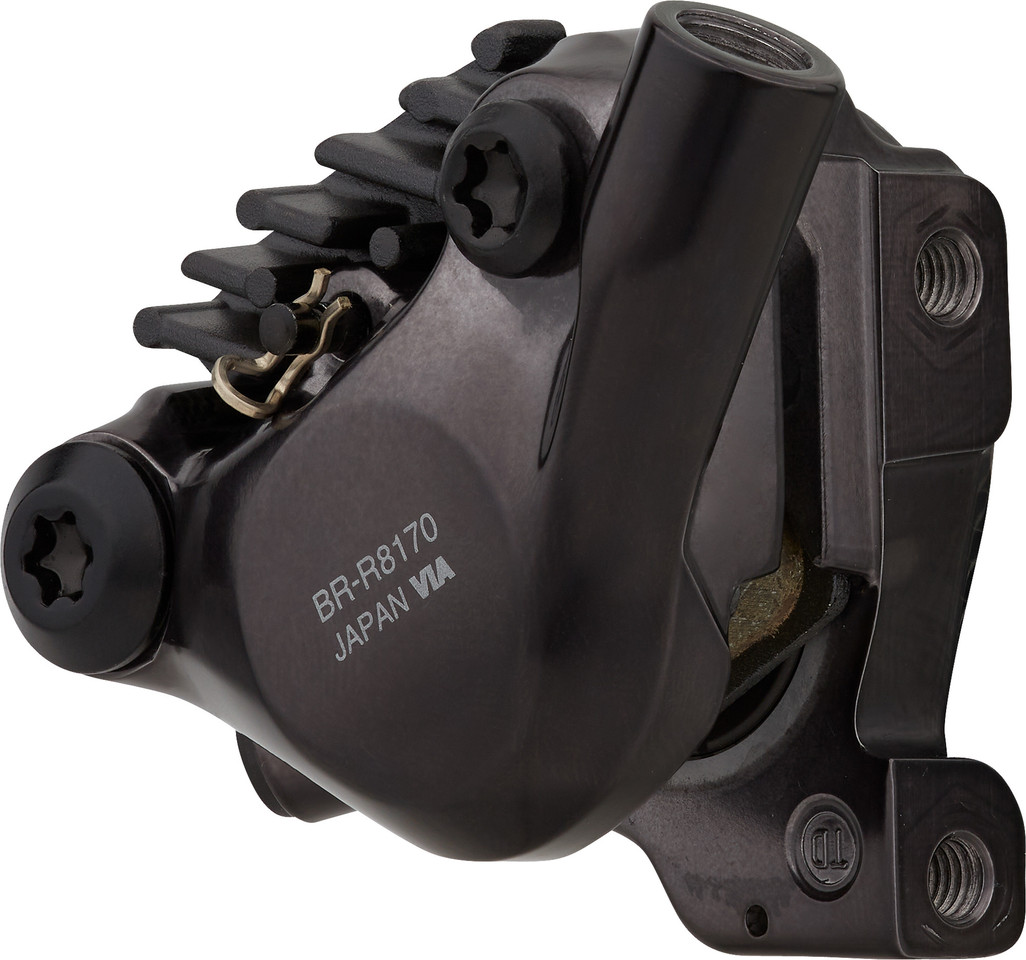

Shimano Ultegra BR-R8170 Brake Caliper w/ Resin Pads

Item number: 84386
Ultegra BR-R8170 Brake Caliper w/ Resin Pads - anthracite/front flat mount
Ultegra BR-R8170 Brake Caliper w/ Resin Pads - anthracite/front flat mount
Ultegra BR-R8170 Brake Caliper w/ Resin Pads - anthracite/front flat mount
Ultegra BR-R8170 Brake Caliper w/ Resin Pads - anthracite/front flat mount
Ultegra BR-R8170 Brake Caliper w/ Resin Pads - anthracite/front flat mount
Ultegra BR-R8170 Brake Caliper w/ Resin Pads - anthracite/rear flat mount
Ultegra BR-R8170 Brake Caliper w/ Resin Pads - anthracite/rear flat mount
Ultegra BR-R8170 Brake Caliper w/ Resin Pads - anthracite/rear flat mount
Ultegra BR-R8170 Brake Caliper w/ Resin Pads - anthracite/rear flat mount
Ultegra BR-R8170 Brake Caliper w/ Resin Pads - anthracite/rear flat mount
  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.91 / 5.00

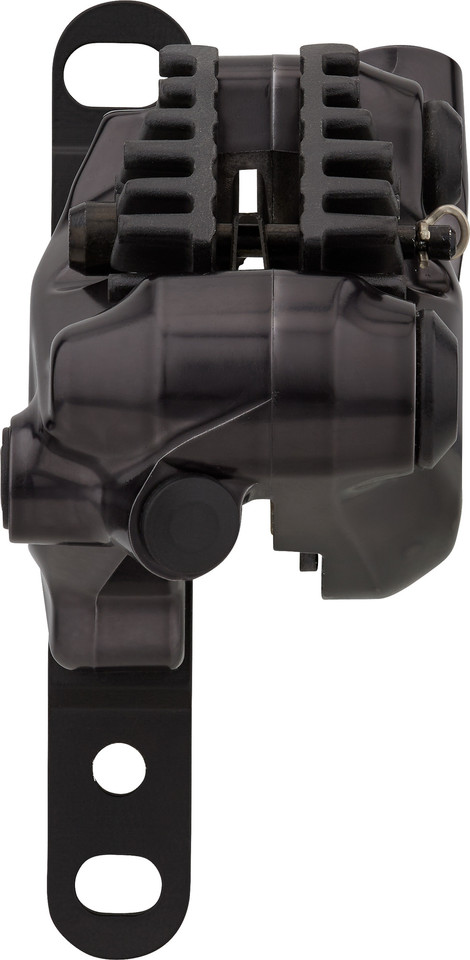

The Ultegra BR-R8170 Brake Caliper by Shimano - More space for brake pads


With the Shimano BR-R8170 flat-mount brake caliper from the Ultegra road bike groupset, the brake pads have more free space than with the predecessor model, which prevents grinding of the brake rotor and reduces noise. The braking power of the two plastic pistons is tuned for competition use, but is just as suitable for leisure and training rides. In addition, BR-R8170 features a simple bleeding process thanks to One-Way Bleeding technology. The two-piece caliper design is made of lightweight aluminium and comes with Ice-Tech resin pads, which ensure particularly good heat dissipation thanks to their cooling fins. However, you can also ride it with conventional pads.

Specifications:


Series: Ultegra R8100
Application: Road
Type: hydraulic, 2 pistons
Actuation: mineral oil
Hose: SM-BH90-JK-SSR (not included)

Technical Information - Caliper:


Caliper Mount: flat mount

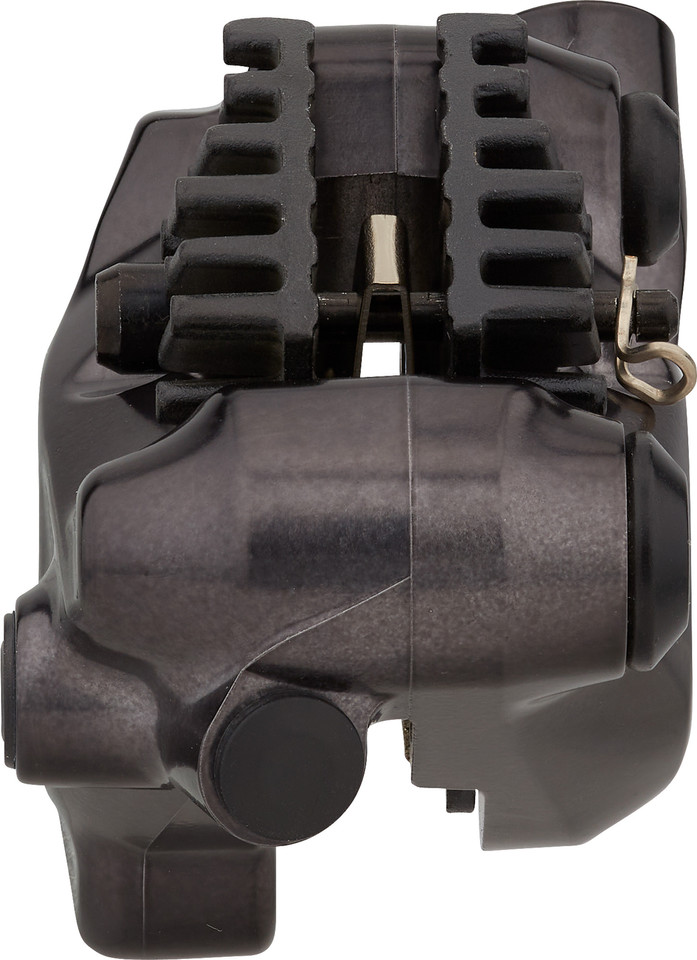

Pads: resin with cooling fins
Design: 2-piece
Calliper Material: Aluminium
Piston Material: resin
Hose Connection: straight

Compatibility:


Brake Rotor: 140 mm, 160 mm, 180 mm (recommended: RT-MT800)
Pads: Standard and Ice-Tech brake pads
Recommended Brake Lever: ST-R8170, also compatible with ST-R9270, ST-R9120, ST-R9170, ST-R9180, ST-R9180, ST-R8020, ST-R8025, ST-R8070, ST-R7170, ST-R7020, ST-R7025, ST-RX810, ST-RX810-LA, BL-RX810-L, ST-RX815, ST-RX600, BL-RX600-L, ST-RX400, ST-4720, ST-4725 and auxiliary brake lever BL-RX812

Features:


- 10 % larger brake pad spacing minimises grinding of the brake rotor, less noise development
- braking performance optimally tuned for racing and training use
- coherent appearance and easy tool access thanks to flat mount
- optimised heat dissipation with Ice-Tech
- simple bleeding process
- 2 pistons made of synthetic resin
- painted
- steel bolts (4 mm)

Technology:


One-Way-Bleeding
One Way Bleeding is a technique used on the brake calliper that makes it easier to bleed the brake. The hose routing has been optimised so that no air bubbles remain in the brake calliper. In combination with the funnel, the brake can be bled cleanly and easily.

Manufacturer Numbers:


Front Flat Mount: I-BRR8170F6RF
Rear Flat Mount: I-BRR8170RDRF

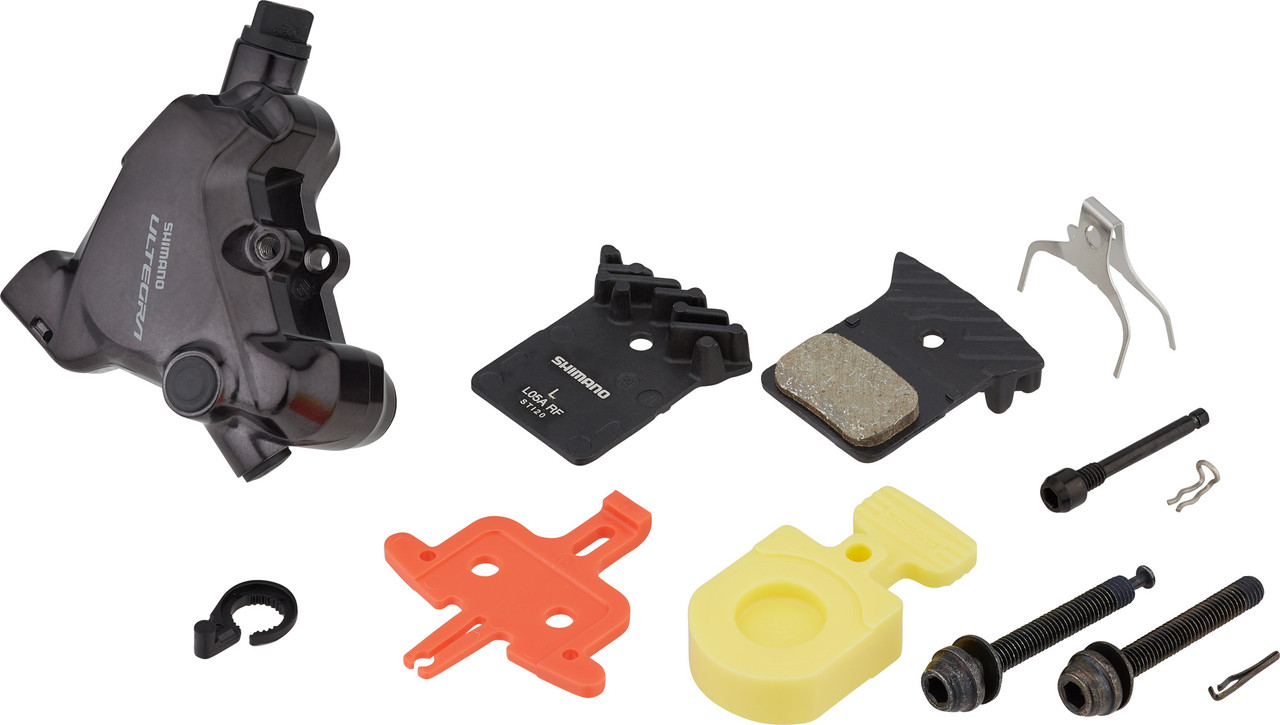

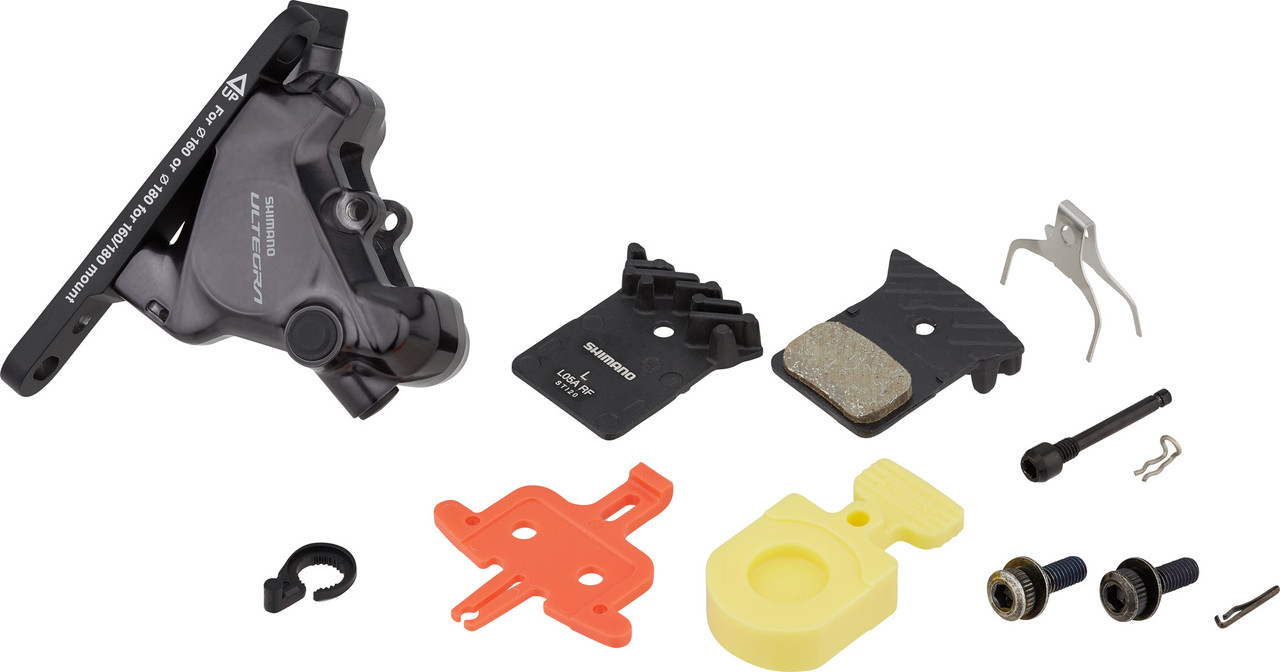

Contents:


- 1 x Shimano Ultegra BR-R8170 brake calliper
- 1 x pair Shimano brake pads

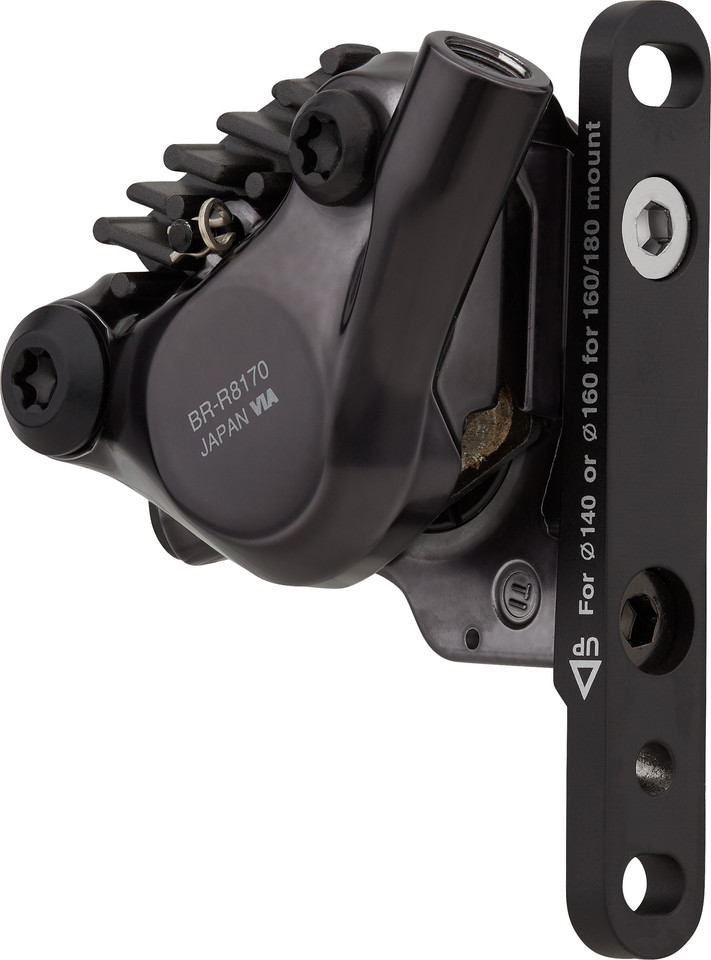

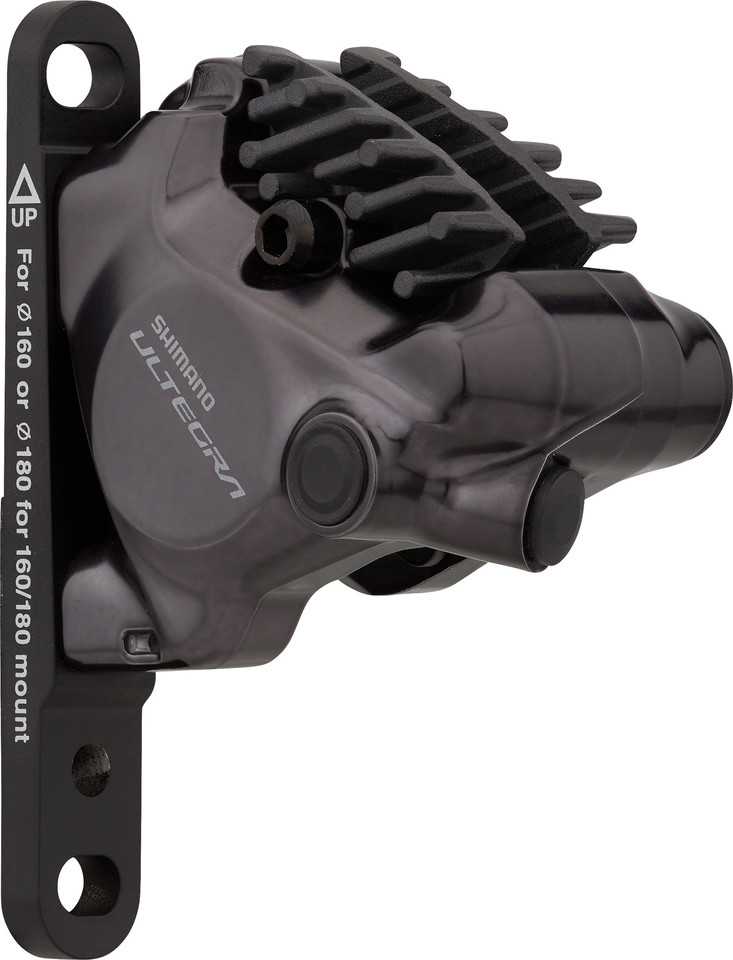

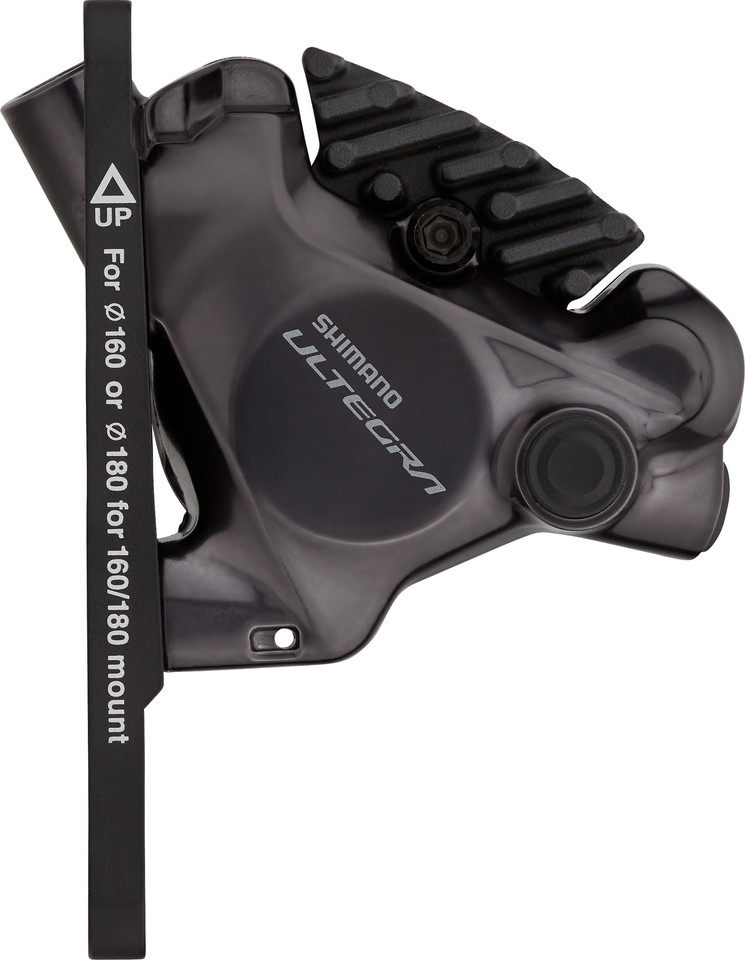

- 1 x disc brake adapter (front only, pre-mounted for 160 mm)
- 2 x type A caliper bolts (front)
- 2 x caliper bolts for 25 mm frame diameters (rear)

Order Together:


- FM to FM brake adapter SM-MA-R160 D/D for 160 mm brake rotor on 140 mm FM frame (for rear)
- FM-to-FM brake adapter SM-MA-R160 D/D for 180 mm brake rotor on 160 mm FM frame (for rear)

Optional Accessories:
- organic brake pads K03S without cooling fins
- sintered brake pads L04C with cooling fins


Gewicht:

  • anthracite/front flat mount: 123 g
  • anthracite/rear flat mount: 123 g

Models:

  • anthracite/front flat mount, in stock
    46.21€
  • anthracite/rear flat mount, in stock
    46.21€
