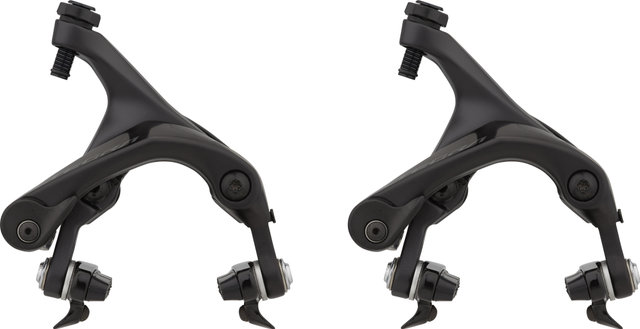

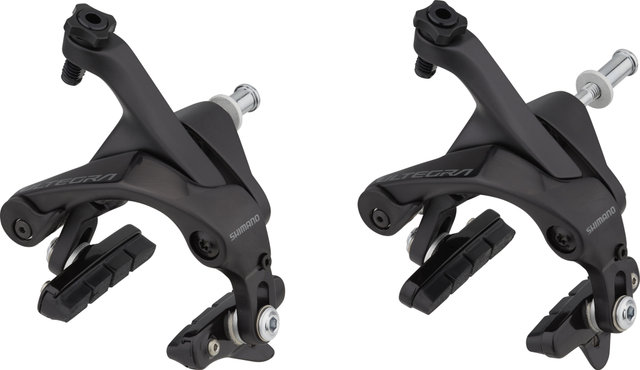

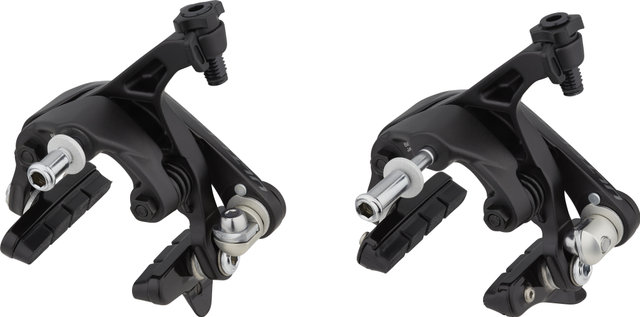

Shimano Ultegra BR-R8100 Rim Brake Set

The Ultegra BR-R8100 Rim Brake Set by Shimano - For fans of mechanical braking

With the BR-R8100 rim brake set, consisting of a front and rear brake caliper, Shimano continues to offer a mechanical braking option for the Ultegra R8100 road bike groupset. The model features the proven symmetrical double-joint design and impresses with efficient, high-precision braking performance. You can use tyres up to 28 mm wide. Both the brake arms and the cartridge brake shoe mounts, which are of course angle-adjustable, are made of lightweight aluminium. Brake pads for aluminium brake flanks are included.

Specifications:

Series:

Ultegra R8100

Application:

Road

Type:

dual pivot side-pull brakes

Attachment:

brake bosses

Technical Information:

Material:

Aluminium

Surface Finish:

anodised

Pads:

R55C4

Brake Arm Length:

51 mm

Actuation:

brake cable

Approved For:

Tyre Size (max.):

28 mm

Rim Width (max.):

20.8 - 28.0 mm

Compatibility:

Shift/Brake Lever:

ST-R8150, ST-R8000, ST-R8050, ST-R8060, ST-6870, ST-6871, ST-6800, ST-6770, ST-6700, ST-R9250, ST-R9100, ST-R9150, ST-R9160, ST-9070, ST-9071, ST-9001, ST-9000, ST-5800, ST-R7000, ST-5700, ST-4700, ST-4600, ST-R3000, ST-3500, ST-R2000, ST-2400, ST-R460, ST-R353, ST-R350

Brake Lever:

BL-TT79

Features:

• balanced stiffness, weight and braking power
• short brake arms made of aluminium
• cartridge brake shoe mount made of aluminium (lacquered), angle adjustable

tyre protectors

• quick release

Technology:

SLR-EV
SLR-EV rim brakes from Shimano feature a symmetrical Dual Pivot design with short brake arms. These reduce friction in the joint area, which ensures better brake response and operation. Two bearings and a roller are used to make the joint area as efficient as possible, and to facilitate the dosage of braking force.

Manufacturer Numbers:

I-BRR8100AF82X (front) + I-BRR8100AR82A (rear)

Contents:

• 1 x pair Shimano Ultegra BR-R8100 rim brakes (front & rear)
• 1 x 10.5 mm caliper bolt, rear
• 1 x 18 mm caliper bolt, front
• 1 x 27 mm caliper bolt, front
• 2 x pair R55C4 brake pads
