Shimano XTR 1x11-speed Upgrade Kit

The XTR 1x11-speed Upgrade Kit by Shimano - An upgrade for discerning cyclists

Get the Shimano XTR 1x11-speed upgrade kit if you want to easily switch from 10-speed to 1x11-speed and want the best of the best. The kit consists of a cassette (11-40 or 11-46 T), a Quick-Link chain, a rear derailleur and a shifter for the right, where you have the choice between a clamp and I-Spec II. For performance-oriented riders, the XTR offers high-end technology that benefits from years of Shimano experience and has been perfected for the demands of modern MTB sport.

Specifications:

Series:

XTR M9000

Application:

Cross Country, All Mountain, Enduro

Shifters & Derailleurs:

11-speed (mechanical)

Technical Information - Cassette:

Type:

XTR CS-M9001 11-40 or Deore XT CS-M8000 11-46 (HG)

Gearing:

11-speed

Gradation:

11-13-15-17-19-21-24-27-31-35-40 t (XTR) or 11-13-15-17-19-21-24-28-32-37-46 t (XT)

Sprocket Material 11-40:

steel (sprockets 1 to 4), titanium (sprocket 5 to 10), aluminium (sprocket 11)

Sprocket Material 11-46:

steel, aluminium (sprocket 10 +11)

Freehub Compatibility:

Shimano MTB

Note:

compatible with Shimano Road 11-speed using a 1.85 mm spacer

Spider 11-40:

4 (2 x aluminium, 2 x carbon)

Spider 11-46:

2 (aluminium)

Technical Information - Rear Derailleur:

Type:

XTR RD-M9000 short/mid (GS)

Attachment:

standard (Direct Mount compatible)

Capacity:

37-tooth

Largest Sprocket Teeth (max.):

42 with 2x11-speed, 46 with 1x11-speed

Largest Sprocket Teeth (min.):

40-tooth

Smallest Sprocket Teeth (max.):

11-tooth

Smallest Sprocket Teeth (min.):

11-tooth

Chainring Difference (max.):

10-tooth

Compatibility:

Shimano MTB 11-speed

Compatibility - Chains:

HG-X11

Derailleur Pulleys:

11-tooth

Outer Cage Material:

carbon (CFRP)

Inner Cage Material:

Aluminium

Other Materials:

aluminium, stainless steel, carbon (CFRP)

Technical Information - Chain:

Type:

XTR / Dura-Ace CN-HG901-11 (HG-X11)

Number of Links:

116

Closure Type:

master link (Quick-Link)

Pin Type:

chromium-plated, hollow

Directional:

yes

Material:

steel

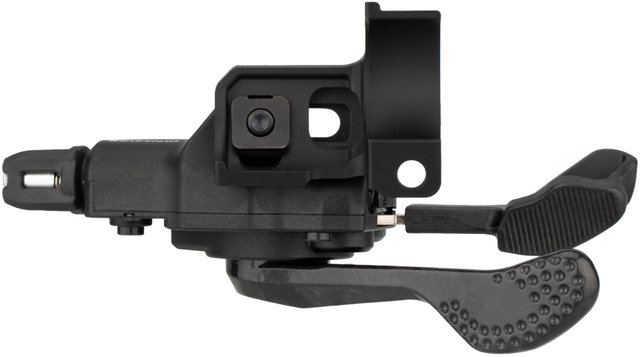

Technical Information - Shifter:

Type:

XTR SL-M9000 or SL-M9000-I (Rapidfire Plus)

Mount:

clamp (closed) or I-Spec II

Body Material:

Aluminium

Lever Material:

carbon (CFRP)

Cable:

stainless steel, polymer coating

Cable Housing:

OT-SP41

Adjustment Options:

cable adjust, position adjust (I-Spec II only), rotation adjust (I-Spec II only)

Features:

Instant Release, Multi Release (pull: one gear, press: two gears), 2-Way Release

Contents:

The Shimano XTR 1x11 upgrade kit includes:

• 1 x Shimano cassette, XTR CS-M9001 11-40 or XT CS-M8000 11-46
• 1 x Shimano XTR RD-M9000 Shadow+ short rear derailleur
• 1 x Shimano XTR / Dura-Ace CN-HG901-11 chain
• 1 x Shimano XTR SL-M9000 shifter or (SL-M9000-I mm, right)
• 1 x Shimano cable, 2050 mm
• 1 x Shimano 1800 mm cable housing
• 1 x Shimano aluminium cassette lockring
• 1 x Shimano SM-CN900-11 Quick-Link master link
