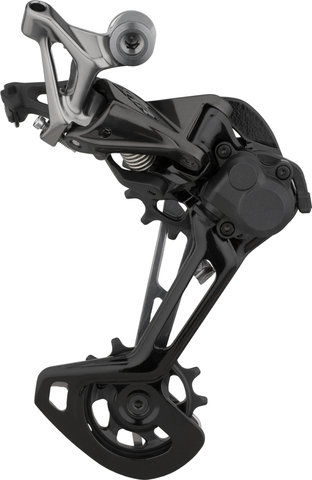

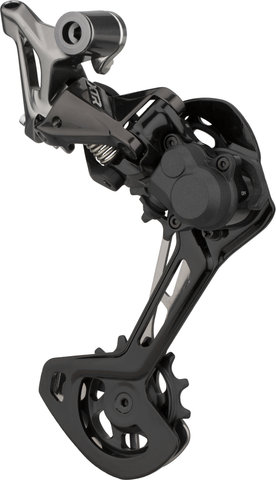

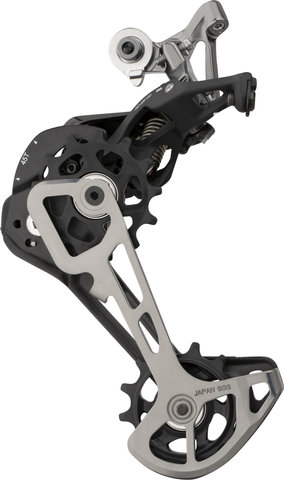

Shimano XTR RD-M9120 12-speed Shadow Plus Rear Derailleur

The XTR RD-M9120 Rear Derailleur by Shimano - Double Drivetrain

The Shimano XTR RD-M9120 rear derailleur offers the perfect solution when you want to ride a 2x12-speed drivetrain. This derailleur stands out with its large pulleys with 13 teeth that improve shifting performance, as well as an additional stop on the rocker for quiet operation. It also features Shadow+ clutch technology, where a stabilizer counteracts chain sag, slap and drop. Several pieces of the RD-M9120 are made out of a lightweight carbon. The XTR rear derailleur with its long cage (SGS type) is compatible with 10-45 cassettes.

Specifications:

Series:

XTR M9100

Application:

Enduro

Gearing:

12-speed

Attachment:

standard

Capacity:

41 teeth

Compatibility:

Shimano MTB 12-speed

Compatibility - Chains:

HG 12-speed (e.g. CN-M9100)

Technical Information:

Derailleur Pulleys:

13 teeth

Outer Cage Material:

carbon (CFRP)

Inner Cage Material:

aluminium

Other Materials:

aluminium, stainless steel, carbon (CFRP)

Compatibility:

MTB 2x12-speed:

Shifter:

SL-M9100, SL-M8100, SL-M7100, SL-M6100

Cassette:

• 10-45 T: CS-M9101-12, CS-M9100-12, CS-M8100-12, CS-M7100-12

Chain:

CN-M9100, CN-M8100, CN-M7100, CN-M6100

Features:

• lower preload in the lower gears to avoid too high of a chain tension
• additional stop on the shift rocker for low-noise drivetrain
• larger 13 t upper pulley
• cage plates painted/anodised
• 8 pivot bushings, fluorine-coated
• derailleur pulley bearings sealed

Technology:

Shadow RD+
Shadow Plus rear derailleurs are just as low-profile as Shimano's Shadow rear derailleurs. In addition, a stabilizer with on/off switch is used to reduce chain slap and thus counteract chain drop. At the same time, this results in a quieter drive. Weight is also saved compared to other chain restraint devices.

Models:

long:

Cage Length:

SGS

Max. Largest Sprocket Teeth:

45 teeth

Min. Largest Sprocket Teeth:

45 teeth

Max. Smallest Sprocket Teeth:

10 teeth

Min. Smallest Sprocket Teeth:

10 teeth

Max. Chainring Difference:

10 teeth

Total Capacity:

41 teeth

Manufacturer Number:

I-RDM9120SGS

Contents:

• 1 x Shimano XTR RD-M9120 Shadow+ rear derailleur
