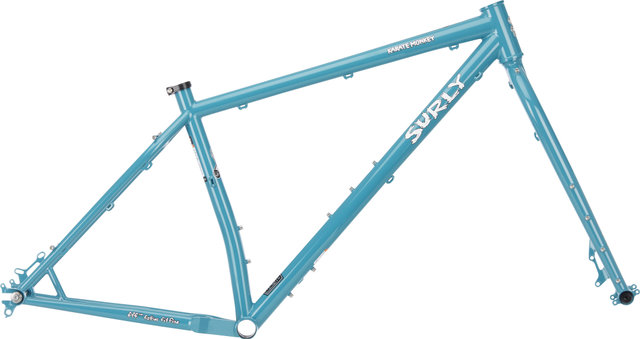

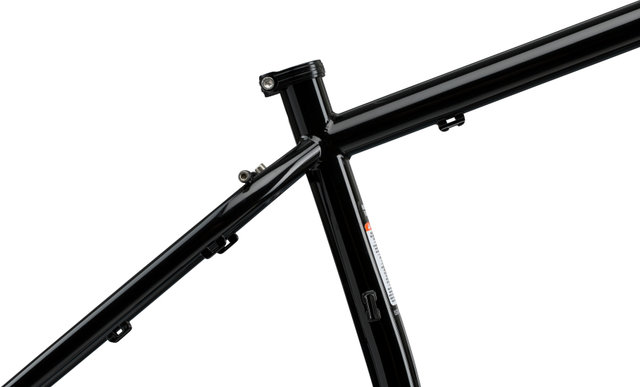

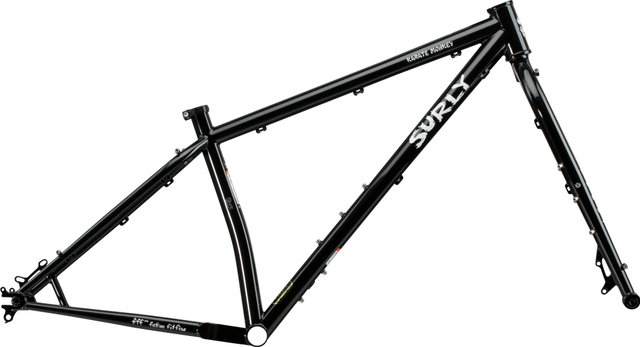

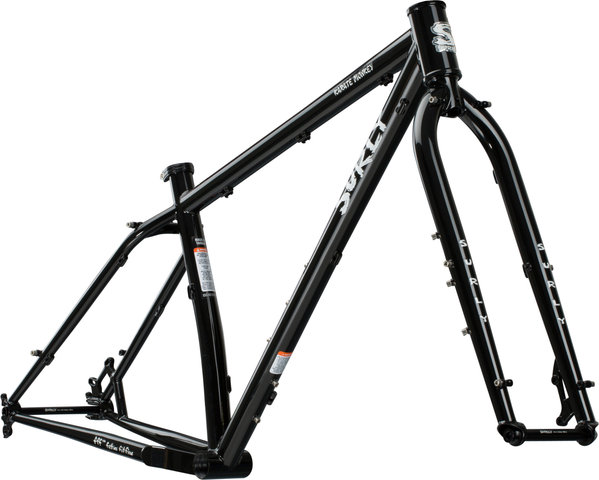

Surly Karate Monkey 27.5+/29" Frameset

Especially flexible: The Karate Monkey Frameset by Surly

You can ride the Surly Karate Monkey frameset with wide 27.5+ tyres or with normal 29" tyres, whichever you prefer. 27.5+ tyres have the same rolling diameter as a 29" wheel, but with the added traction and comfort of extra-wide tyres. That is just the beginning: Karate Monkey also features progressive, trail-oriented geometry and Gnot Boost Spacing. It allows you to ride the MTB hub of your choice, whether 10 x 135 mm QR, 12 x 142 mm or 12 x 148 mm Boost. The 44 mm head tube is compatible with many fork types, and you can also install an adjustable seatpost. Now go and hit the trail.

Specifications:

Application:

Trail, Cross Country

Wheel Size:

29" , 27.5" +

Size:

XS, S, M, L, XL

Material:

steel (Surly 4130 CrMo)

Technical Information:

Rear Over Locknut Dimension:

142 mm, 148 mm (Gnot Boost)

Axle Type:

12 mm thru-axle

Seatpost (Ø):

30.9 mm

Seatpost Clamp(Ø):

33.1 mm

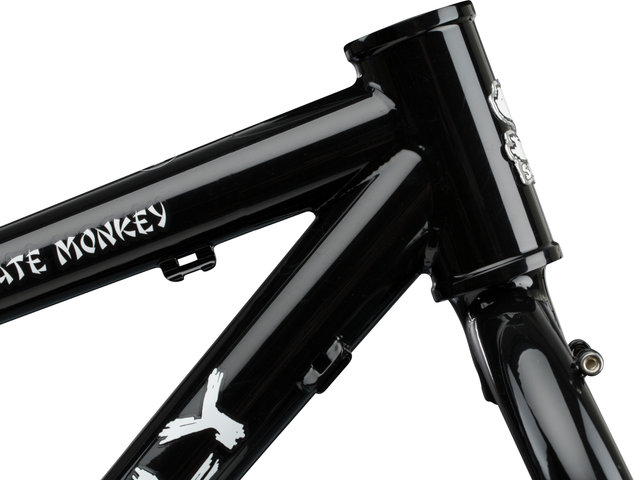

Headset:

ZS44/28.6-EC44/30

Steerer tube rec.:

1 1/8"

Fork Axle to Crown:

483 mm

Recommended Fork Travel:

140 mm

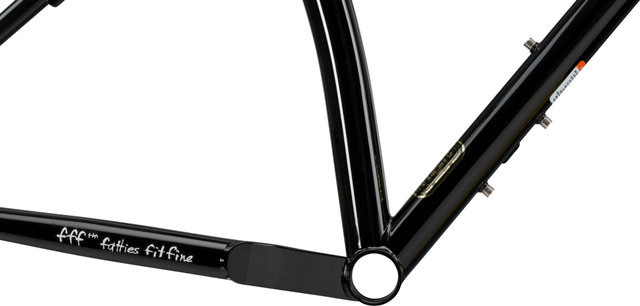

Bottom Bracket Standard:

BSA

Shell Width:

73 mm

Brake Mount:

disc IS

Front Derailleur Mount:

Direct Mount (High-Direct)

Bottle Cage Mounts:

2 or 3 (depending on size)

Accessory Mounts:

braze-ons for racks and fenders

Technical Information - Fork:

Steerer Tube:

1 1/8"

Axle Type:

thru-axle (15 x 110 mm)

Brake Mount:

disc IS

Offset:

47 mm

Axle to Crown:

483 mm

Over Locknut Dimension:

110 mm (Boost)

Crown Race Diameter:

30 mm

Steerer Tube Material:

steel

Blade Material:

steel

Accessory Mounts:

bottle cage mounts, braze-ons for racks & fenders

Approved For:

Rotor Size (max.):

180 mm

Tyre Size (max.):

3.0" (27.5" ), 2.5" (29" )

Chainrings:

2x, 1x

Chainring Size (max.):

2x 24-34 t, 24-36 t Boost, 1x 28 t, 32 t Boost

Fork Axle to Crown Size (max.):

547 mm

Features:

• Natch pipes

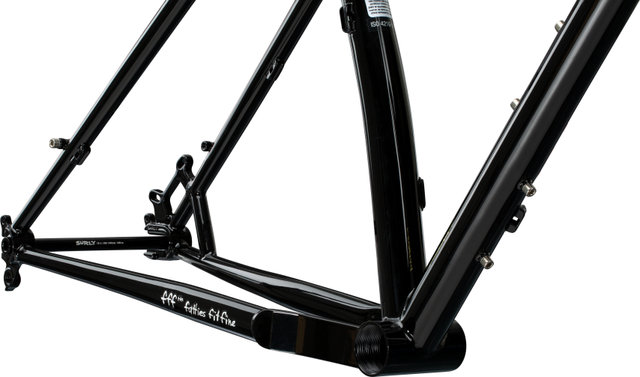

• horizontal dropouts (with Rohloff mount)

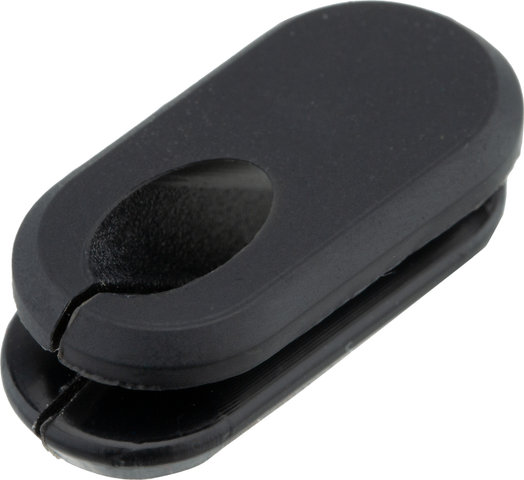

• cable guides for Vario supports
• straight tapered fork blades
• ASTM Category 3

Technology:

Gnot Boost:
The Surly Gnot Boost technology allows the mounting of different over locknut dimensions on the rear wheel. Rear wheels with 12 x 142 mm or 12 x 148 mm thru-axles can be mounted by clamping or spreading the frame. Wheels with an over locknut dimension of 135 mm can be operated in frames with Gnot Boost technology using the rear wheel axle adapter.

Colour Index:

lemon lime soda:

yellow

Manufacturer's Notice:

When choosing your frame size you should take into account that Surly does not measure the seat tube specifications to the end of the seat tube. For frames with struts on the top tube, this is measured from the middle of the bottom bracket to above the struts. For frames without struts, measure from the middle of the bottom bracket to the top edge of the top tube.

Models:

XS:

Recommended Height:

152 - 165 cm

Stack:

597 mm

Reach:

377 mm

Seat Tube Length:

330 mm

Top Tube Length:

557 mm

Effective Top Tube Length:

560 mm

Head Tube Length:

100 mm

Chainstay Length:

423 mm

Wheelbase:

1053 mm

BB Drop:

55 mm

Seat Tube Angle:

73.0°

Head Tube Angle:

69.0°

Standover Height:

743 mm

S:

Recommended Height:

162 - 173 cm

Stack:

597 mm

Reach:

402 mm

Seat Tube Length:

368 mm

Top Tube Length:

568 mm

Effective Top Tube Length:

585 mm

Head Tube Length:

100 mm

Chainstay Length:

423 mm

Wheelbase:

1078 mm

BB Drop:

55 mm

Seat Tube Angle:

73.0°

Head Tube Angle:

69.0°

Standover Height:

761 mm

M:

Recommended Height:

170 - 183 cm

Stack:

597 mm

Reach:

427 mm

Seat Tube Length:

419 mm

Top Tube Length:

582 mm

Effective Top Tube Length:

610 mm

Head Tube Length:

100 mm

Chainstay Length:

423 mm

Wheelbase:

1103 mm

BB Drop:

55 mm

Seat Tube Angle:

73.0°

Head Tube Angle:

69.0°

Standover Height:

783 mm

L:

Recommended Height:

180 - 190 cm

Stack:

606 mm

Reach:

450 mm

Seat Tube Length:

470 mm

Top Tube Length:

604 mm

Effective Top Tube Length:

635 mm

Head Tube Length:

110 mm

Chainstay Length:

423 mm

Wheelbase:

1129 mm

BB Drop:

55 mm

Seat Tube Angle:

73.0°

Head Tube Angle:

69.0°

Standover Height:

811 mm

XL:

Recommended Height:

188 - 198 cm

Stack:

615 mm

Reach:

472 mm

Seat Tube Length:

521 mm

Top Tube Length:

630 mm

Effective Top Tube Length:

660 mm

Head Tube Length:

120 mm

Chainstay Length:

423 mm

Wheelbase:

1155 mm

BB Drop:

55 mm

Seat Tube Angle:

73.0°

Head Tube Angle:

69.0°

Standover Height:

840 mm

Contents:

• 1 x Surly Karate Monkey frame
• 1 x Surly Karate Monkey fork
• 1 x Surly stainless steel seatpost clamp
• 1 x Surly HU0138 front thru-axle
• 1 x Surly HU0134 rear thru-axle
• not incl. Karate Monkey spacer
• not incl. Gnot Boost rear axle adapter
