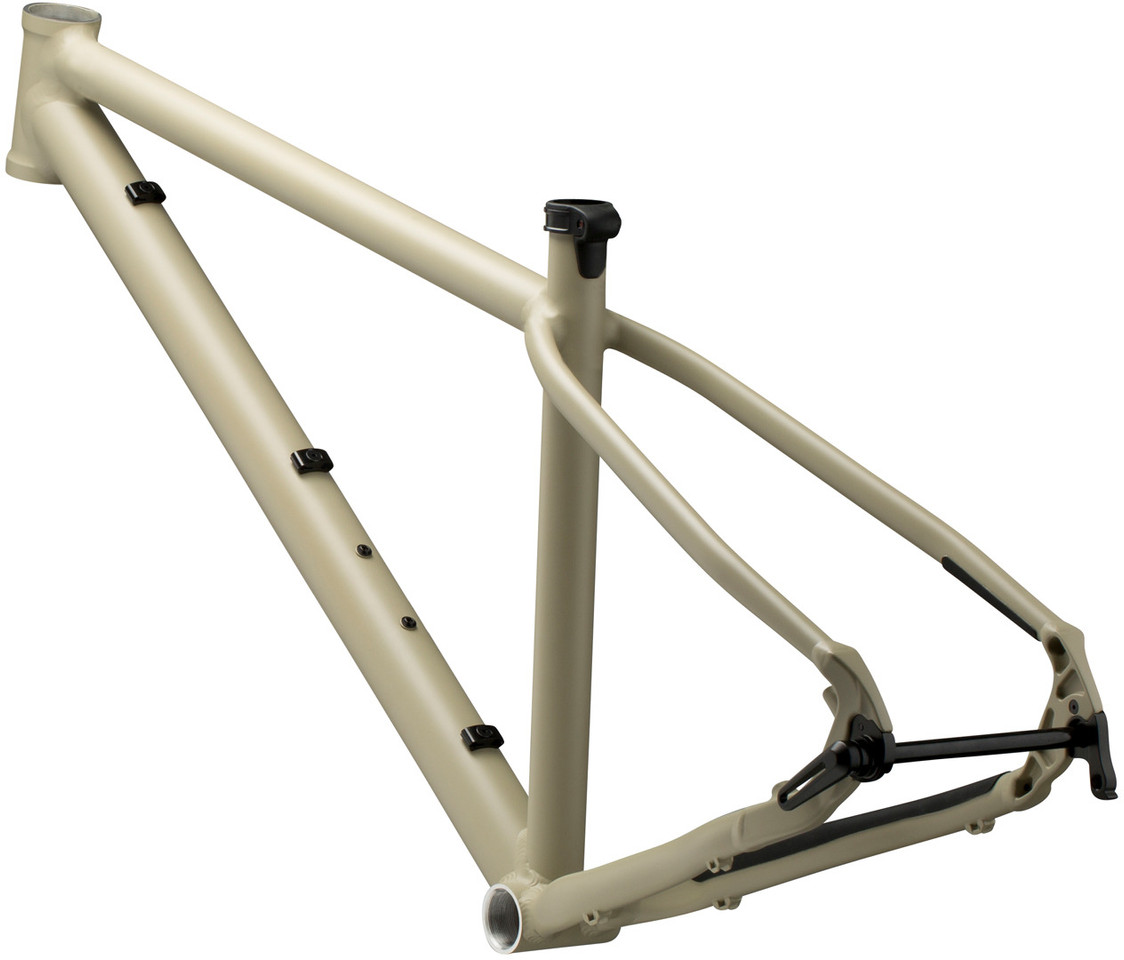

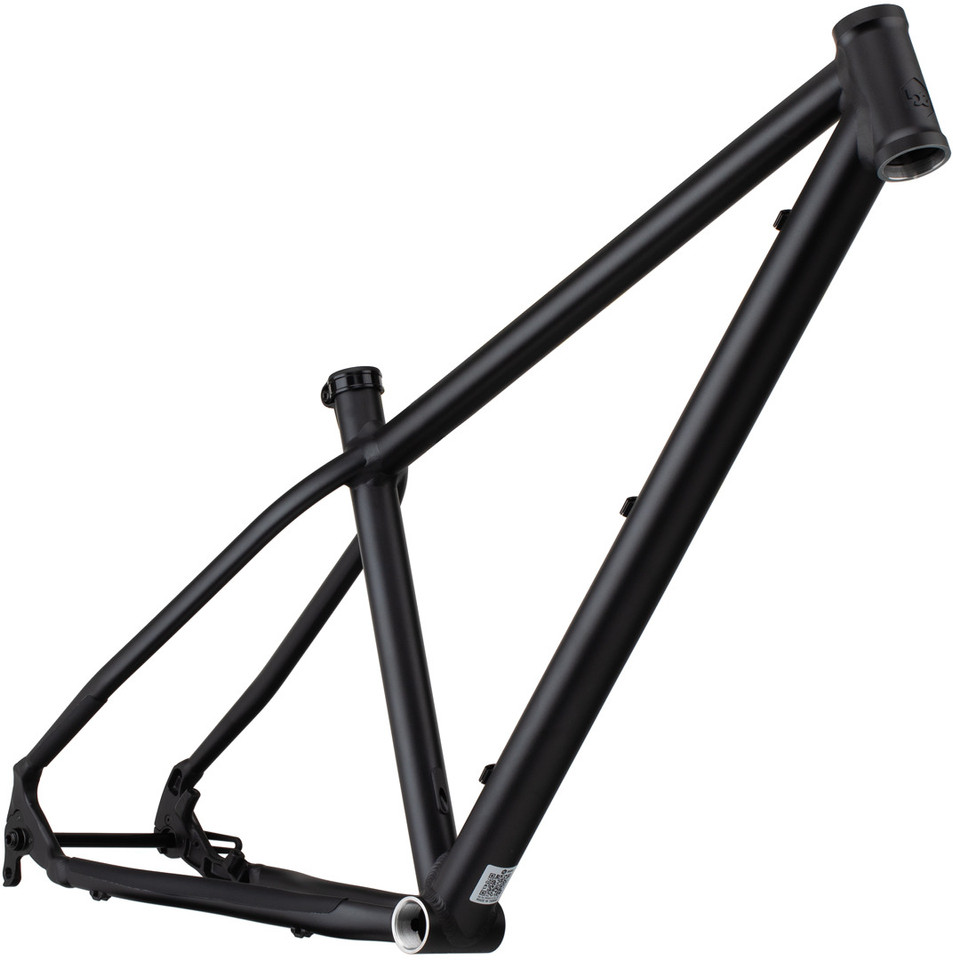

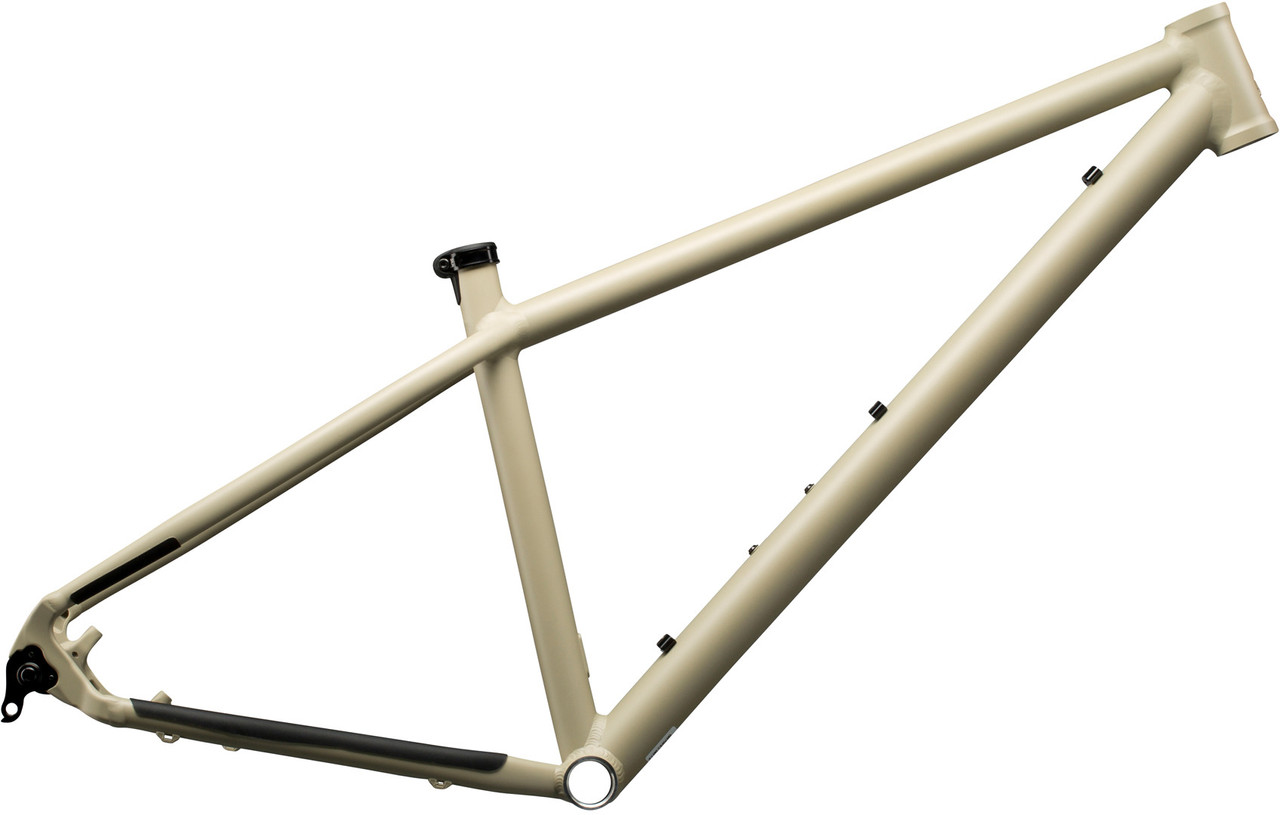

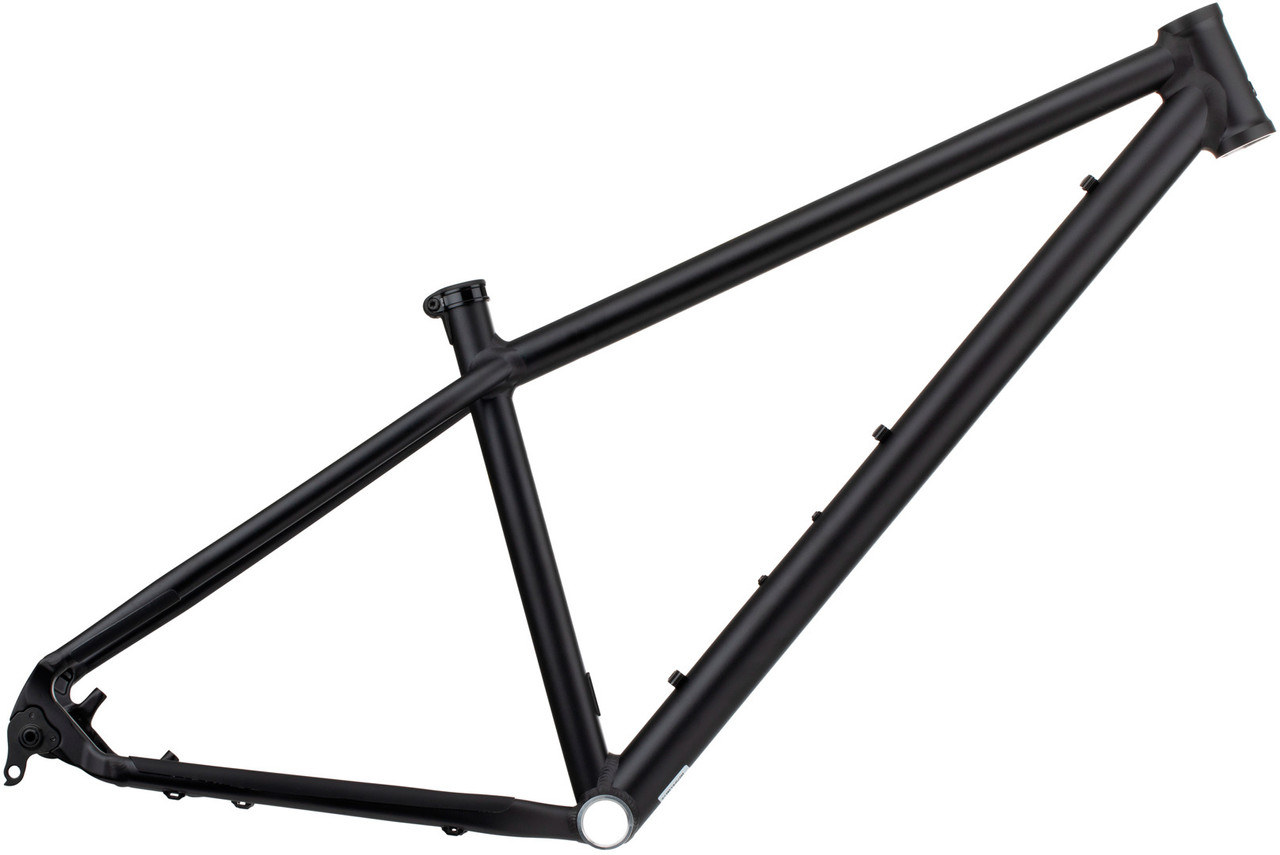

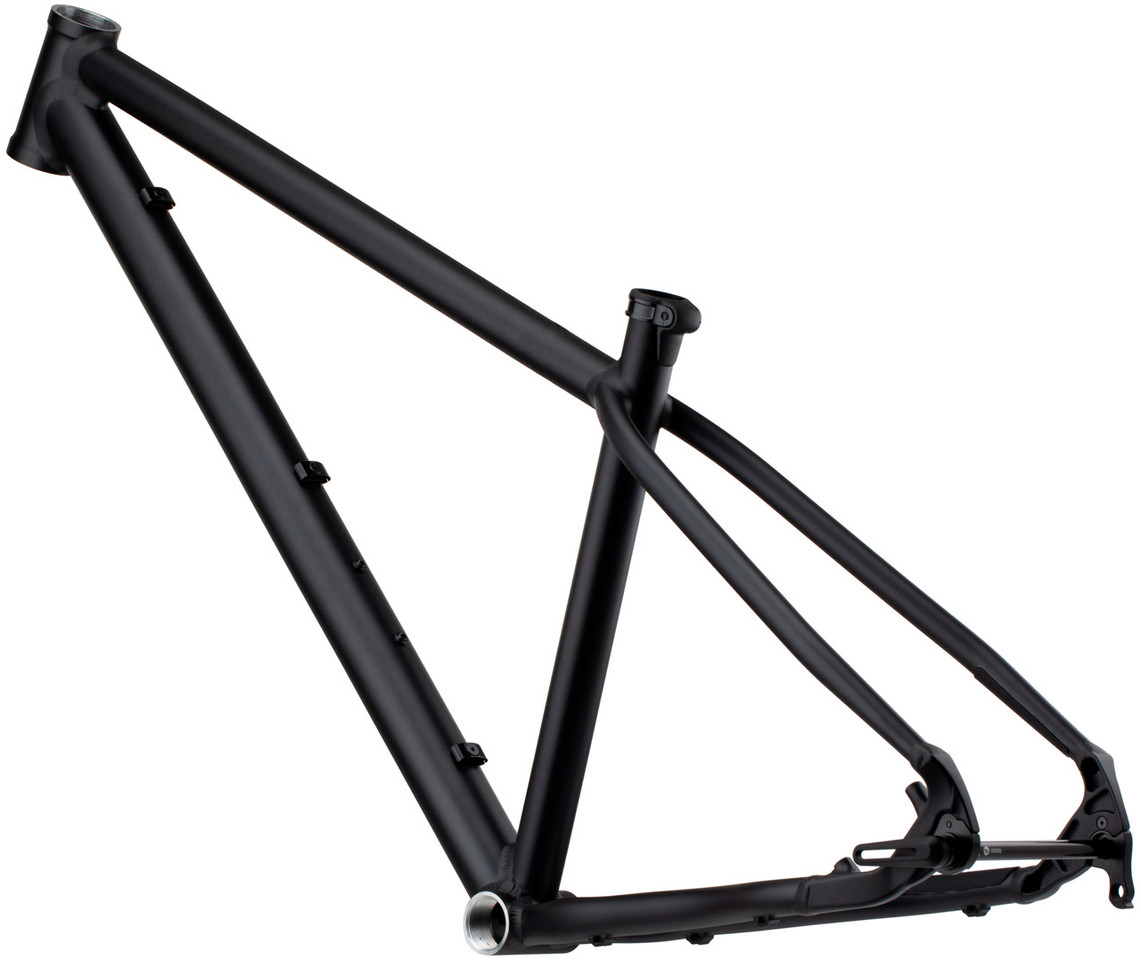

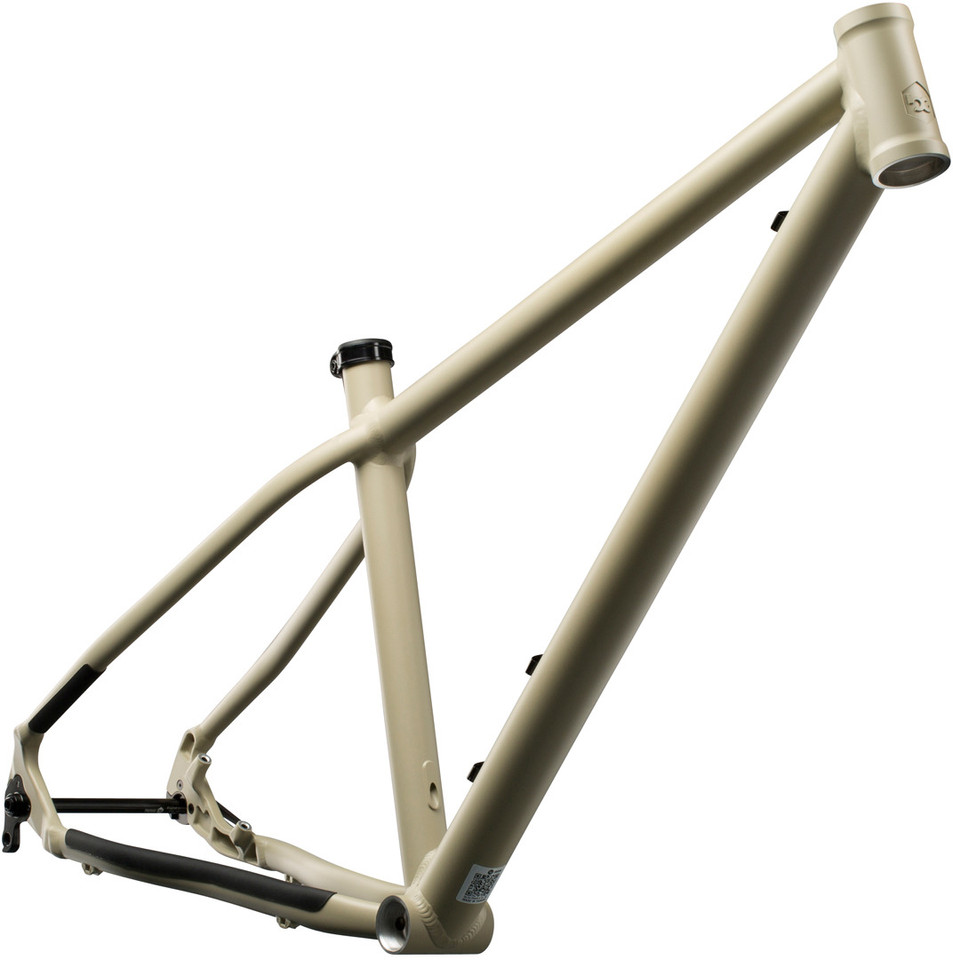

The Podsol from bc original - All-Mountain hardtail frame in 29" for your home-town trails


If you want to build a versatile, rugged and agile 29" MTB for all-mountain use, then you should opt for the bc original Podsol hardtail frame. With its direct and playful handling, it'll provide you with endless amounts of fun on your hometown trails. When riding uphill, the aluminium chassis transforms every pedal stroke into direct propulsion, and it goes without saying that it can take a lot downhill as well. The Podsol features a classic frame shape that meets the requirements of modern mountain bikers, and allows tyres up to 2.5" of clearance. Its minimalist high-end design with externally mounted cable routing and BSA bottom bracket offers reliability and uncomplicated maintenance.

Hold on: what does Podsol mean?
" The Aachen Forest sits atop a type of soil called 'podsol.' Since the frame was developed for our (and also your own) hometown trails, where the ground surface plays a decisive role, we decided to name it in honour of that." - Christoph, Product Manager.


Specifications:


Application: All Mountain, Cross Country
Wheel Size: 29"
Size: S, M, L, XL, XXL
Material: aluminium

Technical Information:


Wheel Standard: 12 x 148 mm (Boost)
Axle Type: 12 mm thru-axle
Seatpost (Ø): 31.6 mm
Seatpost Clamp(Ø): 34.9 mm

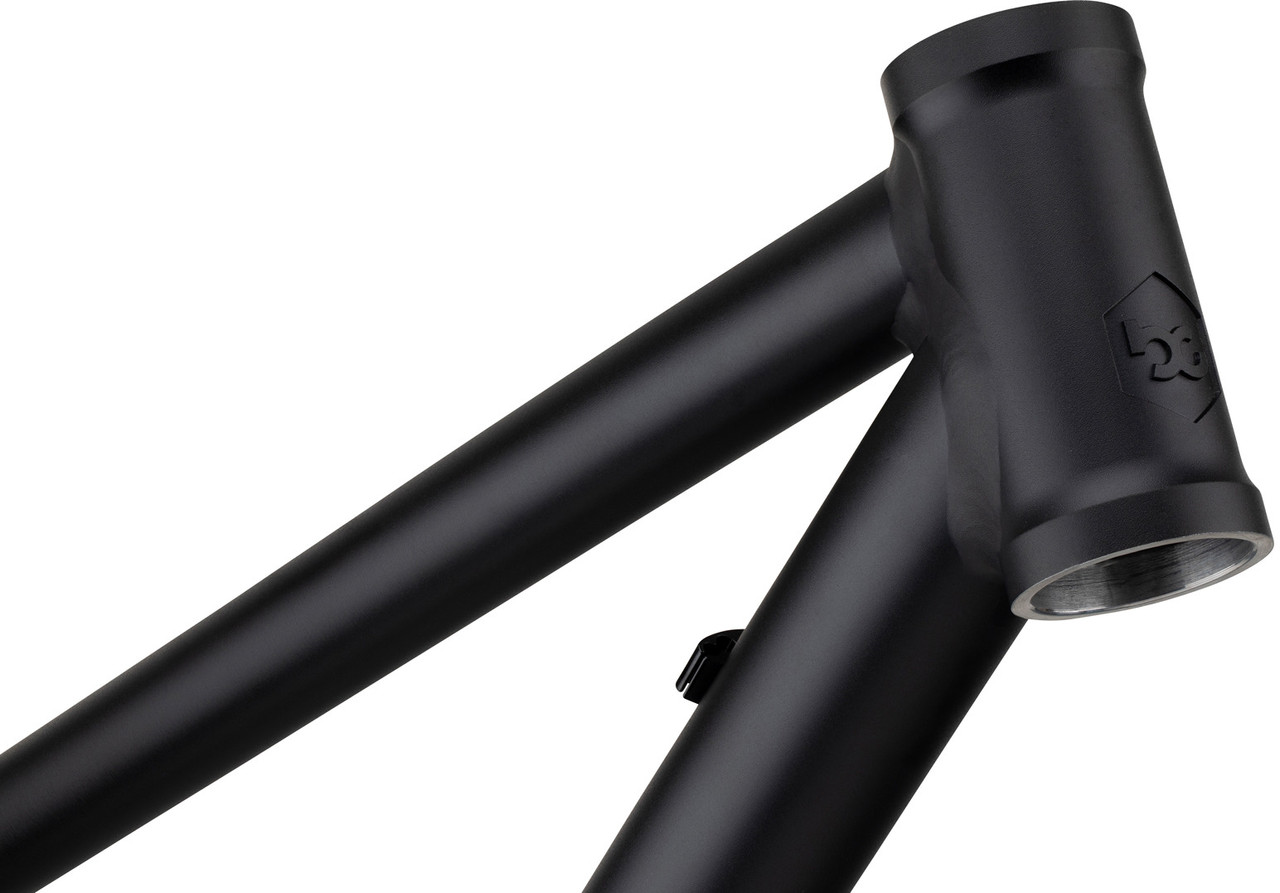

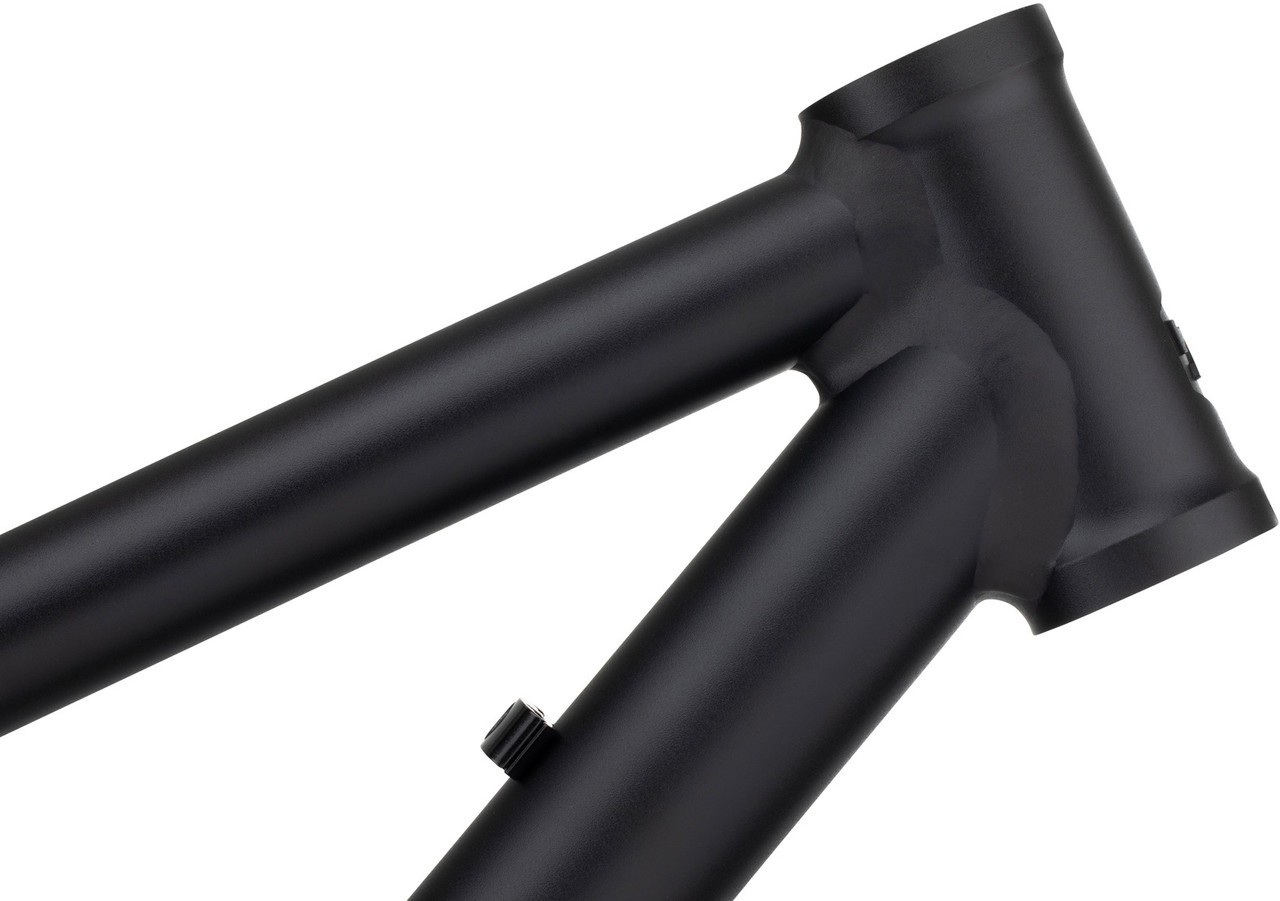

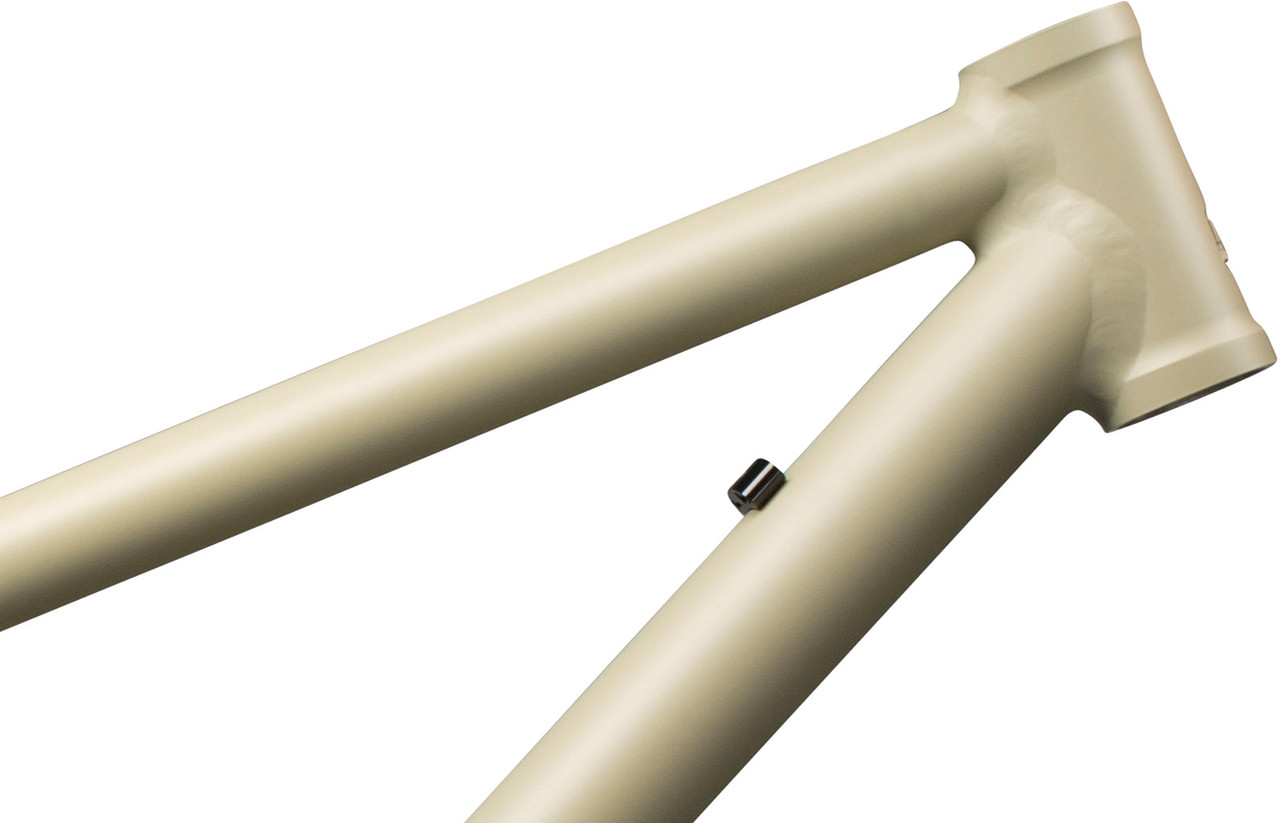

Head Tube: 1 1/8" - 1.5" tapered
Headset: ZS44 - EC44
Recommended Fork Axle to Crown: 542 mm (130 mm)
Recommended Fork Travel: 120 mm - 140 mm

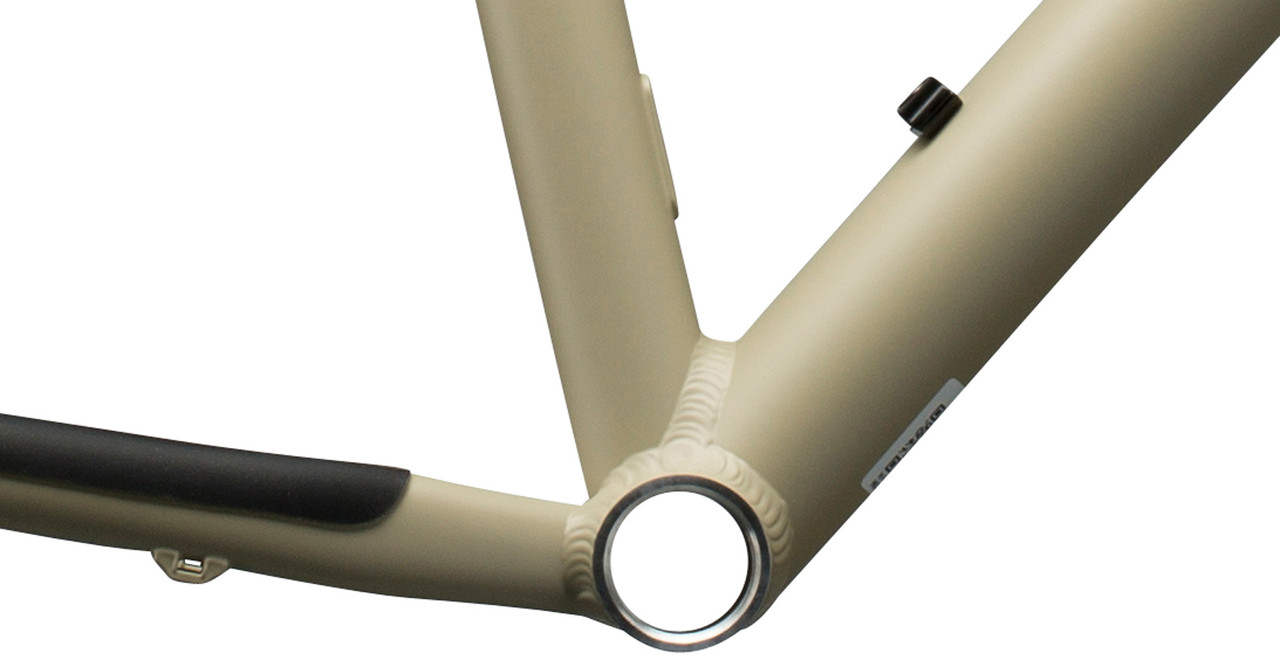

Bottom Bracket Standard: BSA
Shell Width: 73 mm
Chainline: 51.8 mm
Brake Mount: disc PM6 (direct mount 160 mm)
Bottle Cage Mounts: 1

Approved For:


Weight Limit: 120 kg total weight
Rotor Size (max.): 180 mm
Tyre Size (max.): 29 x 2.5"
Chainrings: 1-speed
Chainring Size (max.): 1-speed 36 tooth (with Boost cranks*)
Fork Axle to Crown Size (max.): 551 mm

* The Podsol frame was developed and tested exclusively for Boost cranks or chainrings with a chainline of approx. 52 mm. Information regarding use with non-Boost components is not available.


Features:


- balanced geometry, perfect for All Mountain
- perfect combination of up- and downhill skills
- classic frame design

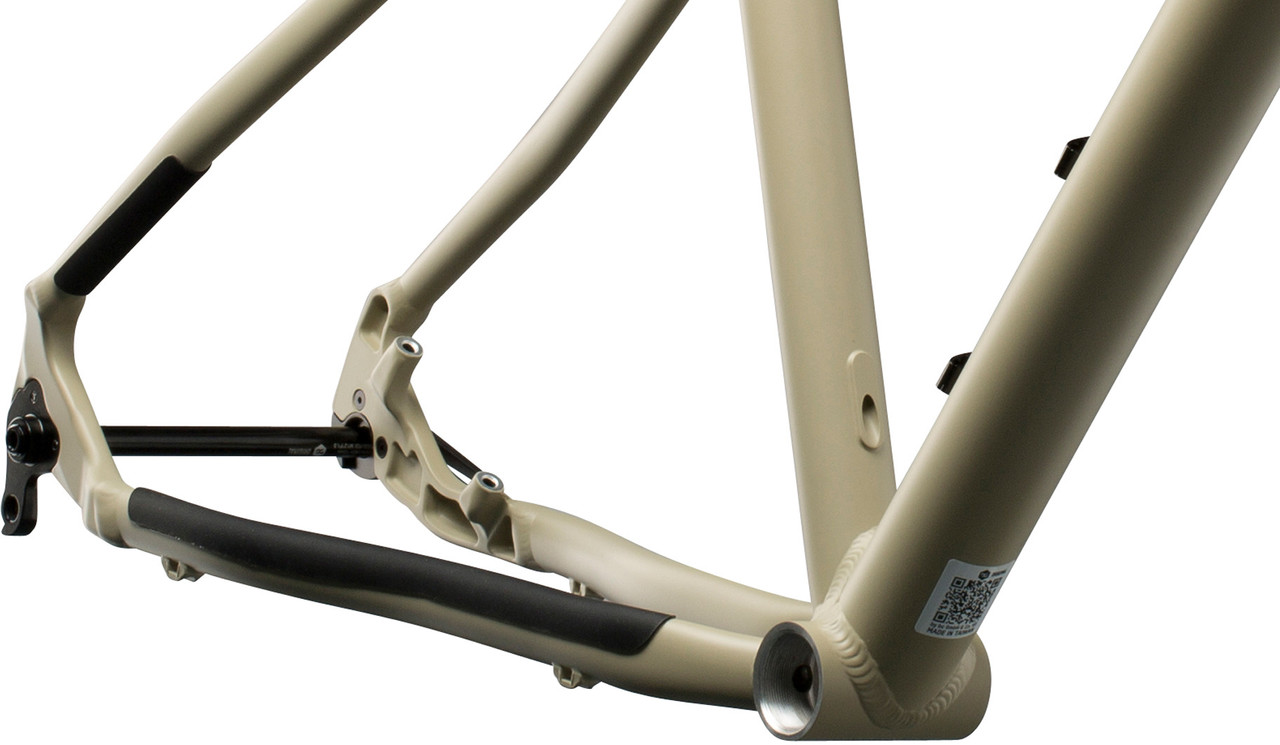

- chain stay length increases with frame size

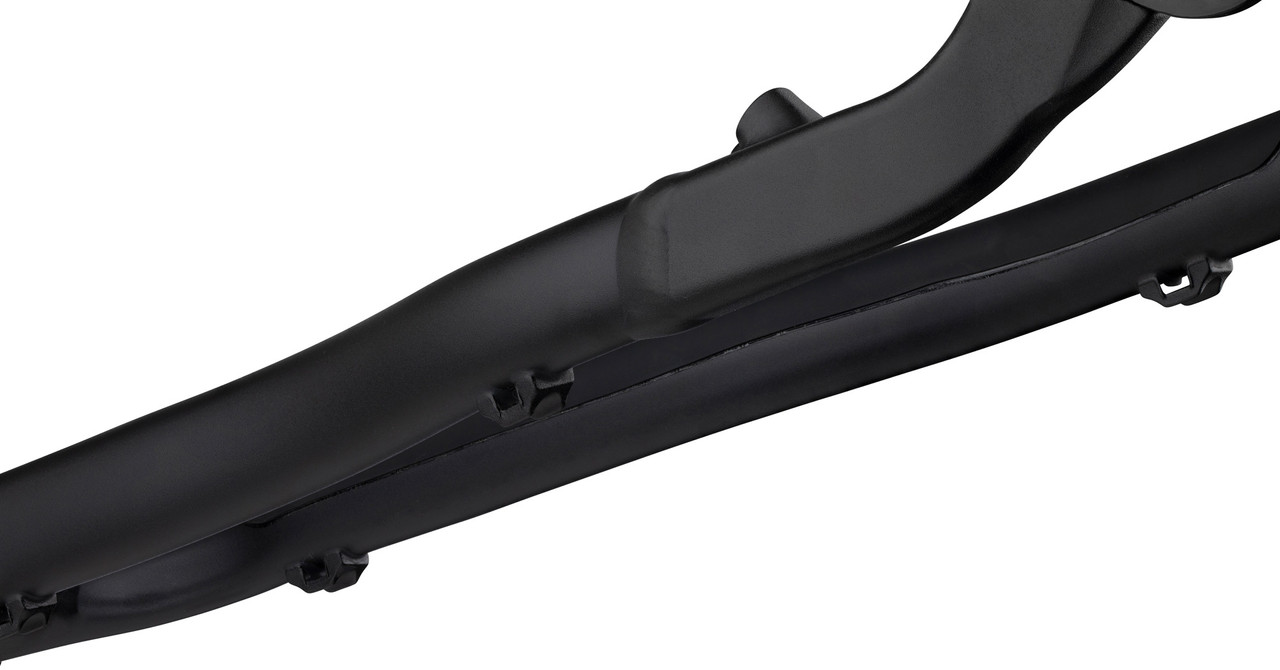

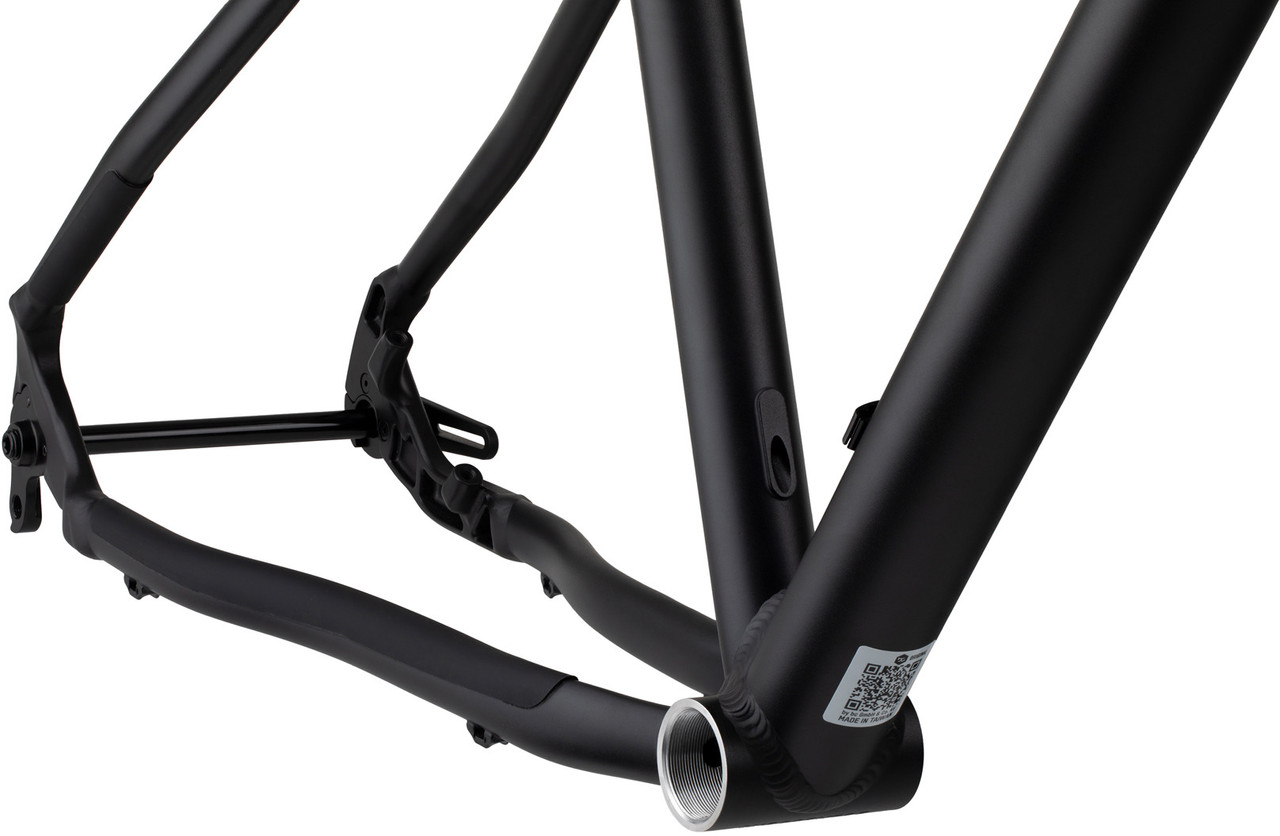

- integrated chain stay protection

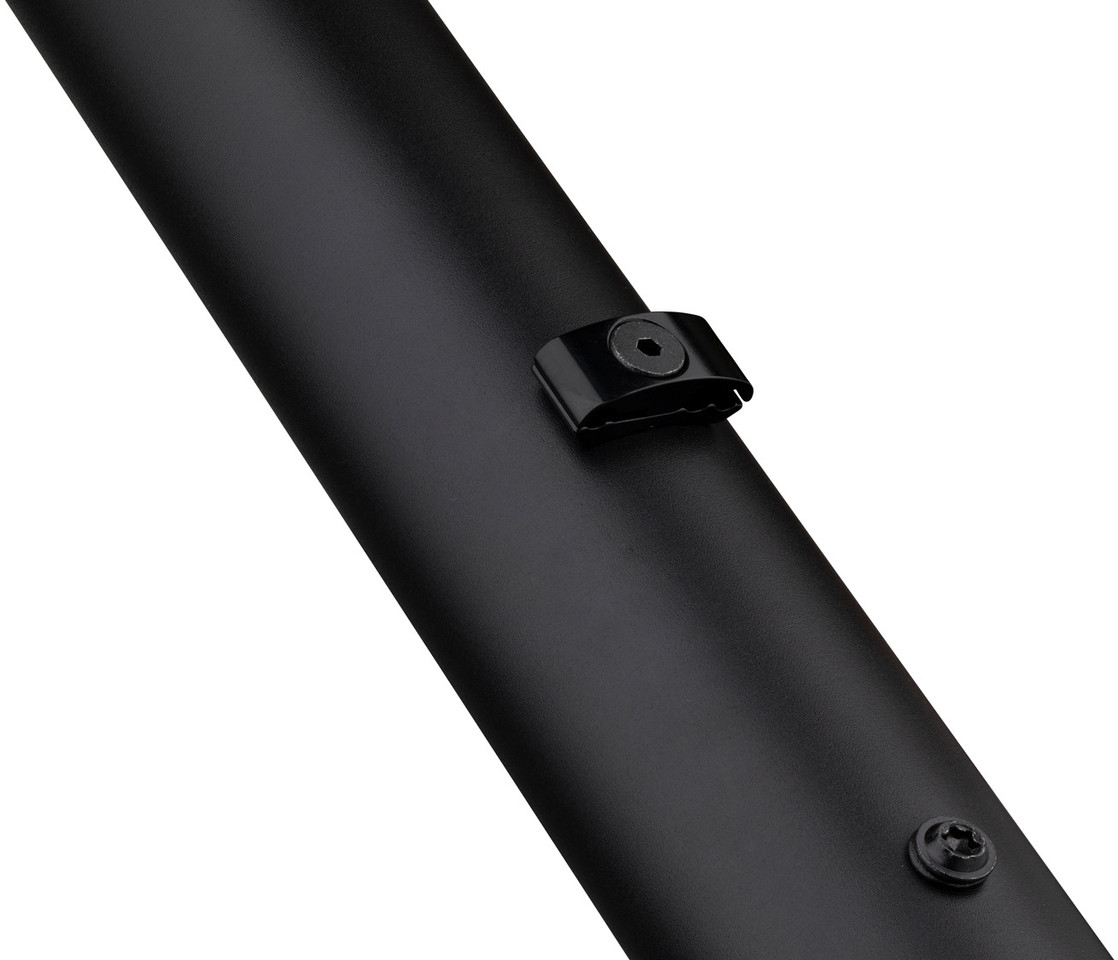

- external cable routing enables easy maintenance
- developed and tested according to Zedler ADV+ standard

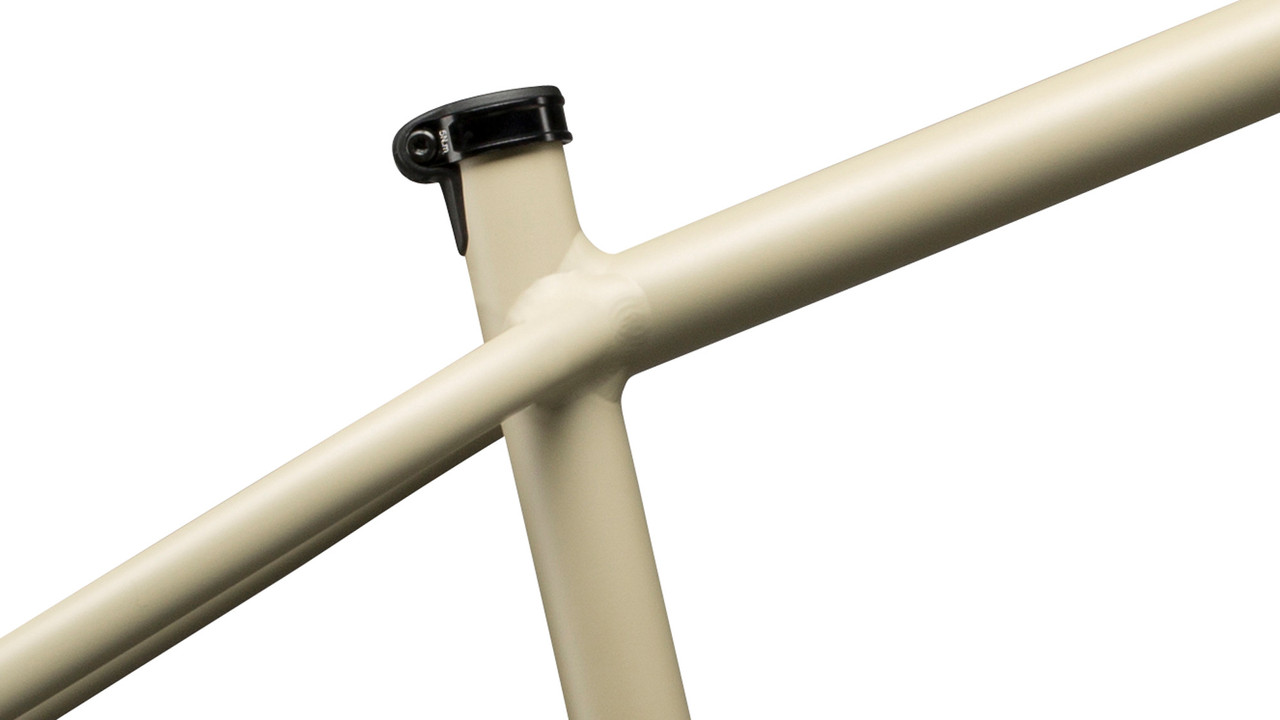

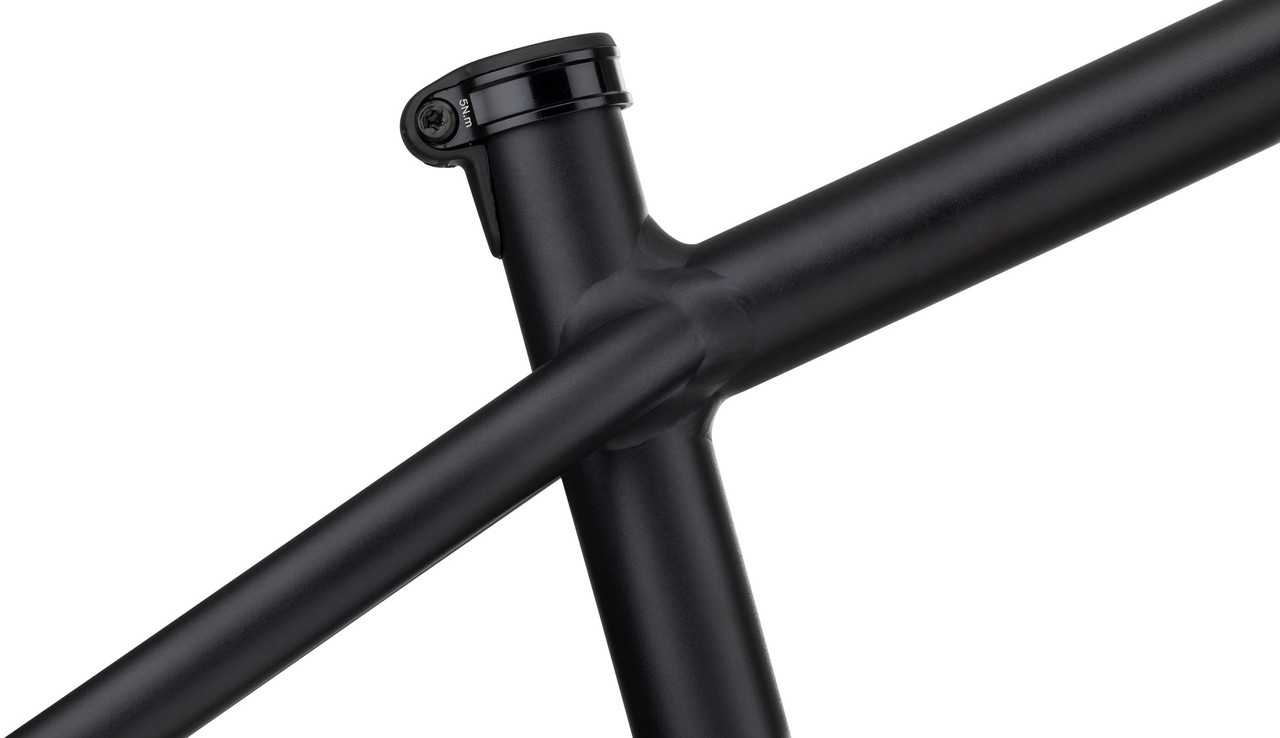

- seatpost Clamp w/ Dust Cover
- thru axle lever with integrated T25

Geometry:


S:
Recommended Height: 160 cm - 170 cm
Stack: 615 mm
Reach: 425 mm
Seat Tube Length: 390 mm
Effective Top Tube Length: 600 mm
Head Tube Length: 100 mm
Chainstay Length: 435 mm
Wheelbase: 1170 mm
BB Drop: 55 mm
Seat Tube Angle: 74°
Head Tube Angle: 65°

M:
Recommended Height: 165 cm - 180 cm
Stack: 625 mm
Reach: 442 mm
Seat Tube Length: 420 mm
Effective Top Tube Length: 620 mm
Head Tube Length: 110 mm
Chainstay Length: 435 mm
Wheelbase: 1195 mm
BB Drop: 55 mm
Seat Tube Angle: 74°
Head Tube Angle: 65°

L:
Recommended Height: 175 cm - 190 cm
Stack: 635 mm
Reach: 460 mm
Seat Tube Length: 450 mm
Effective Top Tube Length: 640 mm
Head Tube Length: 120 mm
Chainstay Length: 435 mm
Wheelbase: 1215 mm
BB Drop: 55 mm
Seat Tube Angle: 74°
Head Tube Angle: 65°

XL:
Recommended Height: 185 cm - 200 cm
Stack: 645 mm
Reach: 485 mm
Seat Tube Length: 480 mm
Effective Top Tube Length: 670 mm
Head Tube Length: 130 mm
Chainstay Length: 440 mm
Wheelbase: 1250 mm
BB Drop: 55 mm
Seat Tube Angle: 74°
Head Tube Angle: 65°

XXL:
Recommended Height: 195 cm - 210 cm
Stack: 655 mm
Reach: 523 mm
Seat Tube Length: 510 mm
Effective Top Tube Length: 710 mm
Head Tube Length: 140 mm
Chainstay Length: 445 mm
Wheelbase: 1294 mm
BB Drop: 55 mm
Seat Tube Angle: 74°
Head Tube Angle: 65°

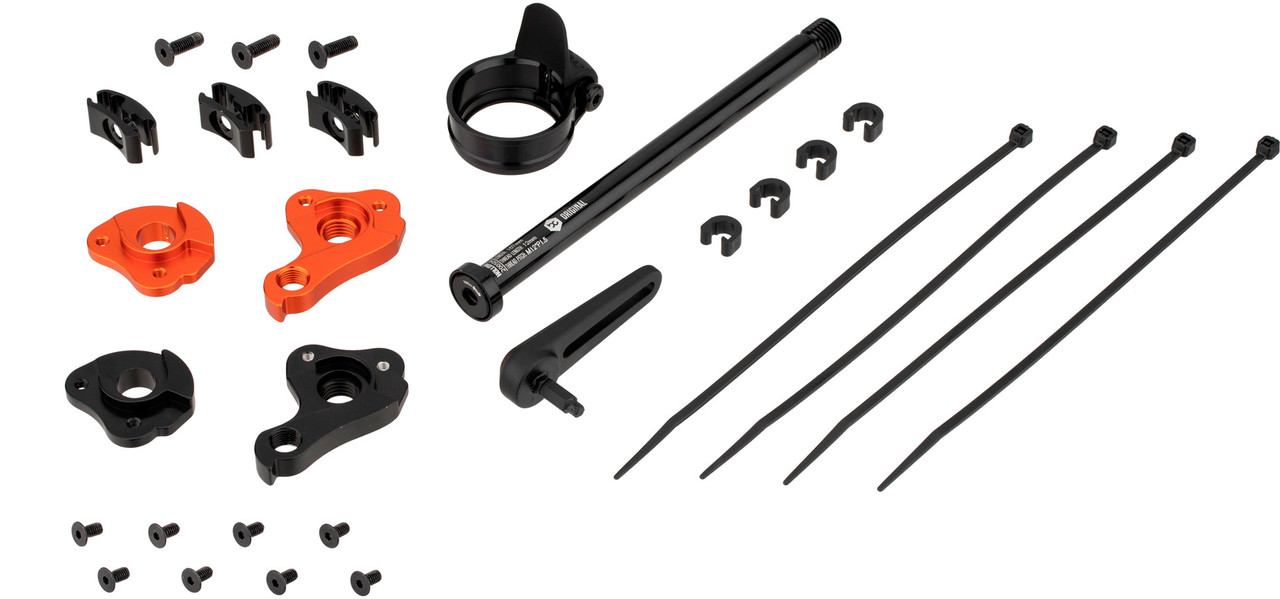

Contents:


- 1 x bc original Podsol MTB frame

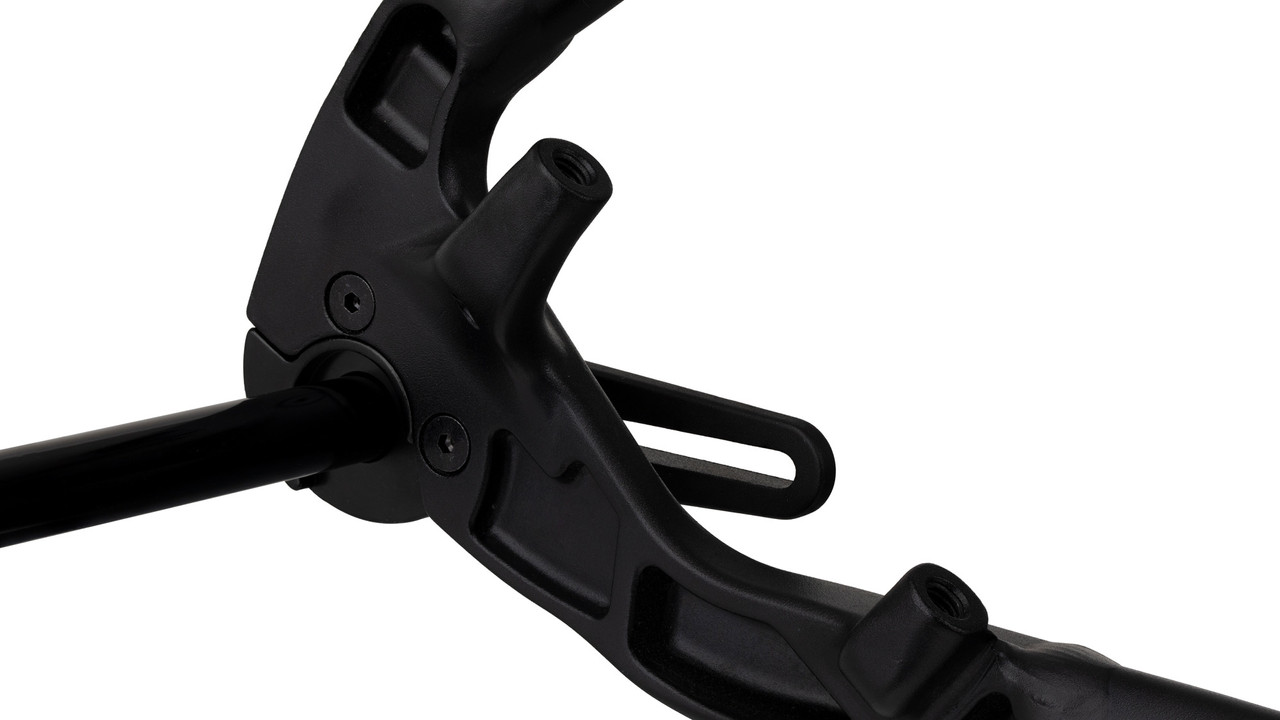

- 1 x replacement dropout (black)
- 1 x replacement dropout (orange)
- 8 x screws for derailleur hangers

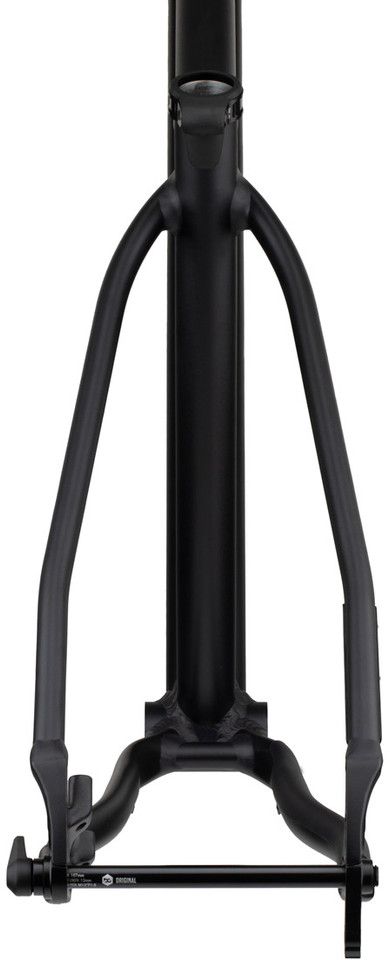

- 1 x bc original thru-axle
- 1 x thru-axle lever with integrated T25
- 1 x saddle clamp with integrated dust cover
- 2 x T25 bottle cage screws
- 3 x cable guides with fixing screws
- 4 x cable ties
- 4 x C-clips
- 1 x bc basic A4 sticker sheet


Gewicht:

  • black/M: 1845 g (Rahmen)

Models:

in stock 2 to 7 days up to 10 days Out of stock inform me
  • black/S
    378.15€
  • black/M
    378.15€
  • black/L
    378.15€
  • black/XL
    378.15€
  • black/XXL
    378.15€
  • grey beige/S
    378.15€
  • grey beige/M
    378.15€
  • grey beige/L
    378.15€
  • grey beige/XL
    378.15€
  • grey beige/XXL
    378.15€

Customer Reviews (16)

4.6

Customer Reviews (16)

4.6/5.0
5
11
4
4
3
1
2
0
1
0

Give us your opinion on this product.

by Emile G.  on 14.05.2021
verified purchase
2 of 2 customers found this review helpful.

This is a very nice frame. Ridden it with both 130 and 140 mm travel. 140 feels like the way to go for me. The cable routing is indeed a bit puzzling but it is doable to get it very neat. Love the classic look, no cable rattling due to the cable clips. Spacers are needed for a water bottle cage if you don't want any cables to bend around it. Tektro olives for spacers will work great. Running it with 2.4 tires and medium weight wheels. Feels very nimble and capable. A lot of fun to work on. Much love for the BSA BB. I hate press fit.
