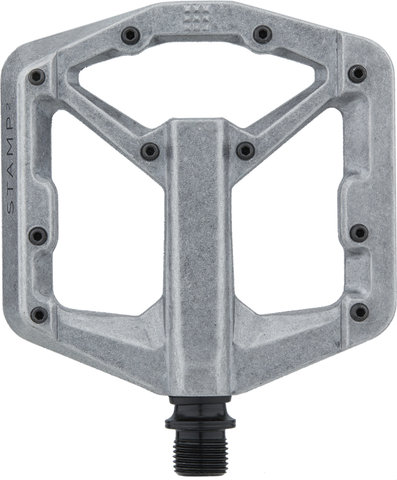

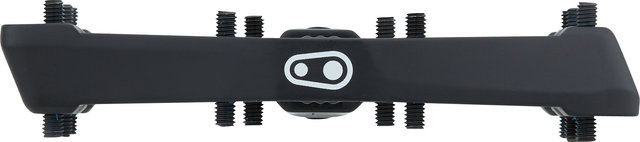

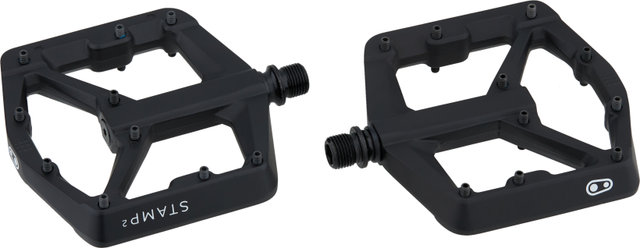

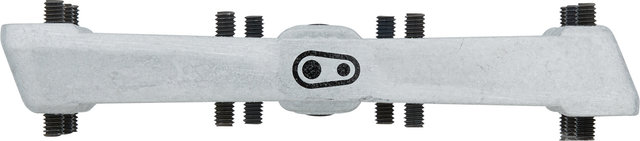

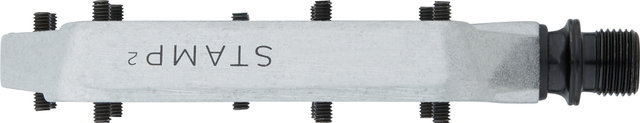

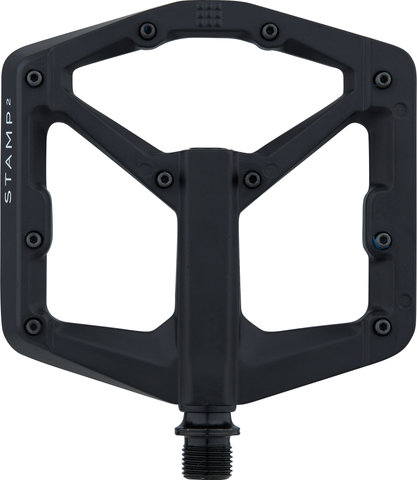

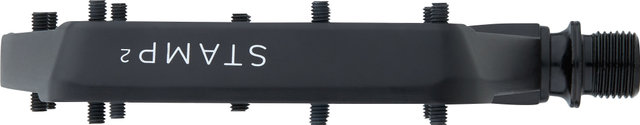

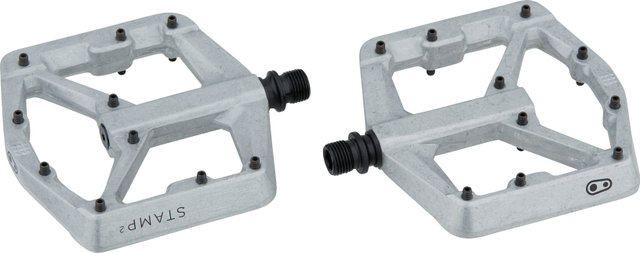

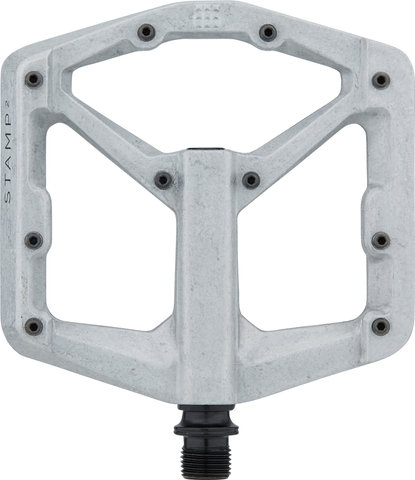

crankbrothers Stamp 2 Platform Pedals

crankbrothers Stamp 2 pedals - With bigger or smaller platform

The Stamp 2 platform pedals by crankbrothers come in two different platform sizes so that every rider can find the optimal solution for their shoe size. The pedal body is made of aluminium and has been deliberately kept flat. Slanted edges minimise the risk of getting stuck in trail, enduro or freeride use. The Stamp 2, each equipped with 20 pins and high-quality sealed bearings, is also approved for e-bikes thanks to its shorter axis.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read the guidelines for component replacement for CE-marked e-bikes, pedelecs with pedal assistance.

Specifications:

Application:

All Mountain, Enduro, Downhill

Type:

platform pedals

Technical Information:

Body Material:

aluminium (A380)

Axle Material:

steel (SCM 415 CrMo)

Bearings:

Igus bushings (inner), cartridge (outer)

Height:

16 mm

Dimensions (L x W):

100 x 100 mm (small), 114 x 111 mm (large)

Number of Pins per Pedal:

20

Features:

• shorter ChroMoly axle, optimised for E-MTB use
• die-cast aluminium pedal body
• forged steel axle
• flat height
• bevelled pedal body corners prevent rock and stone contact
• 10 adjustable pins on each side of the pedal for optimum grip
• premium bearings and seals
• T15 end caps
• no rider weight limit
• available in 2 sizes, optimised for different shoe sizes

Models:

small:

Dimensions (L x W):

100 x 100 mm

Shoe Size:

37 - 43

Manufacturer Numbers:

16365 (black), 16364 (raw silver)

large:

Dimensions (L x W):

114 x 111 mm

Shoe Size:

43 - 49

Manufacturer Numbers:

16363 (black), 16362 (raw silver)

Contents:

• 1 x pair crankbrothers Stamp 2 platform pedals

• black/small: 439 g
• black/large: 494 g
