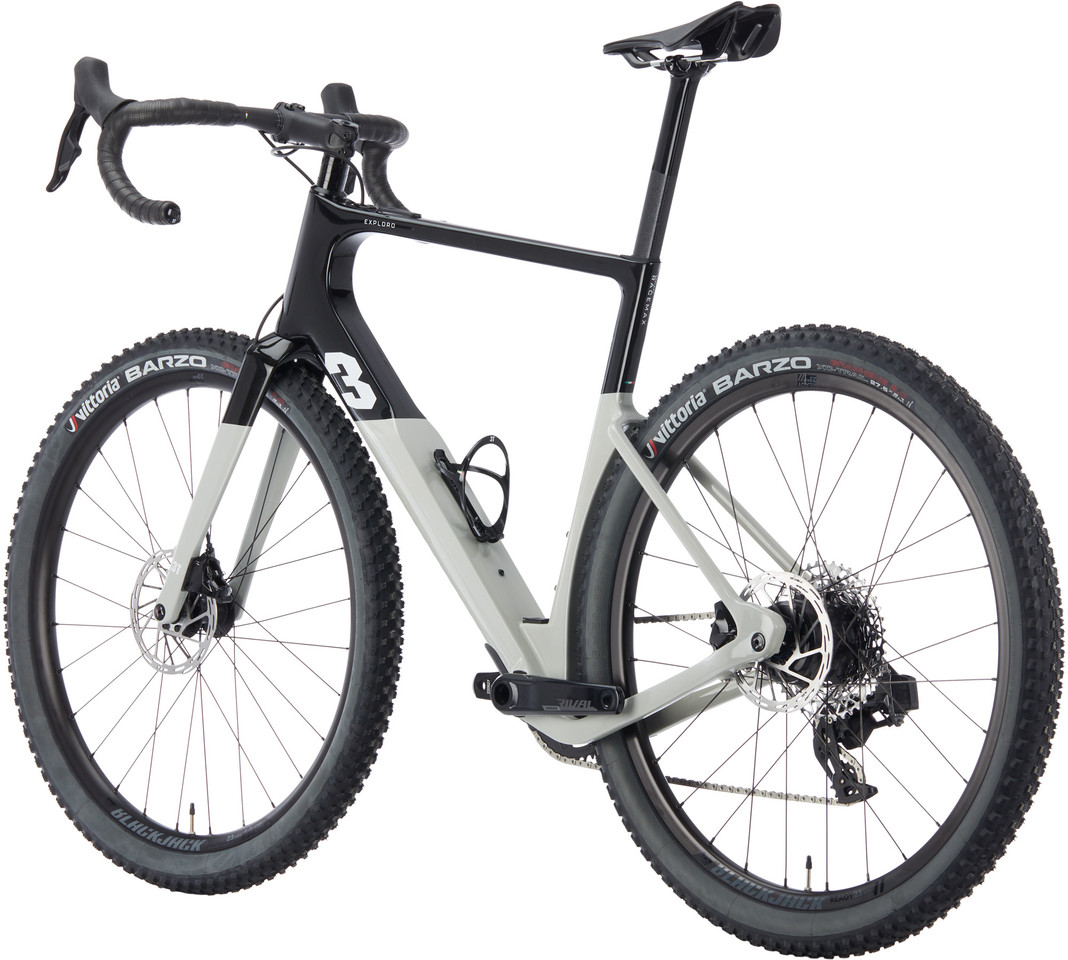

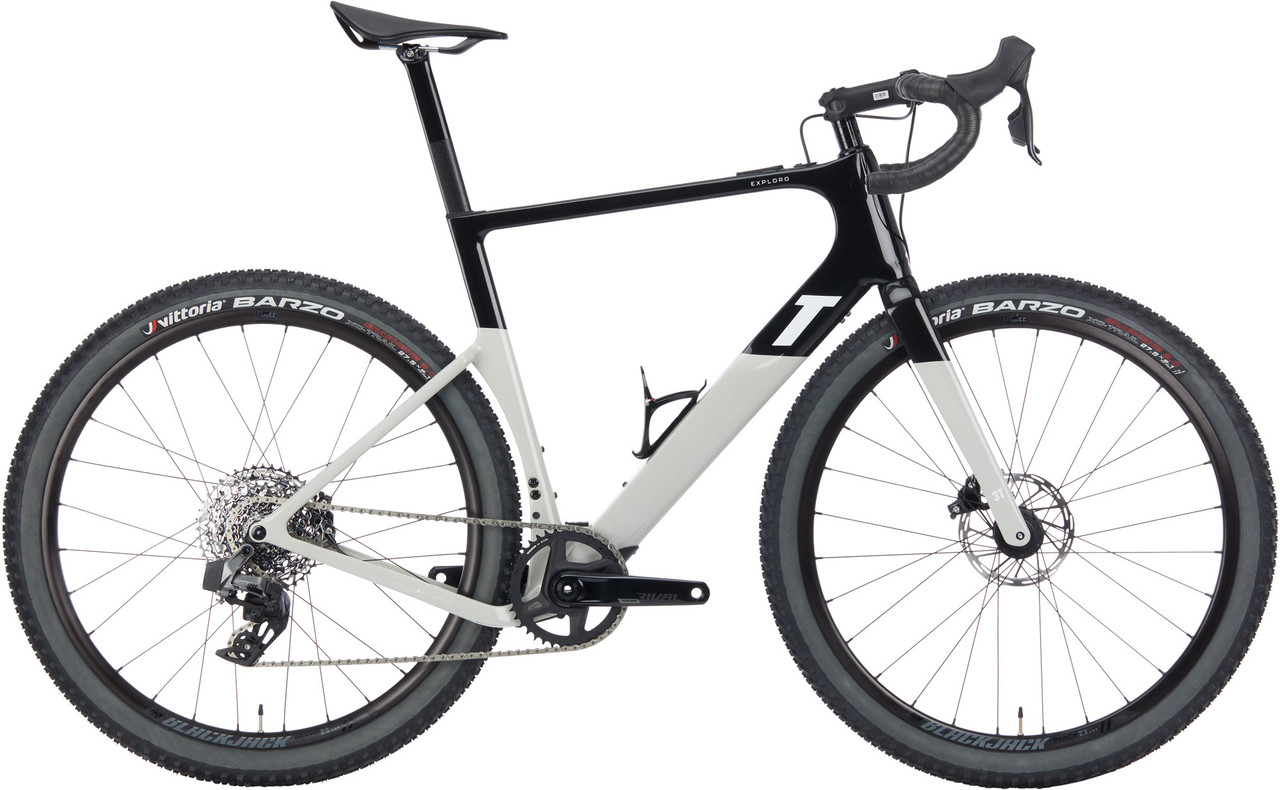

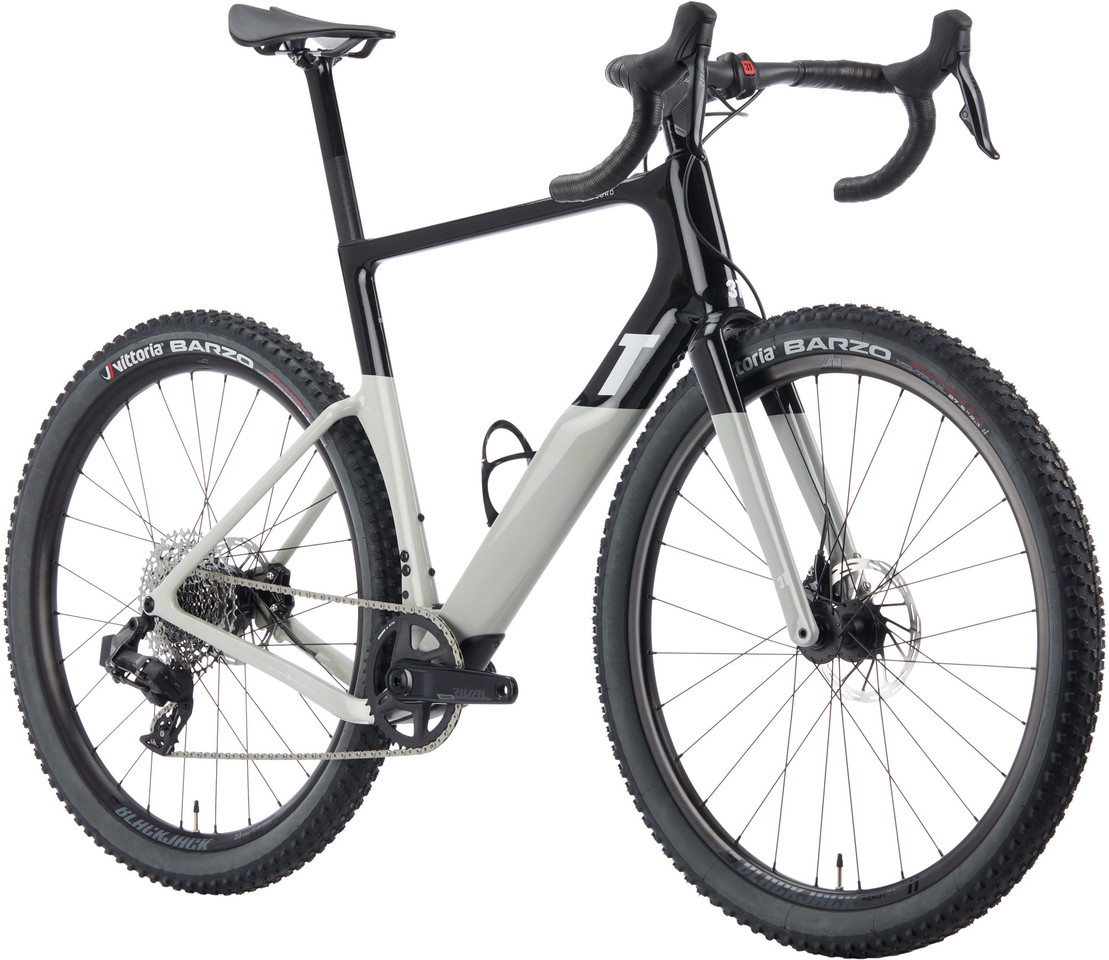

The 3T Exploro RaceMax Boost Rival XPLR Carbon 27.5" e-gravel bike - Powerful on gravel paths

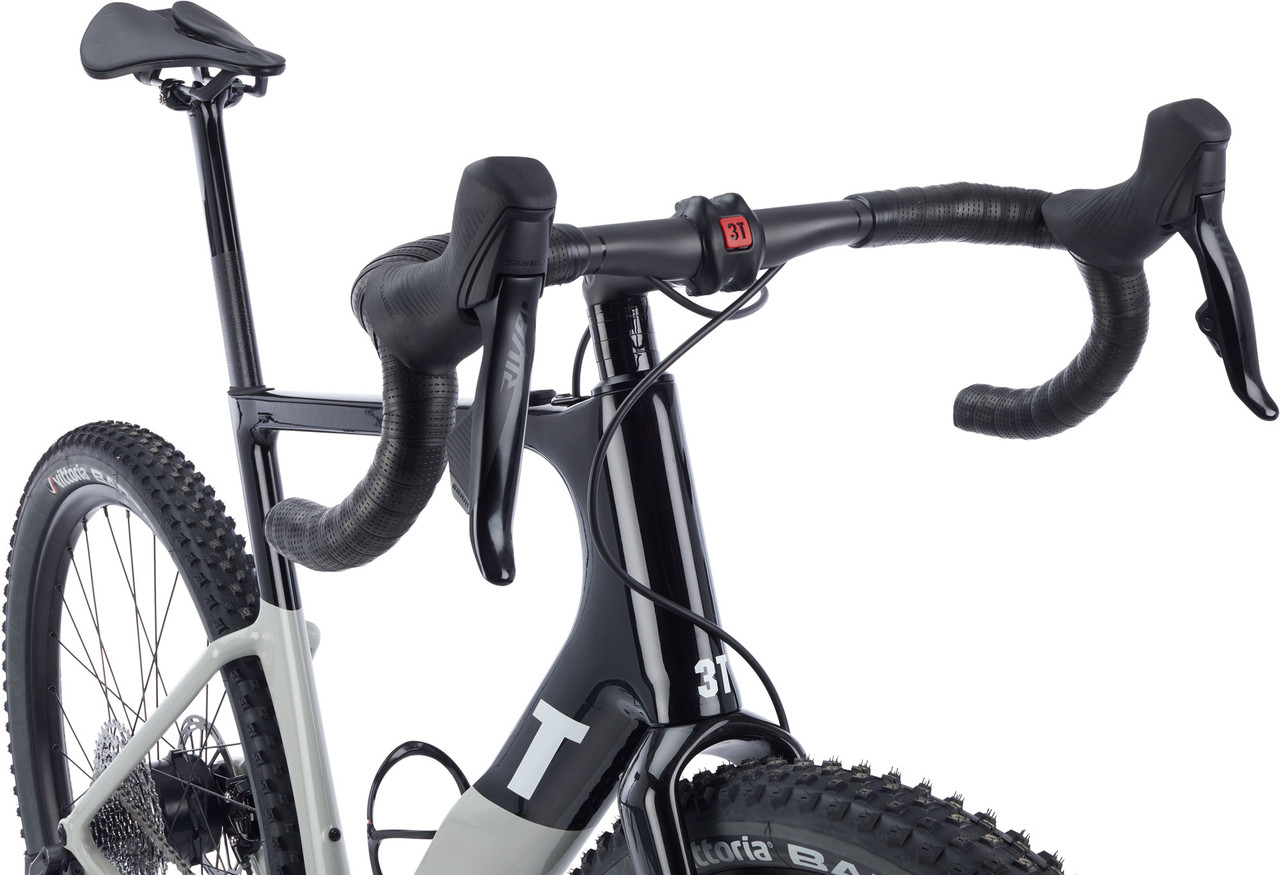

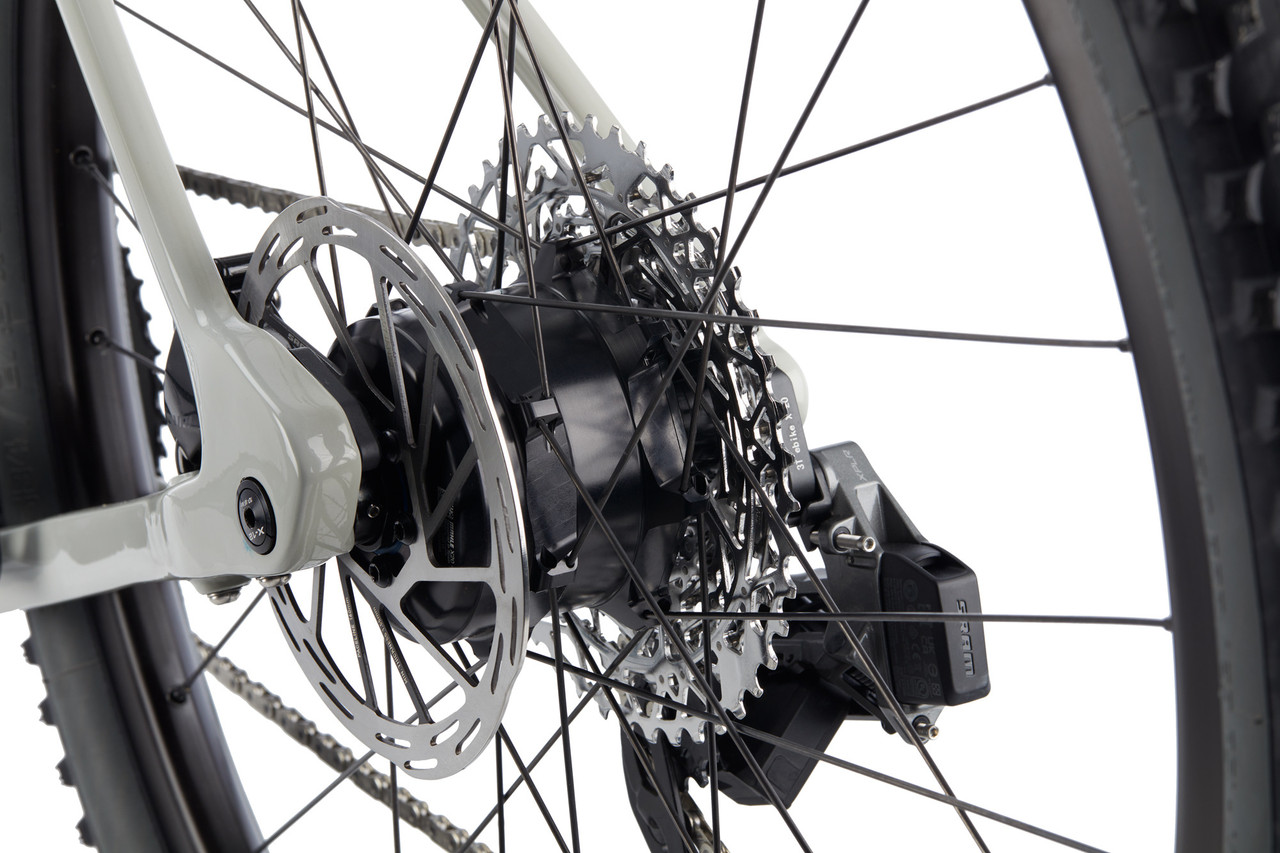

The Exploro RaceMax Boost from 3T is a carbon e-gravel bike with powerful MAHLE X20 rear-wheel drivetrain and electronic SRAM Rival XPLR components. It is also equipped with agile 27.5-inch wheels. The powerful MAHLE e-bike battery, which powers the rear wheel hub motor, disappears into the down tube of the frame. There is an iWOC switch on the top tube with which you can switch the motor on and off and select between the three support levels Eco, Medio and Turbo. You attach the PulsarONE wireless display to the cockpit. Thanks to the 2.1" screen diagonal, operation is extremely simple.

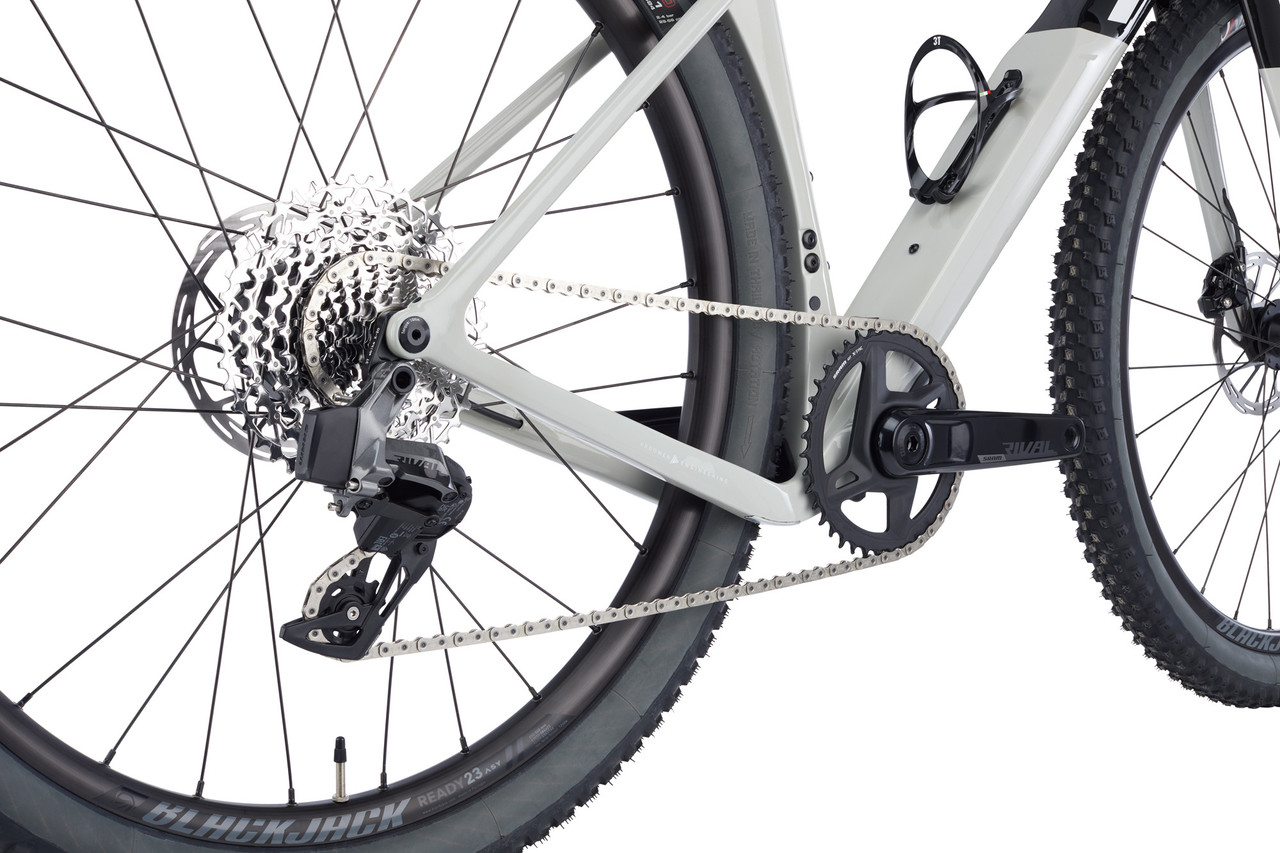

The carbon frame has a particularly slim head tube that nevertheless holds the fork with a sturdy 1.5-inch steerer tube. At the same time, the fork is equipped with a reduced fork crown for better aerodynamics. The lowered chainstays offer space for wide gravel tyres. Like the handlebars, the streamlined Checkpoint Charlie seatpost is made of carbon and is attached with an internal, self-aligning seatpost clamp. For adverse conditions, you will find options for attaching fenders to equip yourself for splashing water or mud if necessary.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of batteries and electrical equipment can be found here.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

Gravel

Wheel Size:

27.5" (650B)

Sizes:

XS, S, M, L, XL

Frame Material:

Carbon

Fork Material:

Carbon

E-Motor:

Type:

Rear-wheel drive

Motor Type:

MAHLE X20

Pedal Assist (max.):

25 km/h

Battery Type:

MAHLE iX250

Capacity:

250 Wh

Display:

PulsarONE

Components:

Frame:

3T Exploro RaceMax Boost

Fork:

3T Fango RaceMax

Stem:

Apto Stealth

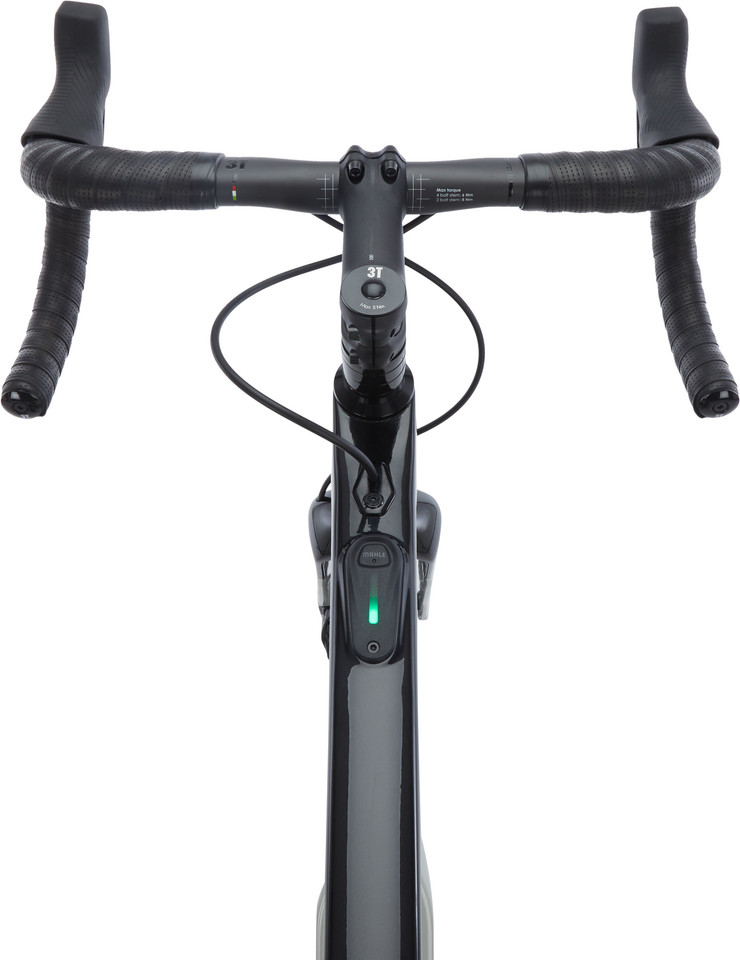

Handlebars:

3T Superergo LTD

Headset:

3T MinMax by Cane Creek IS42/28.6 - IS47/38

Seatpost:

3T Charlie Sqaero Team

Saddle:

Selle Italia Model X Superflow

Crank:

SRAM Rival 1 Wide DUB, 1x12-speed

Pedals:

none

Brakes:

SRAM Rival eTap AXS, Flat Mount, hydraulic

Shift/Brake lever:

SRAM Rival XPLR eTap AXS HRD, 1x12-speed

Rear Derailleur:

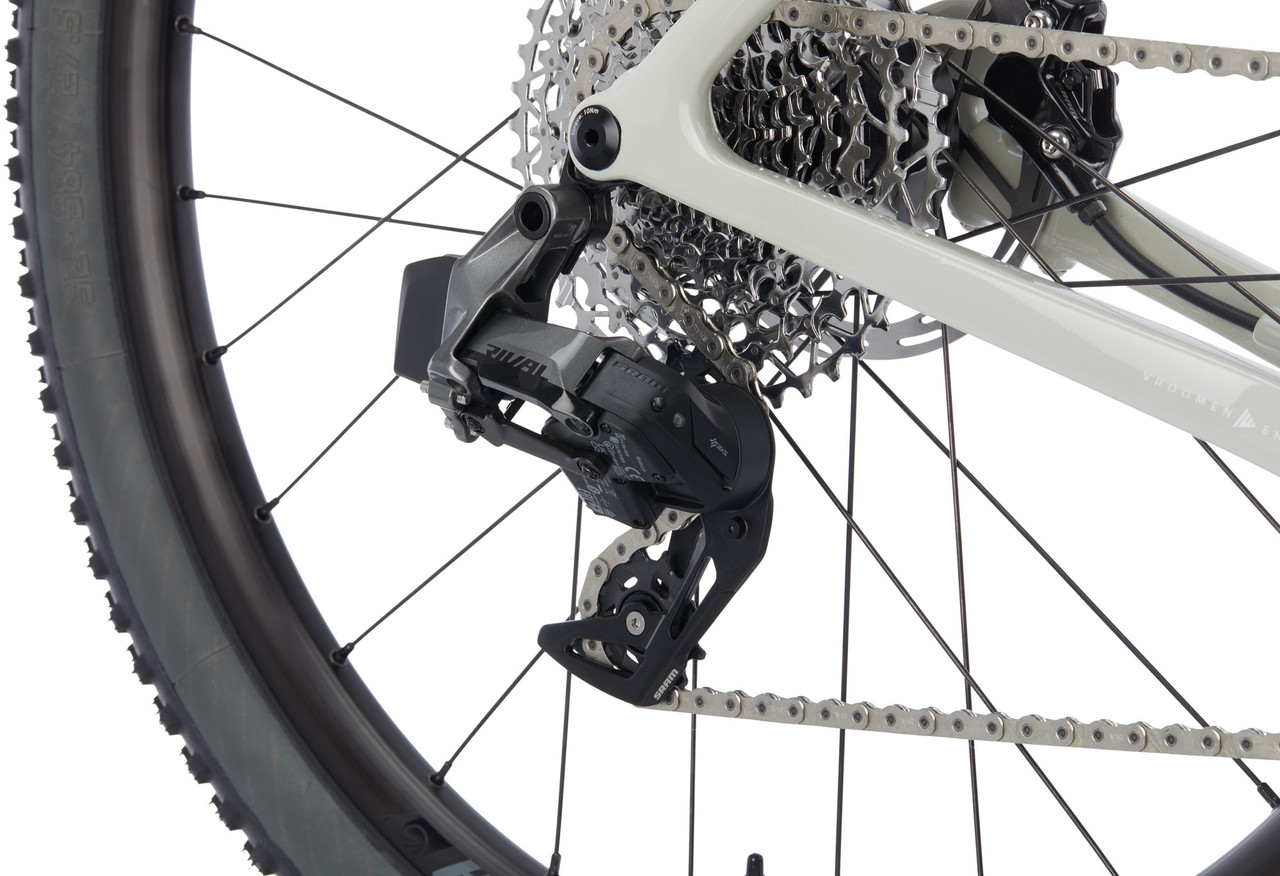

SRAM Rival XPLR eTap AXS, 1x12-speed

Cassette:

SRAM XG-1251, 12-speed, 10-44

Chain:

SRAM Rival 12-speed

Wheels:

Rodi, 650B, aluminium

Tyres:

Vittoria Barzo, 2.1"

Approved For:

Weight Limit:

110 kg (rider weight)

Rotor Size (max.):

160 mm

Features:

• carbon e-gravel bike with powerful MAHLE X20 rear-wheel drive and SRAM Rival XPLR
• 2.1" PulsarONE wireless display for easy operation
• battery concealed in the frame

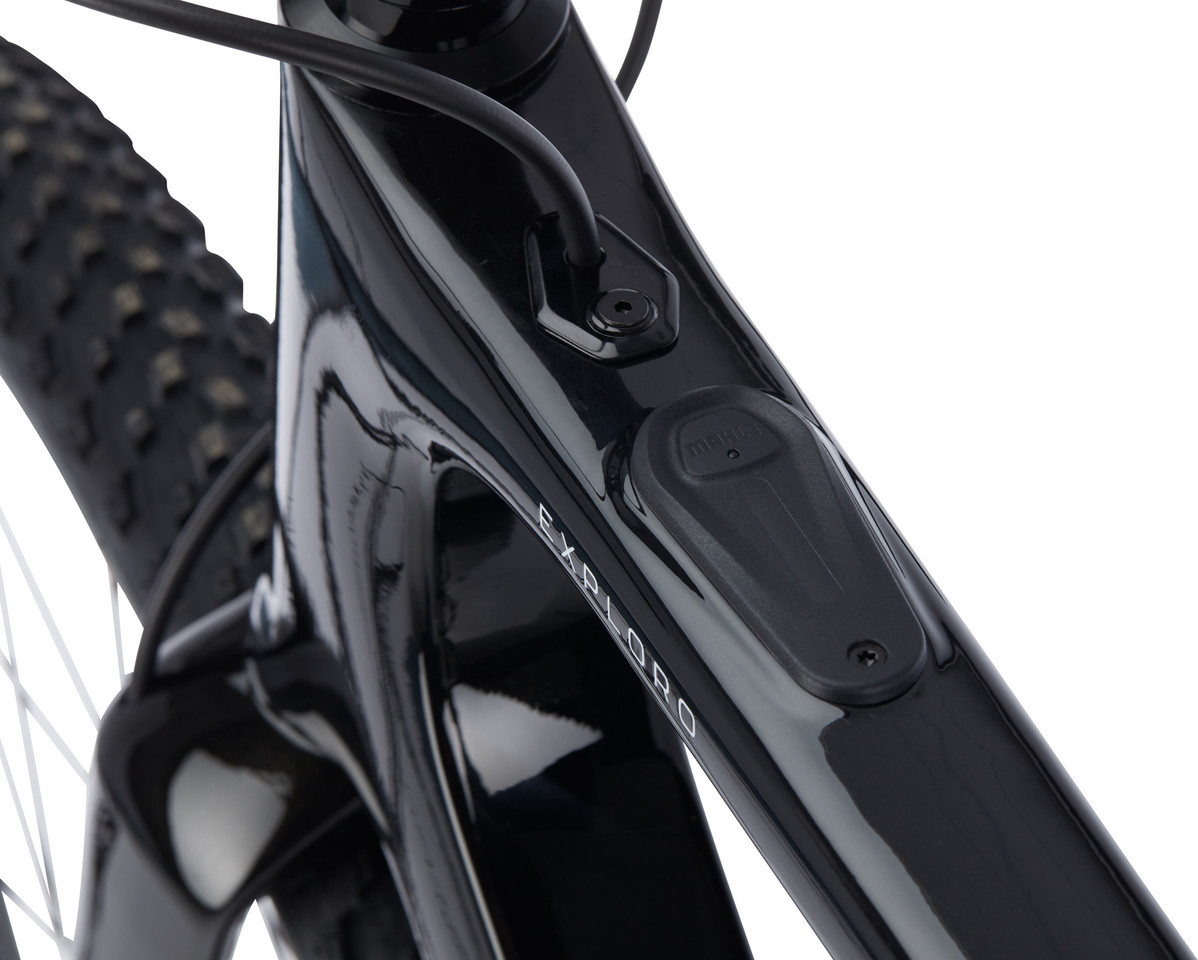

• iWOC switch on the top tube for switching the e-drive on and off and for selecting the speed level
• three support levels: Eco for light support, Medio for medium support, Turbo for maximum support on challenging terrain
• narrow head tube like on road bikes with 1 1/4" fork stems
• large 1.5" fork steerer for more stability
• reduced fork crown for less weight and better aerodynamics
• lowered chainstays for more tyre clearance
• integrated fender mounts

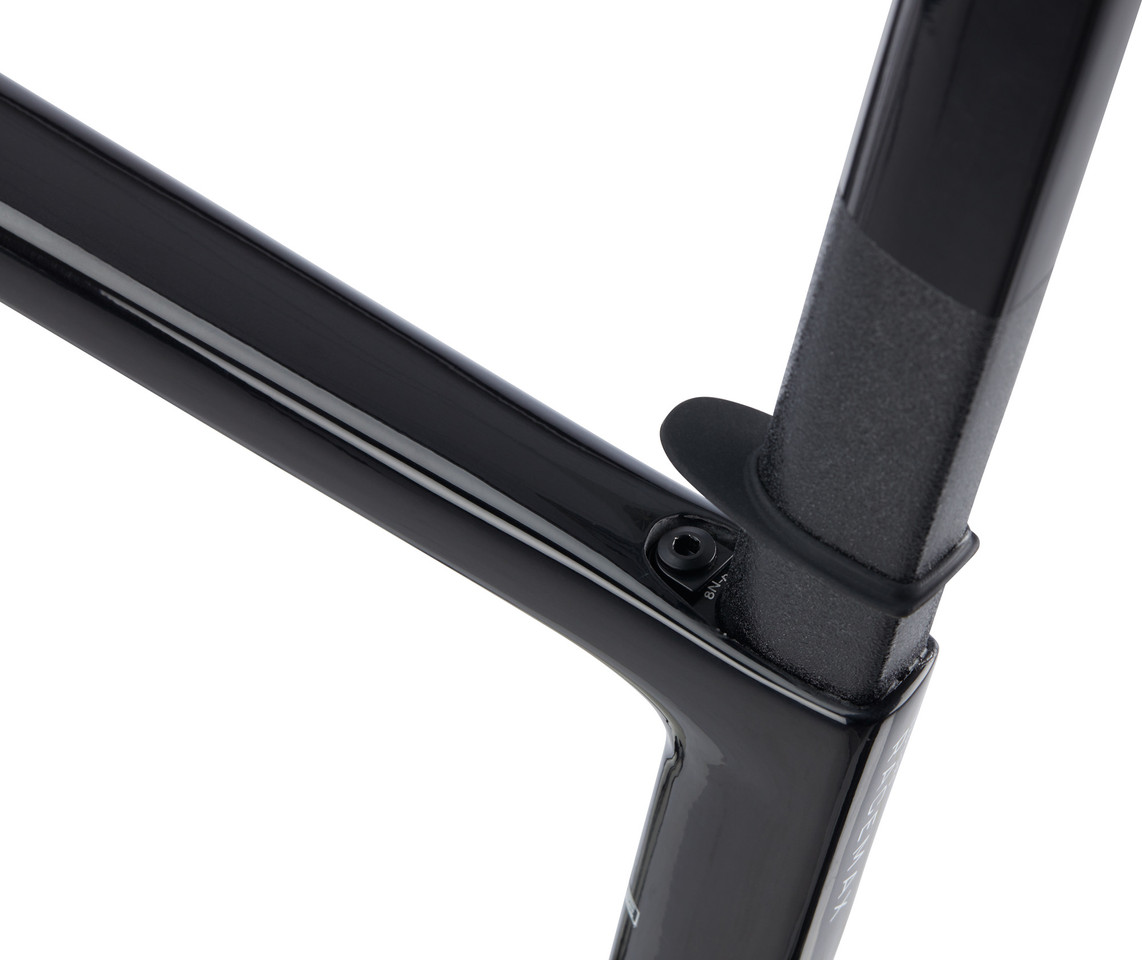

• self-aligning seatpost clamp
• 2021 Winner of the iF Design Award, the Design & Innovation Award and the Red Dot Design Award

Technology:

Checkpoint Charlie
Optimising the length of the seat tube is just as important as every gram of weight on the strenuous climbs that you will ride on your Exploro. However, ensuring safety is significantly more important. If you want to shorten the tube, use the checkpoint on the seat tube to determine whether the minimum inner length has been reached.

Geometry:

XS:

Manufacturer Designation:

51

Recommended Height:

157 - 171 cm

Stack:

542 mm

Reach:

366 mm

Seat Tube Length:

463 mm

Effective Top Tube Length:

526 mm

Head Tube Length:

147 mm

Chainstay Length:

415 mm

Wheelbase:

1008 mm

BB Drop:

79 mm

Seat Tube Angle:

74°

Head Tube Angle:

69.5°

Stem Length:

80 mm

Handlebar Width:

40 cm

Crank Arm Length:

165.0 mm

S:

Manufacturer Designation:

54

Recommended Height:

168 - 180 cm

Stack:

564 mm

Reach:

377 mm

Seat Tube Length:

490 mm

Effective Top Tube Length:

546 mm

Head Tube Length:

161 mm

Chainstay Length:

415 mm

Wheelbase:

1008 mm

BB Drop:

77 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

71°

Stem Length:

90 mm

Handlebar Width:

42 cm

Crank Arm Length:

170.0 mm

M:

Manufacturer Designation:

56

Recommended Height:

176 - 186 cm

Stack:

584 mm

Reach:

385 mm

Seat Tube Length:

518 mm

Effective Top Tube Length:

566 mm

Head Tube Length:

180 mm

Chainstay Length:

415 mm

Wheelbase:

10014 mm

BB Drop:

77 mm

Seat Tube Angle:

73°

Head Tube Angle:

72°

Stem Length:

100 mm

Handlebar Width:

42 cm

Crank Arm Length:

172.5 mm

L:

Manufacturer Designation:

58

Recommended Height:

183 - 195 cm

Stack:

604 mm

Reach:

393 mm

Seat Tube Length:

545 mm

Effective Top Tube Length:

586 mm

Head Tube Length:

201 mm

Chainstay Length:

415 mm

Wheelbase:

1024 mm

BB Drop:

75 mm

Seat Tube Angle:

72.5°

Head Tube Angle:

72°

Stem Length:

110 mm

Handlebar Width:

44 cm

Crank Arm Length:

175.0 mm

XL:

Manufacturer Designation:

61

Recommended Height:

from 192 cm

Stack:

632 mm

Reach:

404 mm

Seat Tube Length:

572 mm

Effective Top Tube Length:

606 mm

Head Tube Length:

232 mm

Chainstay Length:

415 mm

Wheelbase:

10044 mm

BB Drop:

75 mm

Seat Tube Angle:

72.5°

Head Tube Angle:

72°

Stem Length:

120 mm

Handlebar Width:

44 cm

Crank Arm Length:

175.0 mm

Manufacturer Numbers:

XS:

9368CVDJ58L

S:

9368CVDK58L

M:

9368CVDL58L

L 9368CVDM58L

XL:

9368CVDN58L

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x 3T Exploro RaceMax Boost Rival XPLR Carbon 27.5" e-gravel bike
