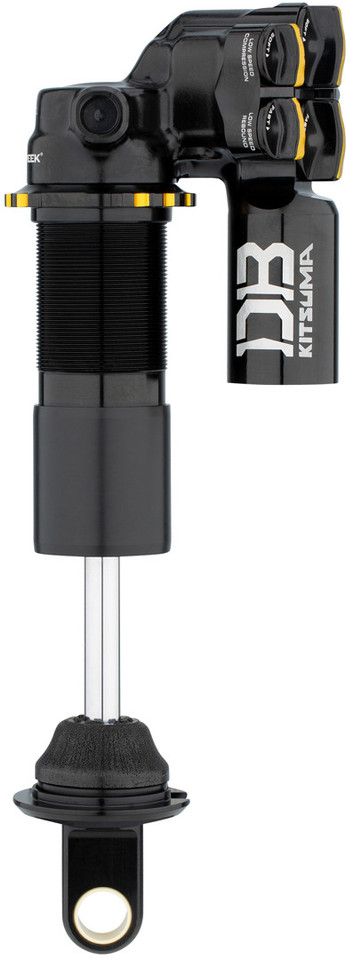

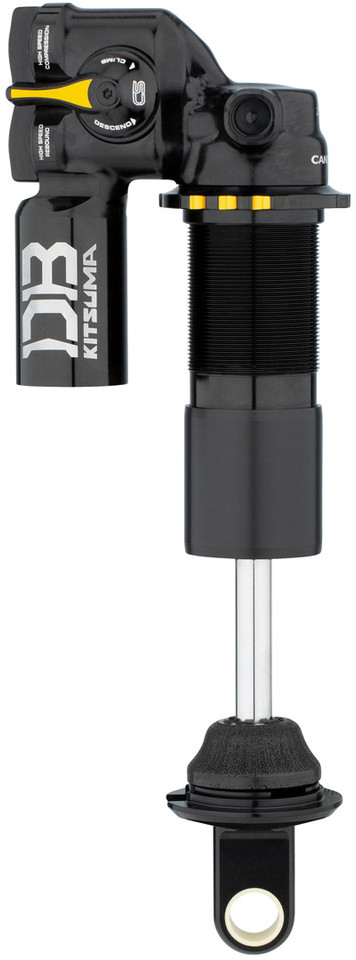

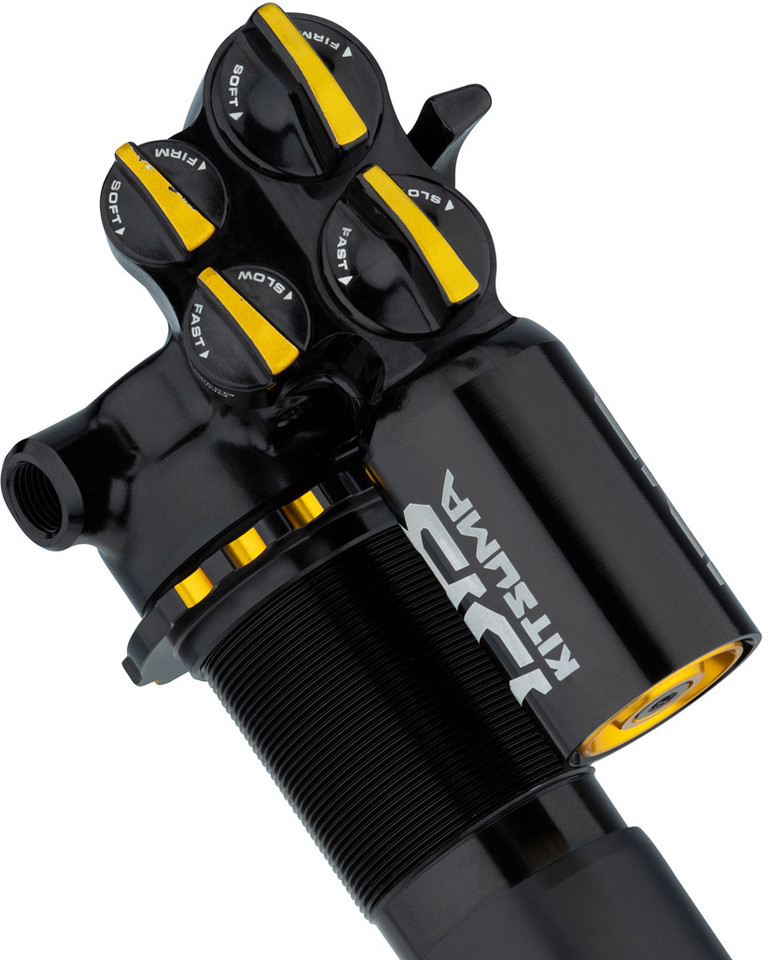

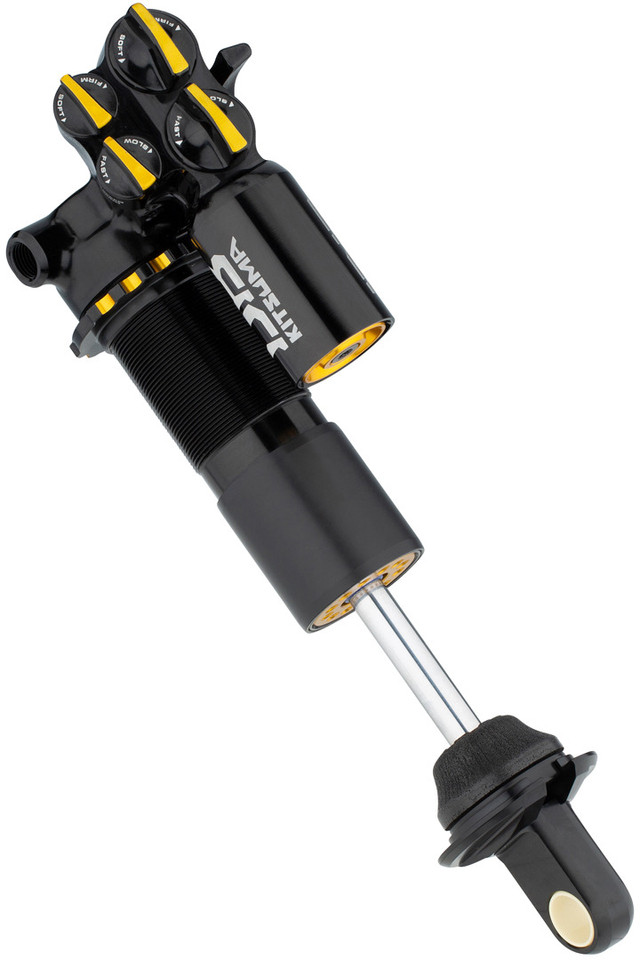

Cane Creek Double Barrel Kitsuma Coil Trunnion Steel Shock

The Double Barrel Kitsuma Coil steel shock with Trunnion mount from Cane Creek offers you maximum performance with an incredibly user-friendly design for intuitive handling. No tools are required to make adjustments. The clear rotary elements are easy to operate and offer the possibility to adjust damping behaviour directly on the trail. A Cane Creek steel coil is required to use the shock.

Specifications:

Application:

All Mountain, Enduro

Suspension Type:

coil spring

Size x Stroke (mm):

185 x 47.5 mm, 185 x 50 mm, 185 x 52.5 mm, 185 x 55 mm, 205 x 57.5 mm, 205 x 60 mm, 205 x 62.5 mm, 205 x 65 mm, 225 x 67.5 mm, 225 x 70 mm, 225 x 72.5 mm, 225 x 75 mm

Rear Shock Mounts:

Trunnion

Technical Information:

Damping System:

Twin Tube

Body Material:

Aluminium

Shaft Material:

Aluminium

Shaft Diameter:

9.5 mm

Adjustment Options:

Compression:

High-Speed (13 positions), Low-Speed (11 positions), Climb Switch (3 positions - Open, Climb, Firm)

Rebound:

High-Speed (13 positions), Low-Speed (11 positions)

Remote:

no

Approved For:

Air Pressure (max.):

20.7 bars

Features:

• adjustment of compression and rebound damping without tools
• readability of settings on turn dials
• switch between three modes thanks to Climb Switch (Open, Climb, Firm)

Manufacturer Numbers:

185 x 47.5 mm: BCD0063
185 x 50 mm: BCD0064
185 x 52.5 mm: BCD0065
185 x 55 mm: BCD0066
205 x 57.5 mm: BCD0067
205 x 60 mm: BCD0068
205 x 62.5 mm: BCD0069
205 x 65 mm: BCD0070
225 x 67.5 mm: BCD0071
225 x 70 mm: BCD0072
225 x 72.5: BCD0073
225 x 75 mm: BCD0074

Contents:

• 1 x Cane Creek Double Barrel Kitsuma Coil Trunnion Steel Shock
