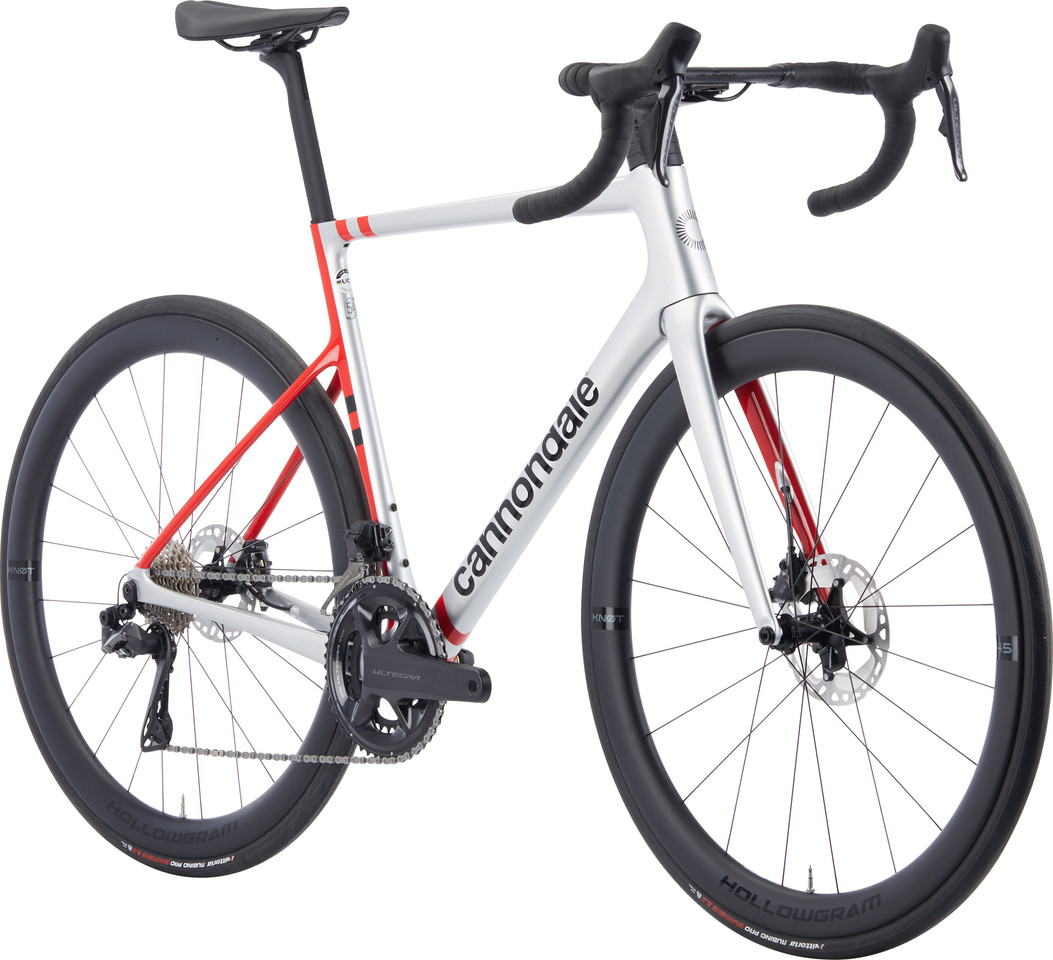

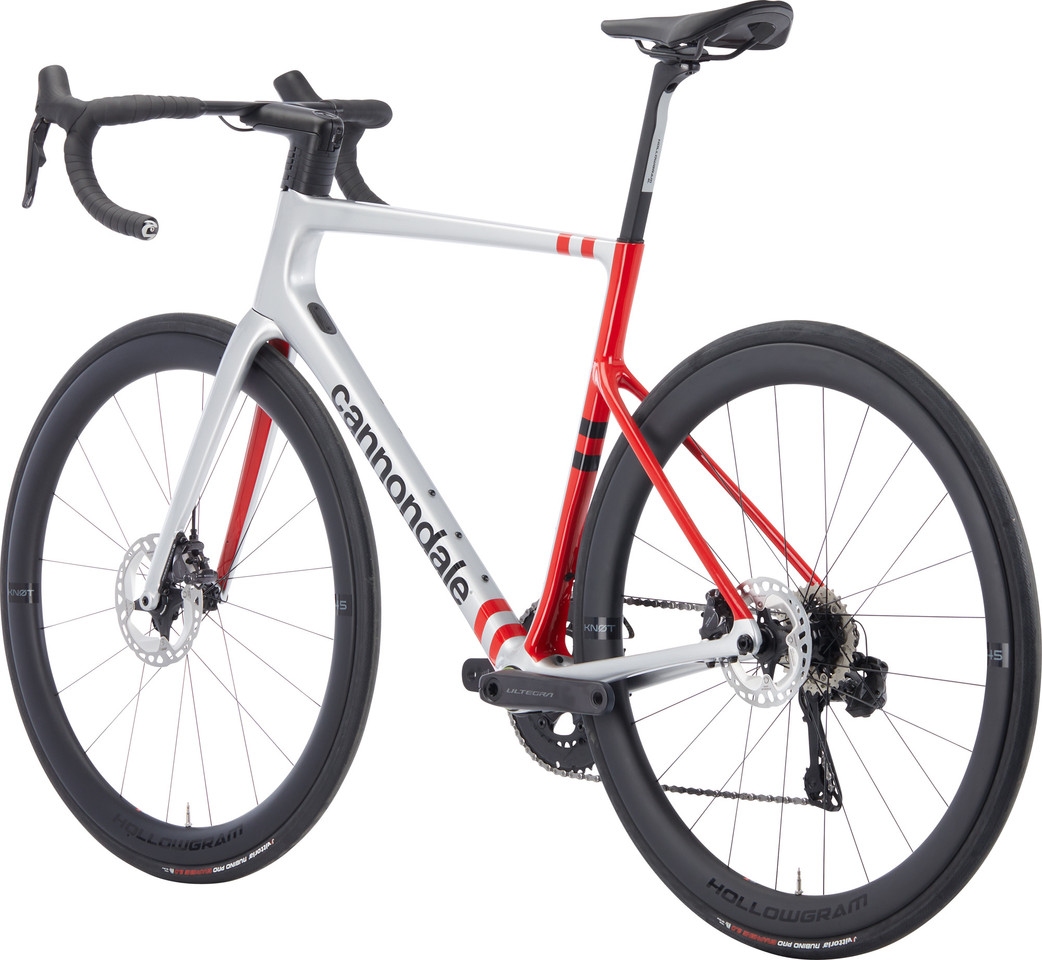

The Cannondale SuperSix EVO Disc Carbon Road Bike with Ultegra Di2 is light and fast

The SuperSix EVO from Cannondale is a lightweight, fast carbon road bike with disc brakes and Shimano Di2 electronic shifting. With an aerodynamically-optimised design, it minimises air resistance and delivers high speeds and efficient propulsion. At the same time, the frame is outstandingly stiff, while SAVE technology and the HollowGram KNØT carbon seatpost increase comfort. The competition-ready geometry ensures agile handling. With smart cable routing through the stem and head tube, cables are almost invisible and yet easy to access for maintenance. The wheel sensor allows you to track your speed right in the Cannondale app.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

Road

Wheel Size:

28"

Sizes:

51 cm, 54 cm, 56 cm, 58 cm, 60 cm, 62 cm

Frame Material:

Carbon

Fork Material:

Carbon

Components:

Frame:

Cannondale SuperSix Carbon, internal cable routing with switchplate, 12 x 142 mm, SAVE, integrated seatpost clamp

Fork:

Cannondale Carbon, SAVE, integrated crown race, 12 x 100 mm, Flat Mount, internal cable routing, 55 mm offset (51 cm, 54 cm), 45 mm offset (56-62 cm)

Stem:

Cannondale HollowGram KNØT, aluminium, with cable cover, -6°

Handlebars:

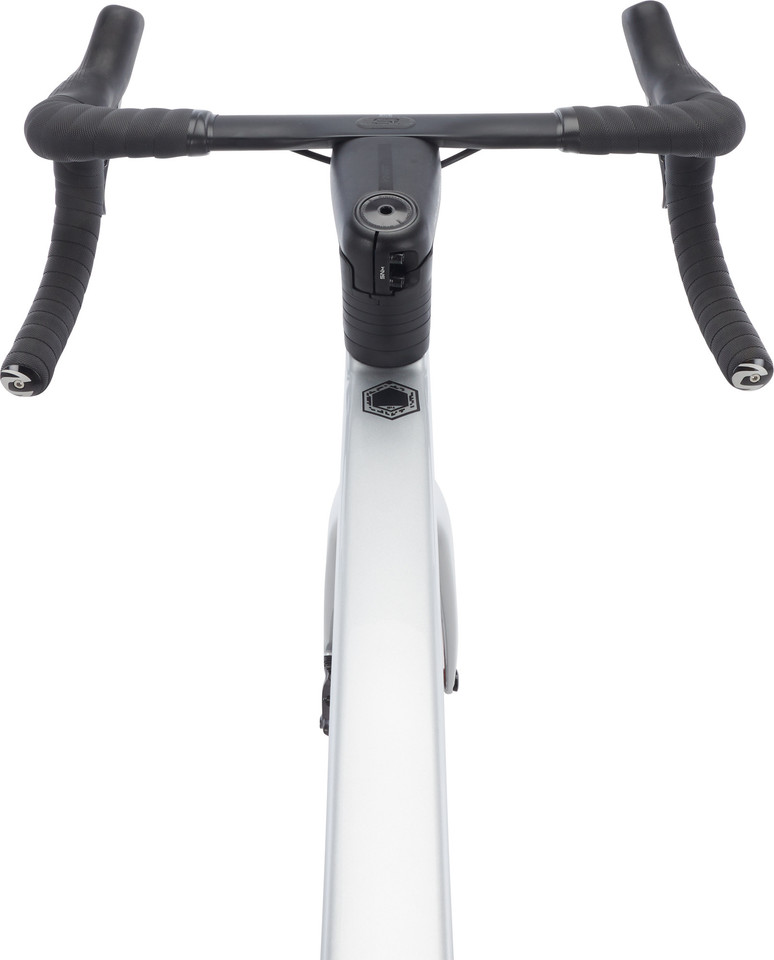

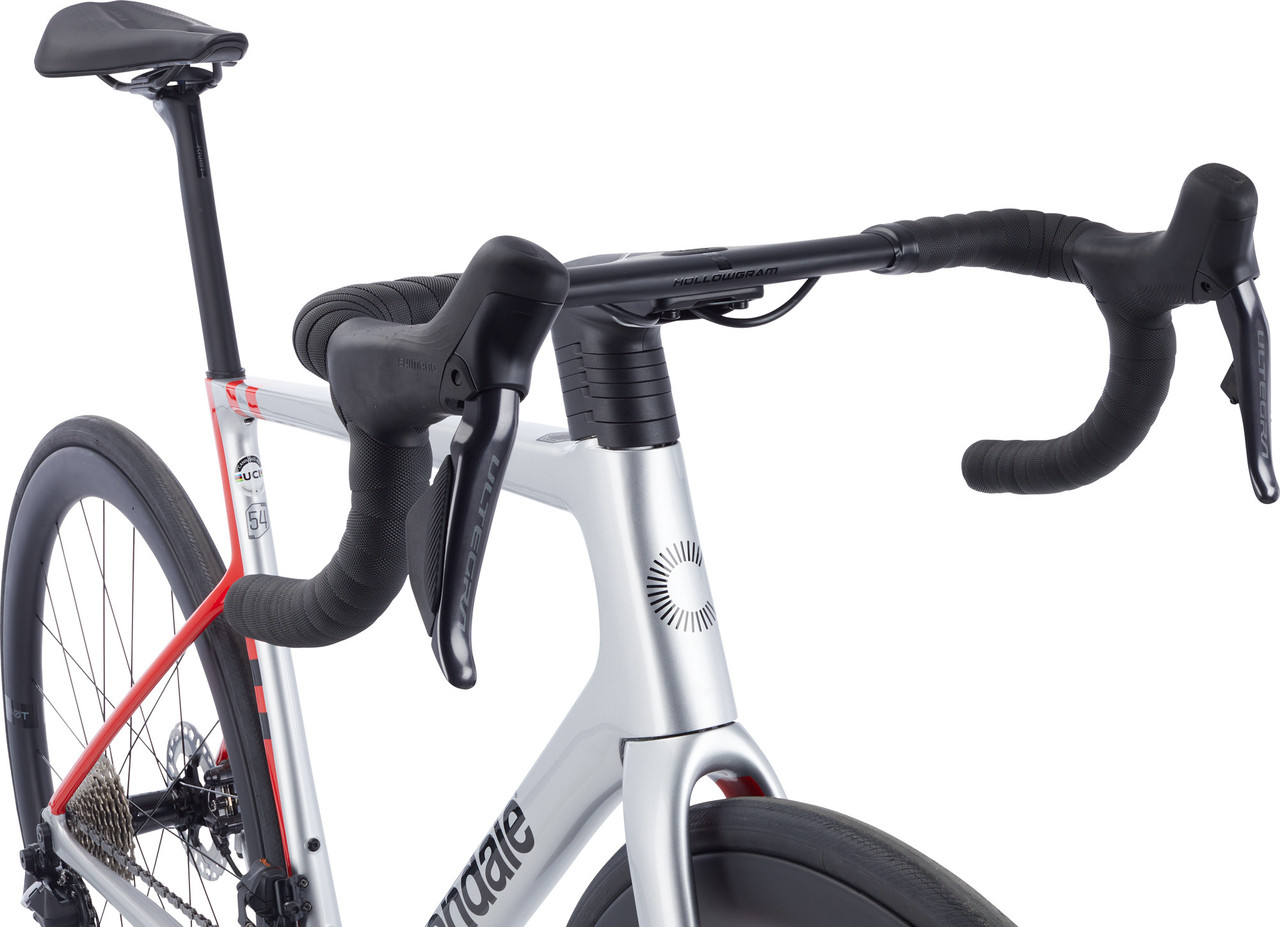

Cannondale HollowGram SAVE SystemBar, Carbon, 8° Pitch Adjust

Headset:

Integrated, 1 1/8" - 1 1/4" (51 cm, 54 cm), 1 1/8" - 1 3/8" (56-62 cm)

Seatpost:

Cannondale HollowGram 27 SL KNØT, carbon, 330 mm, 15 mm setback

Saddle:

Fizik Tempo Argo R5, 150 mm width, S-Alloy rails

Crank:

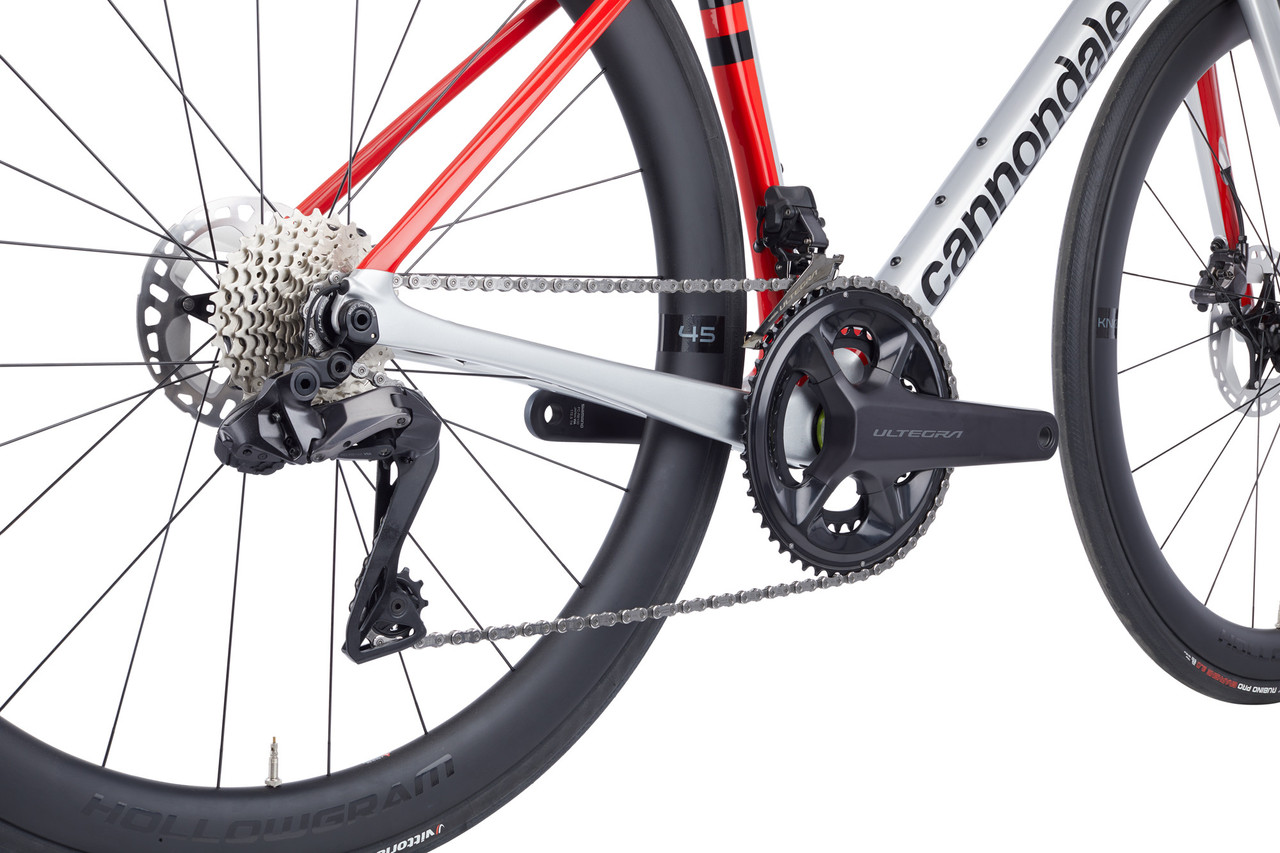

Shimano Ultegra R8100, 34-50 tooth

Pedals:

none

Brakes:

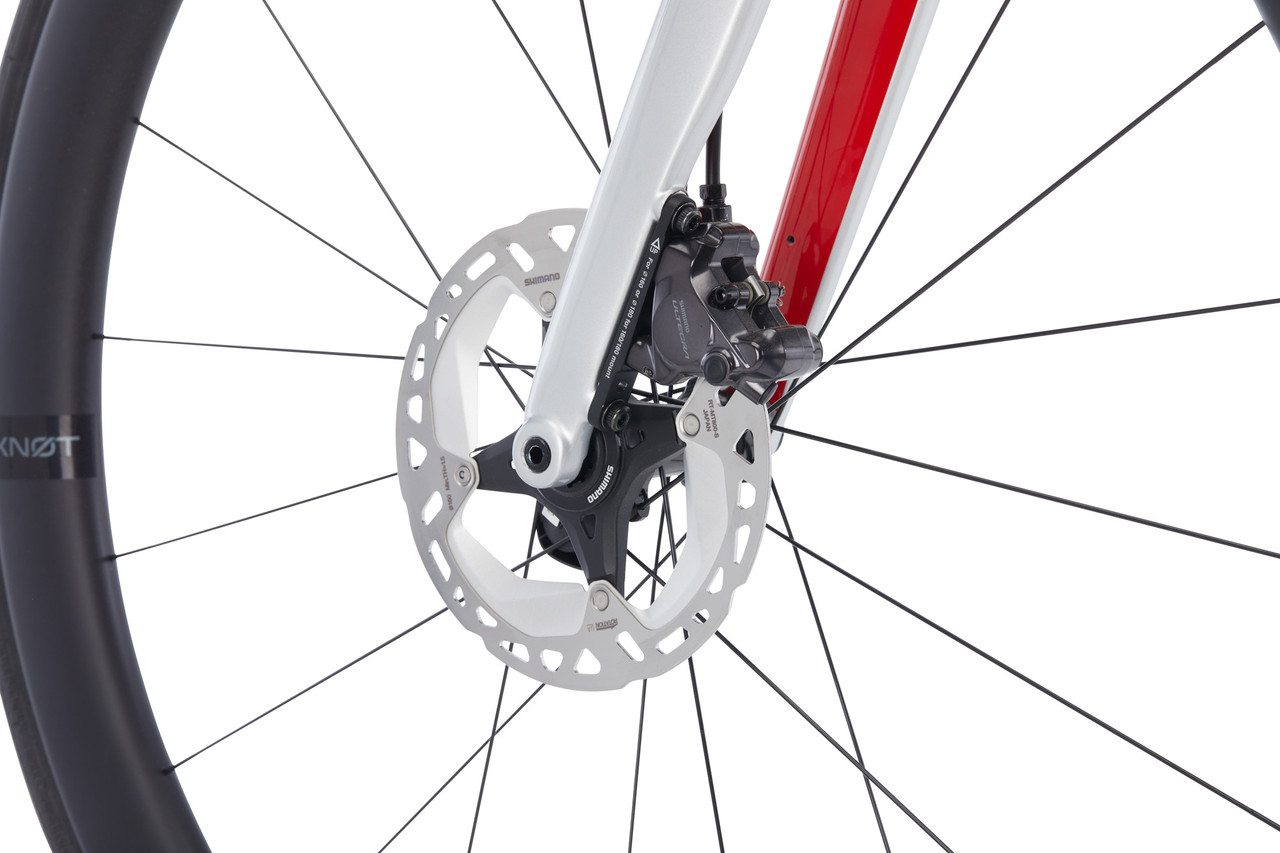

Shimano Ultegra Di2 R8170 hydraulic, MT800 brake rotors, 160 mm (front), 140 mm (rear)

Shift Lever:

Shimano Ultegra Di2 R8170, 2x12-speed

Rear Derailleur:

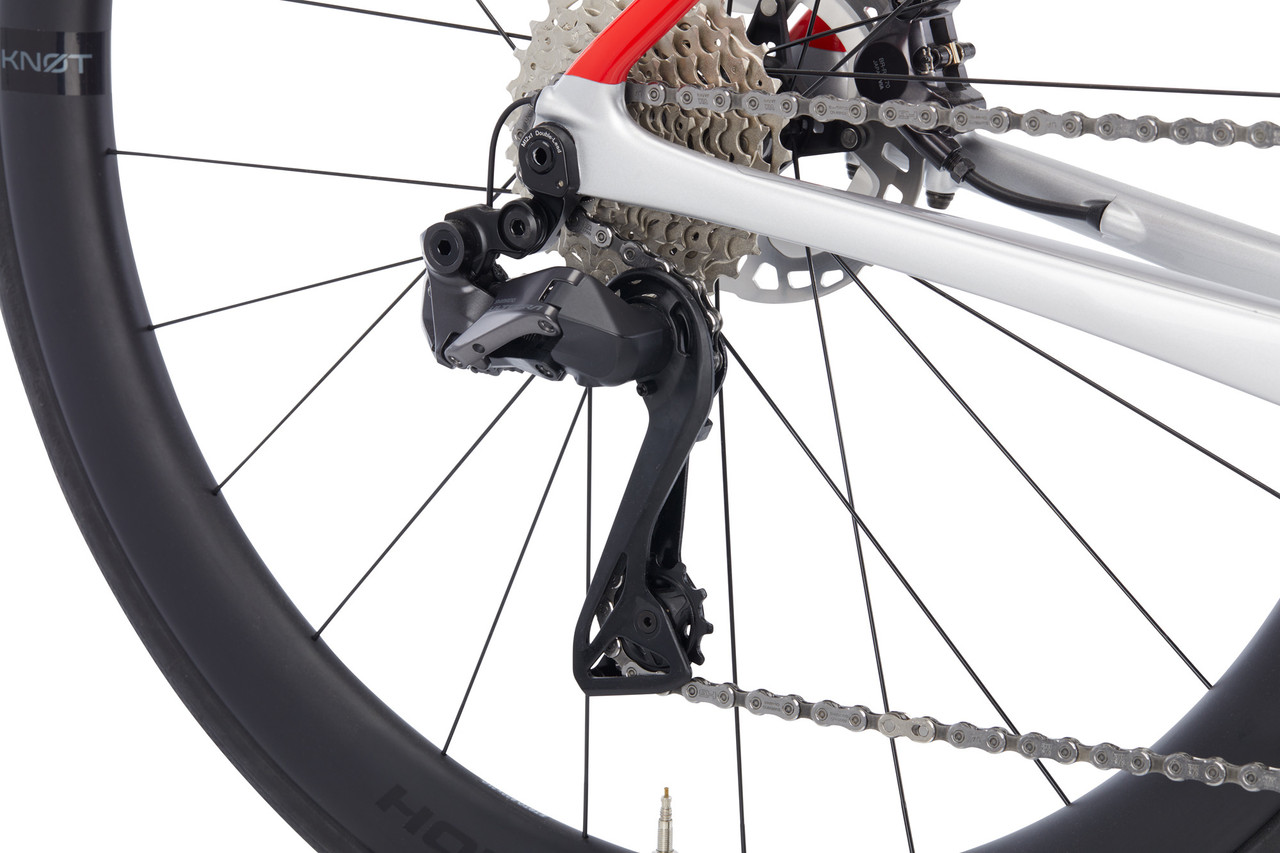

Shimano Ultegra Di2 R8150, 12-speed

Front Derailleur:

Shimano Ultegra Di2 R8150, braze-on, 2-speed

Cassette:

Shimano Ultegra R8100, 11-30 teeth, 12-speed

Chain:

Shimano CN-M8100, 12-speed

Wheels:

Cannondale HollowGram 45 KNØT, carbon, 20 / 24 holes, 45 mm rim height, 21 mm rim width, tubeless ready, with HollowGram KNØT CL hubs

Tyres:

Vittoria Rubino Pro Bright Black, 700 x 25c, reflective stripes

Approved For:

Weight Limit:

129 kg (rider + gear)

Rotor Size (max.):

160 mm

Tyre Size (max.):

30-622

Chainrings:

2x

Features:

• Proportional Response geometry concept: chainstay lengths and frame design are matched to frame size
• aerodynamic design with characteristically wing-shaped tubes
• integrated ANT+/Bluetooth wheel sensor for tracking speed and distance travelled, can be paired with Cannondale app, operates with 1 x CR2032 battery
• flat cockpit with clean look thanks to hidden cable routing, steering stop prevents over-winding or bumping of the handlebars against the frame
• handlebar assembly angle adjustable by 8°
• KNØT seatpost reduces air turbulence
• KNØT wheels with relatively wide rim and aerodynamic profile even with wider tyres
• Speed-Release thru-axle for easy wheel change

Technology:

SAVE
SAVE components have well thought-out flex areas. These are compliant in the exact direction in which they absorb vibrations and thus increase comfort and efficiency for you. Otherwise, they are characterised by high rigidity. These areas can be recognised by their flat tube shapes. Several SAVE areas work together optimally.

Geometry:

51 cm:

Recommended Height:

165 cm - 175 cm

Stack:

534 mm

Reach:

378 mm

Seat Tube Length:

477 mm

Effective Top Tube Length:

528 mm

Head Tube Length:

130 mm

Chainstay Length:

408 mm

Wheelbase:

994 mm

Bottom Bracket Height:

268 mm

BB Drop:

74 mm

Seat Tube Angle:

74.3°

Head Tube Angle:

71.2°

Standover Height:

756 mm

Stem Length:

90 mm

Handlebar Width:

400 mm

Crank Arm Length:

170 mm

54 cm:

Recommended Height:

170 cm - 180 cm

Stack:

554 mm

Reach:

384 mm

Seat Tube Length:

515 mm

Effective Top Tube Length:

546 mm

Head Tube Length:

153 mm

Chainstay Length:

408 mm

Wheelbase:

1008 mm

Bottom Bracket Height:

271 mm

BB Drop:

72 mm

Seat Tube Angle:

73.7°

Head Tube Angle:

71.2°

Standover Height:

788 mm

Stem Length:

100 mm

Handlebar Width:

420 mm

Crank Arm Length:

172.5 mm

56 cm:

Recommended Height:

177 cm - 187 cm

Stack:

574 mm

Reach:

390 mm

Seat Tube Length:

536 mm

Effective Top Tube Length:

562 mm

Head Tube Length:

164 mm

Chainstay Length:

408 mm

Wheelbase:

992 mm

Bottom Bracket Height:

271 mm

BB Drop:

72 mm

Seat Tube Angle:

73.3°

Head Tube Angle:

73°

Standover Height:

808 mm

Stem Length:

100 mm

Handlebar Width:

420 mm

Crank Arm Length:

172.5 mm

58 cm:

Recommended Height:

182 cm - 193 cm

Stack:

594 mm

Reach:

395 mm

Seat Tube Length:

558 mm

Effective Top Tube Length:

578 mm

Head Tube Length:

188 mm

Chainstay Length:

408 mm

Wheelbase:

1005 mm

Bottom Bracket Height:

273 mm

BB Drop:

69 mm

Seat Tube Angle:

72.9°

Head Tube Angle:

73°

Standover Height:

831 mm

Stem Length:

110 mm

Handlebar Width:

440 mm

Crank Arm Length:

175 mm

60 cm:

Recommended Height:

187 cm - 198 cm

Stack:

614 mm

Reach:

400 mm

Seat Tube Length:

579 mm

Effective Top Tube Length:

594 mm

Head Tube Length:

209 mm

Chainstay Length:

408 mm

Wheelbase:

1016 mm

Bottom Bracket Height:

273 mm

BB Drop:

69 mm

Seat Tube Angle:

72.5°

Head Tube Angle:

73°

Standover Height:

850 mm

Stem Length:

110 mm

Handlebar Width:

440 mm

Crank Arm Length:

175 mm

62 cm:

Recommended Height:

195 cm - 205 cm

Stack:

634 mm

Reach:

406 mm

Seat Tube Length:

600 mm

Effective Top Tube Length:

611 mm

Head Tube Length:

230 mm

Chainstay Length:

408 mm

Wheelbase:

1028 mm

Bottom Bracket Height:

273 mm

BB Drop:

69 mm

Seat Tube Angle:

72.1°

Head Tube Angle:

73°

Standover Height:

870 mm

Stem Length:

110 mm

Handlebar Width:

440 mm

Crank Arm Length:

175 mm

Manufacturer Number:

C11331U

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Cannondale SuperSix EVO Carbon Disc Ultegra Di2 Road Bike
• 1 x Cannondale SystemBar Computer and Light Mount
