DT Swiss ARC 1100 Dicut Disc 50 mm WTS TEAM 29" Wheel
Item number: 216888
Product Description

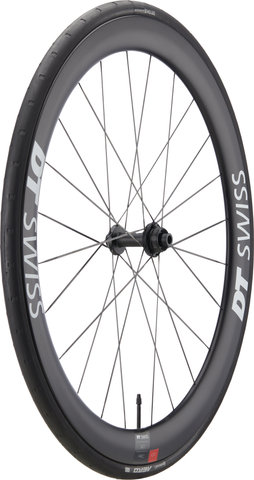

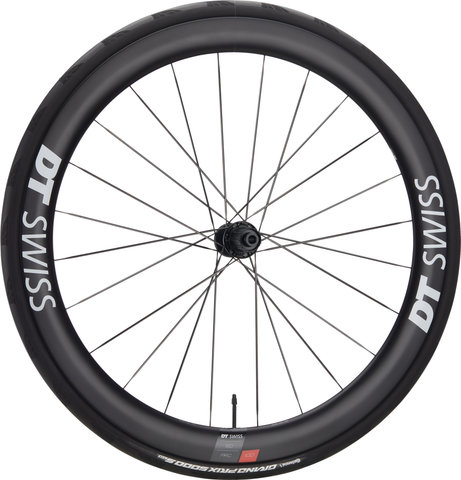

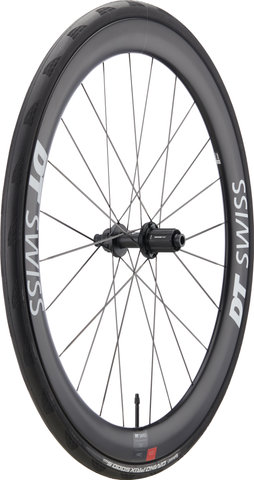

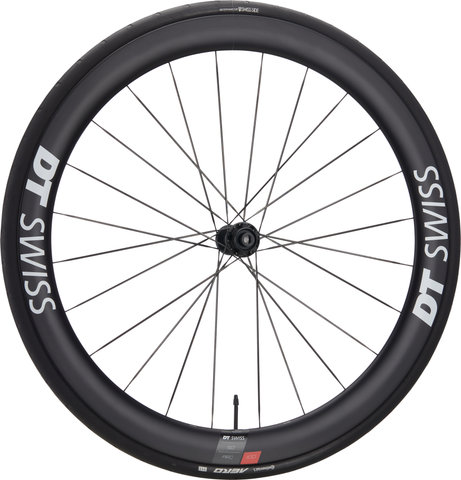

ARC 1100 Dicut Disc 50 mm WTS TEAM 29" Wheel by DT Swiss for Road Cycling
The ARC 1100 Dicut Disc 50 mm WTS TEAM 29" Wheel from DT Swiss is designed for road cycling enthusiasts seeking a reliable and high-performance wheelset. Featuring a carbon rim with a 50 mm height and a 27 mm outer width, this wheel offers an excellent balance of aerodynamics and stability. The tubeless-ready clincher design allows for lower tire pressures and better grip on the road. Both front and rear hubs are equipped with ceramic bearings housed in durable aluminum shells, ensuring smooth and efficient rolling. The rear hub includes a Ratchet EXP 36 freehub body made from aluminum, paired with a 2-cross spoke pattern using DT Aero Comp straight-pull blade spokes and DT Pro Lock aluminum nipples for added stiffness and responsiveness. This wheelset is compatible with disc brakes using the Center Lock system and is e-bike ready for speeds up to 25 km/h. With a valve hole diameter of 6.5 mm for SV valves, it integrates seamlessly with modern road bike setups. Get ready to enhance your ride with this precision-engineered wheelset that combines lightweight construction with robust performance.
The ARC 1100 Dicut Disc 50 mm WTS TEAM 29" Wheel from DT Swiss is designed for road cycling enthusiasts seeking a reliable and high-performance wheelset. Featuring a carbon rim with a 50 mm height and a 27 mm outer width, this wheel offers an excellent balance of aerodynamics and stability. The tubeless-ready clincher design allows for lower tire pressures and better grip on the road. Both front and rear hubs are equipped with ceramic bearings housed in durable aluminum shells, ensuring smooth and efficient rolling. The rear hub includes a Ratchet EXP 36 freehub body made from aluminum, paired with a 2-cross spoke pattern using DT Aero Comp straight-pull blade spokes and DT Pro Lock aluminum nipples for added stiffness and responsiveness. This wheelset is compatible with disc brakes using the Center Lock system and is e-bike ready for speeds up to 25 km/h. With a valve hole diameter of 6.5 mm for SV valves, it integrates seamlessly with modern road bike setups. Get ready to enhance your ride with this precision-engineered wheelset that combines lightweight construction with robust performance.
Guidelines for Replacing E-bike Components:
Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.
Product Specifications:
- Application:
- Road

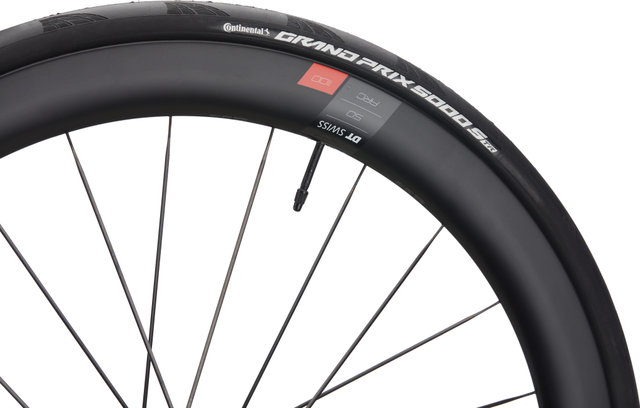

- Rim material:
- Carbon
- Valve hole (diameter):
- SV (6.5 mm)
- Rim height front:
- 50 mm
- Rim height rear:
- 50 mm
- Inner rim width:
- 20 - 20 mm
- Outer rim width:
- 27 - 27 mm
- Tire type:
- Clincher tire/folding tire
- Brake system:
- Disc Center Lock
- Tubeless system:
- Tubeless Ready
- Rim flange:
- With hook
black | Shimano Road | 142 mm | rear wheel only | 29" | rear wheel only | Non Boost:
- Wheel size:
- 29"
- Front Wheel Standard:
- rear wheel only
- Rear Wheel Standard:
- Non Boost
black | front wheel only | front wheel only | 100 mm | 29" | Non Boost | front wheel only:
- Wheel size:
- 29"
- Front Wheel Standard:
- Non Boost
- Rear Wheel Standard:
- front wheel only
Technical Information:

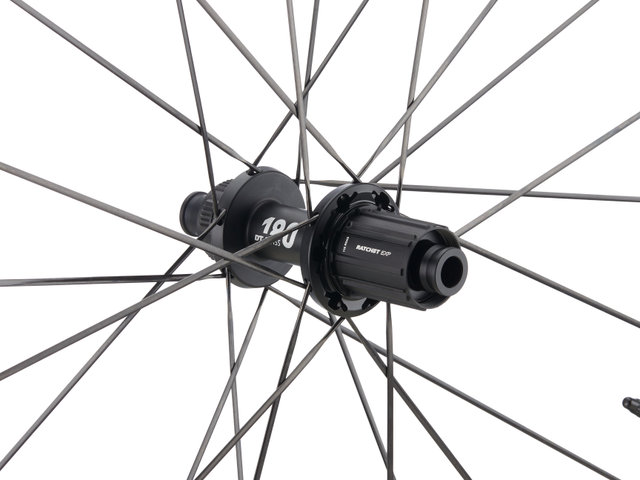

- Freehub type:
- Ratchet EXP 36
- Nipple type/construction:
- DT Pro Lock
- Rear freehub body material:
- Aluminum

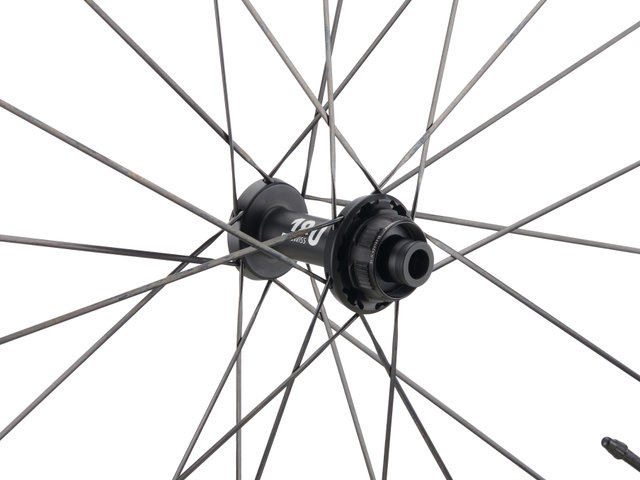

- Front hub bearings:
- Ceramic bearings
- Rear spoke pattern:
- 2-cross
- Front spoke pattern:
- 2-cross
- Nipple size:
- 12 mm (length) / 2 mm (diameter)
- Front hub shell material:
- Aluminum
- Rear hub shell material:
- Aluminum
- Spoke type/construction:
- DT Aero Comp / Straightpull / Blade spoke
- Nipple material:
- Aluminum
- Rear hub bearings:
- Ceramic bearings
- Spoke material:
- Stainless steel
black | Shimano Road | 142 mm | rear wheel only | 29" | rear wheel only | Non Boost:
- Gear steps:
- 8-/9-/10-/11-/12-speed
- Freehub:
- Shimano Road
- Axle diameter rear:
- 12 mm
- Axle diameter front:
- rear wheel only
- Rear installation width:
- 142 mm
- Front installation width:
- rear wheel only
black | front wheel only | front wheel only | 100 mm | 29" | Non Boost | front wheel only:
- Gear steps:
- front wheel only
- Axle diameter rear:
- front wheel only
- Axle diameter front:
- 12 mm
- Rear installation width:
- front wheel only
- Front installation width:
- 100 mm
- Freehub:
- front wheel only
Approved For:
- Weight Limit:
- 110 kg
- System
Product Features:
- High-performance ARC 1100 Dicut Disc 50 mm WTS TEAM 29" wheelset designed for road cycling and e-bikes up to 25 km/h
- Lightweight carbon rims with 50 mm height and 27 mm outer width for optimal aerodynamics and stability
- Durable DT Aero Comp straight-pull stainless steel spokes with aluminum DT Pro Lock nipples for reliable wheel tension
- Smooth-rolling ceramic bearings in aluminum hub shells with Ratchet EXP 36 freehub system for efficient power transfer
- Tubeless Ready clincher design with Center Lock disc brake compatibility for enhanced braking performance and easy maintenance
Manufacturer Number:
- black | Shimano Road | 142 mm | rear wheel only | 29" | rear wheel only | Non Boost: WARC110NIDJCA27970
- black | front wheel only | front wheel only | 100 mm | 29" | Non Boost | front wheel only: WARC110AIDXCA27969
Contents:
- 1 x DT Swiss ARC 1100 Dicut Disc 50 mm WTS TEAM Wheel (front or rear)
- 1 x DT Swiss Tubeless Rim Tape 23 mm

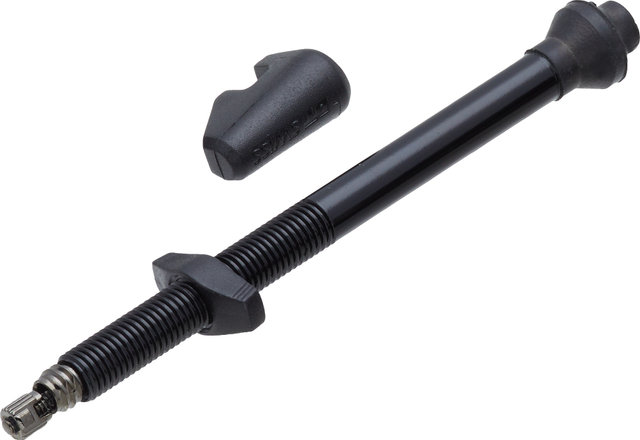

- 1 x DT Swiss Tubeless Valve Aluminum Black 49–65 mm
- 1 x DT Swiss Valve Guard
- 1 x DT Swiss Wheel Bag

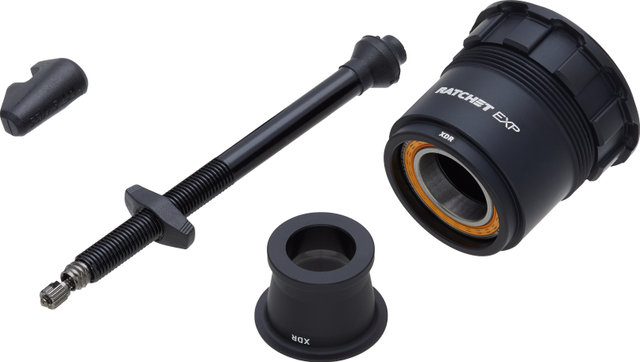

- 1 x DT Swiss SRAM XDR Road Freehub Body Kit (rear only)
Weight:
- black | Shimano Road | 142 mm | rear wheel only | 29" | rear wheel only | Non Boost: 1113 g
- black | front wheel only | front wheel only | 100 mm | 29" | Non Boost | front wheel only: 959 g
Manufacturer:
DT Swiss Deutschland GmbH
Albert-Einstein-Straße 3
59302 Oelde
Germany
info.de@dtswiss.com
Albert-Einstein-Straße 3
59302 Oelde
Germany
info.de@dtswiss.com
