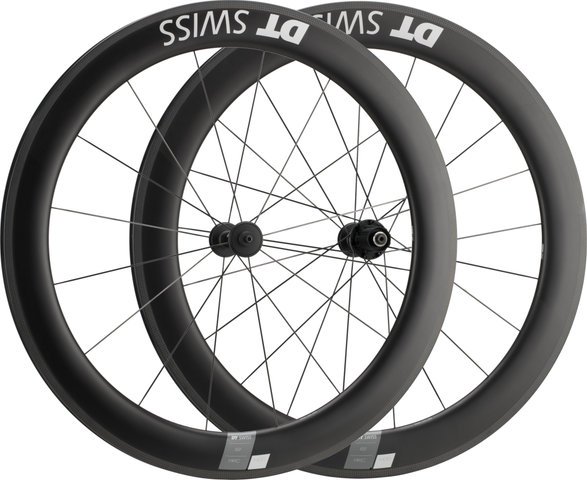

DT Swiss ARC 1400 DICUT 62 Carbon Rim Brake 28" Wheelset

DT Swiss ARC 1400 DICUT 62 Carbon rim brake 28" wheelset - mittaero wheels of medium height

The ARC 1400 DICUT wheelset from DT Swiss is the right choice for your aero or time trial bike with rim brakes. The 62 mm deep DICUT carbon rim has undergone a redesign, generating improved aerodynamics. In addition, wider and more comfortable 25 to 28 mm tyres can also be used on triathlon or time trial bikes. At the same time, the rolling resistance remains low. The 240 hub is connected to the rim with Aero Comp straight pull spokes by means of T-shaped spoke heads, which contributes to the stability. A noticeable sailing effect occurs during crosswinds. The advanced Ratchet-EXP freehub reduces idling at the start, by providing direct power transmission. This way your leg power is converted into propulsion with little loss of power.

Specifications:

Application:

Road, Triathlon & Time Trial

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

16 (front), 21 (rear)

Brake Type:

rim brake

Tubeless System:

Tubeless Ready

Technical Information - Rim:

Rim Flange:

with hook

Dimensions (ETRTO):

17-622

Inner Width:

17 mm

Outer Width:

27 mm

Depth:

62 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

carbon

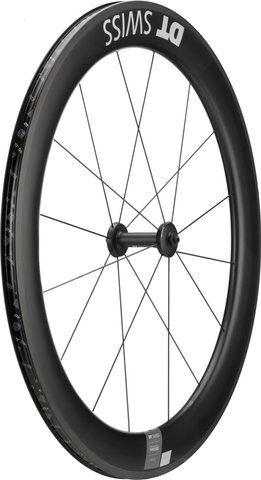

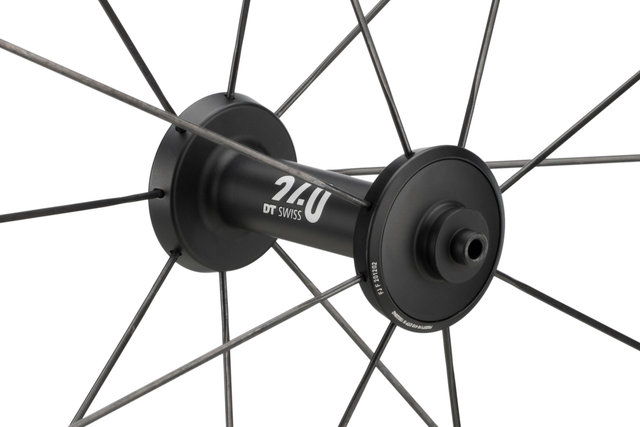

Technical Information - Front Hub:

Type:

240 straight pull

Over Locknut Dimension:

9 x 100 mm quick release

Bearings:

steel bearings

Body Material:

aluminium

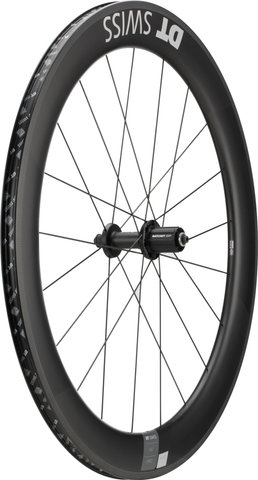

Technical Information - Rear Hub:

Type:

240 straight pull

Over Locknut Dimension:

10 x 130 mm quick release

Bearings:

steel bearings

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

Ratchet EXP 36

Technical Information - Lacing:

Front Lacing Pattern:

radial

Rear Lacing Pattern:

radial (L), 2-cross (R)

Spoke Type:

DT Aero Comp T-Head

Spoke Material:

stainless steel

Nipple Type:

DT Pro Lock Hidden

Nipple Material:

aluminium

Approved For:

Weight Limit:

100 kg (system weight)

Air Pressure (max.):

see user manual (Tire Pressure and Dimension)

Recommended Tyre Width:

see user manual (Tire Pressure and Dimension)

Technology:

Intended use - Category 1
Suitable for predominantly paved surfaces.

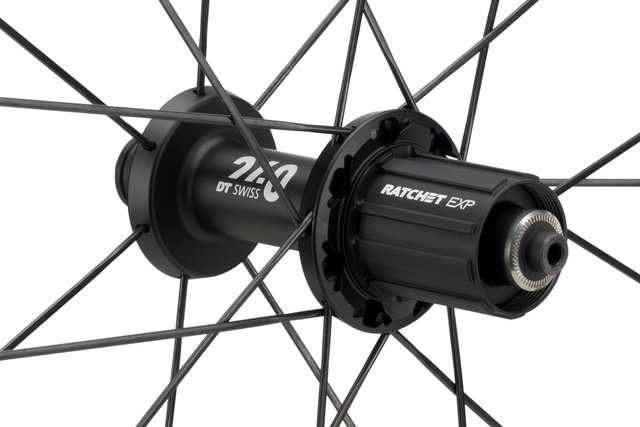

Ratchet EXP
A ratchet and a threaded ring are integrated into the hub. This reduces the number of components required, resulting in less wear and tear and a lower weight. In addition, the heavy-duty and reliable ratchet system can be easily and quickly maintained. The no-tool concept plays a decisive role, as it allows the freehub to be replaced without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

Models:

28" set (front 9x100 + rear 10x130) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.

Manufacturer Numbers:

WARC140AAQXCA19323 + WARC140HRQICA19324

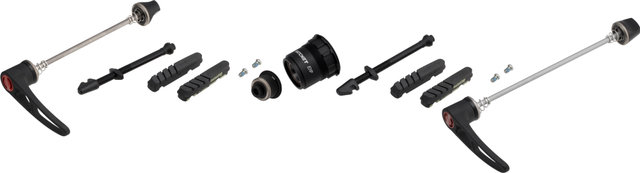

Contents:

• 1 x DT Swiss ARC 1400 DICUT 62 Carbon rim brake wheelset (front wheel and rear wheel)
• 1 x DT Swiss SRAM XDR freehub body
• 2 pair of Swissstop Black Prince rim brake pads
• 2 x DT Swiss tubeless valves
• 2 x rolls DT Swiss tubeless rim tape
