DT Swiss ERC 1100 DICUT 35 Carbon Center Lock Disc 28" Wheelset - black/28" set (front 12x100 + rear 12x142) Shimano

DT Swiss ERC 1100 DICUT 35 Carbon Center Lock Disc 28" Wheelset

Item number: 85025

The ERC 1100 DICUT 35 Carbon Center Lock Disc 28" Wheelset by DT Swiss - For optimum race performance


With the ERC 1100 DICUT 35 high-performance wheelset from DT Swiss you equip your 28" endurance road bike with a lightweight, streamlined chassis. The 35 mm deep carbon rims have 22 mm jaw width and are particularly advantageous in crosswinds. The greatest aerodynamic effect is achieved with 28 mm wide tyres. However, you can easily use the wide range from 25 to 64 mm tyre width. This means that you are prepared for any ground conditions with the ERC 1100 DICUT. The aero-optimised 180 DICUT hub features a smooth 36-tooth ratchet freehub and durable, high-performance SINC ceramic bearings. The stainless steel aero straight pull spokes are particularly durable and, together with the Pro-Lock nipples, result in stiff wheels that move you forward quickly.

Specifications:

Application:
Road
Wheel Size:
28"
Tyre Type:
clincher tyre
Number of Spokes:
24
Brake Type:
Center Lock Disc
Tubeless System:
Tubeless Ready

Technical Information - Rim:

Rim Flange:
with hook
Dimensions (ETRTO):
22-622
Inner Width:
22 mm
Depth:
35 mm
Valve Hole Diameter:
SV/Presta (6.5 mm)
Rim Material:
carbon

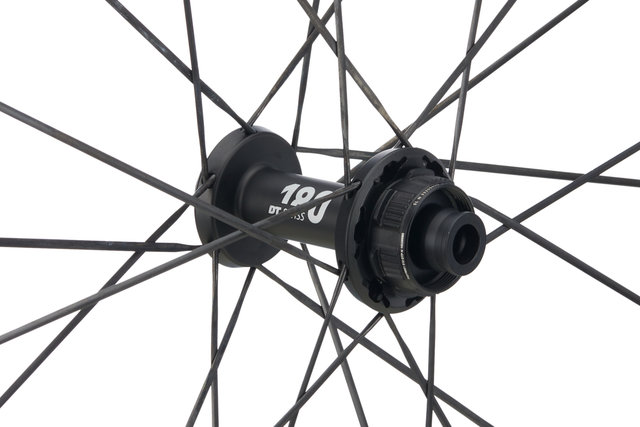

Technical Information - Front Hub:

Type:
180 DICUT Aero
Over Locknut Dimension:
12 x 100 mm thru-axle
Bearings:
Ceramic bearings (SINC)
Body Material:
aluminium

Technical Information - Rear Hub:

Type:
180 DICUT Aero
Over Locknut Dimension:
12 x 142 mm thru-axle
Bearings:
Ceramic bearings (SINC)
Body Material:
aluminium
Freehub Body Material:
aluminium
Freehub Body:
Ratchet EXP 36, 10° pressure angle

Technical Information - Lacing:

Front Lacing Pattern:
2-cross
Rear Lacing Pattern:
2-cross
Spoke Type:
DT Aero Light II / DT Aero Competition II, straight pull, double butted
Spoke Material:
stainless steel
Nipple Type:
DT Pro Lock Hidden
Nipple Material:
aluminium

Approved For:

Weight Limit:
120 kg (system weight)
Air Pressure (max.):
see user manual (Tire Pressure and Dimension)
Recommended Tyre Width:
25 - 64 mm

Technology:

Intended use - Category 2
Suitable for use on predominantly paved and partially unpaved ground with a slight slope and a temporary loss of ground contact as well as drops of up to 15 cm.

SINC
Robust steel bearing rings are combined with ceramic balls. This means that the rolling resistance is low. The rolling resistance is further reduced by the seal on the outside and a protective ring on the inside. Furthermore, the combination of materials prevents corrosion between the ring and balls. This increases the durability of the ball bearings.

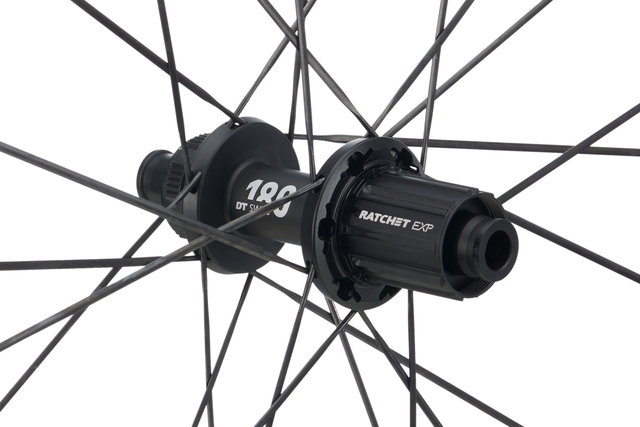

Ratchet EXP
A ratchet and a threaded ring are integrated into the hub. This reduces the number of components required, resulting in less wear and tear and a lower weight. In addition, the heavy-duty and reliable ratchet system can be easily and quickly maintained. The no-tool concept plays a decisive role, as it allows the freehub to be replaced without any tools. The freehub has two ratchets which engage simultaneously. This means that the contact surface is large and the point load is kept small, which relieves the material and allows the freehub to work particularly reliably and precisely.

Pro Lock
The nipple thread is coated with two-component adhesive to increase the durability of the wheels. It can still be re-trued several times without any problems, but the adhesive strength decreases slightly. The connection between the spoke and nipple cannot loosen by itself.

Colour Info:

black:
  • Rims: black with grey decals
  • Hubs: black
  • Spokes: black
  • Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:
Freehub:
Shimano Road
Gearing:
8-/9-/10-/11-/12-speed
Note:
The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.
Manufacturer Numbers:
WERC110AIDXCA18219 (front) + WERC110NIDJCA18220 (rear)

Contents:

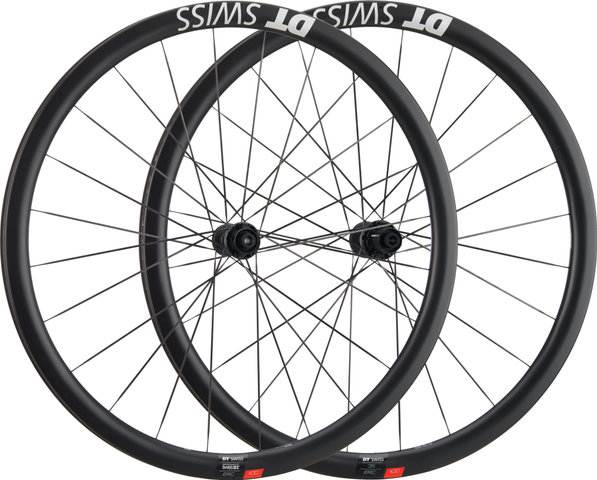

  • 1 x DT Swiss ERC 1100 DICUT 35 Carbon Center Lock Disc 28" wheelset (front and rear wheel)

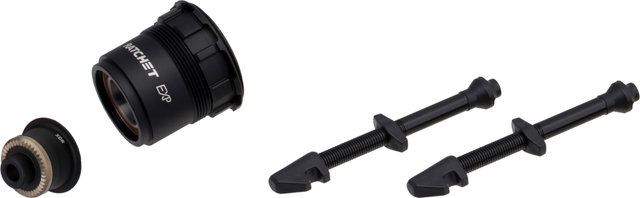

  • 1 x DT Swiss SRAM XDR freehub body
  • 2 x DT Swiss tubeless valves
  • 2 x rolls DT Swiss tubeless rim tape
