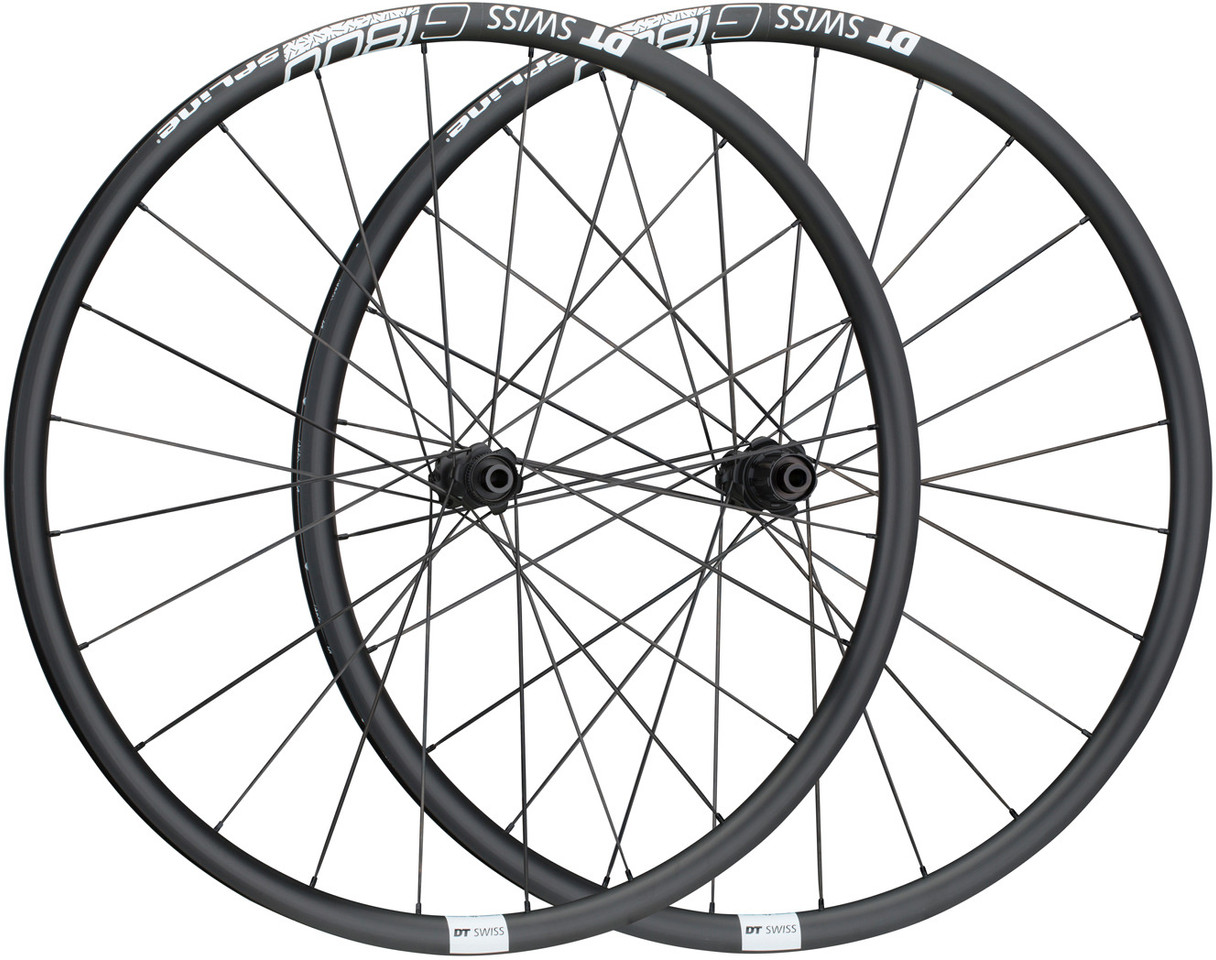

Off the road: the G 1800 Spline wheelset from DT Swiss

Experience adventures off the beaten path with the Gravel G 1800 Spline® DB 25 wheelset from DT Swiss, which brings together all the advantages of the gravel family. Leave the road behind, set out on uncharted paths.

Specifications:

Application:

Gravel

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

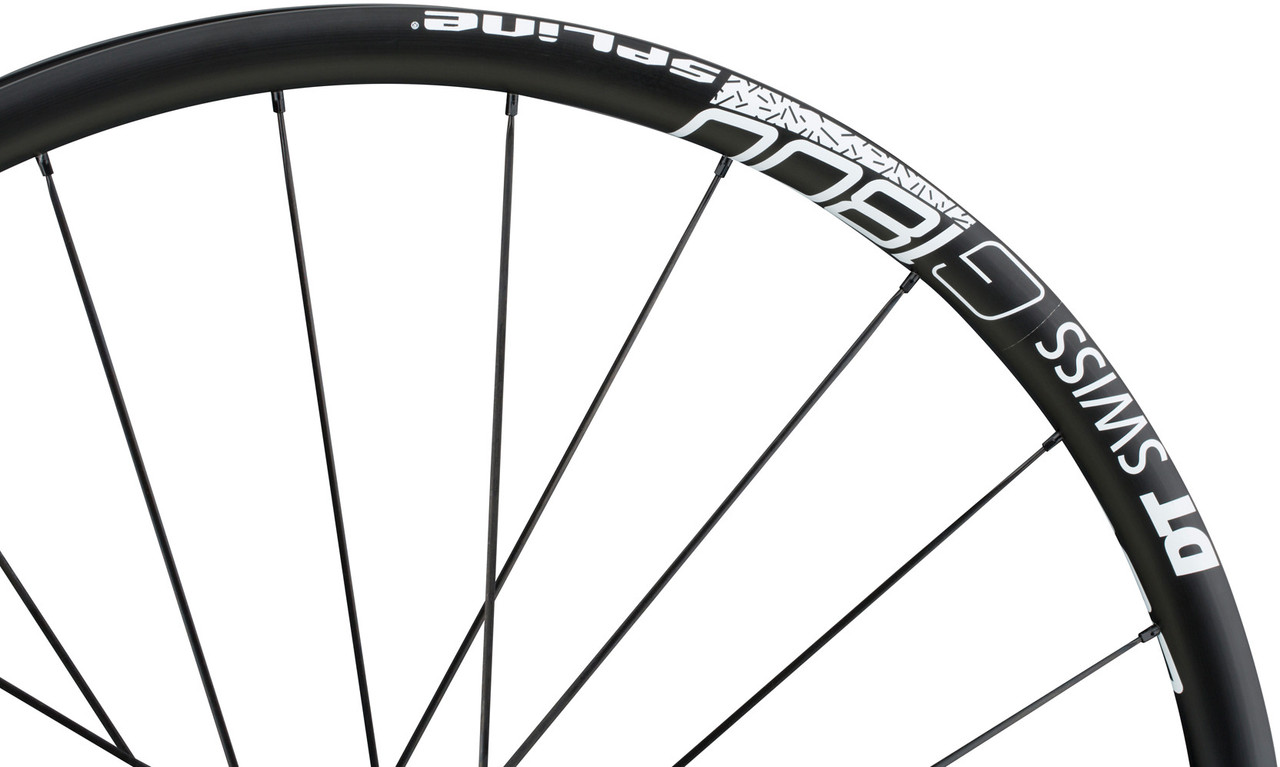

Technical Information - Rim:

Dimensions (ETRTO):

24-622

Inner Width:

24 mm

Outer Width:

28 mm

Depth:

25 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

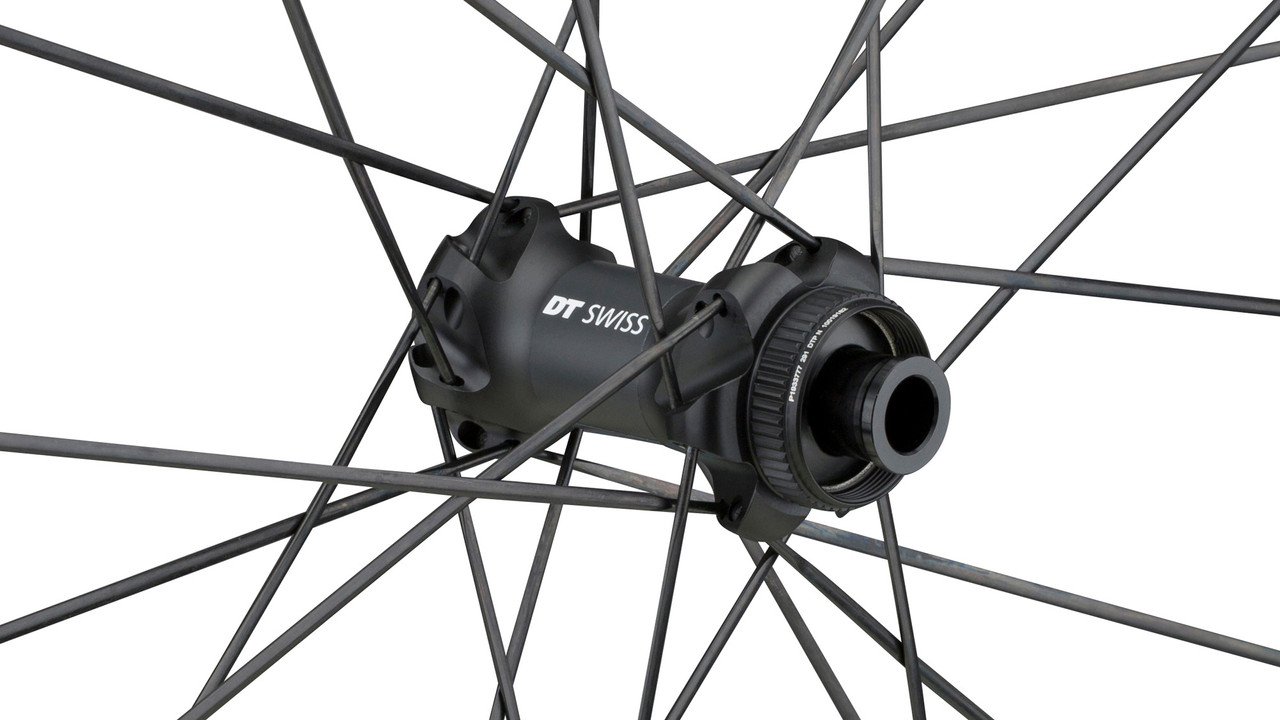

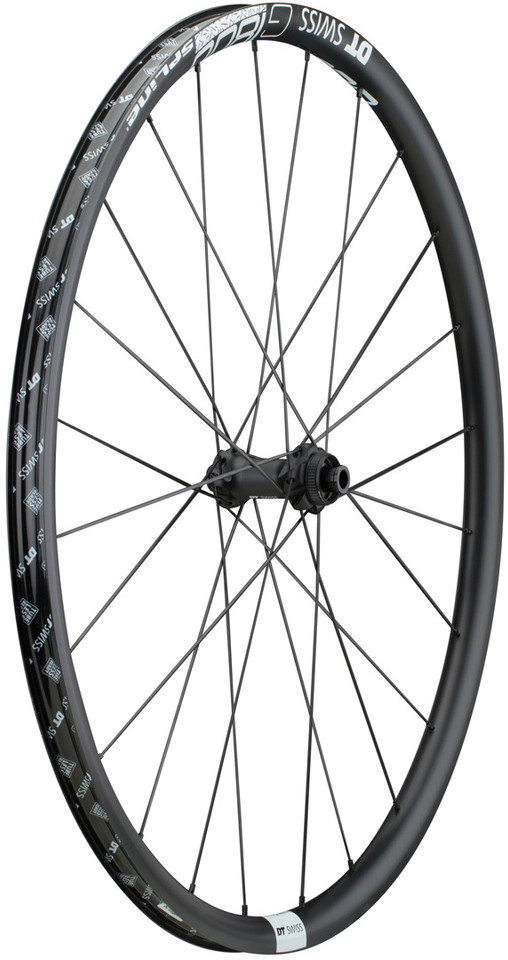

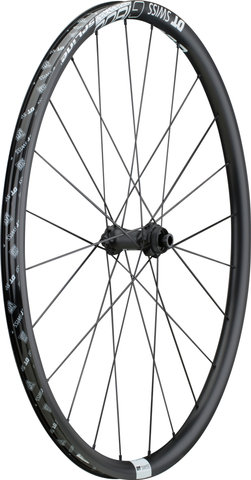

Technical Information - Front Hub:

Type:

370

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

precision bearings, sealed

Body Material:

aluminium

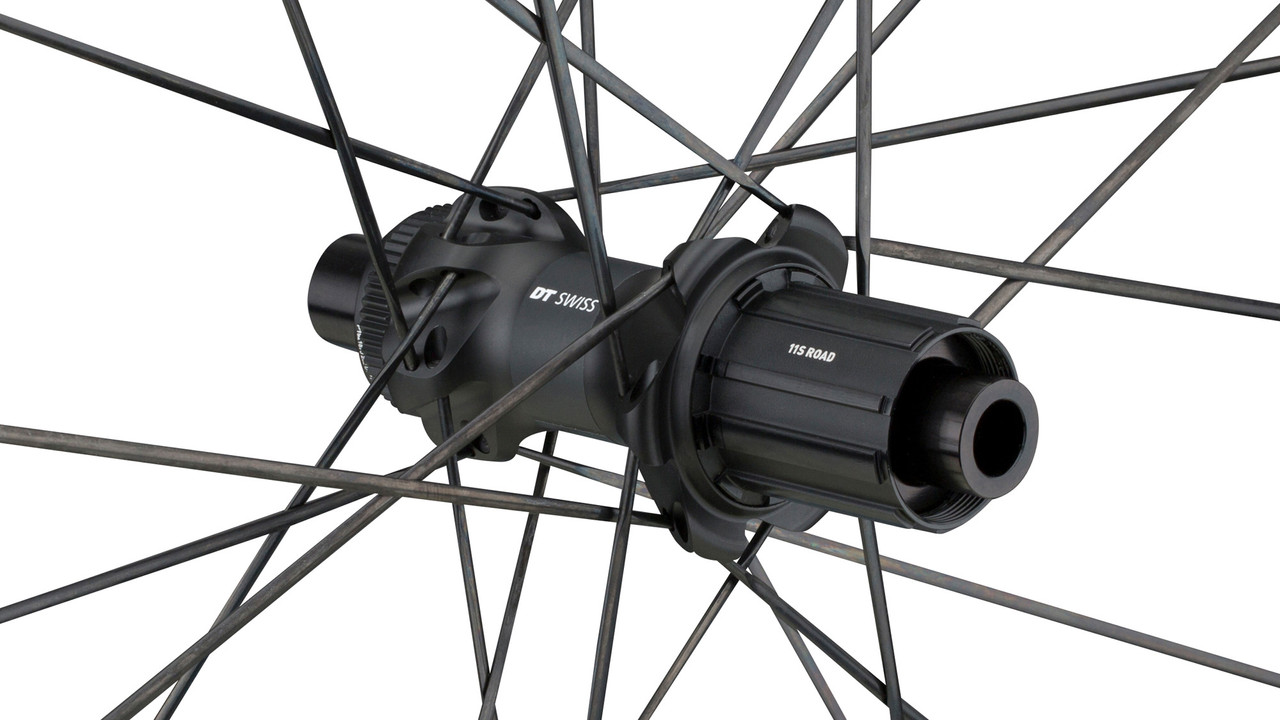

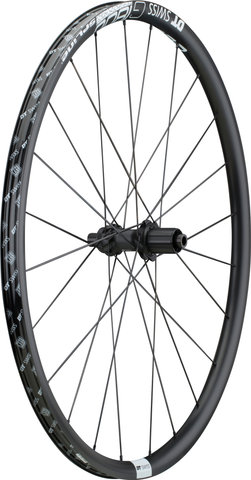

Technical Information - Rear Hub:

Type:

370

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

precision bearings, sealed

Body Material:

aluminium

Freehub Body Material:

aluminium / steel

Freehub Body:

DT Swiss Pawl System®

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

DT Aero Comp Wide, straight pull

Spoke Material:

steel

Nipple Type:

DT Pro Lock Squorx Pro Head®

Nipple Material:

aluminium

Approved For:

Weight Limit:

130 kg (system weight)

Air Pressure (max.):

https://www.dtswiss.com/pmt/00/00/00/00/00/00/00/10/00/00/00/85/8/MAN_WXWXXXXXX1610S_WEB_ZZ_001.pdf

Recommended Tyre Width:

https://www.dtswiss.com/pmt/00/00/00/00/00/00/00/10/00/00/00/85/8/MAN_WXWXXXXXX1610S_WEB_ZZ_001.pdf

Features:

• Adhesive: vinyl hub, Waterslide rim
• 24 mm jaw width

Technology:

SPLINE
The SPLINE line features new and lightweight straight pull hubs with well-known DT Swiss technology, straight spokes as well as stable rims. The combination of reliable and ideally matched components makes every SPLINE wheel the perfect training and competition partner.

DT ProLock Squorx Pro Head
The DT Squorx Pro Head nipple combines ease of assembly and lightweight. With an additional Torx and square drive. The Torx drive provides more contact surface when building wheels, which means that the torque transmitted from the tool to the nipple is better distributed. The spherical contact area in the rim guarantees perfect alignment with the spoke.

Straight Pull
In order to achieve an ideal ratio of weight and stability, many DT Swiss wheels use different forms of straight pull spokes. Straight pull spokes do not need a spoke bend and thus eliminate a weak point. Nevertheless, they can be trued and replaced with standard tools.

Tubeless Ready
Tubeless Ready rims are designed for use with tubeless kits and tyres. They allow a correct fit of the tubeless rim tape (use the appropriate model!) and the tubeless tyre.

Colour Info:

• Rims: black w/ white accents
• Hubs: black
• Spokes: black
• Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:

• Freehub: Shimano Road
• Gearing: 8-/9-/10-/11-speed
• Note: Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.
• Manufacturer Numbers: W0G1800AIDXSA10682 (front) + W0G1800NIDUSA10683 (rear)

Contents:

• 1 x DT Swiss G 1800 Spline DB 25 wheelset (front and rear wheel)
• 2 x tubeless tape, 27 mm
• 2 x DT Swiss road 32 mm tubeless valves
• 1 x SRAM XDR Road freehub body (rear)
