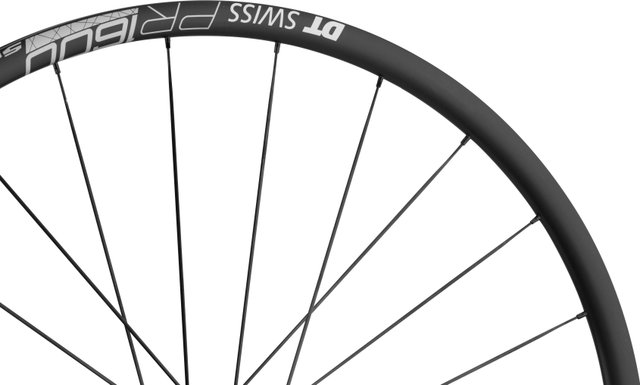

DT Swiss PR 1600 SPLINE® DB 23 Wheel

Specifications:

Application:

Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

disc, Center Lock ( 6-bolt conversion w/ adapter)

Tubeless System:

Tubeless Ready

Freehub Compatibility:

Shimano Freehub:

8/9/10/11-speed Shimano/SRAM (Road)

Note:

To convert to 11-/12-speed SRAM XDR, an XDR freehub body is required.

Note:

9-, 10-, 11-, 12-speed Campagnolo rotor sold separately

Technical Information - Rim:

Dimensions (ETRTO):

18-622

Inner Width:

18 mm

Outer Width:

Depth:

23 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

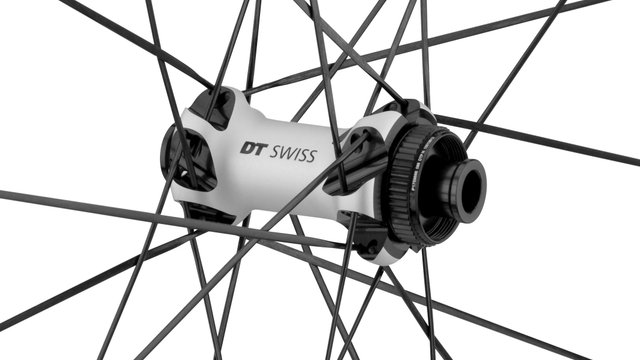

Technical Information - Front Hub:

Type:

DT Swiss 350

Over Locknut Dimension:

12 x 100 mm thru-axle

Body Material:

aluminium

Technical Information - Rear Hub:

Type:

DT Swiss 350

Over Locknut Dimension:

12 x 142 mm thru-axle

Body Material:

aluminium

Freehub Body:

DT Swiss Ratchet System®

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

DT Aero Comp®, DT New Aero / straight pull

Spoke Material:

steel

Nipple Type:

DT Pro Lock

Nipple Material:

aluminium

Approved For:

Weight Limit:

120 kg (system weight)

Air Pressure (max.):

9.0 bars

Recommended Tyre Width:

23 - 60 mm (0.9 - 2.35" )

Technology:

SPLINE®:
The SPLINE® line is characterised by straight pull hubs with famous DT Swiss technology, straight spokes as well as stable rims. The combination of reliable and ideally matched components makes every SPLINE® wheel the perfect training and competition partner.

Manufacturer Numbers:

28" front 12x100:

WPR1600AIDXSA04444

28" rear 12x142 Shimano:

WPR1600NIDMSA04446

Contents:

• 1 x DT Swiss PR 1600 SPLINE® DB 23 wheel (front or rear wheel)
• 1 x DT Swiss 5 mm conversion kits
• 1 x DT Swiss adapters to convert from Center Lock to IS
• 1 x DT Swiss tubeless valve
• incl. DT Swiss rim tape
